JVC GET0114-001A Instructions Manual

Cassette receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

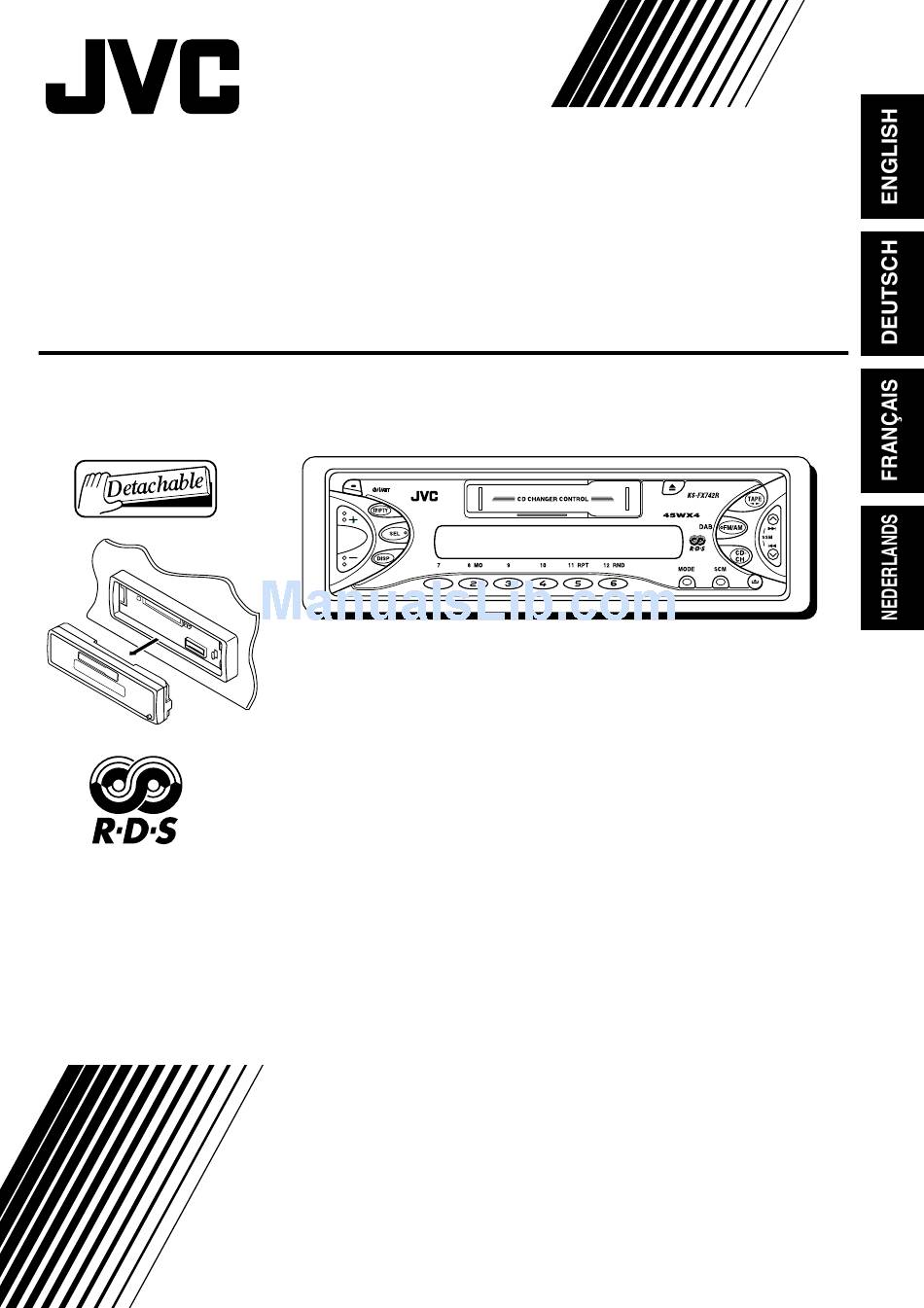

CASSETTE RECEIVER
CASSETTEN-RECEIVER
RADIOCASSETTE
RADIO/CASSETTESPELER
KS-FX742R
For installation and connections, refer to the separate manual.
Für den Einbau und die Anschlüsse siehe das eigenständige Handbuch.
Pour l'installation et les raccordements, se référer au manuel séparé.
Bijzonderheden over de installatie en aansluiting van het apparaat vindt u in de
desbetreffende handleiding.
INSTRUCTIONS
BEDIENUNGSANLEITUNG
MANUEL D'INSTRUCTIONS
GEBRUIKSAANWIJZING
GET0114-001A
[E/EX]

Advertisement

Table of Contents
loading

Related Manuals for JVC GET0114-001A

Summary of Contents for JVC GET0114-001A

  • Page 1 Für den Einbau und die Anschlüsse siehe das eigenständige Handbuch. Pour l’installation et les raccordements, se référer au manuel séparé. Bijzonderheden over de installatie en aansluiting van het apparaat vindt u in de desbetreffende handleiding. INSTRUCTIONS BEDIENUNGSANLEITUNG MANUEL D’INSTRUCTIONS GEBRUIKSAANWIJZING GET0114-001A [E/EX]...

  • Page 2: How To Reset Your Unit

    How to reset your unit While holding SEL (select), press (standby/on/attenuator) for more than 2 seconds. This will reset the built-in microcomputer. (standby/on/attenuator) SEL (select) Note: Your preset adjustments—such as preset channels or sound adjustments—will also be erased. How to use the MODE button ¢...

  • Page 3: Table Of Contents

    Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit. CONTENTS How to reset your unit ... How to use the MODE button ...

  • Page 4: Location Of The Buttons

    AM band indicator s TAPE indicator d MP3 indicator • Lights up only when playing an MP3 disc on a JVC MP3-compatible CD changer. f Main display g RDS indicators AF, REG, TP, PTY h CD-CH (CD changer) indicator...

  • Page 5: Basic Operations

    Turning on the power Turn on the power. Note on One-Touch Operation: When you select a source in step 2 below, the power automatically comes on. You do not have to press this button to turn on the power. Select the source. To operate the tuner (FM or AM), see pages 7 –...

  • Page 6: Setting The Clock

    Setting the clock You can also set the clock system to either 24 hours or 12 hours. Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see page 23.) Set the hour.

  • Page 7: Radio Operations

    Listening to the radio You can use either automatic searching or manual searching to tune in to a particular station. Searching a station automatically: Auto search Select the band (FM1 – 3, AM). Each time you press the button, the band changes as follows: Selected band appears.

  • Page 8: Storing Stations In Memory

    Tune in to a station you want while “M” (manual) is flashing. To tune in to stations of higher frequencies To tune in to stations of lower frequencies • If you release your finger from the button, the manual mode will automatically turns off after 5 seconds.

  • Page 9: Tuning In To A Preset Station

    Manual preset You can preset up to 6 stations in each band (FM1, FM2, FM3, and AM) manually. Ex.: Storing FM station of 88.3 MHz into the preset number 1 of the FM1 band. Select the band (FM1 – 3, AM) you want to store stations into (in this example, FM1).

  • Page 10: Rds Operations

    RDS OPERATIONS What you can do with RDS RDS (Radio Data System) allows FM stations to send an additional signal along with their regular programme signals. For example, the stations send their station names, as well as information about what type of programme they broadcast, such as sports or music, etc.
  • Page 11 Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display. (PSM: see page 23.) Select “AF-REG” (alternative frequency/regionalization reception) if not shown on the display. Select the desired mode—“AF,” “AF REG,”...
  • Page 12 Using PTY Standby Reception PTY Standby Reception allows the unit to switch temporarily to your favorite programme (PTY: Programme Type) from the current source (another FM station, tape, or other connected components). • PTY Standby Reception will not work if you are listening to an AM station.
  • Page 13 Searching your favorite programme You can search any one of the PTY codes. In addition, you can store your 6 favorite programme types in the number buttons. When shipped from the factory, the following 6 programme types have been stored in the number buttons (1 to 6).

  • Page 14: Other Convenient Rds Functions And Adjustments

    To search your favorite programme type Press and hold TP/PTY for more than 2 seconds while listening to an FM station. The last selected PTY code appears. To select one of your favorite programme type To select any one of the twenty-nine PTY codes Ex.: When “ROCK M”...

  • Page 15: Automatic Clock Adjustment

    Changing the display mode while listening to an FM station You can change the initial indication on the display to station name (PS NAME), station frequency (FREQ), or clock time (CLOCK) while listening to an FM RDS station. • See also “Changing the general settings (PSM)”...
  • Page 16 PTY codes NEWS: News AFFAIRS: Topical programmes expanding on current news or affairs INFO: Programmes which impart advice on a wide variety of topics SPORT: Sport events EDUCATE: Educational programmes DRAMA: Radio plays CULTURE: Programmes on national or regional culture SCIENCE: Programmes on natural science and technology...

  • Page 17: Tape Operations

    Listening to a cassette You can play back type I (normal) tapes. Insert a cassette into the cassette compartment. The unit turns on and tape play starts automatically. When one side of the tape reaches its end during play, the other side of the tape automatically starts playing.

  • Page 18: Finding The Beginning Of A Tune

    Finding the beginning of a tune Multi Music Scan allows you to automatically start playback from the beginning of a specified tune. You can specify up to 9 tunes ahead of or before the current tune. During playback Specify where (how many tunes ahead of or before the current tune) the tune you want is located.

  • Page 19: Prohibiting Cassette Ejection

    Playing the current tune repeatedly You can play the current tune repeatedly (Repeat Play). Press MODE to enter the functions mode while playing a tune you want to repeat. Press RPT (repeat), while still in the functions mode, so that the RPT indicator lights up on the display.

  • Page 20: Sound Adjustments

    SOUND ADJUSTMENTS Adjusting the sound You can adjust the sound characteristics to your preference. Select the item you want to adjust. Each time you press the button, the adjustable items change as follows: (bass) (treble) LOUD (volume) (loudness) Indication To do: Adjust the bass.

  • Page 21: Selecting Preset Sound Modes

    Selecting preset sound modes You can select a preset sound adjustment suitable to the music genre. Select the sound mode you want. Each time you press the button, the sound mode changes as follows: SCM OFF BEAT SOFT Ex.: When you select “BEAT” Indication For: Preset values...

  • Page 22: Other Main Functions

    OTHER MAIN FUNCTIONS Changing the general settings (PSM) You can change the items listed on the next page by using the PSM (Preferred Setting Mode) control. Basic Procedure Press and hold SEL (select) for more than 2 seconds so that one of the PSM items appears on the display.
  • Page 23 Preferred Setting Mode (PSM) items Hold... Select... CLOCK H Hour adjustment CLOCK M Minute adjustment 24H/12H 24/12-hour time display AUTO ADJ Automatic clock setting DISPMODE Display mode CH DISP Changer display AF-REG Alternative frequency/ Regionalization reception PTY STBY PTY standby TA VOL Traffic announcement volume...
  • Page 24 To set the changer display— This mode is used to check the display information of the CD changer. When shipped from the factory, “DISC” is selected. • DISC: Disc number and track number appear. • TIME: Elapsed playing time and track number appear.

  • Page 25: Detaching The Control Panel

    Detaching the control panel You can detach the control panel when leaving the car. When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder. Detaching the control panel Before detaching the control panel, be sure to turn off the power.

  • Page 26: Cd Changer Operations

    CD CHANGER OPERATIONS We recommend that you use the JVC MP3- compatible CD changer with your unit. By using this CD changer, you can play back your original CD-Rs (Recordable) and CD-RWs (Rewritable) recorded either in audio CD format or in MP3 format.
  • Page 27 • When the current disc is a CD: Playback starts from the first track of the current disc. Disc number Current track number If you have selected “TIME” for “CH DISP” (see page 24), the display changes as follows: Elapsed playing time Current track number Notes:...

  • Page 28: Selecting The Playback Modes

    Selecting the playback modes To play back tracks/files at random (Disc Random/Magazine Random Play) Press MODE to enter the functions mode during play. Press RND (random), while still in the functions mode, so that “DISC RND” or “MAG RND” appears on the display. Each time you press the button, the random play mode changes as follows:...

  • Page 29: External Component Operations

    EXTERNAL COMPONENT OPERATIONS Playing an external component You can connect the external component to the CD changer jack on the rear using the Line Input Adapter KS-U57 (not supplied). Preparations: • For connecting the Line Input Adapter KS-U57 and the external component, refer to the Installation/ Connection Manual (separate volume).

  • Page 30: Dab Tuner Operations

    DAB TUNER OPERATIONS We recommend that you use DAB (Digital Audio Broadcasting) tuner KT-DB1500 or KT-DB1000 with your unit. If you have another DAB tuner, consult your JVC IN-CAR ENTERTAINMENT dealer. • Refer also to the Instructions supplied with your DAB tuner.
  • Page 31 Start searching for an ensemble. ¢ to search for Press ensembles of higher frequency. Press 4 ensembles of lower frequency. When an ensemble is received, searching stops. To stop searching before an ensemble is received, press the same button you have pressed for searching.

  • Page 32: Storing Dab Services In Memory

    Storing DAB services in memory You can preset up to 6 DAB services in each DAB band (DAB1, DAB2, and DAB3) manually. Before you start... Press FM/AM (DAB) briefly if tape, CD changer, or external component is the current source. Select the DAB tuner.

  • Page 33: Tuning In To A Preset Dab Service

    Repeat the above procedure to store other DAB services into other preset numbers. Notes: • You can only preset primary DAB services. If you store a secondary service, its primary service will be stored instead. • A previously preset DAB service is erased when a new DAB service is stored in the same preset number.

  • Page 34: Troubleshooting

    TROUBLESHOOTING What appears to be trouble is not always serious. Check the following points before calling a service center. Symptoms • Sound cannot be heard from the speakers. • This unit does not work at all. • SSM (Strong-station Sequential Memory) automatic preset does not work.
  • Page 35 Symptoms • “NO CD” appears on the display. • “NO MAG” appears on the display. • “RESET 8” appears on the display. • “RESET 1” – “RESET 7” appears on the display. • The CD changer does not work at all. Causes No disc is in the magazine.

  • Page 36: Maintenance

    MAINTENANCE This unit requires very little attention, but you will be able to extend the life of the unit if you follow the instructions below. To clean the head • Clean the heads after every 10 hours of use using a wet-type head cleaning tape (available at an audio store).

  • Page 37: Specifications

    AUDIO AMPLIFIER SECTION Maximum Power Output: Front: 45 W per channel Rear: 45 W per channel Continuous Power Output (RMS): 17 W per channel into 4 Ω, 40 Hz Front: to 20 000 Hz at no more than 0.8% total harmonic distortion. 17 W per channel into 4 Ω, 40 Hz Rear: to 20 000 Hz at no more than...
  • Page 38 Having TROUBLE with operation? Please reset your unit Refer to page of How to reset your unit Haben Sie PROBLEME mit dem Betrieb? Bitte setzen Sie Ihr Gerät zurück Siehe Seite Zurücksetzen des Geräts Vous avez des PROBLÈMES de fonctionnement? Réinitialisez votre appareil Référez-vous à...

  • Page 39: Problemen Oplossen

    Neem bij vragen of voor meer bijzonderheden over inbouwpakketten contact op met uw JVC car audio dealer of een dealer of een bedrijf dat inbouwpakketten levert. (déblocage Voordat u aan de montage van het apparaat...
  • Page 40 Als het geluid niet verdwijnt, moet u contact opnemen met uw JVC car audio dealer. • Het maximum ingangsvermogen van de speakers moet achterin meer dan 45 W zijn en voorin 45 W, met een impedantie van 4 Ω...
  • Page 41 Sicherungsposition versetzen, die rote Leitung (A7) an der (+) Batterieanschlußklemme anschließen. • Die gelbe Leitung (A4) wird in diesem Fall nicht verwendet. We recommend you to connect the JVC JVC CD changer/DAB tuner or another MP3-compatible CD changer. You can external component...
  • Page 42 CD changer and DAB tuner / CD-Wechsler und DAB-Tuner / Changeur CD et tuner DAB / CD-wisselaar en DAB-tuner You can connect a JVC CD changer and/or a JVC Sie können einen CD-Wechsler und/oder einen DAB- DAB (Digital Audio Broadcasting) tuner.
