Summary of Contents for Summit SFC-500 SERIES
-
Page 1: Installation Instructions

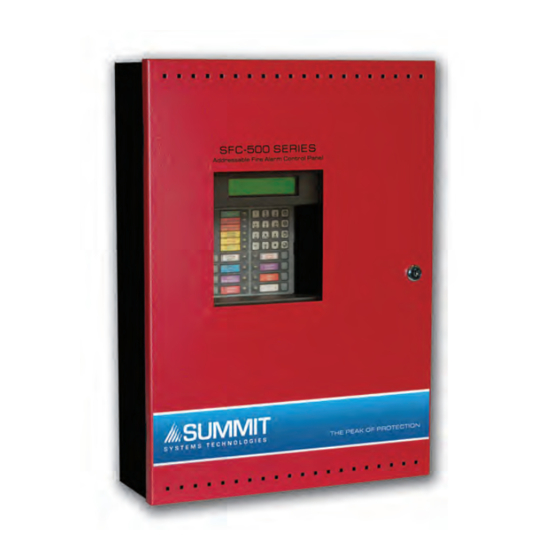

SFC-500 SERIES FIRE ALARM PANEL INSTALLATION INSTRUCTIONS LT-959SUM Rev 2.1 March 2012... -
Page 3: Table Of Contents
SFC-500 Series Installation and Operation Manual Table of Contents Industry Canada and FCC Notice ................... 1 Notice for all SFC-500 Series Built-in UDACTs Sold in the U.S.A........1 Introduction ..........................2 Features..........................2 Conventions ..........................3 Circuits ..........................3 Zone/Group........................... 3 Display Points ........................ - Page 4 Table of Contents Output Types........................36 Evacuation Codes ........................ 37 Remote Annunciators Operation ................... 40 Dialer Operation ........................41 Appendix A: Compatible Receivers..................41 Appendix B: Reporting ......................42 Ademco Contact-ID ......................42 Security Industries Association SIA-DCS ................43 Appendix C: Specifications....................44 Appendix D: Power Supply and Battery Calculations ............
- Page 5 SFC-500 Series Installation and Operation Manual List of Figures Figure 1: Wallbox Dimensions / Mounting the SFC-500 - Surface..........9 Figure 2: Mounting the SFC-500 - Flush .................. 10 Figure 3: Flush Trim Detail......................10 Figure 4: Wallbox Dimensions / Mounting the SFC-551/SFC-553 – Surface /Flush....11 Figure 5: Installation of Adder Modules ..................
-
Page 7: Industry Canada And Fcc Notice
Contact your telephone company if you have any questions about your phone line. In the event repairs are ever needed on the Communicator, they should be performed by Summit Systems Technologies or an authorized representative of Summit Systems Technologies For information contact Summit Systems Technologies at the address and phone numbers shown on the back page of this document. -
Page 8: Introduction
Features • The SFC-500 Series panels support a loop of 60 or 126 analog devices and up to 3 loops of 378 analog devices, including thermal, ion, photo detectors, and contact input and output devices. Drift compensation and Auto Test features are provided for analog devices. -
Page 9: Conventions
Is a logical concept for a Fire Alarm Protected Area, and will consist of at least one Circuit. Groups are used extensively in the SFC-500 Series to facilitate annunciation of multiple input and output points on the 32 (up to 64) LED display and to facilitate bypassing of inputs and outputs. -
Page 10: System Components
SFC-551-DR SFC-553-LDR SFC-500-126-DR SFC-551-LDR SFC-500-378-DR SFC-553-DR All SFC-500 Series Panels have the following features: • Multi-zone fire alarm control panel with 2 x 20 LCD display. • Style Y or Style D analog loop(s). • Four Power Limited Class B (Style Y) indicating circuits (max 1.7 Amps each - 5 Amps total). -
Page 11: Output Class A Converter: Four Circuits
SFC-500 Series Installation and Operation Manual See the table below for the specifics of each panel. Model # of # of 2 line UDACT Digital Door # of 32 point LED Max # of LED points loops Communicator (y/n) Color... -
Page 12: Remote Annunciator
System Components Remote Annunciator Model Description SYSTEM NORMAL 18:01 MON 2010-01-01 A.C. ON ALARM SUPV TRBL CPU FAIL SYSTEM RESET SIGNAL ENTER Remote Annunciator SILENCE FIRE Module, LCD MENU DRILL SRAM-200LCDR display, red painted BUZZER CANCEL SILENCE LAMP INFO TEST SFC-200 SERIES Remote Annunciator Smart Relay Module Model... -
Page 13: Panel Components And System Accessories
SFC-500 Series Installation and Operation Manual Panel Components and System Accessories MODEL NO. DESCRIPTIONS SALC-252 252 Point Dual Loop Addressable Adder SRAX-532 32 Zone Internal Display Adder (for SFC-551 and SFC-553 only) SRAM-208(R) 8 LED Remote Annunciator (red) SRAM-216(R) 16 LED Remote Annunciator (red) SRAM-316 / TZ 16 LED Annunciator chassis / TZ has 16 yellow LEDs for trouble indication. -
Page 14: Analog/Addressable Devices
System Components Analog/Addressable Devices DESCRIPTION Summit Model Ionization Smoke Detector (UL Listed) SII-200 Photoelectric Smoke Detector SIP-200 SIM-200 Multi-sensor (photoelectric with supplemental rate-of-rise heat sensor) Heat Detector SIH-200 BASES 4 inch Standard Base SIB-4 6 inch E-Z Fit Base SIB-6... -
Page 15: Mechanical Installation
SFC-500 Series Installation and Operation Manual Mechanical Installation Installing the Enclosure Install the SFC-500 Series Fire Alarm Panel enclosure as shown below. Mount the enclosure using the four mounting holes and the screws provided. Figure 1: Wallbox Dimensions / Mounting the SFC-500 - Surface 11"... -
Page 16: Figure 2: Mounting The Sfc-500 - Flush
Mechanical Installation Figure 2: Mounting the SFC-500 - Flush 11" 1.5" PLACE SFC-200TRB TRIM RING OVER BACKBOX 17" 4 Mounting Holes for Surface 14.5" Mounting Adhere trim ring to wall surface around SFC-500 backbox 20.0" 22.5" 3.5" is the maximum depth 4"... -
Page 17: Figure 4: Wallbox Dimensions / Mounting The Sfc-551/Sfc-553 - Surface /Flush
SFC-500 Series Installation and Operation Manual Figure 4: Wallbox Dimensions / Mounting the SFC-551/SFC-553 – Surface /Flush 11" PLACE SFC-UNIV-TRB TRIM RING OVER BACKBOX 1.5" 17" 4 Mounting Holes for Surface Mounting Adhere trim ring to wall surface around 20.5"... -
Page 18: Installing Adder Modules
Installing Adder Modules Installing Adder Modules The SFC-500 Fire Alarm panels come pre-assembled with all components and boards except for Adder Modules. Module installation locations are shown in Figure 5. Refer to Figure 6 on the next page for Jumper or DIP Switch settings and see Wiring Tables and Information for wiring specifications. -
Page 19: Cable And Jumper Connections For Main Board And Adder Modules
SFC-500 Series Installation and Operation Manual Cable and Jumper Connections for Main Board and Adder Modules Figure 6: Main Fire Alarm Board Cable Connectors and Jumper Locations RS-232C PORT For PC programming For PC programming use UIMA Interface module not UL -864 or ULC-527 listed. -
Page 20: Figure 7: Main Board (3 Loop Model) Cable Connectors And Jumper Locations
Installing Adder Modules Figure 7: Main Board (3 loop model) Cable Connectors and Jumper Locations RS-232C PORT Addressable For PC programming Loops For PC programming use UIMA Interface module not UL -864 or ULC-527 listed. Please refer to Document LT-929 for details Telephone line #1 Telephone line #2 SYSTEM NORMAL... -
Page 21: Soca-204 Output Class A Converter Adder Module
SFC-500 Series Installation and Operation Manual Table 1: Connectors and Jumpers on the Main Fire Alarm Board Cable from P1 of the SPR-200 Polarity Reversal and City Tie Module connects here. Otherwise not used. Cable from connector P1 of the SRAX-532 Display Adder Module connects here. Otherwise not used. -
Page 22: Polarity Reversal And City Tie Module (Model Spr-200)
Installing Adder Modules Polarity Reversal and City Tie Module (Model SPR-200) Mount the SPR-200 on the left side panel of the backbox with the two screws provided, refer to Figure 5. Figure 9: Polarity Reversal and City Tie Module Mounting hole for #6-32 screw Mounting hole for #6-32 screw... -
Page 23: Circuits And Devices
20mA for a single isolator. In no case should more that twenty devices be connected to a single isolator. To simplify the calculation process, please utilize the loop calculator program located on the Summit website at http:/www.summit-st.net in order to determine maximum loop lengths, number of devices, and wire sizes etc. -
Page 24: Analog Devices
15. Analog Devices The system supports Summit SI-200 Series photo, ion, multi-sensor and thermal (heat) type analog detectors, as well as contact input and output devices. The detectors may be configured as non-verified or verified alarm inputs. To determine an alarm condition, the system polls the analog device and compares the analog value against stored thresholds for pre-alarm and alarm conditions. -
Page 25: Field Wiring
SFC-500 Series Installation and Operation Manual Field Wiring Main Fire Alarm Board Field Wiring Wire devices to the addressable loop as shown in Figure 9 for Class B (Style 4) or Figure 10 for Class A (Style 6). Refer to the Table 2 for loop wire gauges.Wire devices to addressable loops 2 and 3, if available, in the same manner. -
Page 26: Loop Operation
Field Wiring Figure 11: Addressable Loop Wiring -Class A or Style 6 FIRE ALARM MAIN BOARD CLASS A WIRING ION SMOKE DETECTOR OUTPUT MODULE PHOTO SMOKE DETECTOR INPUT MODULE HEAT DETECTOR Loop Operation When there is a short circuit on the Class A loop with isolators installed, the isolators isolate the shorted fault, the panel detects it as an open loop and generates an open loop trouble. -
Page 27: Indicating (Powered Output) Circuits
Indicating Circuit Wiring The SFC-500 Series Addressable Fire Alarm Panels supports Class B (Style Y) and Class A (Style Z) wiring for its indicating circuits. Each circuit is supervised by a 3.9K End-of-Line resistor. Each indicating circuit provides up to 1.7Amperes, total 5Amperes of current maximum if no auxiliary power is used. -
Page 28: Figure 12: Indicating Circuit - Class B Or Style Y Wiring
Field Wiring Figure 12: Indicating Circuit – Class B or Style Y Wiring FIRE PANEL MAIN BOARD STYLE Y WIRING INDICATING INDICATING CIRCUIT - 1 CIRCUIT #1 INDICATING STYLE Y CIRCUIT #2 WIRING INDICATING CIRCUIT - 2 HORN NOTE: WIRE INDICATING CIRCUITS # 3 AND #4 IN THE SAME WAY AS #1 AND #2 Figure 13: Indicating Circuit –Class A or Style Z Wiring STYLE Z WIRING... -
Page 29: Dialer Wiring
SFC-500 Series Installation and Operation Manual Dialer Wiring All SFC-500 Fire Alarm Panel models have a dialer on board. Terminals marked Line 1 and Line 2 must be wired as shown in Figure 14. Terminals are located in the top left hand corner of the main fire alarm board, from the top down. -
Page 30: Polarity Reversal And City Tie Module (Spr-200) Wiring
Field Wiring Polarity Reversal and City Tie Module (SPR-200) Wiring Wire the SPR-200 Polarity Reversal and City Tie Module (if used) as shown in Figure 15 . Power Limited cable type FPL, FPLR or FPLP must be used. For USA installation, the installer must use Atlantic Scientific (Tel: 407-725-8000), Model #24544 Protective Device, or similar UL-Listed QVRG secondary protector, as shown. -
Page 31: Auxiliary Power Supplies
SFC-500 Series Installation and Operation Manual Auxiliary Power Supplies Aux 2 Resettable Auxiliary Power (supervised, regulated) The AUX 2 resettable auxiliary power supply is supervised for shorts, therefore a short will disconnect the power until the “RESET” button is pressed. A trouble signal will be generated if there is a short. The circuit must be supervised for opens utilizing the End of Line Relay Model PAM-3 as shown in Figure 16. -
Page 32: Power Supply Connections
BATTERY BATTERY Note: The SFC-500 Series panels are capable of being wired for 120 VAC or 240 VAC 50/60 Hz as shown above. A good ground connection to the “Ground" terminal is essential to electrical safety, ensure proper operation, and specified noise immunity. -
Page 33: System Checkout
SFC-500 Series Installation and Operation Manual System Checkout Before turning the power “ON” To prevent sparking, do not connect the batteries. Connect the batteries after powering the system from the main AC supply. Check that all adder modules are installed in the proper location with the proper connections. -
Page 34: Indicators, Controls And Operations
GE NE RAL BATTERY/CHARGER ALARM TROUBLE The display panel on the SFC-500 Series main fire alarm control board consists of: • a two line by twenty character LCD display • a sixteen button keypad • common LED Indicators • common control buttons SFC-551 and SFC-553 models are equipped with one SRAX-532 LED display adder (32 zone annunciation), with provision for a second optional adder (see page 14 for further explanation) for another 32 zone annunciation for a total of 64 zone annunciation. -
Page 35: Common Indicators
SFC-500 Series Installation and Operation Manual Common Indicators Buzzer The Buzzer is activated by any of the following: • Fire Alarm: Steady • Supervisory Alarm: Fast flash rate • Trouble: trouble flash rate • Monitor: Configurable to sound at trouble flash rate If the buzzer turns ON in response to a non-latching trouble or supervisory, it will turn OFF if the condition causing it goes away and there is no other reason for it to be ON. -
Page 36: Common Controls
Indicators, Controls and Operations Buzzer Silence LED The Buzzer Silence LED flashes amber at the Trouble Flash rate when the Buzzer Silence button is pressed. Any new alarm, supervisory or trouble events will resound the buzzer and will cause the Buzzer Silence LED to turn off. Acknowledge LED If the panel is configured as a two stage system, the Acknowledge LED flashes amber at the Fast Flash rate while the General Alarm timer is timing. -
Page 37: Single Stage Operation
SFC-500 Series Installation and Operation Manual Menu Button Use this button to view the Command Menu. Info Button Push and hold this button to get detailed information about any displayed item. Signal Silence Button Pressing the Signal Silence button after the panel is in alarm turns ON the Signal Silence LED and de-activates any silenceable indicating circuits. -
Page 38: Two-Stage Operation
Indicators, Controls and Operations • The buzzer sounds steadily • If fire drill is active, it is cancelled • The Common Alarm LED turns ON • The Common Alarm relay activates if Aux disconnect is not active • The Auto Signal Silence timer, if configured, starts •... -
Page 39: Positive Alarm Sequence
SFC-500 Series Installation and Operation Manual • If the panel is not already in General Alarm, additional non-disconnected signals programmed to the new input are activated with the Alert Code (see Output Types on page 36). • If the panel is not already in General Alarm and if the Acknowledge LED is ON steady indicating that the Auto General Alarm timer has been Acknowledged the timer is restarted and the Acknowledge LED is extinguished. -
Page 40: If You Do Not Wish The Change The Status, Press The "Cancel" Key
Indicators, Controls and Operations • You will now see displayed the current status of the Positive Alarm Sequence and will be prompted to change status. Pos Alarm disabled Enable? Y • If you wish to change the status press the “enter” key. Note: There will be no notification message advising a change of status If you do not wish the change the status, press the “cancel”... - Page 41 SFC-500 Series Installation and Operation Manual Input Types Description Waterflow inputs are sampled every second. If 10 samples are in alarm in any given 15 second period, an alarm condition is confirmed and the alarm is processed as for non-verified inputs.
-
Page 42: Output Types
Synchronized strobes and strobe/horn models of the following manufacturers are supported: Faraday, System Sensor, Wheelock, Secutron, and Summit. Un-bypassed relay outputs are activated if any un-bypassed input circuit or common system status which has been programmed to it is active. -
Page 43: Evacuation Codes
SFC-500 Series Installation and Operation Manual Evacuation Codes Single stage codes Continuous On 100% of the time Temporal Code 3 of 0.5 second ON, 0.5 second OFF then, 1.5 second pause March Code 0.5 second ON, 0.5 second OFF California Code... - Page 44 Indicators, Controls and Operations The following push buttons are used by the shared display: UP/DOWN scroll through common alarm, supv, trouble and monitor queue scroll through menu selections when in command mode RIGHT/ moves to next or previous field or digit in command mode LEFT Make selection for example checking/un-checking the selection box Right key to add items for example Remote LED groups, correlation etc.
- Page 45 SFC-500 Series Installation and Operation Manual If the device or circuit returns to normal, the system normal message will be re-displayed. If multiple pre-alarms or alarm verification sequences are active at the same time only the first is displayed. Pressing the INFO button while the pre-alarm or verification message is active will display additional information on the circuit or device as described under queue display mode.
-
Page 46: Remote Annunciators Operation
(LCD) annunciator. Both types are connected to the panel via the RS-485 serial link. Conventional Annunciators (SRA-300 Series and SRAM-216 and SRAM-208) The SFC-500 Series is designed to interface with the SRA-300 series, SRAM-216 and SRAM-208 conventional LED annunciators. The LEDs may be configured to zone status indicators. Each conventional annunciator contains a local alert buzzer. -
Page 47: Dialer Operation
SFC-500 Series Installation and Operation Manual Dialer Operation The SFC-500 Series (models with a D suffix) Fire Control panels are equipped with a built-in dialer. The dialer provides a means to communicate panel status to the remote central monitoring station using two dedicated phone lines. -
Page 48: Appendix B: Reporting
Appendix B: Reporting Appendix B: Reporting Ademco Contact-ID SFC-500 Series Event Codes Event Description Qualifier Code Group # Contact # Family Phone Line #1 trouble detected Trouble New event 1 351 Phone Line #2 trouble detected Trouble New event 1 352... -
Page 49: Security Industries Association Sia-Dcs
SFC-500 Series Installation and Operation Manual Security Industries Association SIA-DCS SIA protocol does not define indicating zone troubles, but lists it as Untyped Zone Trouble/Restore. SFC-500 Series Event Codes Event SIA Event Event Description Qualifier Parameter Family Code Phone Line #1 trouble detected... -
Page 50: Appendix C: Specifications
Appendix C: Specifications Appendix C: Specifications SFC-500 Series Fire Control Panel Digital signal processor based design, fully configurable from Unfiltered supply front panel with password protection Power limited / Regulated 24VDC FWR / 1.7A max at 49C Electrical ratings AC line voltage... -
Page 51: Appendix D: Power Supply And Battery Calculations
SFC-500 Series Installation and Operation Manual Appendix D: Power Supply and Battery Calculations POWER REQUIREMENTS (ALL CURRENTS ARE IN AMPERES) Model Number Description STANDBY TOTAL ALARM TOTAL STANDBY ALARM SFC-500-60-DR 0.220 0.380 SFC-500-126-DR Main Panel c/w Dialer SFC-500-378-DR 0.220 0.380... - Page 52 Total Alarm Current must be 5.5 amperes or less. Indicating Circuits must not to exceed 5 amperes. Battery Selection: Battery Size = Multiply (C) by 1.20 to derate battery. Summit recommends the following batteries for use with this panel: SUMMIT BATTERY SIZE...
-
Page 53: Warranty & Warning Information
SFC-500 Series Installation and Operation Manual Warranty & Warning Information Warning Please Read Carefully Note to End Users: This equipment is subject to terms and conditions of sale as follows: Note to Installers This warning contains vital information. As the only individual in contact with system users, it is your responsibility to bring each item in this warning to the attention of the users of this system. - Page 54 Summit shall not be liable for any delays, breakdowns, interruptions, loss, destruction, alteration or other problems in the use of a product arising our of, or caused by, the software.
-
Page 55: Limited Warranty
SFC-500 Series Installation and Operation Manual Limited Warranty Summit Systems Technologies warrants the original purchaser that for a period of two years from the date of manufacture, the product shall be free of defects in materials and workmanship under normal use. During the warranty period, Summit Systems Technologies shall, at its option, repair or replace any defective product upon return of the product to its factory, at no charge for labor and materials. -
Page 56: Out Of Warranty Repairs
Warranty & Warning Information Out of Warranty Repairs Summit Systems Technologies will at its option repair or replace out-of-warranty products which are returned to its factory according to the following conditions. Anyone returning goods to Summit Systems Technologies must first obtain an authorization number. - Page 60 THE PEAK OF PROTECTION © Summit 2010 Canada U.S.A. Printed in Canada 4575 Witmer Industrial Estates 25 Interchange Way Subject to change without prior notice Niagara Falls, NY 14305 Vaughan, ON L4K 5W3 www.summit-st.net Tel: 1-866-SUMMIT-0 Fax: 1-888-660-4113 Tel: 905-695-3549 Fax: 905-660-4113...
