Midian MOT-TVS-2-PRO-M Instructions Manual

Frequency hopping, rolling code voice scrambler for motorola professional series mobile radios voice inversion scrambler for motorola professional series mobile radios
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

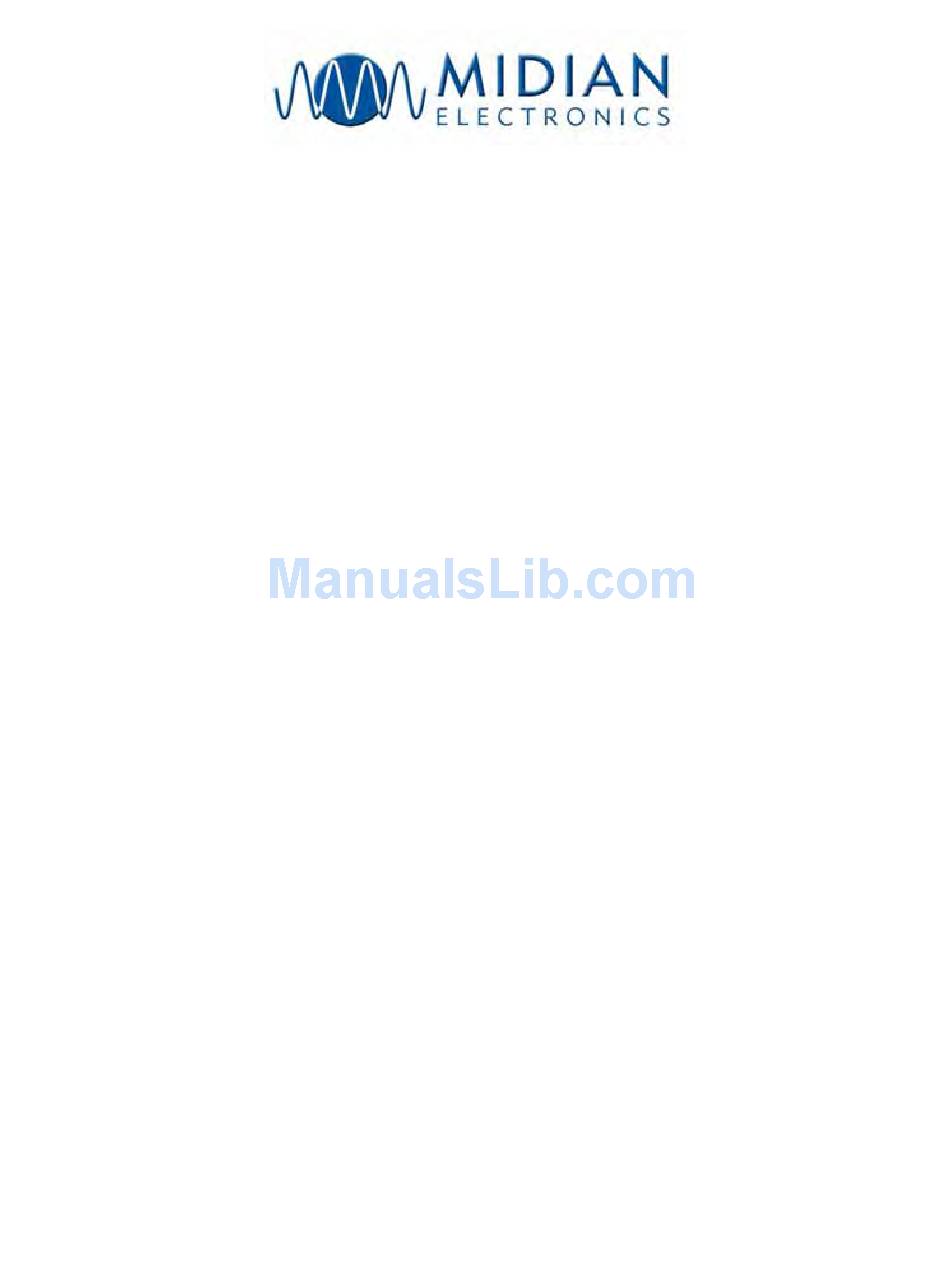

MOT-TVS-2-PRO-M
Frequency Hopping, Rolling Code Voice Scrambler for Motorola Professional Series Mobile
Radios
MOT-VPU-15-PRO-M
Voice Inversion Scrambler for Motorola Professional Series Mobile Radios
Manual Revision: 2014-05-19
Covers Software Revisions:
MOT-PRO: 2.95 and Higher
Covers Hardware Revisions:
MOT-PRO: 7313F and Higher
This manual supports the following Midian TVS-2 and VPU-15 scramblers:
MOT-TVS-2-PRO-M & MOT-VPU-15-PRO-M
MOT-TVS-2-PRO-M MOD-1306 & MOT-VPU-15-PRO-M MOD-1306
MOT-TVS-2-PRO-M MOD-1331 & MOT-VPU-15-PRO-M MOD-1331
This manual supports the following radios:
North America: CDM-750, CDM-1250, CDM-1550-LS+
EMEA Region: GM-140, GM-160, GM-340, GM-360, GM-380, GM-640, GM-660, GM-1280
Asia: GM-328, GM-338, GM-338-LS, GM-339, GM-398, GM-399, MCX-720, MCX-760, MCX-780
Latin America: PRO-3100, PRO-5100, PRO-7100, PRO-7200
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOT-TVS-2-PRO-M and is the answer not in the manual?

Questions and answers

Related Manuals for Midian MOT-TVS-2-PRO-M

Summary of Contents for Midian MOT-TVS-2-PRO-M

  • Page 1 Covers Software Revisions: MOT-PRO: 2.95 and Higher Covers Hardware Revisions: MOT-PRO: 7313F and Higher This manual supports the following Midian TVS-2 and VPU-15 scramblers: MOT-TVS-2-PRO-M & MOT-VPU-15-PRO-M MOT-TVS-2-PRO-M MOD-1306 & MOT-VPU-15-PRO-M MOD-1306 MOT-TVS-2-PRO-M MOD-1331 & MOT-VPU-15-PRO-M MOD-1331 This manual supports the following radios:...

  • Page 2: Specifications

    4 user-programmable hop rates and is down gradable to voice inversion. The scrambler is capable of features such as ANI, ENI, OTAR, Deadbeat Disable, Spy, and more when using Midian’s Kryptic Signaling format with Midian’s CAD-300 and DDU-300.

  • Page 3: Radio Programming

    RADIO PROGRAMMING MOT-TVS-2-PRO-M & MOT-VPU-15-PRO-M for Motorola MDC-1200 capable mobile radios CDM-750, CDM-1250, GM-140, GM-160, GM-328, GM-338, GM-398, PRO-3100, PRO-5100, PRO-7100 Programming Instructions It is necessary to program the radio before installing the scrambler. This is because the Option Board Feature of the radio must be enabled in order to program the scrambler using a RIB box and to hear confirmation beeps from the radio after programming the scrambler.
  • Page 4 The following two steps apply to the accessory connector and may be skipped by most users. 3. An accessory pin may be used to control the transmit mode of the scrambler between scramble and clear. This is useful in remote control applications. To enable this feature, one of the radio accessory pins must be assigned to Option Board 1 (Input) via the CPS programmer.
  • Page 5 MOT-TVS-2-PRO-M & MOT-VPU-15-PRO-M GM-339, GM-340, GM-360, GM-380, GM-399, PRO-7200 Programming Instructions It is necessary to program the radio before installing the scrambler. This is because the Option Board Feature of the radio must be enabled in order to program the scrambler using a RIB box and to hear confirmation beeps from the radio after programming the scrambler.
  • Page 6 MOT-TVS-2-PRO-M MOD-1306 & MOT-VPU-15-PRO-M MOD-1306 CDM-1550-LS+, GM-338-LS Programming Instructions It is necessary to program the radio before installing the scrambler. This is because the Option Board Feature of the radio must be enabled in order to program the scrambler using a RIB box and to hear confirmation beeps from the radio after programming the scrambler.
  • Page 7 LTR Programming: 1. In the LS Trunking Personality window, check the Option Board Feature box for each personality. Check the Option Board Feature box for all channels if using a button to control the mode of the scrambler. If doing scrambling on a per channel basis, then check Option Board Feature only for scrambled channels.
  • Page 8 The following two steps apply to the accessory connector and may be skipped by most users. 5. An accessory pin may be used to control the transmit mode of the scrambler between scramble and clear. This is useful in remote control applications. To enable this feature, one of the radio accessory pins must be assigned to Option Board 1 (Input) via the CPS programmer.
  • Page 9 MOT-TVS-2-PRO-M MOD-1331 & MOT-VPU-15-PRO-M MOD-1331 for MPT-1327 Trunking Radios GM-640, GM-660, GM-1280, MCX-720, MCX-760, MCX-780 Programming Instructions It is necessary to program the radio before installing the scrambler. This is because the Option Board Feature of the radio must be enabled in order to program the scrambler using a RIB box and to hear confirmation beeps from the radio after programming the scrambler.
  • Page 10 3. If using conventional channels, edit the ‘Conventional Personality Data’. In the “Conventional Personality” window, check the “Option Board Enable” box. Check Option Board Enable for all channels if using a button to control the mode of the scrambler. If doing scrambling on a per channel basis, then check Option Board Enable only for scrambled channels.

  • Page 11: Hardware Installation

    HARDWARE INSTALLATION Be certain to follow standard anti-static procedures when handling any of Midian’s products. Radio Firmware: For the mobile radios listed, it is necessary to have radio firmware version R05.00.00 or higher. If the radio has an older firmware version, it is necessary to upgrade to the newest firmware.

  • Page 12: Hardware Alignment

    The MOT-TVS-2-PRO-M series does not require any hardware adjustments, however, when ordering the scrambler, the radio it will be used in must be specified. The scrambler will come modified by Midian for the proper model of radio. If for some reason you decide to modify the board because the radio changes, the table below indicates the parts to change.

  • Page 13: Product Programming

    PRO or MOT-VPU-15-PRO and the desired model and click OK. The following table shows the proper MPS selection based upon the model scrambler ordered. PRO-M (MDC Mobile) MOT-TVS-2-PRO-M or MOT-VPU-15-PRO-M PRO-M (LTR Mobile) MOT-TVS-2-PRO-M MOD-1306 or MOT-VPU-15-PRO-M MOD-1306 PRO-ME (5-Tone or MPT MOT-TVS-2-PRO-M, MOT-VPU-15-PRO-M, MOT-TVS-2-PRO-M MOD-1331 or Mobile) MOT-VPU-15-PRO-M MOD-1331 Configure the programming software by selecting File->Preferences.
  • Page 14 The radio and RIB should be powered down for 3 seconds after reading or programming. Important Note: Do not attempt to ‘clone’ the scrambler by reading one and then programming another. When the scrambler is read, the security codes will be read out as zeroes. If another scrambler is then cloned with this information, the scramblers will be incompatible because they have different security codes.

  • Page 15: Operation

    Midian’s Kryptic Signaling: Midian’s TVS-2 and VPU-15 offer the following signaling functions: ANI: When the PTT button is pressed the scrambler will generate an ANI to be decoded by Midian’s CAD-300 or DDU-300. Emergency ANI (ENI): When the Emergency button on the radio is pressed and held for 1 second the scrambler will key the radio and transmit the ENI to be decoded by Midian’s CAD-300 or DDU-300.

  • Page 16: Technical Notes

    However, some features may not be available in the radio when an option board is used. If a feature is not available, please contact Midian to see if the feature can be added.
  • Page 17 MIDIAN CONTACT INFORMATION MIDIAN ELECTRONICS, INC. 2302 East 22 Street Tucson, Arizona 85713 USA Toll-Free: 1-800-MIDIANS Main: 520-884-7981 E-mail: sales@midians.com Web: www.midians.com...
  • Page 18 This page intentionally left blank...
  • Page 19 100p IC6:4 TLV2375 100K IC7:3 RX OUT .0068u LMV324 IC7:4 4.7u .001u LMV324 8.2K .001u 1.2M 100K MIDIAN ELECTRONICS, INC. MOT-TVS-2/MOT-VPU-15 DOCUMENT NAME PRO-M DATE: 1999-11-01 DWN BY: APPR SCHEMATIC SHEET PROJECT NUMBER 2014-05-09 2012 1 of 2 7313 DESIGN: REV: COPYRIGHT ©...
  • Page 20 C610 C612 R613 100p COL2 COL3 COL4 COL5 C609 COL1 COL3 EXT MIC COL2 C617 ROW5 100p MIDIAN ELECTRONICS, INC. MOT-TVS-2/MOT-VPU-15 DOCUMENT NAME PRO-M APPR DATE: 1999-11-01 DWN BY: SCHEMATIC SHEET PROJECT NUMBER 2 of 2 7313 2014-05-09 2012 DESIGN: REV: COPYRIGHT ©...
