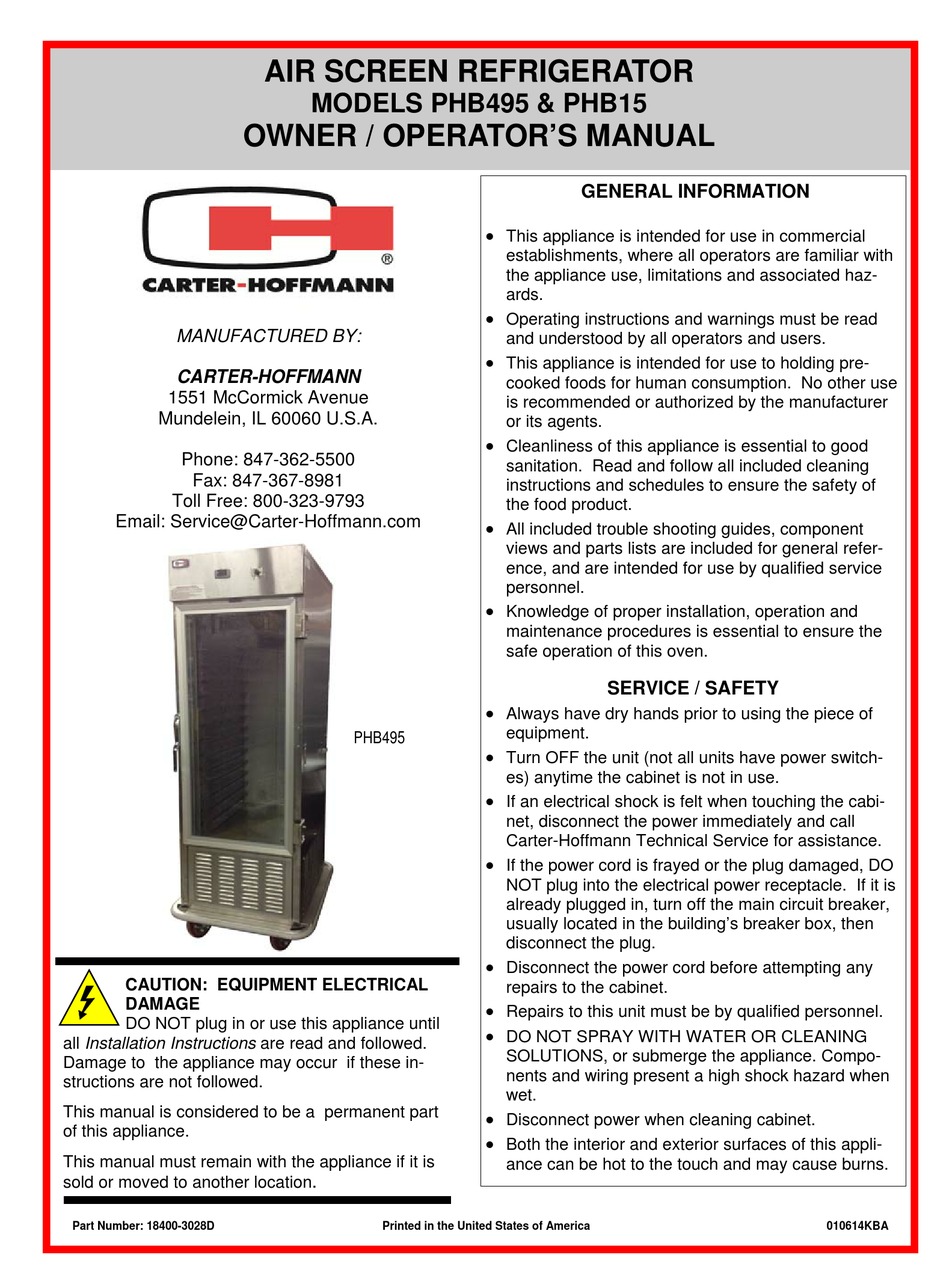

OWNER / OPERATOR'S MANUAL
MANUFACTURED BY:
CARTER-HOFFMANN
1551 McCormick Avenue
Mundelein, IL 60060 U.S.A.
Phone: 847-362-5500
Fax: 847-367-8981
Toll Free: 800-323-9793
Email: Service@Carter-Hoffmann.com
CAUTION: EQUIPMENT ELECTRICAL
DAMAGE
DO NOT plug in or use this appliance until
all Installation Instructions are read and followed.
Damage to the appliance may occur if these in-
structions are not followed.
This manual is considered to be a permanent part
of this appliance.
This manual must remain with the appliance if it is
sold or moved to another location
Part Number: 18400-3028D

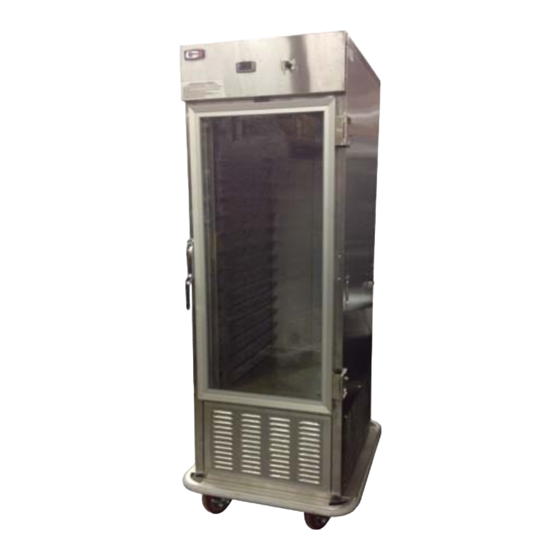

AIR SCREEN REFRIGERATOR
MODELS PHB495 & PHB15
PHB495
.
Printed in the United States of America
GENERAL INFORMATION

This appliance is intended for use in commercial
establishments, where all operators are familiar with
the appliance use, limitations and associated haz-
ards.

Operating instructions and warnings must be read
and understood by all operators and users.

This appliance is intended for use to holding pre-
cooked foods for human consumption. No other use
is recommended or authorized by the manufacturer
or its agents.

Cleanliness of this appliance is essential to good
sanitation. Read and follow all included cleaning
instructions and schedules to ensure the safety of
the food product.

All included trouble shooting guides, component
views and parts lists are included for general refer-
ence, and are intended for use by qualified service
personnel.

Knowledge of proper installation, operation and
maintenance procedures is essential to ensure the
safe operation of this oven.
SERVICE / SAFETY

Always have dry hands prior to using the piece of
equipment.

Turn OFF the unit (not all units have power switch-
es) anytime the cabinet is not in use.

If an electrical shock is felt when touching the cabi-
net, disconnect the power immediately and call
Carter-Hoffmann Technical Service for assistance.

If the power cord is frayed or the plug damaged, DO
NOT plug into the electrical power receptacle. If it is
already plugged in, turn off the main circuit breaker,
usually located in the building's breaker box, then
disconnect the plug.

Disconnect the power cord before attempting any
repairs to the cabinet.

Repairs to this unit must be by qualified personnel.

DO NOT SPRAY WITH WATER OR CLEANING
SOLUTIONS, or submerge the appliance. Compo-
nents and wiring present a high shock hazard when
wet.

Disconnect power when cleaning cabinet.

Both the interior and exterior surfaces of this appli-
ance can be hot to the touch and may cause burns.
010614KBA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PHB495 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CARTER-HOFFMANN PHB495

  • Page 1 AIR SCREEN REFRIGERATOR MODELS PHB495 & PHB15 OWNER / OPERATOR’S MANUAL GENERAL INFORMATION  This appliance is intended for use in commercial establishments, where all operators are familiar with the appliance use, limitations and associated haz- ards.  Operating instructions and warnings must be read MANUFACTURED BY: and understood by all operators and users.
  • Page 2: Unpacking And Installation

    11 running amps 13.5 running amps blade to fit an existing receptacle. IMPORTANT: Power cord is 10' long. PHB495 PHB15 If necessary, contact a li- censed electrician to install Before using, familiarize yourself with the an appropriate 15 amp electrical cir- heater controls.
  • Page 3 CLEANING WARNING: ELECTRIC Turn the main power switch OFF and unplug the cabinet to before clean- SHOCK HAZARD ing. DO NOT spray or splash water on the electrical components, con- Unplug unit from trol panel, timer or wiring. electric power before performing cleaning or maintenance.
  • Page 4: Daily Operation

    (1° increments) Press to display temperature set point To Lock or Unlock the Controller: Press and hold both Arrow Keys at the same time. To change the temperature scale (°F or °C), please contact Carter-Hoffmann at technicalservice@carter-hoffmann.com or 847.362.5500.
  • Page 5 PHB495 WIRING DIAGRAM & PARTS LIST 120v, 11 running amps Standard Electric Part Number Description Part Number Description 18614-0051 Accumulator 5/8 Suct. 18302-0050 Magnetic door latch, chrome offset 18302-0048 Magnetic door latch, locking, chrome offset 16002-5190 Push handle assembly 18614-0245...
  • Page 6 PHB15 WIRING DIAGRAM & PARTS LIST 120v, 13.5 running amps Standard Electric Part Number Description Part Number Description 18614-0051 Accumulator 5/8 Suct. 18302-0050 Magnetic door latch, chrome offset 18302-0048 Magnetic door latch, locking, chrome offset 16002-5194 Push handle assembly 18614-0282 Blade, fan evaporator 18614-0242 Evaporator motor, 120v...
  • Page 7: General Maintenance Instructions

    GENERAL MAINTENANCE INSTRUCTIONS DOORS Never tip cart forward or open doors to drain water during or after washing. This can cause serious damage to the hinges, doors and latches. CASTERS Some casters are equipped with Zerk grease fittings so that they may be easily lubricated with a grease gun. Recommended lubrication is at least once every six months.
  • Page 8 CLEANING CAUTION: ELECTRIC SHOCK 1) Remove the pan/tray slides by lifting the inner side panels up HAZARD and out. Wash tray slides with non-chlorinated cleaner. Rinse Disconnect appliance thoroughly and allow to dry before re-installing. from electric power before 2) Vinyl trim should be washed with a chlorine-free detergent cleaning.
  • Page 9 Repair or replacement under this warranty will be performed, unless otherwise authorized in writing by Carter-Hoffmann, at its factory. All parts or components to be re- paired or replaced under this warranty are to be shipped prepaid to Carter-Hoffmann, with reimbursement credit for such part or component to be given if found by Carter-Hoffmann to be defective.
