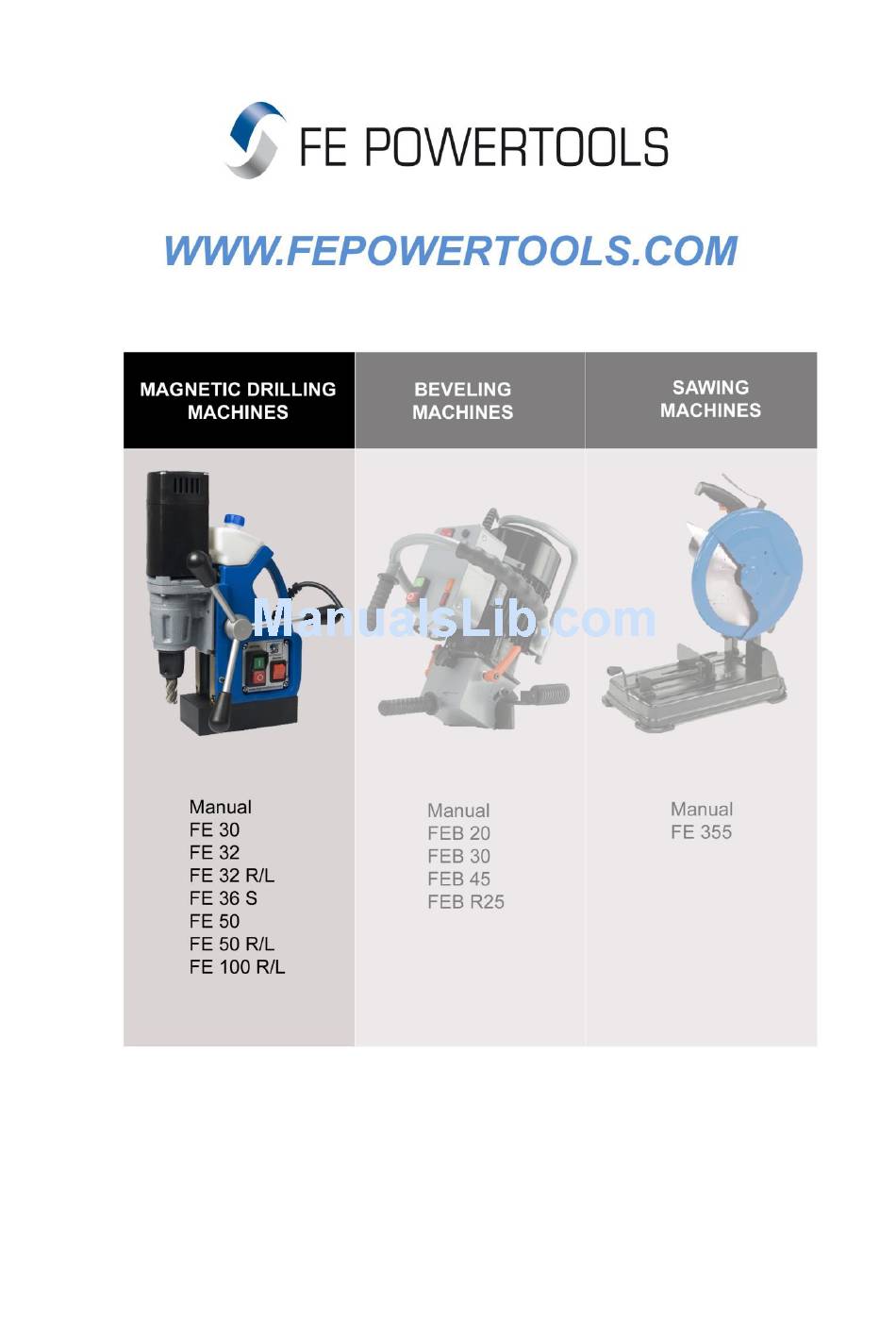

Summary of Contents for FE Powertools FE 30
-
Page 2: Table Of Contents
Manual magnetic drilling machines 1. Table of contents 2. Table of contents 3. Safety procedures 4. Technical overview 5. Operating manual 5.1 Hole cutter selection 5.2 How to mount tools or adapters in a Weldon arbor 5.3 Drilling with hole cutters 5.4 Drilling with twist drills 5.5 Tapping / threading 5.6 Speed and torque setting... -
Page 3: Safety Procedures
Manual magnetic drilling machines 1. Safety procedures When using magnetic drilling machines please follow the general safety instructions for electric power tools. Please read the manual Use eye protection use ear protection use safety helmet use safety gloves wear appropriate clothing disconnect before opening use safety chain Warning for electrical shock... -
Page 4: Technical Overview
Manual magnetic drilling machines 2. Technical overview FE 30 FE 32 FE 32 R/L FE 36 S FE 50 FE 50 R/L FE 100 R/L Motor 800 W 900 W 1050 W 1080 W 1150 W 1150 W 1800 W Spindle Direct –... -
Page 5: Hole Cutter Selection
Manual magnetic drilling machines 3. Operating instructions 4.1 Hole cutter selection Before starting to drill make sure the cutter of your choice is the right one for the job you want to do. Following cutters are available in the Fe Powertools program:... -
Page 6: How To Mount Tools Or Adapters In A Weldon Arbor
Manual magnetic drilling machines 4.2 How to mount tools or adapters in a Weldon arbor? 1) Make sure the machine is disconnected from the power supply. 2) Put the center pilot in the cutter hole. 3) Put the cutter or adapter in the arbor, making sure the flat sides are exactly in front of the arbor retaining screws (picture 1). -
Page 7: Drilling With Twist Drills
Manual magnetic drilling machines Still it is not necessary to use a lot of pressure. Too much pressure will cause damage and breakage. After the cut is finished the slug will automatically be ejected from the cutter, switch the machine off by pushing the red button(0). If the slug gets stuck in the cutter, move the machine to a flat surface. -
Page 8: Tapping / Threading
Manual magnetic drilling machines Start bringing the twist drill to the workpiece but handle with care and do not apply too much pressure. The drill has to find its way in to the material by itself. It is not necessary to use a lot of pressure. -
Page 9: Speed And Torque Setting
In order to protect the first thread cut, rotate the motor slide upwards after you have retracted the tap out of the material. 3.6 Speed and torque setting Fe Powertools magnetic drills are provided with following speeds FE 30 450 min... -
Page 10: Tips And Tricks
Most situations which cause problems or question marks have already occurred for other users. Contact Fe Powertools or your dealer to see if a solution exists for your situation. (example: for drilling into non-magnetic material with your magnetic drill, a special vacuum system has been designed). -
Page 11: Maintenance
DIN EN 55014-1:2006+A1:2009+A2:2011 DIN EN 55014-2:1997+Corr 1997+A1:2001+A2:2008 DIN EN 60745-1:2009 DIN EN 60745-2-1:2010 Responsible person for documentation according to EC Directive 2006/42/EC-Annex 11 Pt.A.2. was Mr. J.M. Korsten, Managing Director Fe Powertools BV Alphen aan den Rijn, 1 January 2014 Mark Korsten... -
Page 12: Warranty
Manual magnetic drilling machines 7. Warranty The warranty period for Fe Powertools equipment is 12 months as of the date of purchase. Damages due to wear and tear, overload or improper handling of the machine are excluded from warranty. Damages that are due to fault in material or defect in fabrication will be remedied free of cost by compensation delivery or repair.
