Summary of Contents for Velleman CAMSET5A

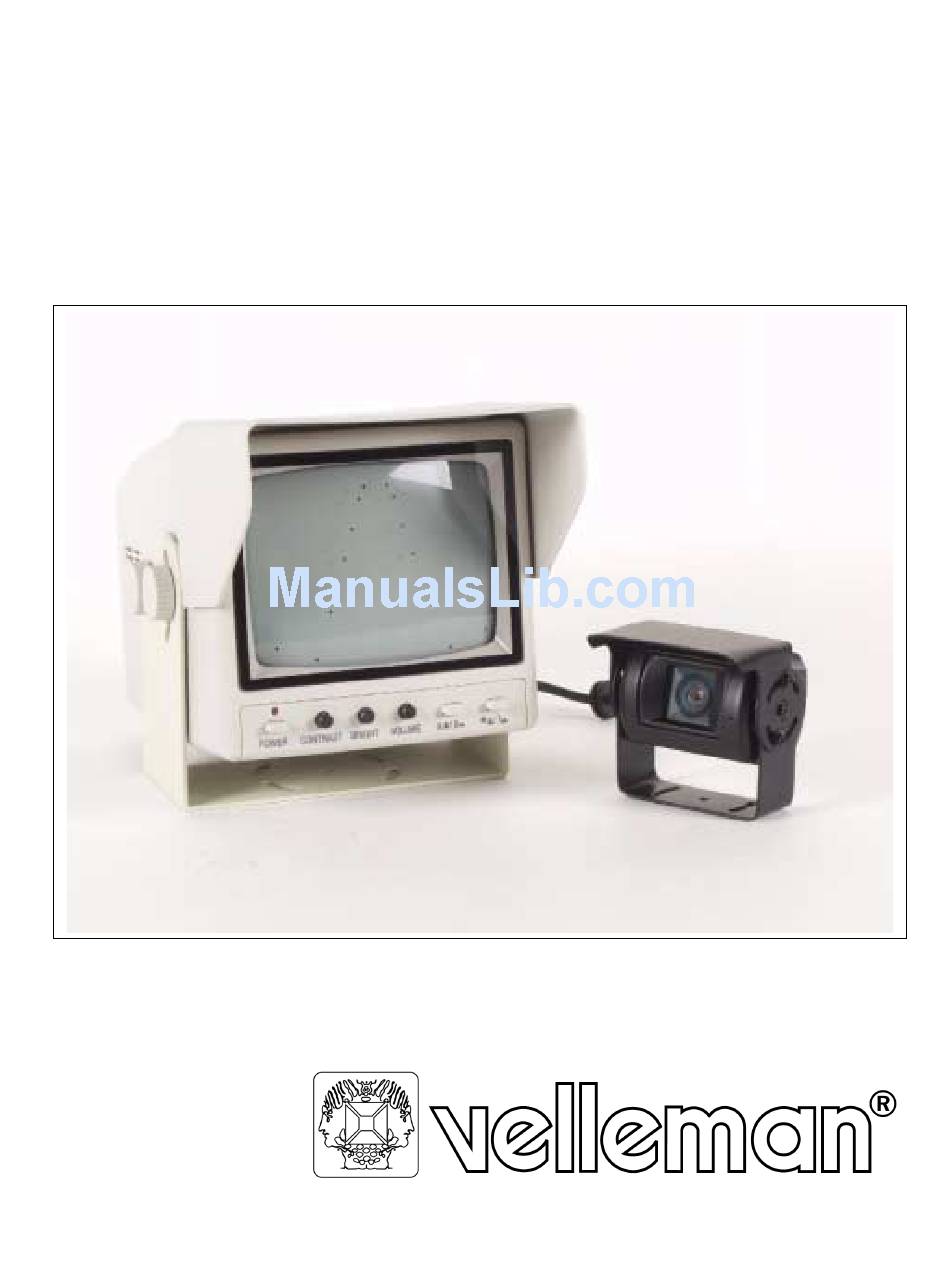

- Page 1 CAMSET5A --- VERSION II OWNER'S MANUAL CAR REAR VIEW SYSTEM...
-
Page 2: Kits Contents
Water proofed camera with built-in microphone and 1.8m (female plug) 20m cable with male/male plug. Sun shield plastic. Mounting bracket for monitor and 4 fixing screws. 4-pin power plug with lead wire. Cable clip and 2 screws. VELLEMAN CAMSET5A -- VERSION II... -
Page 3: Safety Instruction
Foreign Material - Care should be taken so that objects do not fall into and liquids or not spilled into the unit. Surface - Place the unit on a flat, level surface. VELLEMAN CAMSET5A -- VERSION II... -
Page 4: Introduction And Features
► Can be automatically activated when vehicle is shifted into reverse Camera : ► With board lens for maximum viewing angle ► High resolution with 380 TV lines ► Water proofed case ► Built-in microphone ► Low light sensitivity - 0.1 lux VELLEMAN CAMSET5A -- VERSION II... -
Page 5: Camera Installation
Drill a cable entry hole through the wall or a door or a window frame just below the mounting bracket. Pull the cable fully through the hole. Inside the protected property, attach the extension cable to the cable from the camera. Run the extension cable to the monitor position. VELLEMAN CAMSET5A -- VERSION II... -
Page 6: Monitor Installation
If necessary sticking the Sun shield % onto the top side of the monitor. MONITOR POWER INPUT SUN SHIELD CABLE CLIP SCREW BRACKET (MONITOR) SCREW 20m CABLE (MALE PLUG) VELLEMAN CAMSET5A -- VERSION II... -
Page 7: Connection To Monitor
Note that the Red wire with fuse holder should be connected to car or truck To DC 12-24V battery, and Blue wire to reverse gear Fuse & Fuse relay, Black wire to chassis ground. Holder (Red) VELLEMAN CAMSET5A -- VERSION II... -
Page 8: Function Description
A/B Camera picture signal input One or both of the camera input connectors can be chosen to connect cables from cameras. Please note that through these connectors the needed DC power can be sent to the cameras. VELLEMAN CAMSET5A -- VERSION II... - Page 9 (Rev. Image) position. In this case, check to see if the image appearing on the display is reversed right to left, just as it appears on a rear-view mirror. Rear view of monitor showing input/output connections. VELLEMAN CAMSET5A -- VERSION II...
-
Page 10: Specifications
1Vpp 75Ω Min. light illumination 0.3lux Shock 6.8G Vibration 0-2000Hz Input voltage range DC 9.5-14V Case zinc based Operating temperature -10 to +50°C Dimensions (with mounting bracket) 80 x 65 x 55mm Optional extra camera CAM13 VELLEMAN CAMSET5A -- VERSION II...
