36 SEDAN BRIDGE 2007

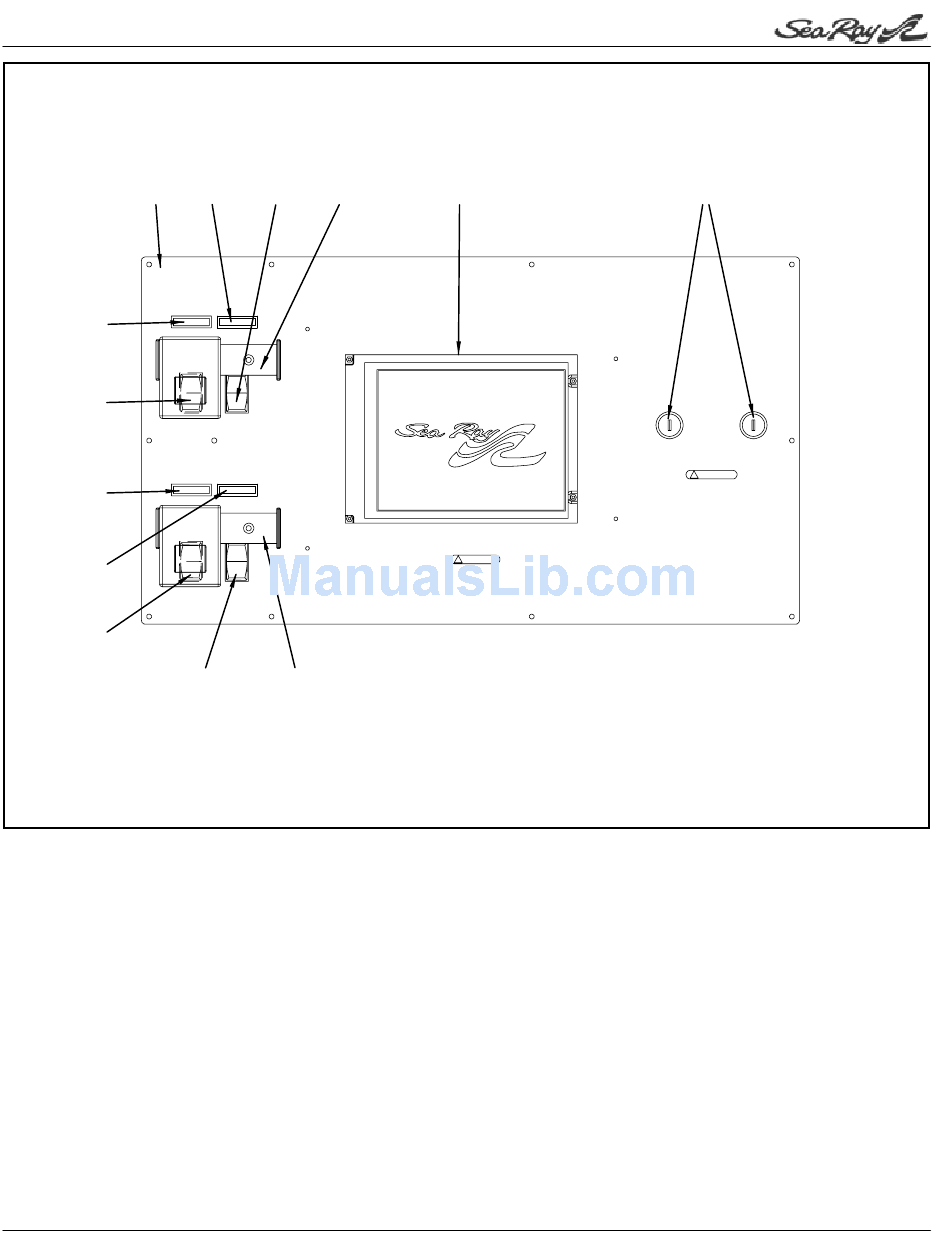

IGNITION SWITCH PANEL

1
120 VAC 60HZ
7
8
7
2
8
IGNITION SWITCH PANEL
1 1816851 PANEL, BLANK:36DB-06 TRNSFR/IGN/EDS GAS 120V
1830985 PANEL, BLANK:36DB-06 TRNSFR/IGN/EDS DTS 120V
1820274 PANEL, BLANK:36DB-06 TRNSFR/IGN/EDS DSL 120V
1816849 PANEL, BLANK:36DB-06 TRNSFR/IGN/EDS GAS 220V
1830986 PANEL, BLANK:36DB-06 TRNSFR/IGN/EDS DTS 220V
1820275 PANEL, BLANK:36DB-06 TRNSFR/IGN/EDS DSL 220V
2 557611 LIGHT, POLARITY RED 125V
557629 LIGHT, POLARITY RED 220V
3 582445 BRKR/TOGGLE, 2-POLE AC MED DELAY 35A
4 1451525 SLIDE ASSY, SLIDE BAR MDP PANEL C-SERIES BRKR
5 1816872 MODULE, EDS LCD W/TCHSCRN 10.4"
6 1544188 SWITCH, KEY ASHI DENSO
1666171 KEY, MSTR IGN MDB PNL "3103"
1666197 KEY, MSTR IGN MDB PNL "3110"
1666205 KEY, MSTR IGN MDB PNL "3112"
1666213 KEY, MSTR IGN MDB PNL "3113"
1666239 KEY, MSTR IGN MDB PNL "3135"
1666254 KEY, MSTR IGN MDB PNL "3203"
1666262 KEY, MSTR IGN MDB PNL "3210"
1666270 KEY, MSTR IGN MDB PNL "3212"
1666288 KEY, MSTR IGN MDB PNL "3213"
1666296 KEY, MSTR IGN MDB PNL "3235"
1820272 SWITCH, IGN ASSY 3-POS
(T-8.1 S DTS HORIZON (T-370PHP)MCM INBOARDS)
7 572529 LIGHT, POLARITY GRN 125V
03/22/2007
2 3 4
LINE 1
REVERSED
POWER
POLARITY
SHORE GENERATOR
LINE 2
REVERSED
POWER POLARITY
SHORE GENERATOR
3 4
5
! CAUTION
IF SOLENOIDS ARE TURNED OFF WHILE ENGINES ARE
RUNNING ALTERNATORS WILL BE DAMAGED
7 557603
8 851295
NOT SHOWN
1699538
140624
1849200
6
MASTER IGNITION
PORT STBD
! WARNING
GASOLINE VAPORS CAN EXPLODE
RESULTING IN INJURY OR DEATH
BEFORE STARTING ENGINES OR GENERATOR
OPERATING BELOW CRUISING SPEED
LIGHT, POLARITY GRN 220V
BRKR/TOGGLE, 2-POLE AC MED DELAY 20A (10-32)
PLUGS, DOMED HOLE 7/8" BLK
LIGHT, INDICATOR RED 14V
LIGHT, W/INVERTER WIRE LAMP 12V 1FT
