H.264 L80DV Hybrid Setup Manual

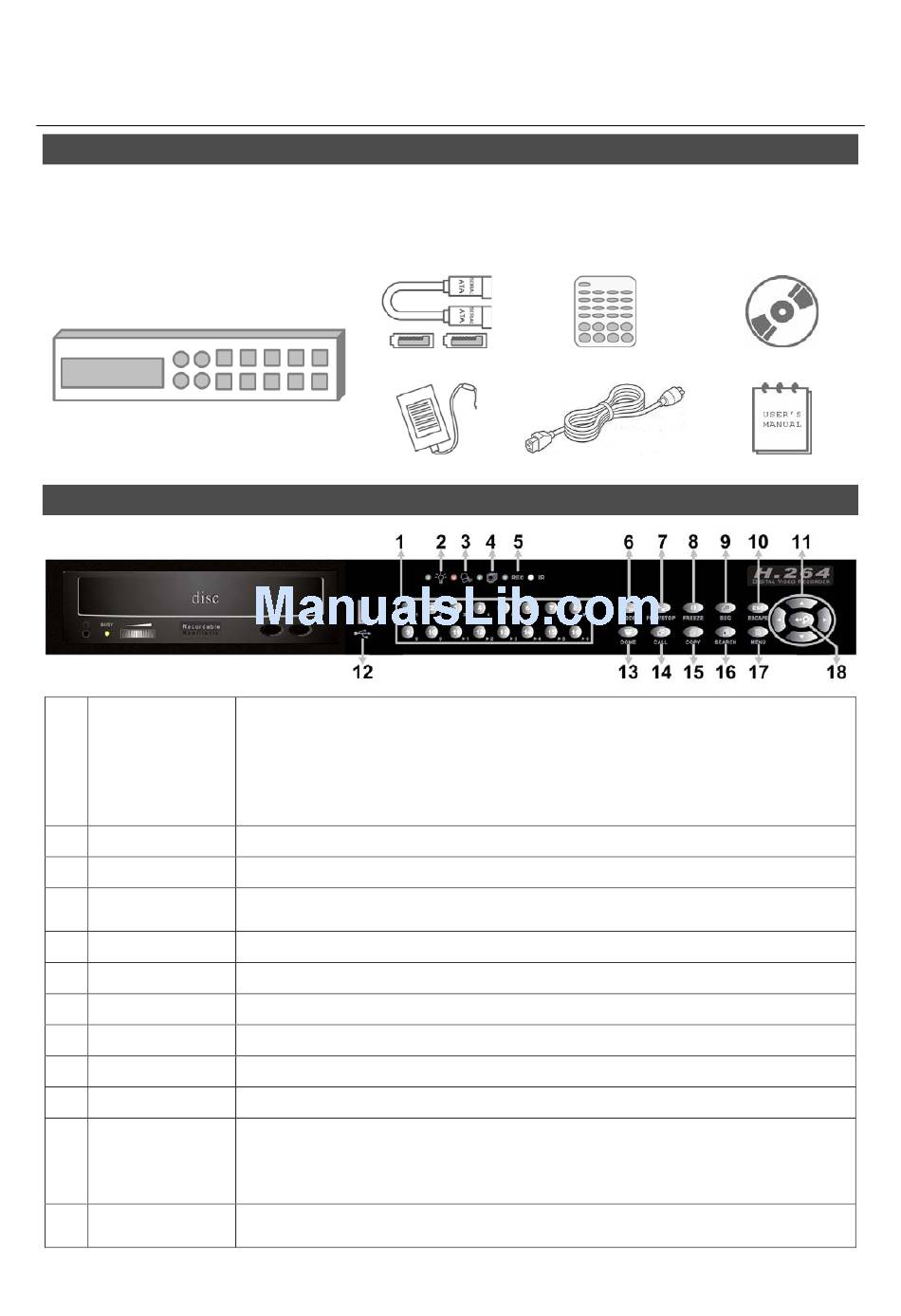

Package Content
Inspect the packaging carton. Make sure the L80DV Hybrid H.264 DVR is properly delivered.
Remove all items from the box and make sure the box contains the following items.
L80DV Hybrid H.264 DVR
Front Panel
1 Channels
2 Power LED
3 Alarm LED
4 Network LED
5 Record LED
6 MODE
7 PLAY/STOP
8 FREEZE
9 SEQ
10 ESC
11 Direction Keys
12 USB 2.0 Port
00P5DG080WESEA5
L80DV Hybrid H.264 DVR
Setup Guide
SATA Cable
Power Adaptor
1. In Live and Playback modes, press any key to view the corresponding
video in full-screen.
2. In input interface, 1~10 can be used for direct input of numbers 0~9.
3. In Dome Camera Control mode, 1 is for entering the Set/ Go preset
menu; 2 is for hiding or displaying the dome setting parameters; 11~16
is for quick access of preset points 1~6.
It lights up when power source is connected.
It lights up when an alarm is triggered.
It lights up when network is connected. In addition, it blinks when data is
being transmitted via the network.
It blinks when videos are being recorded.
Press this key to view in full-screen or multiple window modes.
Press once to start the playback of recorded video. Press again to exit.
Press this key to freeze the current viewing screen.
Press this key to start automatic sequence display of cameras.
Press this key to cancel or exit from certain control mode.
1. In Zoom mode, these keys function as normal direction keys.
2. In the OSD setup menu, the direction keys are used to move the
cursor to previous or next fields. To change the value in the selected
field, press UP / DOWN keys.
The USB 2.0 port allows users to connect an external USB device to the
unit, such as a USB ThumbDrive or a USB mouse.
Remote Controller
Power Cord
Software CD-CMS
User's Manual
1
