Xtreme series battery chargers

Advertisement

following xtreme Battery chargers:
Model Name
Dual Pro SE Xtreme
Dual Pro Xtreme

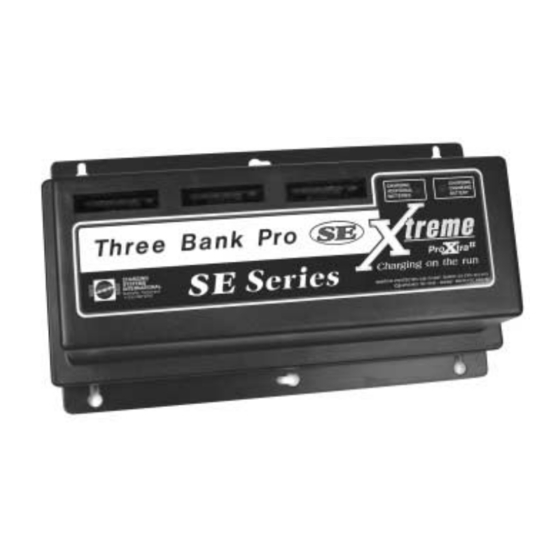

Three Bank SE Xtreme
Three Bank Pro Xtreme
installation and operating
instructions for the
No. of
Banks
2
2
3
3
Amps
Per Bank
10, 10
15, 15
10, 10, 10
15, 15, 6
Battery
System
12V, 24V
12V, 24V
12V, 24V
12V, 24V
# 70201

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dual Pro SE Xtreme and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Charging Systems International Dual Pro SE Xtreme

  • Page 1 No. of Amps Battery Model Name Banks Per Bank System 10, 10 12V, 24V Dual Pro SE Xtreme 15, 15 12V, 24V Dual Pro Xtreme 10, 10, 10 12V, 24V Three Bank SE Xtreme 15, 15, 6 12V, 24V Three Bank Pro Xtreme...
  • Page 2 IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INTRUCTIONS-This manual contains important safety and operating instruc- tions for battery charger models: Dual Pro Xtreme, Dual Pro SE Xtreme, Three Bank Pro Xtreme and Three Bank SE Xtreme. DO NOT INSTALL IN 36 VOLT SYSTEM Use of attachments not recommended or sold by Charging Systems International may result in a risk of fire, electrical shock, or injury to persons.
  • Page 3 Do not operate charger with damaged cord or plug-replace the cord or plug immediately. Do not operate charger if it has received a sharp blow, been dropped, or otherwise damaged in any way; contact Charging Systems International. Do not disassemble charger; contact the factory when service or repair is required. Incorrect reassembly may result in risk of electrical shock or fire.
  • Page 4: Product Summary

    AC Power present to the battery charger and proceed to plug your extension cord in at a nearby 120VAC GFCI protected (Ground Fault Circuit Interrupt) outlet. Once you plug in your Charging Systems International battery charging system, your batteries will be simultaneously and independently charged to 100%. Unlike systems that utilize one large charger to attempt to charge multiple batteries, your system utilizes a totally independent battery charger for each battery.
  • Page 5: Installation Instructions

    "ProXtra" circuitry is allowing charging current to flow to additional batteries. INSTALLATION INSTRUCTIONS All Charging Systems International battery charging systems are designed to be perma- nently mounted and have no mounting restrictions. Do not make any electrical connections to the power supply (AC) or to a battery (DC) until the mounting process has been completed.
  • Page 6: Trouble Shooting

    Before making any connections, prepare batteries as follows: With caps securely in place, thoroughly clean the case and posts with a solution of baking soda and water. Be careful not to allow any soda to get inside the case. All posts, terminal and connections should be cleaned to a shiny bright finish, using a wire brush or sand paper.
  • Page 7 Solution Sequence: With the AC power supply cord unplugged, check the ring terminals for correct polarity (Red to positive or +) and (Black to negative or -). Also check for corrosion free secure connections to the batteries. Call the factory for further assistance. PROBLEM: The LED indications change rapidly back and forth from red to green or the green LED will not illuminate after excessive charging time (16 hours or more).
  • Page 8: Limited Warranty

    Please call Charging Systems International at 1-800-742-2740 for full warranty information and/or service. LIMITED WARRANTY Charging Systems International makes this Limited Warranty only to the original retail purchaser. Charging Systems International warrants this battery charger for three years from the date of retail purchase against defective materials and/or workmanship. If such should occur, this unit will either be repaired or replaced at the discretion of the manufacturer.

This manual is also suitable for:

Dual pro xtremeThree bank se xtremeThree bank pro xtreme
