Rover R2700 Operator's Manual

Removing Unit From Carton Assemble The Unit
1 1 2
Remove all contents from Place shield onto mount
carton. bracket. Securely screw 2
shield screws through holes
on mount bracket and into
shield. Make sure screws are
tightened equally so there is
an equal gap between bracket
and shield on each side.
Assemble The Unit
40:1
1 Gallon 3.2 oz.
5 6
Mix thoroughly in separate Place unit on a level surface.
fuel can: Fill fuel tank.
– 3.2 fl. oz. (95 ml) of
2-cycle engine oil
– 1 US gallon (3.8 liters)
of unleaded petrol
NOTE: Do not mix directly in
fuel tank.
Starting The Unit
1 9 10
Crouch in starting position. SQUEEZE and HOLD
throttle for ALL further
steps.
Reloading The Line*
Bump
Outer
Knob
Spool
1 1 2
Unscrew the bump knob Remove the inner reel and
counterclockwise. spring.
®
Replacement SplitLine :
Part #49U2341K953
For single line installation, refer to Line Installation
section of this manual.
For replacement spool installation, refer to
Installing a Prewound Reel section of this manual.
*This is to assist in the reloading of SplitLine® only. These
instructions are NOT part of the fast assembly
instructions. Line does not need to be installed on the
initial assembly and start-up.
IMPORTANT: READ THE OPERATOR'S MANUAL THOROUGHLY AND FOLLOW THE SAFE OPERATION PRACTICES WHILE OPERATING THE UNIT.
769-07234 P00
3
Remove the cap and gray
spacer from the upper and
lower shafts. Push the
cutting attachment add-on
into the coupler. Turn the
coupler knob clockwise to
tighten.
Starting The Unit
Primer
Bulb
10 X
7
Press primer bulb 10 times,
or until fuel is visible
5 X
11
Pull rope 5 times.
Inner Reel
Spring
Top Hole
Bottom Hole
3
Take 6' (1.8 m) of 0.095"
®
(2.41 mm) SplitLine and
split 6" (150 mm) on each
end. Insert one line in the top
hole and the other line in the
bottom hole.
NEED HELP?
Electric Start Capable
Operator's Manual
Tools Required:
•
•
Min. 6"
4
Put handle on shaft. Move
handle a minimum 6 inches
away from shaft grip. Insert
bolt and tighten.
Choke Lever
Cutting Head Shield
8
Move choke lever to
Position 1.
Choke Lever
12 13
Move choke lever to Pull rope 3-5 times to start
Position 2 and squeeze engine. Run unit for 30-60
throttle. seconds to warm up.
Slot
Slot
4 5
Wind the line tightly in the Insert the lines into the
direction indicated on the inner eyelets in the outer spool.
reel. The split wall will divide Insert the spring and inner
the line. Wind the line until it is reel into outer spool. Push the
completely divided. Insert the inner reel and outer spool
ends into the two 0.095" (2.41 together.
mm) holding slots.
CALL 1300 951 594

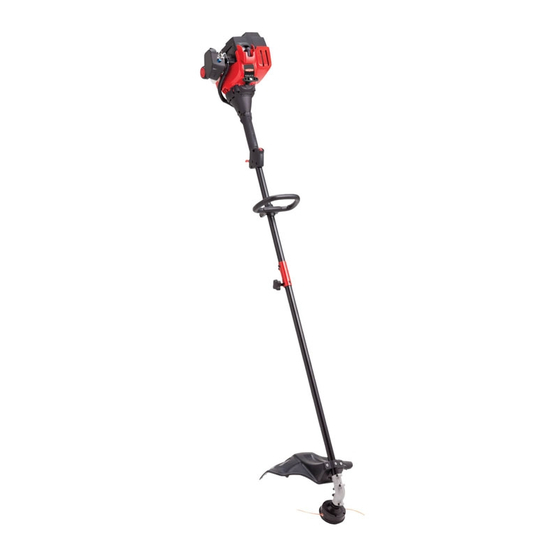

R2700
2-Cycle Trimmer
#2 Phillips screwdriver
3/8" Socket
On/ Off Switch
D-Handle
EZ-Link™
Call 1300 951 594
DIDN'T START?
Repeat the starting instructions.
IF the engine fails to start after 2 attempts,
move the choke lever to position 3 and
pull the starter rope until the engine starts.
IF the unit still fails to start, refer to the
Starting and Stopping section of this
manual for additional information.
Choke Lever
3-5 X
14
Continue to squeeze
throttle. Move choke lever
to Position 3.
Eyelets
6
Pull the lines firmly to release
them from the holding slots.
Starter Rope
Fuel Cap
Throttle Control
Need Help?
15
Continue to squeeze
throttle. Run unit for an
additional 60 seconds to
complete warm-up. Unit
may be used during this
time.
7
Hold the inner reel in place.
Securely tighten the bump
knob clockwise.
07/11
