Rover R2650 Operator's Manual

Rover R2650 Operator's Manual

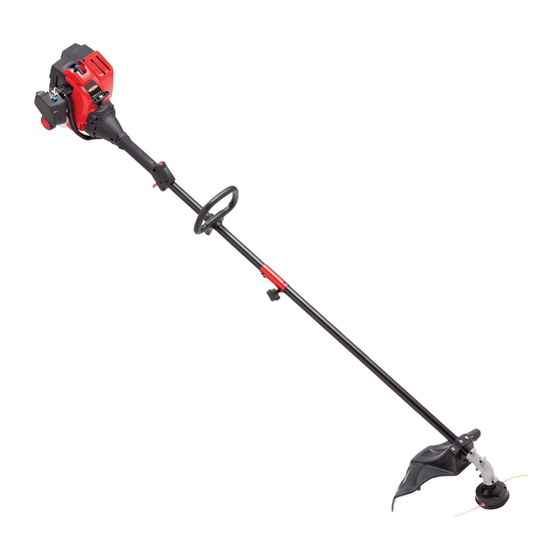

Electric start capable 2-cycle trimmer

Advertisement

Quick Links

Electric Start Capable
2-Cycle Trimmer
R2650
IMPORTANT: Read this manual thoroughly before using this product. Follow all instructions.
769-10612 / 00
Operator's Manual

TABLE OF CONTENTS

Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Know Your Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Oil and Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Starting and Stopping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Cleaning and Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
SAVE THESE INSTRUCTIONS

SERVICE

DO NOT RETURN THIS UNIT TO THE RETAILER. PROOF OF
PURCHASE WILL BE REQUIRED FOR WARRANTY SERVICE.
For assistance regarding the assembly, controls, operation or
maintenance of the unit, please call the Customer Support Department
at 1300 951 594. Additional information about the unit can be found
on our website: www.rovermowers.com.au.
For service, please call the Customer Support Department to obtain
a list of authorized service dealers near you. Service on this unit,
both within and after the warranty period, should only be performed
by an authorized and approved service dealer. When servicing, use
only identical replacement parts.
All information, illustrations, and specifications in this manual are based
on the latest product information available at the time of printing. We
reserve the right to make changes at any time without notice.
The product may vary slightly from the illustrations contained in this
manual.
Copyright© 2015 MTD SOUTHWEST INC, All Rights Reserved.
02/15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R2650 and is the answer not in the manual?

Questions and answers

Summary of Contents for Rover R2650

  • Page 1: Table Of Contents

    Know Your Unit ........5 R2650 Specifications .
  • Page 2: Safety

    SAFETY SPARK ARRESTOR NOTE The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and their explanations, NOTE: For users on U.S. Forest Land and in the states of deserve your careful attention and understanding. The safety California, Maine, Oregon and Washington.
  • Page 3 SAFETY WARNINGS FOR GAS UNITS • Before setting the unit down, always make sure the engine is off and all moving parts have stopped. • If you strike or become entangled with a foreign object, stop the WARNING: unit immediately and check for damage. Do not operate the unit Gasoline is highly flammable and before repairing damage.
  • Page 4 • SAFETY & INTERNATIONAL SYMBOLS • This operator's manual describes safety and international symbols and pictographs that may appear on this product. Read the operator's manual for complete safety, assembly, operating and maintenance and repair information. SYMBOL MEANING SYMBOL MEANING •...
  • Page 5: Know Your Unit

    KNOW YOUR UNIT APPLICATIONS As a trimmer: Muffler Spark Plug • Cutting grass and light weeds. • Edging Choke Lever Starter Rope • Decorative trimming around trees, fences, etc. Grip Other optional attachments may be used with this unit. Shaft Grip ASSEMBLY TOOLS REQUIRED: On/Off Switch •...
  • Page 6: Assembly

    ASSEMBLY INSTALLING THE CUTTING HEAD SHIELD Screws (2) WARNING: To prevent serious personal injury, never operate the unit without the cutting head shield in place. Cutting Head Shield Mount Bracket 1. Place the cutting head shield onto the mount bracket. Align the holes in the cutting head shield with the holes in the mount bracket.
  • Page 7 WARNING: Before using any attachment, read and understand the manual that came with the attachment. Follow all safety information contained within. WARNING: To avoid serious personal injury and damage to the unit, shut the unit off before removing or installing an attachment. Loosen Tighten Knob...
  • Page 8: Oil And Fuel

    OIL AND FUEL FUELING THE UNIT OIL AND FUEL MIXING INSTRUCTIONS The use of old and/or improperly mixed fuel is the most common cause WARNING: Gasoline is extremely flammable. Ignited of performance problems. Use only fresh, clean unleaded gasoline. vapors may explode. Always stop the engine and allow it Follow the instructions carefully for the proper gasoline/oil mixture.
  • Page 9: Starting And Stopping

    STARTING AND STOPPING WARNING: Operate this unit only in a well-ventilated Off (O) / Stop outdoor area. Carbon monoxide exhaust fumes can be lethal in a confined area. On ( I ) / Start WARNING: Avoid accidentally starting the unit. To avoid serious injury, the operator and the unit must be in a stable position when pulling the starter rope (Fig.
  • Page 10 USING THE ELECTRIC START ACCESSORY This unit can be started with an optional electric start accessory Item No. Description (items sold separately). Refer to the electric start accessory 49MESCBP966 ......Engine Starter Bit operator’s manual for the proper use of this feature.
  • Page 11: Operation

    OPERATION HOLDING THE UNIT WARNING: Always wear eye, hearing, hand, foot and body protection to reduce the risk of injury when operating this unit. WARNING: To prevent serious personal injury, avoid arm contact with the engine while operating the unit. The engine may be extremely hot.
  • Page 12 DECORATIVE TRIMMING When trimming around trees, posts, fences, etc., rotate the whole unit so that the cutting head is at a 30° angle to the ground (Fig. 12). Fig. 12 EDGING The trimmer attachment can be used for edging (Fig. 13). Alternatively, bladed lawn edger attachments can also be purchased for use with this unit.
  • Page 13: Maintenance

    MAINTENANCE WARNING: To prevent serious injury, never perform Bolt Outer Spool Bump Knob maintenance or repairs while the unit is running. Always allow the unit to cool before servicing or repairing the unit. Disconnect the spark plug wire to prevent the unit from starting accidentally.
  • Page 14 Part 2 - Winding New Trimming Line onto the Inner Reel • If using single line, refer to Winding Single Line. • If using split line, refer to Winding Split Line. Split Wall • If using a prewound inner reel, proceed to Part 3 - Installing the Inner Reel.
  • Page 15 MAINTAINING THE AIR FILTER Air Filter WARNING: To avoid serious personal injury, always stop the engine and allow it to cool before cleaning or maintaining the unit. Failure to maintain the air filter can result in poor performance or can cause permanent damage to the engine.
  • Page 16 MAINTAINING THE SPARK PLUG 1. Stop the engine and allow it to cool. Grasp the spark plug boot firmly and pull it from the spark plug. 2. Clean around the spark plug. Remove the spark plug from the cylinder head with a 5/8-inch socket, turning counterclockwise. WARNING: Do not sand blast, scrape or clean spark plug electrodes.
  • Page 17: Cleaning And Storage

    CLEANING AND STORAGE CLEANING STORAGE • Never store a fueled unit where fumes may reach an open flame WARNING: To avoid serious personal injury, always stop or spark. the engine and allow it to cool before cleaning or maintaining • Allow the engine to cool before storing.
  • Page 18: Troubleshooting

    TROUBLESHOOTING PROBLEM SOLUTION THE ENGINE WILL NOT START The fuel tank is empty Fill the fuel tank with properly mixed fuel The primer bulb was not pressed enough Press the primer bulb 10 times or until fuel is visible Move the choke lever to Position 3, squeeze the throttle control and The engine is flooded pull the starter rope The fuel is old (over 30 days) and/or improperly mixed...
  • Page 19 NOTES...
  • Page 20 NOTES...
  • Page 21 NOTES...
  • Page 22 NOTES...
  • Page 23 NOTES...
  • Page 24: Warranty

    Warranty Conditions - Australia (Not applicable to other Regions) The benefits given to you under this warranty are in addition to other rights and remedies that you have under Australian law in relation to the goods. MTD Products Australia Pty Ltd warrants that this machine is free from defects in material and workmanship. This warranty is limited to repairing or replacing any part which appears upon inspection by MTD Products Australia Pty Ltd or its agent to be defective in material or workmanship.
