Summary of Contents for Garden Sun Heater HSS-RS-GH
- Page 1 OUTDOOR PATIO HEATER MODEL #HSS-RS-GH...
-
Page 2: Package Contents

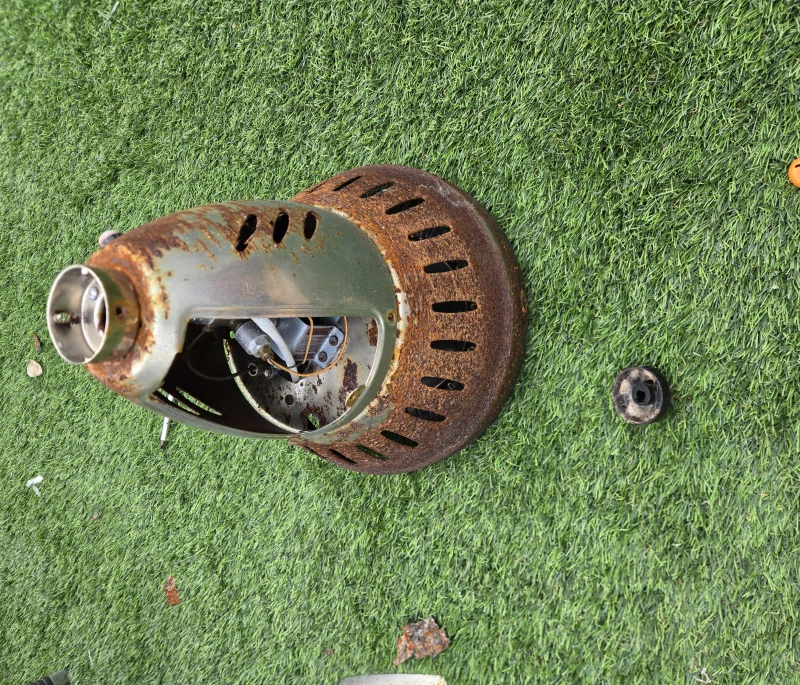

PACKAGE CONTENTS QUANTITY Reflector Panel Reflector Plate Reflector Stud Head Assembly Cylinder Housing Post Gas Hose Support Bracket Base Wheel Kit Regulator... -
Page 3: Safety Information
HARDWARE CONTENTS (shown actual size) Stainless Flange Flange Washer Φ6 steel bolt Bolt Qty. 9 Washer Φ8 Qty. 4 Reflector M8 x 16 Bolt Qty. 2 Qty. 6 Qty. 9 spacer Qty. 5 M6 x 30 Qty. 3 Qty. 5 Wrench Screw Cap nut... - Page 4 SAFETY INFORMATION DANGER DANGER • EXPLOSION - FIRE HAZARD • CARBON MONOXIDE HAZARD • Keep solid combustibles, such as building materials, • This heater is a combustion appliance. All paper or cardboard, a safe distance away from the combustion appliances produce carbon monoxide heater as recommended by the instructions.
-
Page 5: Burn Hazard
SAFETY INFORMATION WARNING WARNING California Proposition 65 • This product is fueled by propane gas. Propane gas Combustion by-products produced when using is invisible, odorless, and flammable. An odorant is this product contain chemicals known to the State normally added to help detect leaks and can be of California to cause cancer, birth defects, and described as a “rotten egg”... - Page 6 ASSEMBLY INSTRUCTIONS 1. Attach wheel assembly (I) to base (H). Line up holes in wheel bracket with corresponding holes in base, insert two bolts M8 x 16 (BB) through holes, and finger tighten Fill sand two M8 flange nuts (AA). Be sure that the wheel assembly is parallel to the base, and fully tighten bolts.
- Page 7 ASSEMBLY INSTRUCTIONS 4. Load Cylinder Housing onto Post. Slide Cylinder Housing down. 5.Attach reflector spacers (FF) and three washers Ø8 (GG) to screen cover. Tighten the reflector spacers. Unscrew four stainless steel bolts (DD). Hardware Used Reflector Spacer Washer Φ8 6.
- Page 8 ASSEMBLY INSTRUCTIONS 7. WARNING:Remove protective cover before assembling. Note: If necessary for proper alignment of reflector sections, loosen each bolt prior to further assembly and retighten after sections are aligned. 8. Slide two reflector panels together. Insert one screw M6 X 10 (II). Slide one washer Φ 6 (HH) over threaded end of screw M6 X 10 (II) and...
- Page 9 ASSEMBLY INSTRUCTIONS 10. Support heater. Slide three washers washer Φ8 (GG) over threaded end of spacer. Locate reflector assembly on 3 spacers. Install three washers Φ8 on spacers and securely tighten wing nuts (KK) but do not overtighten. Hardware Used Washer Φ8 Wing nut 11.
- Page 10 ASSEMBLY INSTRUCTIONS A dented, rusted or damaged propane cylinder may be hazardous and should be checked by your cylinder supplier. Never use a propane cylinder with a damaged valve connection. The propane cylinder must be constructed and marked in accordance with the specifications for LP gas cylinders of the U.S.
- Page 11 OPERATION INSTRUCTIONS Leak Check WARNING • Perform all leak tests outdoors. • Extinguish all open flames. • NEVER leak test when smoking. • Do not use the heater until all connections have been leak tested and do not leak. Hose / Regulator Regulator / Cylinder connection connection...
- Page 12 OPERATION INSTRUCTIONS DANGER • CARBON MONOXIDE HAZARD • For outdoor use only. Never use inside house, or other unventilated or enclosed areas. This heater consumes air (oxygen). Do not use in unventilated or enclosed areas to avoid endangering your life. Caution: Do not attempt to operate until you have read and understand all General Safety Information in this manual and all assembly is complete and leak checks have been performed.
- Page 13 OPERATION INSTRUCTIONS 5. Push and release the igniter button until pilot flame is visible through viewing hole. 6. Once the pilot is lit, continue to depress the control knob for 30 seconds. 7. If the pilot does not stay lit, repeat steps 4 to 6. 8.
-
Page 14: For Your Safety
OPERATION INSTRUCTIONS WARNING FOR YOUR SAFETY Be careful when attempting to manually ignite this heater. Holding in the control know for more than 10 seconds before igniting the gas will cause a ball of flame upon ignition. When heater is ON: Emitter screen will become bright red due to intense heat. -
Page 15: Care And Maintenance
OPERATION INSTRUCTIONS 9. Heater is away from gasoline or other flammable liquids or vapors. 10. Heater is away from windows, air intake openings, sprinklers and other water sources. 11. Heater is at least 24 in. on top and at least 36 in. on sides from combustible materials. 12. - Page 16 CARE AND MAINTENANCE Gas odor with extreme yellow tipping of flame. Heater does NOT reach the desired temperature. Heater glow is excessively uneven. Heater makes popping noises. Spiders and insects can nest in burner or orifices. This dangerous condition can damage heater and render it unsafe for use.
-
Page 17: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Cylinder valve is closed Open valve Clean or replace orifice or Blockage in orifice or pilot tube pilot tube Open gas line and bleed it Pilot won’t light Air in gas line (pressing control knob in) for not more than 1 - 2 minutes or until you smell gas Low gas pressure with cylinder valve... -
Page 18: One-Year Limited Warranty
ONE-YEAR LIMITED WARRANTY This product is inspected, tested and carefully packaged to minimize the chance of damage during shipment. If a part (excluding light bulbs and fuses*) within one year from the date of purchase proves to be defective in material or fabrication under normal use, the part will be repaired or replaced. -
Page 19: Replacement Parts List
REPLACEMENT PARTS LIST QUANTITY Reflector Panel Reflector Plate Reflector Stud Head Assembly Cylinder Housing Post Gas Hose Support Bracket Base Wheel Kit Regulator Printed in China...
