Summary of Contents for Go Power GP-TS 50

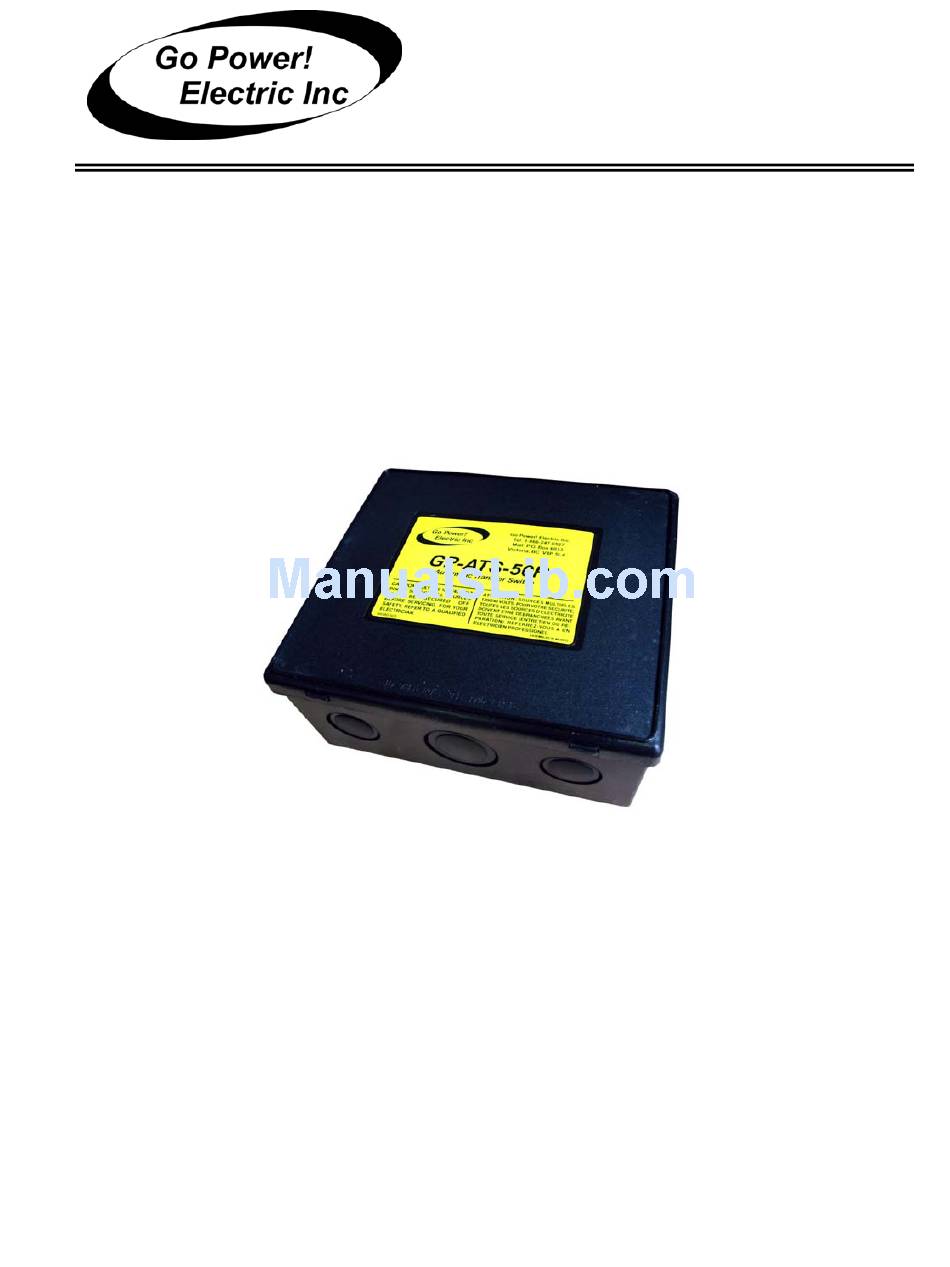

- Page 1 Go Power! Manual GP-TS 50 Go Power! Electric Inc. PO Box 6033 Victoria, BC V8P 5L4 Tel: 866-247-6527 Fax: 866-607-6527 Email: info@gpelectric.com...
-
Page 2: Table Of Contents
OPERATIONAL TESTING............7 TROUBLESHOOTING............... 7 HI-POT TESTING ..............9 GENERATOR NOTE ..............9 MEDICAL APPLIANCES............9 CAUTION!................10 WARRANTY ................10 Go Power! Electric Inc. PO Box 6033 Victoria, BC V8P 5L4 Toll Free Tel: 866-247-6527 Toll Free Fax: 866-607-6527 Email: info@gpelectric.com Rev1.1... -
Page 3: Introduction
Owner’s Manual 1. Introduction The Go Power! Transfer Switch 50 (TS-50) provide automatic power switching between two or three separate 120/240 volt AC input sources, including power cords, onboard generators, onboard inverters, or all three. The ATS will sense the presence of available supplies and automatically select the proper one. - Page 4 Go Power! TS-50 Owner’s Manual C. Strip the outer jacket from all of the incoming cables. Strip insulation from all ends of the copper conductors. Insert cables through clamps in openings. Do not tighten cable clamps at this time. D. Route internal ground wires around lower area of enclosure and secure to ground wires away from electrical contacts on components to avoid the possibility of electrical short-circuit.
- Page 5 Go Power! TS-50 Owner’s Manual through the normally closed contacts of the switch. This allows the inverter to operate only in the absence of the other power supplies, which is ideal for inverters. Set the timer delay bypass switch of the inverter/alternate source transfer switch to the ON position.
- Page 6 Go Power! TS-50 Owner’s Manual...
-
Page 7: Operational Testing
Go Power! TS-50 Owner’s Manual 3. OPERATIONAL TESTING READ AND FOLLOW ALL SAFETY INSTRUCTIONS 1. Plug in the powercord. If the main panel circuit breakers are switched on, RV load should operate normally. Unplug the powercord. 2. Start the generator. There is a pre-programmed 20-30 second delay in the transfer switch. - Page 8 Go Power! TS-50 Owner’s Manual start-up. Contactor-based transfer switches are affected by this. The compressor will try to start, the voltage will drop, which will cause the contactor to drop out, at which point the voltage will rise to the pre-in rush level. The contacts will chatter when the A/C compressor kicks in, however the voltage may read normal.
-
Page 9: Hi-Pot Testing
7. MEDICAL APPLIANCES Go Power! Electric will not knowingly sell a Go Power! Automatic Transfer Switch for any life-support application. It is strongly recommended that you do not operate any life support equipment from a transfer switch. If the switch should malfunction,... -
Page 10: Caution
Canada from defects in materials or workmanship under normal use for two years from date of retail purchase and will repair or replace any Go Power! Transfer Switch under warranty found to be defective free of charge. For complete warranty...
