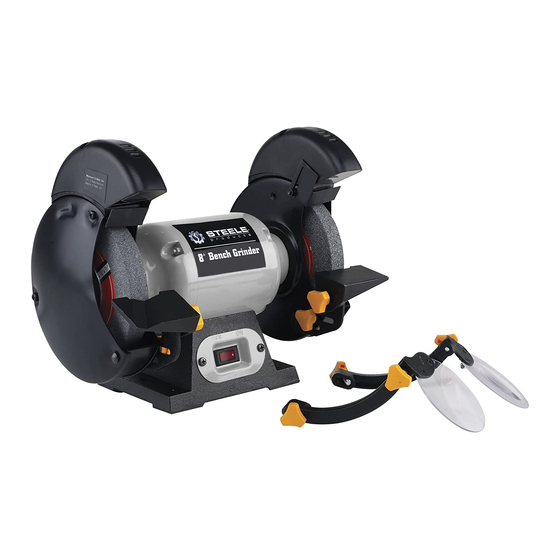

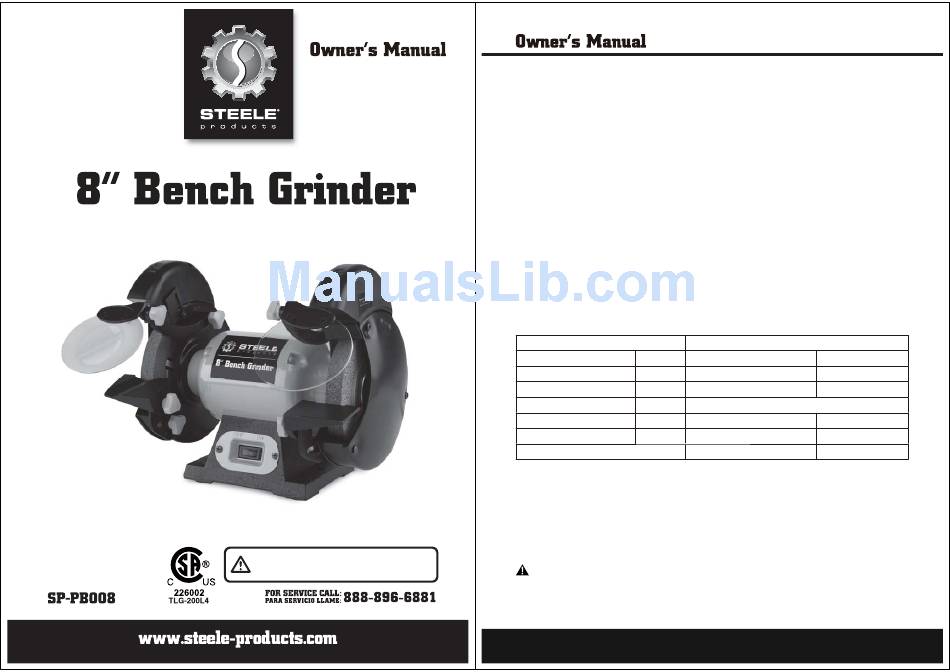

8" bench grinder
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
WARNING! To Reduce The Risk Of Injury, User
Must Read And Understand Instruction Manual.
CONTENTS

Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

General Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Specific Safety Rules For The Bench Grinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
General Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Assembly And Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Parts and List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
PRODUCT SPECIFICATIONS
MODEL
WHEEL
Rating Voltage
120 Vac
Diameter
Frequency
60Hz
Face
Amperes
4.8
Hole
No Load Speed
3450 RPM
WORK LIGHT
Weight
38 lbs
Rating Voltage
HP
3/4
Watt
Base
DESCRIPTION
Unique design with 2 fixed work light to illuminate your work area; Dry double end grinding wheels
can give rapid sharpening to various types of blades. Powerful motor quickly brings the coarse
and fine grinding wheels to their required operating speed.
WARNING
To prevent accidental starting or electrical shock that could cause possible
serious personal injury, assemble all parts to your bench grinder before connecting it to power
supply. The bench grinder should never be connected to power supply when you are assembling
parts, making adjustments, installing or removing grinding wheels, cleaning, or when not in use.
8 in.
1 in.
5/8 in.
12V
10W
Cast Iron
1
