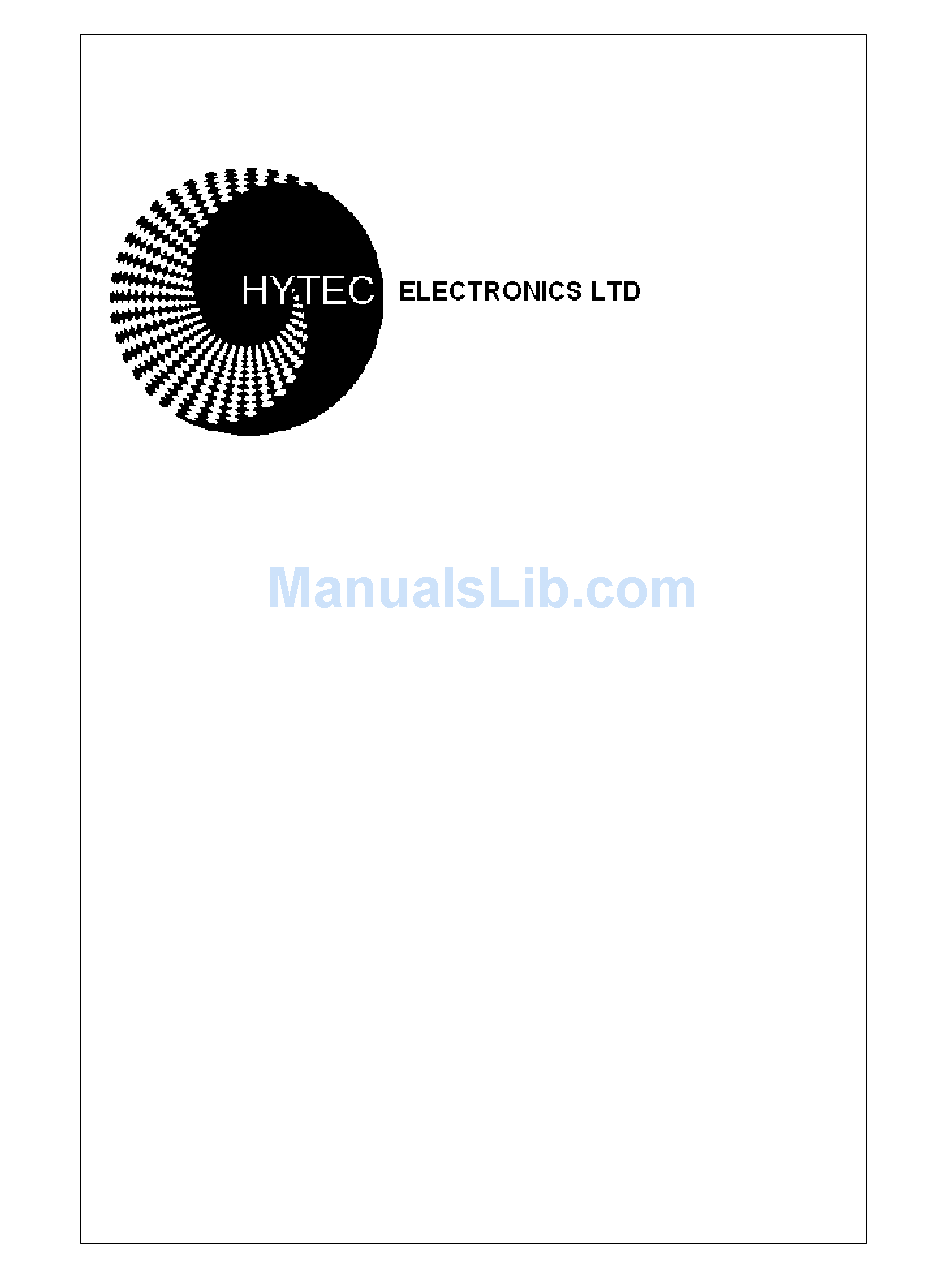

1365 Ethernet CAMAC Crate Controller
MK4
Technical Handbook
Issue 1
© Hytec Electronics Ltd 2001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MK4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hytec Electronics MK4

  • Page 1 1365 Ethernet CAMAC Crate Controller Technical Handbook Issue 1 © Hytec Electronics Ltd 2001...
  • Page 2 Technical Handbook ECC 1365 MK4 AMENDMENT RECORD Issue Date Change Author Reviewed by August 2001 New Document P. Marshall M.Woodward Checked by :- Date:- [P. Marshall] Authorising Engineer Hytec Electronics Ltd– Page 2...
  • Page 3 Whilst every effort has been made in this handbook to instruct users in the correct methods of using the equipment, Hytec Electronics Ltd. accepts no liability for personal injury or damage to the equipment howsoever such injury or damage might be caused.
  • Page 4 Technical Handbook ECC 1365 MK4 This page is intentionally blank Hytec Electronics Ltd– Page 4...
  • Page 5: Table Of Contents

    Downloading New Software ........................47 6.10 Initialisation ...............................47 6.11 The Tick Timer ..............................48 6.12 Time Tagging ..............................48 6.13 The Clock System ............................48 6.14 The Crash Table..............................48 6.15 Command Processing ...........................50 6.16 COR Processing..............................50 6.17 Security Processing ............................50 Hytec Electronics Ltd - Page 5...
  • Page 6 Configuring the Links & Switches ......................73 8.1.5.1 CAMAC Crate Number Switches ....................74 8.1.5.2 Diagnostic Mode/Normal /Reset Switch..................74 8.1.5.3 Z Switch..............................74 8.1.5.4 Left Hand Controller Board Switches..................74 8.1.5.5 Left Hand Controller Board Jumpers ..................76 Initial Setup Of Battery-Backed RAM.......................77 Hytec Electronics Ltd– Page 6...
  • Page 7: Technical Handbook Hytec Electronics Ltd - Page

    A5 ERROR PROCESSING AND ERROR MESSAGES ..........110 A5.1 VAX/VMS Error Processing........................110 A5.2 UNIX Error Processing..........................110 A5.3 Error messages .............................110 A5.3.1 User Process Errors ..........................111 A5.3.2 Manager Process Errors ........................112 A5.3.3 ECC 1365 Controller Errors ......................114 Hytec Electronics Ltd - Page 7...
  • Page 8 Table A2-3 ERP Multicast Frame Format ................ 95 Table A2-4 ECP Frame Format (LLC and Pseudo LLC3 only)........95 Table A3-1 ..........................106 Table A3-2 ..........................107 Table A3-3 ..........................107 Table A3-4 ..........................108 Table A3-5 ..........................108 Hytec Electronics Ltd– Page 8...
  • Page 9: Abbreviations

    Auxiliary Controller Bus Universal Twisted Pair CAMAC Operation Routine Department of Energy DTM4 CAMAC Dataway Test Module – Type 4 (Available from Hytec Electronics Ltd. UK) Ethernet Crate Controller Ethernet CAMAC Protocol ESONE European Standards on Nuclear Equipment Find Address Protocol...
  • Page 10: Introduction

    This handbook is concerned with the Ethernet Crate Controller, type ECC 1365 MK 4. It is one of a range of CAMAC modules designed in the U.K. by HYTEC Electronics Ltd. Hytec is a long established hardware, software and systems company, which leads CAMAC development in industry and research.
  • Page 11 Compliant with ISO/IEC IS8802-3 CSMA/CD ∼ Supports standard ESONE /DOE subroutines ∼ Security, including controller-resident access tables ∼ Logical Link Control (ISO /IEC IS8802-2) support ∼ User Datagram Protocol / Internet Protocol (UDP/IP) support Hytec Electronics Ltd - Page 11...
  • Page 12: Hardware Overview

    Xilinx-based CAMAC port and associated Ethernet address PROM. 2.2 The Support Board The support board is a short board containing: - ∼ The N Line decoders. ∼ The N and L line pull-up resistor packs Hytec Electronics Ltd– Page 12...
  • Page 13: The Utp Ethernet Connection

    A controller Reset / Normal / Diagnostic mode toggle switch ∼ An RS232 Diagnostic connector (9-way D-type) ∼ CAMAC ZED button A full description of these functions is given in Chapter Installing the ECC 1365, Page 68. Hytec Electronics Ltd - Page 13...
  • Page 14 ON = Executing CAMAC transfers in Fast CAMAC mode (later enhancement) CAMAC ON = Executing CAMAC cycle LINK ON = UTP Link established ACTIVE ON = Network traffic active SPEED ON = 100 Mbit link established. Hytec Electronics Ltd– Page 14...
  • Page 15: Figure 1 1365 Mk 4 Front Panel Details

    ECC 1365 MK4 Technical Handbook HYTEC ECC 1365 ETHERNET CRATE CONTROLLER MK4 COMM FAST CAMAC CAMAC REQUEST GRANT IN GRANT OUT LINK ACTIVE SPEED DIAG NORM RESET RS232 Figure 1 1365 MK 4 Front Panel Details Hytec Electronics Ltd - Page 15...
  • Page 16: Software Overview

    UDP/IP protocols. Users who prefer to implement their own host support can do so by using the protocol definition documents available from Hytec Electronics Ltd. Host support for DEC VAX, running VMS via logical link control protocols, and UNIX Systems via the User Datagram Protocols are available.
  • Page 17: Unix Host Introduction

    (which return immediately). The latter require a user to call to a generalized wait routine, to receive the command completion status when it is available. The routines also exist as a set of function calls. Hytec Electronics Ltd - Page 17...
  • Page 18: Firmware Overview

    This can be disabled by setting the module “promiscuous” bit in the controller-booking table. Each host can control CAMAC modules in more than one ECC 1365. A multi -host / multi-ECC configuration is illustrated in Figure 5. Hytec Electronics Ltd– Page 18...
  • Page 19: Figure 4 A Simple System Configuration

    Ethernet cable Switch Ethernet hub Figure 4 A simple System Configuration CAMAC CAMAC Crate Crate Ethernet cable Host Host CAMAC System System Crate Switch Ethernet hub Figure 5 A multi host, multi-ECC system configuration Hytec Electronics Ltd - Page 19...
  • Page 20 (PIDs) in the host system. If PID booking is off then the booking is to be the host ID only. The automatic booking of stations when they are accessed for the first time is known as auto booking. This feature can be enabled or disabled. Hytec Electronics Ltd– Page 20...
  • Page 21: Major Functions

    ∼ Statistics-gathering support. The firmware will gather statistics on Ethernet messages, failures, errors, recoveries, etc. plus CAMAC statistics, such as a number of LAMs, double-booking attempts, security violations and Dataway timeouts. Hytec Electronics Ltd - Page 21...
  • Page 22: Camac Functionality

    Full CAMAC LAM support. Host processes are notified when booked LAMs occur. Block and List modes can be synchronised to LAMs. ∼ User defined controller commands can be downloaded from a host and then executed (this permits applications to set up extra controller capability, if needed). Hytec Electronics Ltd– Page 22...
  • Page 23: System Protocols

    UDP, LLC1 APPLICATION LAYER LLC3 ICMP Controller specific Protocol Protocol CAMAC Handlers Handlers Operation Routine Protocol UDP Protocol Layer Hosts talking UDP protocols (Unix Hosts) Figure 6 Protocol Layer model for the ECC 1365 Hytec Electronics Ltd - Page 23...
  • Page 24: Logical Link Control

    The network interactions for these methods of operation are illustrated in Figure 7. A pair of (LSAP) addresses are used, one for commands issued by the host and the other for commands issued by the ECC 1365. Hytec Electronics Ltd– Page 24...
  • Page 25: Figure 7 Network Interactions

    Host System Ethernet CAMAC Controller Request + data Immediate response request Execute Operation complete Response + data Request + data Deferred response request Queue request Acknowledge Execute Operation complete Acknowledge Figure 7 Network Interactions Hytec Electronics Ltd - Page 25...
  • Page 26: Udp/Ip

    Ethernet frame and all data to be returned by the ECC 1365 must also fit within one Ethernet frame. When the deferred response mode is used, data can be larger than one Ethernet frame. The Ethernet frame is shown in Table 1. Hytec Electronics Ltd– Page 26...
  • Page 27: Command Block Format For Ecp Frame Carried By Udp

    Pseudo LLC3 control field Pseudo LLC3 status field Frame type (=7) Request number CAMAC crate number ECC host ID Host PID Host Access ID Flags Status Data area Table 2 ECP Frame format when carried by UDP Hytec Electronics Ltd - Page 27...
  • Page 28: Data Segmentation

    The ECC 1365 and host systems handle the segmentation of the command block by queuing buffers and maintaining a set of pointers locally. It is required that the header fields are all contained within the first segment, so that only the parameter fields can span segments. Hytec Electronics Ltd– Page 28...
  • Page 29: Ecc 1365 Commands

    Set /clear LAM promiscuous flag Set/clear + Station number Pre-allocate response buffer space Enable / disable module LAM Clear all entries in security table Attach COR to LAM Station number Table 4 ECC 1365 Control Commands Hytec Electronics Ltd - Page 29...
  • Page 30: Camac Operation Routines

    ECC 1365 command and specifies how often interrupt shall be enabled by CORs that permit interrupts during their execution. When interrupts are enabled, the ECC attempts to transmit full response buffers back to the host. Hytec Electronics Ltd– Page 30...
  • Page 31: Mapping Esone / Doe Subroutines To Network Protocols

    CAMAC command is set to zero rather than one. ESONE / DOE Subroutine Command List Perform single CAMAC operation 1000 0001 0000 0001 0000 0000 0000 0001 0000 0000 0000 0000 0fff ffnn nnna aaal Table 7 Single Action Command Block Hytec Electronics Ltd - Page 31...
  • Page 32: Table 8 Mapping Esone / Doe Subroutines To Ecc 1365 Commands

    Table 8 Mapping ESONE / DOE subroutines to ECC 1365 Commands Notes: Command modifier determines set or clear Command modifier determines enable or disable. The mode value is a copy of the LAM access specifier provided to the Declare LAM subroutine Hytec Electronics Ltd– Page 32...
  • Page 33: Table 9 Mapping Esone / Doe Subroutines To Ecc 1365 Commands Block Transfers And Multiple Actions

    Number of operations (low) Number of operations (high) 0fff ffnn nnna aaal Data if write ……………. Table 9 Mapping ESONE / DOE Subroutines to ECC 1365 Commands Block Transfers and Multiple Actions See notes overleaf Hytec Electronics Ltd - Page 33...
  • Page 34: Network Protocols

    When an ECC 1365 completes its reset sequence, it transmits an ERP Active multicast frame to inform hosts that it is available. Note that the ERP Active frame is not sent until the Network Time Protocol (NTP) Listening state has been completed. Hytec Electronics Ltd– Page 34...
  • Page 35: Ecc 1365 Status Protocol

    CAMAC modules controlled by the ECC. An overview description of ECPs is covered in Chapters ECC 1365 Commands, Page 29 & CAMAC Operation Routines, Page The ECP frame format is given in Appendix A2, Table A2.4 Hytec Electronics Ltd - Page 35...
  • Page 36: Network Time

    The working of the algorithm depends upon the successful estimation of the minimum transfer delay of a message between processes. The delay occurs in three places. the transmission delay the transit delay the reception delay: Hytec Electronics Ltd– Page 36...
  • Page 37: Network Time Algorithm

    NTP multicasts. An ECC 1365 module remains in the Listening state until it receives at least one NTP multicast. Hytec Electronics Ltd - Page 37...
  • Page 38: Ethernet Camac Controller Firmware Details

    CAMAC LAM interrupt condition or runaway command execution: Figure 8 illustrates these processing priorities and figures 9 & 10 show the flow of command lists through the ECC 1365 software. Hytec Electronics Ltd– Page 38...
  • Page 39: Figure 8 Processing Priorities

    Timer interrupt Timer interrupt processing 82559 interrupt 82559 interrupt Exit processing LAM interrupt LAM interrupt processing Process entry from LLC3 input queue Queue empty Process entry from deferred response queue Figure 8 Processing Priorities Hytec Electronics Ltd - Page 39...
  • Page 40: Figure 9 Command List Data Flow- Immediate Operations

    ECC 1365 MK4 From 82559 or UDP LLC3 Input Queue Booking Attach table Booked Module Immediate operation Execute commands Send Accepted Response LLC3 /UDP Output Deferred Processing Response Queue Figure 9 Command List Data Flow- Immediate Operations Hytec Electronics Ltd– Page 40...
  • Page 41: Figure 10 Command List Data Flow

    ECC 1365 MK4 Technical Handbook Delay time complete Deferred Delay Response Queue Queue Execute Commands Delay repeat LLC3/UDP LLC3 Output Output processing Queue 82559 Transmit Ring Ethernet Figure 10 Command List Data Flow Hytec Electronics Ltd - Page 41...
  • Page 42: Timer Interrupt Actions

    Cycle down a list of outstanding LLC3 transmit timers. When it finds one, decrement the timer, and if it is now zero, invoke the appropriate LLC3 error handler. Hytec Electronics Ltd– Page 42...
  • Page 43: Qspan/82559 Interrupt Actions

    Request Exit Address Timer algorithm Request Address Build and send Request status response Address Build and send Request address response Address Reset processing Request Error processing Figure 11 Command List Data Flow- Deferred Operations Hytec Electronics Ltd - Page 43...
  • Page 44: Lam Interrupt Actions

    Note: Unix users should be wary of the PID mode being enabled. If PID booking is enabled by the switch and an initialisation [!INIT] command is performed, auto module booking is disabled. Hytec Electronics Ltd– Page 44...
  • Page 45: Lam Booking

    Code 23) or displayed by a terminal connected to the ECC 1365 front panel port. These statistics provide cumulative counts of the number of times that selected conditions are encountered in the ECC. The content of the statistics table is shown in Table 10 Hytec Electronics Ltd - Page 45...
  • Page 46: Table 10 Statistics Table Format

    Size available in bytes Current usage in bytes Note: The crash table entries are time-ordered, with the last entry corresponding to the most recent crash. Unused entries have a crash code of SUCCESS Table 10 Statistics Table Format Hytec Electronics Ltd– Page 46...
  • Page 47: Tracing

    Four switches (5 to 8 on SW5) are used to specify the LSAP address pair to be used. Details of these switch settings are in Chapter 8.1.6 Configuring the Links & Switches, Page 73 Hytec Electronics Ltd - Page 47...
  • Page 48: The Tick Timer

    “time up” variable at the time of the crash. The index number at the start of the crash table indicates the next table entry to be written. The error codes are shown in the table overleaf. Hytec Electronics Ltd– Page 48...
  • Page 49: Table 12 Ecc 1365 Mk 4 Firmware Error Codes (Crash Codes)

    82559_TXERR 82559 hard TX error TRAP_1101 Line 1101 exception interrupt TRAP_1111 Line 1111 exception interrupt REG_82559 Unable to read / write 82559 registers Table 12 ECC 1365 MK 4 Firmware Error Codes (Crash Codes). Hytec Electronics Ltd - Page 49...
  • Page 50: Command Processing

    A common set of error codes is used within the firmware. These are defined in module “structs.h” and are reproduced in Table 12. Some of these codes are internal to the software and some can be observed at the user level, e.g. in a system crash table entry. Hytec Electronics Ltd– Page 50...
  • Page 51: Ecc 1365 Front Panel Diagnostics Terminal Support

    The last five commands can be recalled by use of the VT200/VT300 terminal up-arrow key (similar to the VM5/DCL method). For terminals without arrow keys, Ctrl/r can be used. The available commands are shown in Table 13. Hytec Electronics Ltd - Page 51...
  • Page 52: Table 13 Ecc 1365 Front Panel Terminal Commands

    This list is displayed whenever ‘help’ is typed (upper or lower case). The list is presented in four sections, the first three stopping with the message: --more— The next section is then shown when <Return> is pressed. The help list can be aborted by pressing Ctrl-C at any time. Hytec Electronics Ltd– Page 52...
  • Page 53: Trap Details

    If a known Ethernet address is entered, a display is generated. A typical one is shown below Address SU Z C I DL PR E ST Module mask 111111111122222 123456789012345678901234 EEEE 0000 0000 XXXXX..XXXXXXXXXXXXXX Completed OK Note: an ‘X’ denotes a bit set and a ‘.’ denotes a bit clear. Hytec Electronics Ltd - Page 53...
  • Page 54: Display Dtm4

    The firmware displays the statistics shown in Table 15. The output is paginated; press <return> to see the next page or <Ctrl-C> to stop. The statistics listing is initiated by the command; display statistics d stats and a typical printout would be: Hytec Electronics Ltd– Page 54...
  • Page 55: Table 15 Ecc 1365 Statistics Printout

    Allocation high water mark Number of host control blocks Number currently allocated Allocation high water mark Number of security table entries Number currently allocated Allocation high water mark Download memory size (bytes) 00000000 Current allocation (bytes) 00000000 Hytec Electronics Ltd - Page 55...
  • Page 56: Display Address

    7.2.4 Display Address Typing this command causes the following display; CAMAC crate number Controller Ethernet address 0080 0314 0302 Multicast Ethernet address 0180 0300 0000 Host LSAP Controller LSAP Controller IP address 192.10.4.0 Controller Socket Hytec Electronics Ltd– Page 56...
  • Page 57: Display Crash

    The display shows: Enter Ethernet address or IP address: Enter either a 12-digit (hexadecimal) Ethernet address as 3 groups of 4 digits, i.e. C0C0 0000 0000, or as a decimal format IP address (e.g. 192.1.2.3). Hytec Electronics Ltd - Page 57...
  • Page 58 Store system command block allowed: Y(es),N(o): Enable /disable autobooking allowed: Y(es),N(o): Clear all booking entries allowed: Y(es),N(o): Completed OK Follow this sequence for all host addresses to be set up. Upon completion, run ‘display security’. Hytec Electronics Ltd– Page 58...
  • Page 59: Change Dtm4 [N]

    WARNING – Reset will destroy all current controller operations and all settings will be re-read from the switches and the battery-backed RAM. Are you sure you wish to continue [no]: If ‘yes’ is returned, the following message will be displayed.: Hytec Electronics Ltd - Page 59...
  • Page 60: Help

    Technical Handbook ECC 1365 MK4 SYSTEM CRASH – Code 68 ************* HYTEC ELECTRONICS Ltd. ETHERNET CRATE CONTROLLER ECC1365 MK IV Serial number 769 Firmware version 8.0 (Sept 2000) 1988 Kbytes memory installed Co-processor not fitted Main initialisation complete -----------Restart History-------------...
  • Page 61: Init

    Bad input –3 4-digit hex numbers required Is shown. For example; !EPA C0C0 0000 0001 This command allows you to set up a physical address different to the one stored in the internal EPROM, if desired. Hytec Electronics Ltd - Page 61...
  • Page 62: Ema [N]

    Even length in hex required Is shown. If too much memory is specified, the message: Can’t allocate more than ½ free memory to download region is given. The rest of the memory is required for system buffers. Hytec Electronics Ltd– Page 62...
  • Page 63: Ipa[N]

    Displays hexlength bytes of memory starting at hexaddr. Hexaddr must be even. If hexlength is not specified, a length of 128 bytes is used. The display is paged in 128-byte pages; press <Return> to see the next page or <Ctrl-C> to stop. Hytec Electronics Ltd - Page 63...
  • Page 64: Dmod

    Displays the host control block corresponding to an Ethernet address, where xxxx is a 4 digit hexadecimal number. The three sets of four digits provide the Ethernet physical address. The second digit of the first set of four must be even for a physical address. Hytec Electronics Ltd– Page 64...
  • Page 65: Run

    Only buffer memory is checked with this test as the remainder of the RAM is required for system operation. The test displays a rotating windmill whilst running and can be aborted by pressing <CTRL-C>. If the test fails, the appropriate memory address and data are displayed. Hytec Electronics Ltd - Page 65...
  • Page 66: Run Camac

    Completed OK is shown. NOTE! This test will only run correctly with a Hytec Electronics Ltd. Dataway test module type DTM4. 7.4.11.3 $RUN TIMER This test checks the operation of the timer (Timer A) on the 68901 MFP chip. A 1 -second tick timer is initialised and the message “Tick”...
  • Page 67: Normal

    Data data for write command (decimal) auto increment data Once the command is entered (RETURN key enters the command) the CAMAC command loop is entered. The message: - Type Ctrl-c to stop is displayed. Hytec Electronics Ltd - Page 67...
  • Page 68: Using The Ecc 1365

    IMPORTANT: Ensure that the correct values are located in the sockets, and in the correct orientation. Install the single pole LEMO cable between the front panel “Request” and “Grant in” sockets. The unit is now configured for Master ACB operation. Hytec Electronics Ltd– Page 68...
  • Page 69: Configuring As Slave Acb

    The unit is now configured for Slave ACB operation. Remember to re-configure the front panel “Request/Grant” daisy chain, as appropriate, when the unit is installed as a Slave controller in a CAMAC system. Hytec Electronics Ltd - Page 69...
  • Page 70: Figure 12 Ecc 1365 Mk 4 View Of Left Hand Side Board

    Technical Handbook ECC 1365 MK4 HYTEC ECC 1365 MK4 Issue 3 Firmware PROM 3 Firmware PROM 2 Firmware PROM 1 Firmware PROM 0 XILINX MC 68ECO60 RC50 Boot PROM Address PROM Figure 12 ECC 1365 MK 4 view of left hand side board...
  • Page 71: Figure 13 Ecc 1365 Mk 4 View Of Right Hand Side Board

    LHB FS2 1 AMP SIL 8 x 470R RHB FS1 1 AMP And RN7, RN8: DIL 13 x 470R packs Figure 13 ECC 1365 MK 4 view of right hand side board Hytec Electronics Ltd - Page 71...
  • Page 72: Connecting To Thick Wire Ethernet

    Normal mode, indicating the result of the negotiation. If the cable connection is subsequently lost (cable unplugged or broken) this is detected, notified to the terminal and re-connection attempted at regular intervals. Hytec Electronics Ltd– Page 72...
  • Page 73: Connecting The Front Panel Rs232 Port To A Terminal

    LEMO cable link from “Request” to “Grant In” must be installed. Details of links and switch settings that may need attention are given in the following sections. Links and switches not documented should NOT be changed. Hytec Electronics Ltd - Page 73...
  • Page 74: Camac Crate Number Switches

    The left hand controller board has one bank of switches, accessible through a cut out in the bottom rear of the left hand side panel. These switches are shown in Figure 12 The switches have the following functions and should be set up at installation time. Hytec Electronics Ltd– Page 74...
  • Page 75 For example: for LSAP address of 60hex, set switches SW5-7 and switch SW5 -6 down (OFF) and Switch SW5 -5 and SW5-8 up (ON). This gives the first LSAP address as 60hex and the second LSAP address is automatically set to 64. Hytec Electronics Ltd - Page 75...
  • Page 76: Left Hand Controller Board Jumpers

    With JP6 removed, a soft reset is enabled whereupon the firmware initiates the reset action. A soft reset allows the firmware to fully execute the ECC 1365 reset protocol enabling all hosts to be informed of the reset. A hard reset occurs instantaneously and therefore precludes reset protocol notifications. Hytec Electronics Ltd– Page 76...
  • Page 77: Initial Setup Of Battery-Backed Ram

    This can be done only with a terminal connected to the front panel. At this terminal, enter the change mode command by typing: CHANGE MODE <RETURN> Enter ‘3’ <RETURN>, to enter diagnostic plus battery-backed RAM setup. Hytec Electronics Ltd - Page 77...
  • Page 78: Clearing All Data From The Battery-Backed Ram

    It is not necessary to initialise these fields if you intend to work in an LLC3 only environment (ALPHA or VAX hosts).The values you enter will be stored in the unit’s battery-backed RAM and thus be saved when the unit is powered down. Hytec Electronics Ltd– Page 78...
  • Page 79: Internet Addresses

    To set up the IP address use the !IPA command (section 7.6) whilst in battery-backed RAM setup mode. NOTE: The IP address, socket number and CAMAC crate number assigned to the controller must be entered in the IPADDR.dat file in /ecc_dir (see section 11.3). Hytec Electronics Ltd - Page 79...
  • Page 80: Ping Command

    RAM mode, using the commands given in Chapter Battery-backed RAM Mode Commands, Page 60 To enter normal operation at this point, operate the front panel switch, leaving it in its normal position after toggling to RESET. Hytec Electronics Ltd– Page 80...
  • Page 81: Trouble Shooting

    This is not an exhaustive list but may help with overcoming initial “teething” problems for u nfamiliar users. If the problem persists or the solution cannot be found, please contact Hytec Electronics Ltd, U.K. or our agents worldwide for advice IF IN DOUBT –...
  • Page 82 GRANT IN fitted between Master and other slave ACB controllers. § Check that test module is a HYTEC Dataway Display type DTM4 § Check that DTM4 station number has been defined (see CHANGE DTM4 command, section Normal Mode Commands , Page 53 § Hytec Electronics Ltd– Page 82...
  • Page 83: Security Features

    Capabilities is a 16-bit field defining the capability of this host to perform ECC-wide operations Module mask is a 24-bit field and contains a 1 in bit position 2 if the host is allowed access to the module in station number N. Hytec Electronics Ltd - Page 83...
  • Page 84: Table 17 Security Table Capabilities Field Format

    Enable / disable autobooking not allowed ..1 ..Enable / disable autobooking allowed ..0..Purge booking entries not allowed ..1..Purge booking entries allowed Table 17 Security Table Capabilities Field Format Hytec Electronics Ltd– Page 84...
  • Page 85: Ecc 1365 Mk 4 Specification

    40-way 3M low-profile box header (centre bump polarization) Front Panel Request/Grant In/Grant Out Single Pole LEMO “00 size” socket UTP Ethernet 8-way MMJ socket. RS232 9-way sub-miniature D-type socket, with screw locks. (see figure 14 for connections) Hytec Electronics Ltd - Page 85...
  • Page 86: Glossary

    Type 3 operations describe a connectionless acknowledged mode of operation [Reference 4] Multicast Address An Ethernet address that is accepted by a group of systems on an Ethernet local area network. TCP/IP Transmission Control Protocol/Internet Protocol. User Datagram Protocol Hytec Electronics Ltd– Page 86...
  • Page 87: References

    Introduction to Internet Protocols. Computer Science Facilities Group, Rutgers, The State University of New Jersey, USA 1987 RFC 791, Internet Protocol RFC 768, User Datagram Protocol RFC 792, Internet Control Message Protocol RFC 826, Address Resolution Protocol RFC 1010, Assigned numbers. Hytec Electronics Ltd - Page 87...
  • Page 88: Appendices

    Technical Handbook ECC 1365 MK4 APPENDICES Hytec Electronics Ltd– Page 88...
  • Page 89: A1 Ecc 1365 Hardware Details

    Enable Demands + A(8) F(26) Generate Z A(9) F(24) Remove I A(9) F(26) Set I A(9) F(27) Test Dataway I A(10) F(27) Test Demands Enabled + Q=DE A(11) F(27) Test Demands Present + Q=DP Hytec Electronics Ltd - Page 89...
  • Page 90 Timeout failure (see Errors and Interrupts, below) Cycle Count complete before End Address in Q scan Q Scan End Address before Cycle Count complete in Q Scan Note that the “incomplete” message can still contain data Hytec Electronics Ltd– Page 90...
  • Page 91: Figure 17 Control Register Format

    Figure 17 Control Register Format The controller LAM enables the processor to generate a LAM for Test Purposes. The Power-Fail Interrupt Disable gates the output of the power monitoring circuit before it causes an interrupt. Hytec Electronics Ltd - Page 91...
  • Page 92: Figure 18 Status Register Format

    The 24 LAM lines are connected to the Xilinx chip on the left-hand board. This provides full masking and/or prioritising of the LAMs under software control. This logic produces its own interrupt signal and this is fed into the processor’s Prioritised Interrupt Handler as IRQ4. Hytec Electronics Ltd– Page 92...
  • Page 93 32-bit value. RAM Memory The standard controller is equipped with 2 Mbytes of Static RAM memory provided by four 512K byte devices. RAM addresses are: 2 Mbyte Hex C00000 DFFFFC 4 x 512K Hytec Electronics Ltd - Page 93...
  • Page 94: A2 Ecc 1365 Protocols Frame Formats

    LLC Control Field (=UI Frame) Padding Byte (=0) Frame Type (=2 for Request, =3 for Response) CAMAC crate number Note: see Chapter 4.9.1 Find Address Protocol, PageError! Bookmark not defined.. Table A2 -2 FAP Multicast Frame Format Hytec Electronics Ltd– Page 94...
  • Page 95: Table A2-3 Erp Multicast Frame Format

    When pseudo LLC3 procedures are used, the LLC control field is set to “UI frame”, the first padding field is zero and the LLC3 control and status bytes are inserted into the pseudo LLC3 fields. Hytec Electronics Ltd - Page 95...
  • Page 96 Note that an immediate response request and its response must have both the first and last segment flags set to 1. Version The version number of the host software (allows version compatibility checking) Status The completion status of a requested operation (see Appendix 3.) Data The user data Hytec Electronics Ltd– Page 96...
  • Page 97: A3 Vax/Vms Host Software Details

    The extended ESONE / DOE CAMAC routines have, as additional parameters, a variable identifying a local event flag (set on completion) and the address of an I/O status block which contains, on completion, the final status of the command. Hytec Electronics Ltd - Page 97...
  • Page 98 ECC 1365 MK4 User Program Parameter User block Code ESONE/DOE subroutines Central Routine Obtains lock ECC$LCK Exception Access Table Handler Global Section ECC$GBL Entry added ECC-1365 process Figure A3-1 User Process to ECC 1365 Host Process communication Hytec Electronics Ltd– Page 98...
  • Page 99: A3.1.2 User Based Software Central Routine

    If the command resulted from a call to an extended ESONE / DOE CAMAC routine, a summary of the command is written and added to the “awaiting completion “ queue and control passed back to the user-level code. The status indicating successful queuing of the command is available to the user-level code. Hytec Electronics Ltd - Page 99...
  • Page 100: A3.2 Interface Between User- And System- Based Software

    ECC_1365 process. The user process adds its PID to its Access Table entry to provide unique identification and all communications from a user process contain the PID of that process to ensure consistency Hytec Electronics Ltd– Page 100...
  • Page 101: A3.3 System-Based Software Ecc_1365 Process

    Network Time. The ECC_1365 process has the following functions Initialise the global section Initialise the Ethernet interface Run the Network Time Protocol (NTP) Process host user requests Process received network requests Handle error conditions Hytec Electronics Ltd - Page 101...
  • Page 102: A3.3.1 Initialisation

    Where the request spans several buffers, these are queued serially on the transmission queue such that, with correct operation, the set is sent to the target system for reconstruction to the command block. Hytec Electronics Ltd– Page 102...
  • Page 103: A3.3.2.2 Network Event

    The NTP timeout is decremented and, on expiry, a NTP frame is generated. This contains the Network Time as perceived by the system, together with an estimate of the transmission delay imposed by this system. Hytec Electronics Ltd - Page 103...
  • Page 104: A3.3.3 Received Ethernet Frame

    A received ERP response frame is noted in the relevant entry in the LLC3 Control Table. If there is a User Command active, it is completed to the User with an error status and no other Commands are acted upon until the ERP active frame is received. Hytec Electronics Ltd– Page 104...
  • Page 105 ECC. An immediate response from an ECC returns user data, while a deferred response acknowledges receipt of the user data. The returning user data is encoded in an LLC3 command at some later time. Hytec Electronics Ltd - Page 105...
  • Page 106: A3.4 Data Structures

    ECC 1365. The exchange is based on the combination of this process’s source Ethernet address and LSAP and the ECC Ethernet address and LSAP value. The LSAP value used depends upon the LLC3 exchange. Hytec Electronics Ltd– Page 106...
  • Page 107: A3.4.2 Llc Control Table

    Error found when encoding / decoding a parameter description Booking request failed. The module / LAM is marked as promiscuous Duplicate CAMAC crate number seen on the network ECC reset requested by ERP Table A3 -3 Hytec Electronics Ltd - Page 107...
  • Page 108: A3.4.4 Access Table

    *reads issued by the driver *LSAP1 (in hexadecimal), used by LLC1 and LLC3 *LSAP2 (in hexadecimal), used by LLC3 *number of buffers in system * logging is enabled 5300 0000 0000 *LLC1 multicast address *User.txt logging enabled / disabled Hytec Electronics Ltd– Page 108...
  • Page 109: A4 Auxiliary Controller Lockout Mode (Acl Mode)

    A4 AUXILIARY CONTROLLER LOCKOUT MODE (ACL MODE) A4.1 Overview The ECC 1365 MK4 controller has been designed ONLY to operate in Request / Grant mode. The unit operates in Request/Grant mode and will respond to the ACL si g nal described below. A discussion of Request / Grant mode and ACL mode follows: A4.2 Multiple Controllers on the Auxiliary Control Bus (ACB)
  • Page 110: A5 Error Processing And Error Messages

    The following list of error messages can be generated by the host process and the severity of each message is indicated. Very often, such error messages are accompanied by extract error messages from the operating system, which provide system-level details of a p articular failure. Hytec Electronics Ltd– Page 110...
  • Page 111: A5.3.1 User Process Errors

    <user process not initialised via CCINIT()> RESET <crate controller is resetting> TIMEOUT <timeout during I/O with CAMAC device> UNKNOWN-CMD <ECC command is unknown> UNKNOWN-CRATE <specified crate is unknown on the ether> UNLOCK-FAILURE <failed to release lock ECC$LCK> Hytec Electronics Ltd - Page 111...
  • Page 112: A5.3.2 Manager Process Errors

    <unable to get UIC/PID> QUEUE <queuing operation failed> READQ <failed to read input queue> RTIMER <failed to restart timer> TIMER <failed to start timer> UNLOCK <error unlocking ECC$LCK resource> WAIT <failed in system service wait> Hytec Electronics Ltd– Page 112...
  • Page 113 <the number of buffers is incorrectly specified> NLOG <the logging switch is incorrectly specified> NTPMULT <NTP multicast incorrectly specified> SAP1 <LSAP value not read or incorrectly specified> SAP2 <LSAP value not read or incorrectly specified> Hytec Electronics Ltd - Page 113...
  • Page 114: A5.3.3 Ecc 1365 Controller Errors

    TRAP_BUS <bus error interrupt> TRAP_ADDRESS <address error interrupt> TRAP_DIVIDE <zero divide interrupt> TRAP_CHK <CHK instruction interrupt> TRAP_TRAPV <TRAPV instruction interrupt> TRAP_PRIV <Privileged instruction interrupt> TRAP_TRACE <Trace interrupt> TRAP_BAD <General bad interrupt> TRAP_TRAP <TRAP instruction interrupt> Hytec Electronics Ltd– Page 114...
  • Page 115 NOT QX during CAMAC operation BAD_VERSION Firmware/host version mismatch UNKNOWN <unknown error code returned> Note: Error codes produced by the firmware that are displayed on the front panel (e.g. crash codes) are listed in table12 on page 51. Hytec Electronics Ltd - Page 115...
