Summary of Contents for Lava Heat Italia EMBER Mini

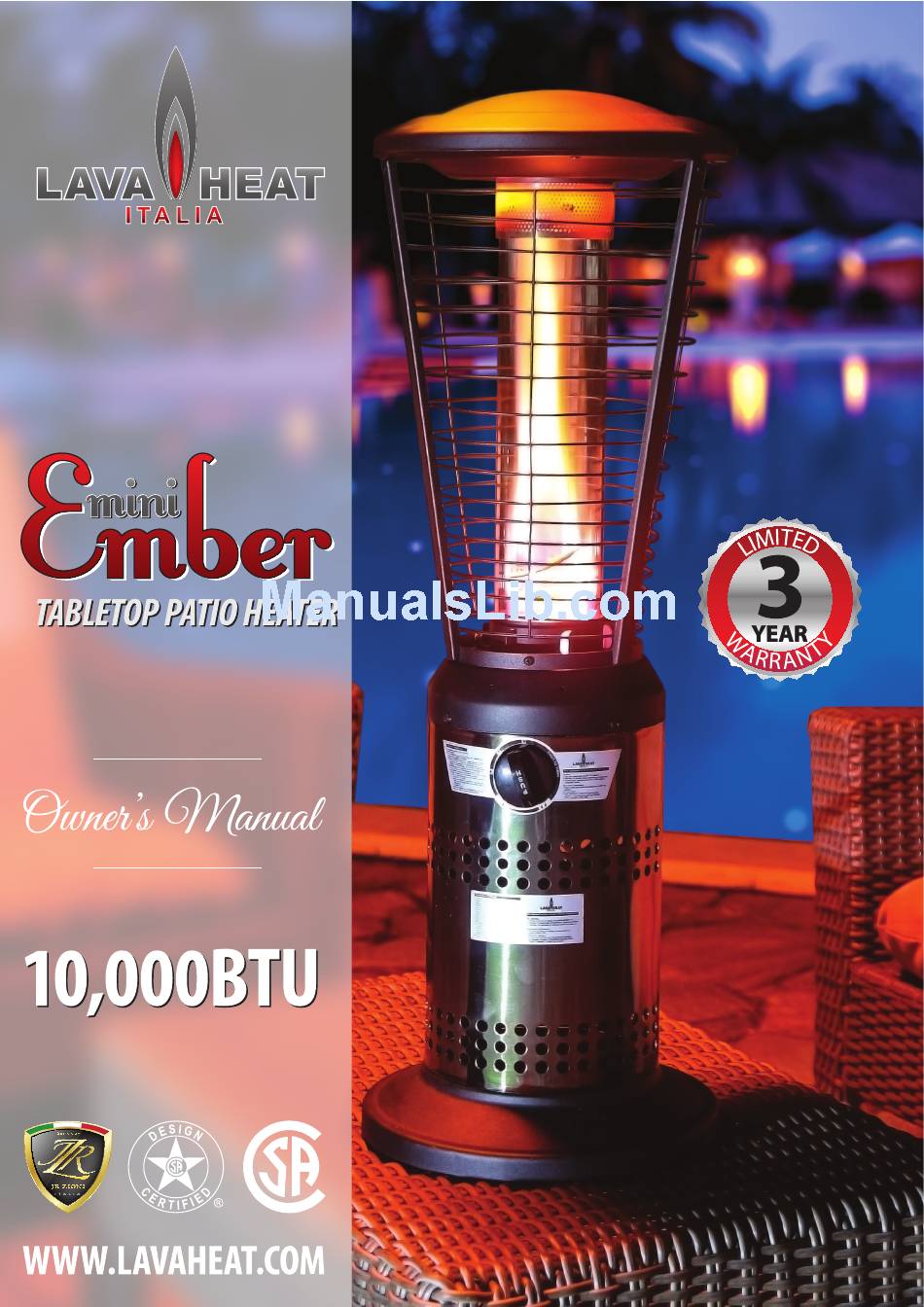

  • Page 1 For sales inquiries, contact Sylvane at 1-800-934-9194. If you have service questions, contact Lava Heat at 1-888-779-5282.
  • Page 2 EMBER Mini Table top heater DANGER If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. If odor continues, keep away from the appliance and immediately call your gas supplier or fire department.
  • Page 3: Carbon Monoxide Hazard

    PRECAUTIONS DANGER CARBON MONOXIDE HAZARD This appliance can produce carbon monoxide which has no odor. Using it in an enclosed space can kill you. Never use this appliance in an enclosed space such as a camper, tent or home. WARNING: Improper installation, adjustment, alteration, services or maintenance can cause property damage, injury or death.
  • Page 4 PRECAUTIONS NOTE:PLEASE  READ  THE  FOLLOWING  SAFETY  RULES WARNING: Installation  and  repair  should  be  done  by   The   installation   must   conform   with   local   codes   or,   in   the   absence   of   local   codes,   with   the   a  ...
  • Page 5 PRECAUTIONS NOTE:PLEASE READ THE FOLLOWING SAFETY RULES WARNING: Within a partial enclosure which includes an Do not store a spare LP-gas cylinder under or overhead cover and three side walls, as long as near this appliance; 30 percent or more of the horizontal periphery of the enclosure is permanently open.
  • Page 6: Warnings And Cautions

    WARNINGS AND CAUTIONS NOTE: PLEASE READ THE FOLLOWING SAFETY RULES: Perform a leak test with a soapy solution: 1. To check gas connections. 2. After connecting a new cylinder. 3. Upon re-assembly after disassembly. This heater is designed to operate with a standard 1 Ib propane cylinder with Approved Cylinder Connection.
  • Page 7: Parts List

    PARTS LIST Part # Description Chimney Heat reflector Emitter screen Pyrex glass tube Safety guard Spiral emitter Burning system Control knob Panel assembly Access door Base Weight block...
  • Page 8 ASSEMBLY Step 1 Step 1 Tilt the heater, insert the cylinder from the bottom of base, align the nozzle of the cylinder with the regulator and turn counter clockwise to tighten. Put the heater uprightly on the table.
  • Page 9: Safety Check

    SAFETY CHECK Check for leak All connections on the patio heater have been checked for leakage at the factory. In transportation and handling some connections may have loosened. Follow these steps to check the tube/regulator/cylinder connections: 1) Make leakage solution by mixing 1 part liquid dish soap and 3 parts water.
  • Page 10: Operation

    OPERATION This product is equipped with ODS (Oxygen Deprivation System) WARNING: DO NOT ATTEMPT TO OPERATE HEATER UNTIL YOU HAVE READ AND UNDERSTAND ALL PRECAUTION . FAILURE TO DO SO CAN RESULT IN SERIOUS PERSONAL INJURY, DEATH, OR PROPERTY DAMAGE. Before turning gas supply ON WARNING Your heater was designed and approved for OUTDOOR...
  • Page 11: Safety Feature

    OPERATION 4.Push in gas control knob and turn counter clockwise to IGNITE " " then to PILOT " " position, this will light the pilot. If needed, keep depressing and turning control knob counter clockwise until the pilot lights. (You will hear 1 clicking noise) 5.
  • Page 12 OPERATION CAUTION : AVOID INHALING FUMES EMITTED FROM THE HEATER'S FIRST USE. SMOKE AND ODOR FROM THE BURNING OF OILS USED IN MANUFACTURING WILL APPEAR. BOTH SMOKE AND ODOR WILL DISSIPATE AFTER APPROXIMATELY 30 MINUTES. THE HEATER SHOULD NOT PRODUCE THICK BLACK SMOKE. NOTE: The burner may be noisy when initially turned on.
  • Page 13: Locating Header For Use

    LOCATING HEADER FOR USE CAUTION: WHEN CERTAIN MATERIALS OR ITEMS ARE LEFT, ABOVE, BESIDE OR UNDER THIS HEATER WHILE IN USE, THEY WILL BE SUBJECT TO RADIANT HEAT AND COULD BE SERIOUSLY DAMAGED. This heater is primarily used for the heating of CEILING/OVERHANG outdoor patios, decks, spas, pools and open working areas.
  • Page 14: Maintenance & Storage

    MAINTENANCE/STORAGE CLEANING AND MAINTENANCE : WARNING: To enjoy years of outstanding performance from your FOR YOUR SAFETY ; heater make sure you perform the following maintenance DO NOT touch or move heater for activities on a regular basis: at least 45 minutes after use. Allow all burner elements to cool before Keep exterior surfaces clean.
  • Page 15 MAINTENANCE/STORAGE STORAGE: NOTE: Between uses: wait until heater is cool before Turn the control knob to OFF " " position. covering. Tilt the heater. Turn clockwise to disconnect cylinder from regulator. Store heater upright in an area sheltered from direct contact with inclement weather (such as rain, sleet, hail, snow, dust and debris).
  • Page 16: Troubleshooting

    TROUBLESHOOTING PROBLEM PROBABLE CAUSE SOLUTION Pilot will not light Gas valve may be OFF Turn the gas valve ON Tank fuel empty Refill LP gas tank Air in supply system Purge air from lines Loose connection Check all fittings Debris around pilot Clean dirty area Pilot will not stay on Loose connection...
  • Page 18 For sales inquiries, contact Sylvane at 1-800-934-9194. If you have service questions, contact Lava Heat at 1-888-779-5282.
