- Page 2 Owner’s Manual OPUS DANGER If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. If odor continues, keep away from the appliance and immediately call you gas supplier or fire department. WARNING WARNING indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
- Page 4 CAUTION PLEASE READ CAREFULLY THE FOLLOWING SAFETY GUIDELINES BEFORE OPERATION. This round flame heater is for outdoor use only (see attached diagrammatical representations of outdoor areas). This outdoor heater is not intended to be installed on recreational vehicles and/or boats. Do not use the heater for the heating of domestic premises.
-
Page 5: Heater Location
HEATER LOCATION The heater is primarily for outdoor use only (see diagrammatical representations of outdoor areas). Do not use it for indoors or in an enclosed area. Always ensure that adequate fresh air ventilation is provided. Do not use the heater for the heating of domestic premises. Do not use the heater in the basements or below ground level. -
Page 8: Gas Requirements
GAS REQUIREMENTS Use propane or LPG only. The heater is designed for use with 11-15kg cylinder. Maximum size of cylinder suitable for the appliance, w/ regulator attached, is 42 cm x 73 cm. Inner dimension of stand within the side panels is 42 cm x 73 cm. -
Page 9: Parts And Specifications

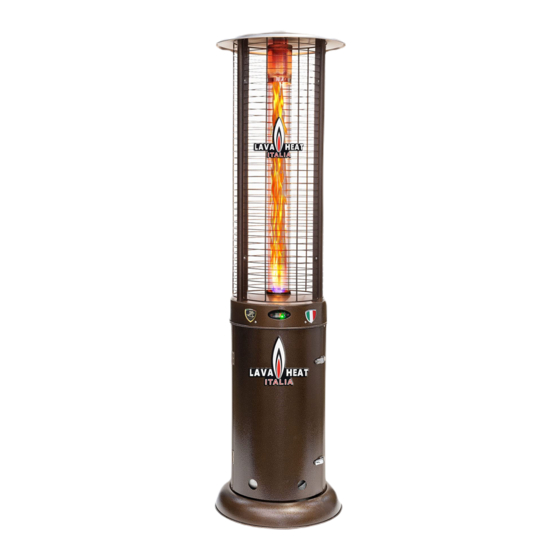

PARTS AND SPECIFICATIONS - 7 -... - Page 10 A. Construction and characteristics Heater with dancing flame enclosed in transparent glass tube Heat emission from the reflector Infrared remote control w/ reception of 25 angle and 6meters.uniquely designed with 2 seconds ignition delay to prevent accidental ignition. Heat resistant infrared mesh provides more warmth. Tilt switch shuts off heater automatically when appliance is accidentally knocked down Optional wheels for mobility USD1,000,000 Product Liability Insurance worldwide coverage...
-
Page 11: Assembly Part
ASSEMBLY PART Tools needed: Adjustable opening wrench (2) 20 cm long Slip joint pliers 23 cm long Philips screwdriver w/ medium blade Spray bottle of soap solution for leakage test Parts supplied: Preassembled round flame heater Cover with 1 pcs bolts Ø10 15mm, 10 pcs bolts Ø8 15 mm WARNING 60 cm gas hose conforming to local standard codes (pressure... - Page 12 HEATER ASSEMBLY PROCEDURES Flame Heater Round is preassembled at the factory. User needs to complete a couple of assembly procedures to make the appliance operational. Step1 Step2 -10-...
- Page 13 Step3 3-1.Put the barrel body on the ground which was installed in the first step,and then put the heater on it, 3-2.aimed at the bolt hole; 3-2.Connect the support bar to the heater chassis on the top with five M8 15 mm screws Step4 3-1.
- Page 14 Step5 5-1.Put the upper door first into the internal heater; 5-2.Lift it up to the bottom of the heater upper chassis, and then push the barrel untill its closed. - 12-...
-
Page 15: Operation
OPERATION The Flame Heater Triangle can be operated by infrared remote control, or directly on the control unit. A. OPERATION BY INFRARED REMOTE CONTROL TO TURN ON THE HEATER 1. Turn on the valve of the gas supply cylinder. WARNING 2. -
Page 16: Replacing The Gas Cylinder
B. DIRECT OPERATION ON THE CONTROL UNIT TO TURN ON THE HEATER WARNING 1. Turn on the valve of the gas supply cylinder. 1. Close the valve of the gas 2. Press the POWER button for 2 seconds, release and press again to cylinder or the regulator start ignition. -
Page 17: Cleaning And Care
STORAGE Always close the valve of the gas cylinder after use or in case of a disturbance. Remove the pressure regulator and the hose attachment, the batteries in the battery compartment of pilot ignition and remote control if the heater is not to be used for a period of time. Cylinder must be stored outdoors in a well-ventilated area out of the reach of children. -
Page 18: General Safety
GENERAL SAFETY Equip your home with a least one smoke detector on each floor. Keep at least one dry-powder operative ABC-type fire extinguisher in the home at all times. Keep areas around heat sources free of papers and trash. Store paints, solvents, and flammable liquids away from all heat and ignition sources. Develop a fire-escape plan before a fire occurs. -
Page 19: Solving Common Problems
SERVICING It is recommended that before using the heater after a period of 3 months or before the start of the heating season the owner should: Check the condition of the gas cylinder. Check the hose assembly for any wear or damage. If the hose and regulator assembly is damaged or more than 5 years old replace with an approved hose and regulator assembly. -
Page 20: Problems Check List
PROBLEMS CHECK LIST PROBLEM PROBABLE CAUSE SOLUTION There is no spark at pilot when the Igniter electrode positioned Adjust the distance of the heater is started wrong. electrode and ignition device to 5 mm Replace. Igniter electrode broken. Igniter cable pinched or broken. Free electrode cable. - Page 21 PROBLEM PROBABLE CAUSE SOLUTION Burner flame is low Supply hose is bent or twisted Straighten hose and perform leak test on hose. Blockage in burner injector Clean or replace burner injector. Thick black smoke Blockage in burner Turn off the heater and let it cool.
-
Page 22: Ten -Year Limited Warranty
When You Receive Your Product: If Your Product is.. oduct Feedback Please contact the manufacturer: LAVA HEAT ITALIA 888.779.5282 or LAVA HEAT ITALIA Toll free No.: 1.888.779.LAVA 1.888.779.5282 Addr.: 5999 Malburg Way, Vernon, CA, 90058...
