Product instruction manual

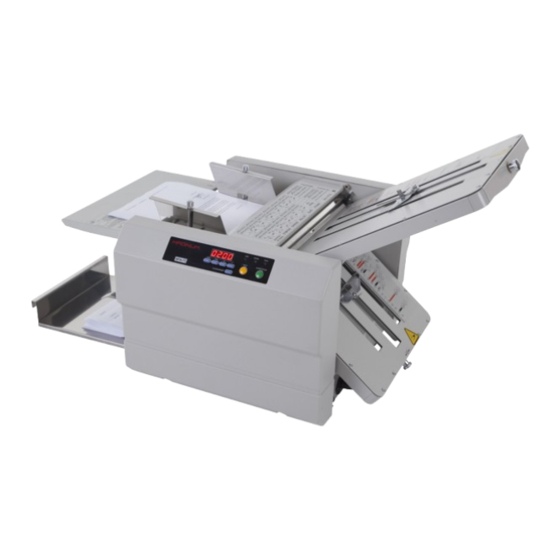

Magnum® MFM-FS Folding System
Fixed Speed
Magnum Folders have been designed to be user friendly,
however we strongly recommend you take a few minutes
to read through this manual to ensure correct operation.
Keep this manual safe for future reference.
Advertisement
Related Manuals for Magnum MFM-FS
Summary of Contents for Magnum MFM-FS
- Page 1 Product instruction manual Magnum® MFM-FS Folding System Fixed Speed Magnum Folders have been designed to be user friendly, however we strongly recommend you take a few minutes to read through this manual to ensure correct operation. Keep this manual safe for future reference.
-
Page 2: Specifications
Contents Page 2 - Specifications Page 3 - Introduction Page 4 - Safety Instructions and environmental requirements Page 5 - Information before use Page 6 - Parts Page 7 - Operation panel and functions Page 8 - How to use Page 14 - Warranty and incorrect use Specifications Paper Size... - Page 3 Introduction Thank you for purchasing the Magnum MFM-FS Folding System. This system enables users to achieve greater efficiency in clerical work by releasing them from paper-folding work that has manually been performed in the past. Please read these instructions carefully before starting to use the system to ensure you get the best results and are competent at operation.
- Page 4 Safety Instructions • Make sure that the system is electrically grounded. This prevents an electric shock when there is a leak of electricity. • Use the system at 110 – 120 VAC, 220 – 240 VAC with a frequency of 50Hz to 60Hz. A fire may start or the system may break down if a higher or lower voltage is used, or if an electric current with a frequency that is not within the range of frequency stated above.
- Page 5 Information Before Use 1. Precautions on Installation Do not install it in an unstable place such as on a faltering bench or an inclined place. It may fall down or drop and cause an injury. Do not install it in a dusty place or a place of high humidity. It may cause a fire, or an electric shock.
- Page 6 Parts Number Name Number Name Roller cover (10) Table 1 Left hand side cover (11) Control panel Paper feed roller (12) Paper feed table Paper guide (13) Table 2 Feed table (14) Right hand side cover Paper ejection roller (15) Paper feed table lever Paper stacking table (16)
- Page 7 Operation Panel and Functions Designation/Indication Function Test key Test folds two sheets without counting. Start/Stop key Starts and stops the system. Clear/Reset key Clears counter indication resets error. Numerical key Inputs the desired number of sheets to be folded. Counter Shows the number of sheets.
- Page 8 How to Use 1. Preparation (1) Setting table 1 and 2 Fit (a) and (b) of table 1 and (c) and (d) of table 2 on the studs (a), (b), (c) and (d) at the left and right sides of the side plate. When setting Table 1, be sure to put the stopper plate in the centre.
- Page 9 Place the paper printed side down in case of fold-out. Place the paper on the feed table so that it touches the paper guide and then tighten the paper guide setscrews. Lower the paper feed table lever and set the paper. If the paper does not come in contact with the paper feed roller, it may be fed incorrectly.
- Page 10 (3) Test Folding Press the test key to feed 2 sheets of paper. Check if the paper has been folded correctly by examining the second of the 2 folded sheets. * When the fold position is not correct, refer to ‘Adjusting Paper Fold Position’...
- Page 11 (5) Square Fold Adjustment Turn the adjustment wheel to the right if the lower side of the folded paper slants to the right. Turn the wheel to the left of the lower side slants to the left. * In other cases than single fold, place the folded paper with its face down on Table 1 and make the adjustment.
- Page 12 3. Maintenance (1) Before cleaning the system, be sure to switch the power off and pull the power plug from the outlet. (2) When the unit is not in use, put its cover in place to prevent dust, paper dust etc accumulating on the paper fold rollers.
- Page 13 4. Troubleshooting Trouble Possible Cause Solution Loosen the paper sufficiently or Paper stuck just after its printed feed the paper after its dry Clean the paper feed separator Stains on the paper separator using the unit cleaner Clean the paper chips or ink on Stains on the paper feed rubber the paper feed roller with the unit roller...
- Page 14 IMPORTANT INFORMATION Your Magnum Folding Machine should reach you in perfect condition, however please retain all of the original packaging once you have unpacked your Folding Machine in case you need to return it for repair. If your machine arrives damaged or faulty in anyway, this must be reported to your supplier immediately.
