CozyCab JOHN DEERE 2210 Mounting Instructions

John deere 2210

Advertisement

Quick Links

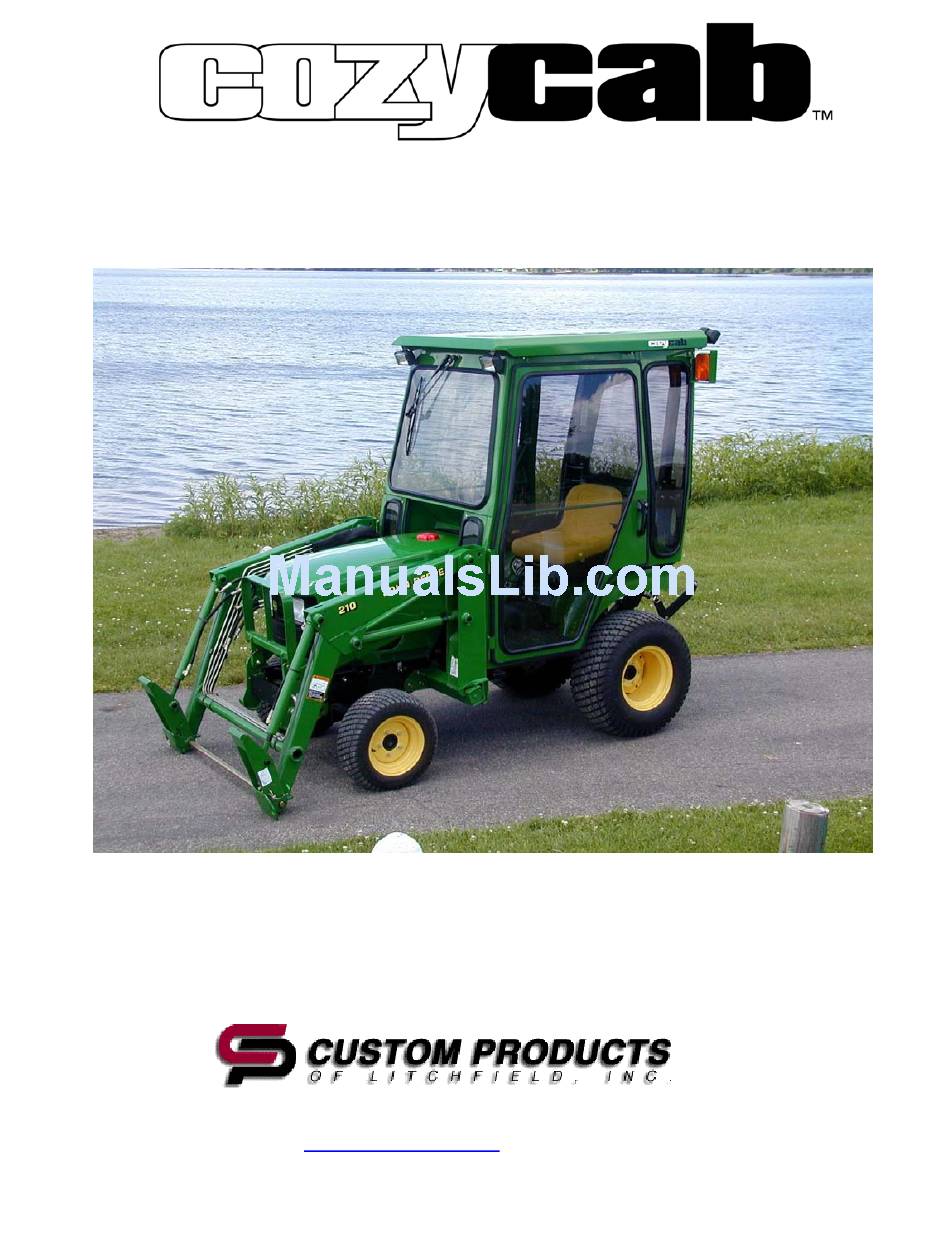

JOHN DEERE 2210
CAB MOUNTING INSTRUCTIONS
Fits 210 loaders with 2 post non-folding ROPS
A-11289
Manufactured by:
BOX 718 • LITCHFIELD, MINNESOTA 55355
(320) 693-3221
Fax: (320) 693-7252
www.800cabline.com
05-10433
Page 1 of 26
October 2003

Advertisement

loading
Need help?

Need help?

Do you have a question about the JOHN DEERE 2210 and is the answer not in the manual?

Questions and answers

Summary of Contents for CozyCab JOHN DEERE 2210

  • Page 1 JOHN DEERE 2210 CAB MOUNTING INSTRUCTIONS Fits 210 loaders with 2 post non-folding ROPS A-11289 Manufactured by: BOX 718 • LITCHFIELD, MINNESOTA 55355 (320) 693-3221 Fax: (320) 693-7252 www.800cabline.com 05-10433 Page 1 of 26 October 2003...
  • Page 2: Safety Instructions

    SAFETY INSTRUCTIONS Read operator’s manual. Be thoroughly familiar with the controls, capabilities, and proper use of the equipment. NEVER ALLOW ANY RIDERS. IMPORTANT: This cab must only be used on tractors outfitted with a NON-FOLDING ROPS. DO NOT place this cab on a tractor outfitted with a folding ROPS. DO NOT remove the top half of a folding ROPS to accommodate this cab.
  • Page 3 Mounting Instructions John Deere 2210 PREPARATION OF TRACTOR; 1. Park tractor and disconnect battery power. 2. Remove steering wheel. 3. Remove rear amber flashing lights from roll bar. Note 5 4. Attach amber lights to single or dual light mounting brackets #7-15827 and #7-15828.
  • Page 4: Mounting Instructions

    Mounting Instructions John Deere 2210 INSTALLATION OF CAB Rubber 10. Install (2) lift brackets #6-42570 using (2) ¼-20 Note 12 Isolator bolts x ¾” long #3-10219 and (2) ¼” flat (Wide Washer) 3-16635 washers #3-10084. Remove cab from shipping stand. Lower cab over roll bar until cab contacts front isolator bushings (See Figure 10).
  • Page 5: Electrical Hook-Up

    Mounting Instructions John Deere 2210 8-14731 Note 15 HOOD PANEL; 15. Secure hood panel 8-14731 with; (4) ¼-20unc x 3/4” long bolts, #3-10219 (4) ¼” flat washers, #3-10084 (4) ¼-20unc ser flange hex nuts, #3-14924 - Remount steering wheel SMV SIGN RELOCATION;...
  • Page 6 Mounting Instructions John Deere 2210 HEATER HOSE HOOKUP (Ref. Drawing #8-14751) 20. Drain coolant from radiator and engine block. 21. Remove temperature sensor from thermostat housing area. 22. Install aluminum fitting #3-15815 with O-ring washer #3-16823 into thermostat housing. See Note 22 Figure 21.
  • Page 7 John Deere 2210 Mounting Instructions Drawing Index 8-14706 CAB ASSEMBLY JD 2210 8-14707 CAB MOUNTING KIT 8-14708 DOOR ASSEMBLY LH 8-14709 DOOR ASSEMBLY RH 8-14486 HEADLINER ASSEMBLY 8-14731 HOOD ASSEMBLY 8-14487 ROOF ASSEMBLY 8-14491 REAR WINDOW ASSEMBLY 8-14376 ELECTRICAL SCHEMATIC...
  • Page 8 John Deere 2210 Replacement Parts A-11289 8-14706 Cab Assembly ITEM PART NO. DESCRIPTION 7-15800 CAB WELDMENT JD 2210 8-14707 MOUNT KIT FOR JD 2210 8-14708 DOOR ASSEMBLY LH 8-14709 DOOR ASSEMBLY RH 8-14486 HEADLINER ASSEMBLY 8-14487 ROOF ASSEMBLY 8-14491 REAR WINDOW ASSEMBLY...
  • Page 9 Page 9 of 26...
  • Page 10 Page 10 of 26...
  • Page 11 John Deere 2210 Replacement Parts A-11289 8-14707 Cab Mounting Kit ITEM PART NO. DESCRIPTION 7-15796 REAR MOUNT RH 7-15797 REAR MOUNT LH 7-15803 FRONT MOUNT RH 7-15804 FRONT MOUNT LH 3-18000 U-BOLT SQ 2x3x2 6-43373 FRONT MOUNT SPACER 3-10412 HEX HEAD CAP SCREW ½-13UNC x 5.00” LG...
  • Page 12 Page 12 of 26...
  • Page 13 John Deere 2210 Replacement Parts A-11289 8-14486 HEADLINER ASSEMBLY ITEM PART NO. DESCRIPTION 7-15491 HEADLINER WELDMENT 3-16232 DOME LIGHT 12VDC 3-16984 MACHINE SCREW NO.6-32UNC 3-12638 LOCK WASHER NO. 6 3-12637 HEX NUT NO.6-32UNC 6-40504 BLOWER SW MOUNT PLATE 3-11812 SELF TAP SCREW NO.10-24 x 5/8” LG...
  • Page 14 Page 14 of 26...
  • Page 15 Page 15 of 26...
  • Page 16 John Deere 2210 Replacement Parts A-11289 8-14708 DOOR ASSEMBLY LH ITEM PART NO. DESCRIPTION 7-15799 DOOR WELDMENT LH 3-13630 HEX HEAD CAP SCREW M6x1x1 3-10076 LOCK WASHER, ¼” 3-13630 HEX HEAD CAP SCREW M6x15x1 3-11821 BALL STUD FOR GAS SPRING 3-10077 LOCK WASHER 5/16”...
  • Page 17 Page 17 of 26...
  • Page 18 Page 18 of 26...
  • Page 19 John Deere 2210 Replacement Parts A-11289 8-14731 HOOD FOR JD 2210 ITEM PART NO. DESCRIPTION 7-15824 HOOD WELDMENT 2,3,6 &7 3-15068 BUBBLE RUBBER 180 DEG 3-18071 OPERATIONS DECAL 3-16678 NON-ROPS DECAL John Deere 2210 Replacement Parts A-11289 8-14487 ROOF ASSEMBLY ITEM PART NO.
  • Page 20 Page 20 of 26...
  • Page 21 Page 21 of 26...
  • Page 22 Page 22 of 26...
  • Page 23 John Deere 2210 Replacement Parts A-11289 8-14751 HEATER HOOK-UP KIT ITEM PART NO. DESCRIPTION 7-11308 RADIATOR LOWER HOSE TEE 3-10282 HOSE ELBOW FOR 5/8” HOSE 3-10725 NYLON TIE 12 FT 3-11172 HEATER HOSE 5/8” 3-10858 HOSE CLAMP 5/8” 3-16265 (REFERENCE) ZIPLOC BAG 3-12119 HOSE NIPPLE 3/8-18 NPT TO 5/8”...
  • Page 24 Page 24 of 26...
  • Page 25 Page 25 of 26...
  • Page 26 Page 26 of 26...
