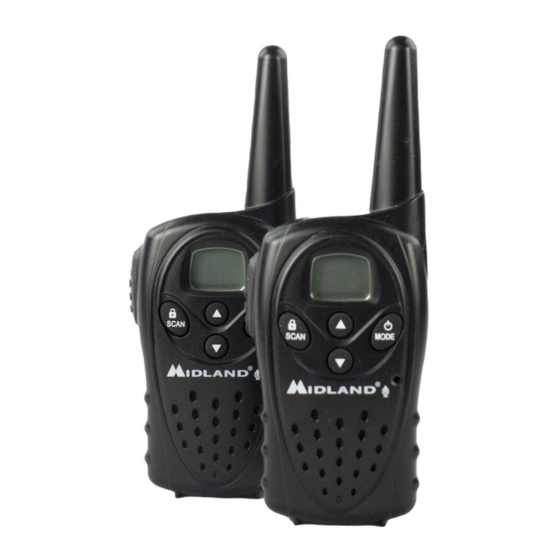

Midland LXT110 Manual
  1. Manuals
  2. Brands
  3. Midland Manuals
  4. Two-Way Radio
  5. X-TRA TALK LXT110 Series
  6. Manual

Midland LXT110 Manual

Hide thumbs Also See for LXT110:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
LXT110
COVER PAGE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LXT110 and is the answer not in the manual?

Questions and answers

Related Manuals for Midland LXT110

Summary of Contents for Midland LXT110

  • Page 1 LXT110 COVER PAGE...

  • Page 2: Table Of Contents

    Model LXT110/80 ® TABLE OF CONTENTS Introduction Important Notice, FCC Licensing LCD Display Controls Battery Installation Installing the Belt Clip Charging the Battery Low Battery Level Indicator Operating Your Radio 9 - 11 Troubleshooting Guide Use and Care Specifications and Frequency Charts...

  • Page 3: Introduction

    To maintain compliance with FCC’s RF exposure guidelines, for body-worn operation, this radio has been tested and meets the FCC RF exposure guidelines when used with Midland Radio Corp. accessories supplied or designated for this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines.

  • Page 4: Important Notice, Fcc Licensing

    IMPORTANT: Changes or modifications to this unit not expressly approved by MIDLAND RADIO CORP. could void your right to operate this unit. Your radio is set up to transmit a regulated signal on an assigned frequency. It is against the law to alter or adjust the settings inside the COMMUNICATOR to exceed those limitations.

  • Page 5: Lcd Display

    Model LXT110/80 ® LCD DISPLAY 1. TRANSMIT (TX) ICON – Indicates radio is transmitting a signal. 2. VOLUME METER – Indicates the volume setting of the radio. 3. RECEIVE (RX) ICON – Indicates radio is receiving a transmission. 4. LOW BATTERY ICON – Indicates the battery level is low.

  • Page 6: Battery Installation

    Model LXT110/80 ® BATTERY INSTALLATION Your LXT110/80 Series radio operates with 3 AAA alkaline batteries or a NiMH rechargeable battery. The belt clip should be removed (see below) to ease installation or removal of the batteries. To install the batteries: 1.

  • Page 7: Charging The Battery

    Model LXT110/80 ® CHARGING THE BATTERY Your LXT110/80 Series is equipped for using an rechargeable NiMH battery which can be recharged by inserting the AC adapter into the radio charge jack. Initial charge time is 24 hours. Charge time is about 12 hours thereafter.

  • Page 8: Operating Your Radio

    Model LXT110/80 ® OPERATING YOUR RADIO POWER ON/OFF AND VOLUME Press the POWER/MODE button for at least 3 seconds to turn the radio on/off. During Power On, the radio will beep 3 times with different tones, the LCD will display all icons for 1 second and the LCD display will indicate the last channel selected.
  • Page 9 SCAN button. CALL ALERT Your LXT110/80 Series can transmit a call alert for a fixed length of time. To send a call alert, press the PTT button twice rapidly. The TX icon will appear while transmitting a call alert and a tone can be heard on the speaker for confirmation.
  • Page 10 PTT key or MODE button again to confirm. EXTERNAL SPEAKER/MICROPHONE JACK Your LXT110/80 Series can be used with an optional external speak- er/ microphone or headset, freeing your hands for other tasks. To use an optional speaker / microphone or headset:...

  • Page 11: Troubleshooting Guide

    Model LXT110/80 ® TROUBLESHOOTING GUIDE PROBLEM SOLUTION No Power - Check battery installation and/or replace batteries Cannot Receive - Confirm the radios have the same channel Messages settings. - Make sure that you are within range of the other transceivers.

  • Page 12: Specifications And Frequency Charts

    Model LXT110/80 ® SPECIFICATIONS Channels 22 GMRS/FRS Channels Operating Frequency UHF 462.5500 ~ 467.7125 MHz Power Source 3 AAA Alkaline or Rechargeable Ni-MH battery GMRS/FRS FREQUENCY CHART (MHz) CH. No CH. Freq. CH. No CH. Freq. CH. No CH. Freq.

  • Page 13: Warranty Information

    Model LXT110/80 ® LIMITED WARRANTY Midland Radio Corporation will repair or replace, at its option without charge, any Midland FRS/GMRS transceiver which fails due to a defect in material or workmanship within Three Years following the initial consumer purchase. This warranty does not apply to water damage, battery leak or abuse.

  • Page 14: Midland Family Products

    Model LXT110/80 ® ACCESSORIES Accessories can be purchased at www.midlandradio.com or fill in the form on the following page and mail it to our address. A A V V P P -6 6 - 1 Dual Desk Charger - 2 Rechargeable battery packs...
  • Page 15 Model LXT110/80 ® A A V V P P -1 1 - 2 Over the Ear Mic. Headsets w/ PTT - $19.99 A A V V P P -H H 1 1 - 1 Open Face Helmet Microphone Kit - $49.99...
  • Page 16 Model LXT110/80 ® A A V V P P -H H 3 3 - 2 Surveillance Headset - $39.99 A A V V P P -H H 4 4 - 2 Ear Wrap Headset - $39.99 A A V V P P -H H 5 5 - 2 Behind the Head Headset - $39.99...
  • Page 17 Model LXT110/80 ® Page 18 www.midlandradio.com...

  • Page 18: Accessories Order Form

    ACCESSORIES ORDER FORM Please send Money Order or fill in Visa/MasterCard information and mail to the address below. Please DO NOT send cash or checks. Make Money Order to Midland Radio Corporation. Name: _____________________________________________________ Address: ___________________________________________________ City: _____________________ State _____Zip Code _____________ Tel: ______________________ email: ___________________________ CC# _____________________ Type: __________ Exp.
  • Page 19 M I I D D L L A A N N D D R R A A D D I I O O C C O O R R P P O O R R A A T T I I O O N N 5900 Parretta Drive Kansas City, MO 64120 Call 816.241.8500 visit us at http://www.midlandradio.com Note: Features & Specifications are subject to change without notice. MIDLAND is not responsible for unintentional errors or omissions on its packaging.
