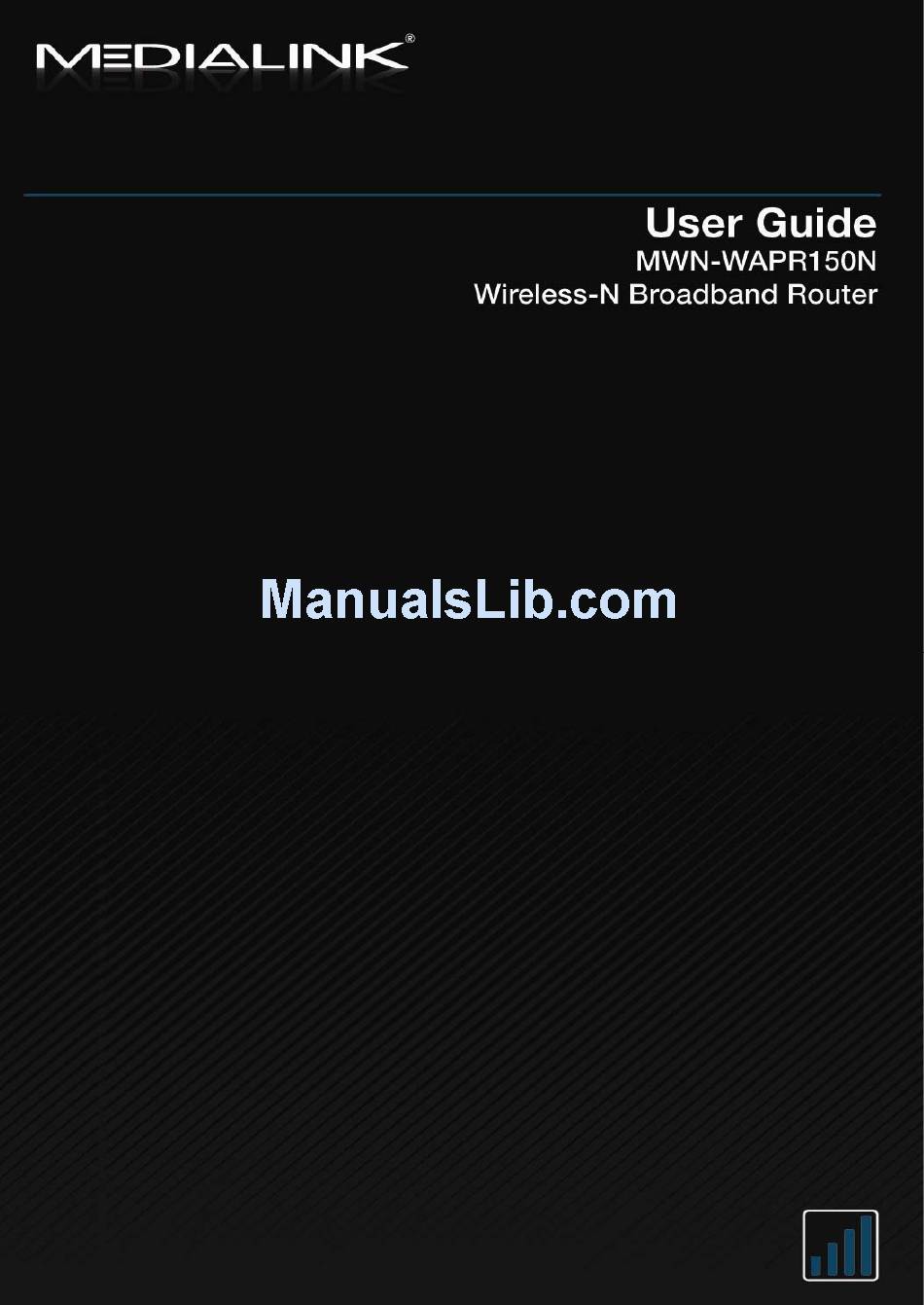

  • Page 1 MWN-WAPR150N Wireless Router...

  • Page 2: Copyright Statement

    As the upgrade of software and hardware, there will be changes. And if there are changes, Medialink is not responsible for informing in advance. If you want to know more about our product information, please...

  • Page 3: Table Of Contents

    MWN-WAPR150N Wireless Router Contents CHAPTER 1 INTRODUCTION..........1 1.1 P ............... 2 RODUCT EATURES 1.2 P .............. 3 ACKAGE ONTENTS 1.3 LED I ......4 NDICATOR AND ESCRIPTION CHAPTER 2 HARDWARE INSTALLATION......7 2.1 H ..........7 OW TO NSTALL THE...
  • Page 4 MWN-WAPR150N Wireless Router CHAPTER 7 DHCP SERVER ........... 46 7.1 DHCP S ..............46 ETTINGS 7.2 DHCP L ............ 47 IST AND INDING CHAPTER 8 VIRTUAL SERVER ..........48 8.1 P ..........48 ANGE ORWARDING 8.2 DMZ S – ....50...

  • Page 5: Chapter 1 Introduction

    MWN-WAPR150N Wireless Router Chapter 1 Introduction Thank you for purchasing Medialink’s 150Mbps Wireless N Router! MWN-WAPR150N utilizes advanced technology compatible with IEEE802.11n and IEEE802.11g/b standards, it can provide up to 150Mbps stable transmission rate. Additionally, it includes router, wireless access point, four-port switch and firewall in one, dedicated to SOHOs (Small Office/Home Office) and family networking.

  • Page 6: Product Features

    MWN-WAPR150N Wireless Router WMM support can smooth your MSN voice, and the included Setup Wizard on CD-ROM will be quick and easy for non-savvy users to install the device and access the Internet. 1.1 Product Features Includes router, wireless access point, four-port switch...

  • Page 7: Package Contents

    Provides syslog to record the status of the router Supports WDS wireless network extension Supports QoS function Built-in omni-directional antenna 1.2 Package Contents Please unpack the box and check the following items: One MWN-WAPR150N Wireless Broadband Router One Quick Installation Guide...

  • Page 8: Led Indicator And Port Description

    One Power Adapter One Network Cable One CD-ROM If any of listed items are missing or damaged, please contact the Medialink reseller from whom you purchased for replacement immediately. 1.3 LED Indicator and Port Description Front Panel and LED Indicator Show...
  • Page 9 MWN-WAPR150N Wireless Router client in WPS mode. INTERNET (WLAN) Wireless signal LED indicator. Blinking indicates the wireless function is enabled. LAN (4, 3, 2, 1) Wired local network LED indicator. Solid indicates it is connected with Ethernet device and the device is turned on;...
  • Page 10 MWN-WAPR150N Wireless Router Back Panel Show： Rear Panel From L to R ：（ ） POWER The jack is for power adapter connection. Please use the included 9V DC power adapter. A 100Mbps Ethernet port, can be connected with MODEM, Switch, Router and other Ethernet device for Internet connecting to DSL MODEM, Cable MODEM and ISP.

  • Page 11: Chapter 2 Hardware Installation

    MWN-WAPR150N Wireless Router Chapter 2 Hardware Installation 2.1 How to Install the Router Please follow these instructions BEFORE you insert the CD. Important Notes: • The CD contains the EZ-Connect Setup Wizard, which is an alternative means to configure your router but is not required.
  • Page 12 (DO NOT connect the included AC/DC Adapter to the router’s Power port at this time.) b. Using another network cable, plug one end to your computer’s network port. Plug the other end into one of the Medialink Router’s ports numbered 1, 2, 3, or 4.
  • Page 13 Reinstall the batteries (if applicable). b. Wait 30 seconds for the modem to fully restart. 6. Power on your Medialink Router and Check the Status Lights. a. Connect the AC/DC Adapter to the router’s Power port. Connect the other end into an electrical outlet.
  • Page 14 MWN-WAPR150N Wireless Router Router. 9. Confirm access to the Internet - Open your internet browser (For example, Internet Explorer, Firefox or Safari) and confirm that you are able to access the internet. If so, proceed to Step 10. • If you cannot access the internet. If you have a DSL connection, see “2.1a DSL Modem Configuration”...

  • Page 15: Adsl Modem Configuration

    MWN-WAPR150N Wireless Router *If you cannot or choose not to use the CD for configuring your router, proceed to “Chapter 3.2 Login to the Router” of this User Guide to complete the configuration of your router. 2.1a DSL Modem Configuration...

  • Page 16: B N O Modem Access

    MWN-WAPR150N Wireless Router 5. “Bridged Mode” might be called “Transparent Bridge Mode”, or “1483 Transparent Bridged Mode”. 6. Once the modem is set to Bridged, it will reboot. At this point your computer will no longer have access to the internet.

  • Page 17: Optimizing Wireless Range

    MWN-WAPR150N Wireless Router try again to confirm access to the internet. If still no access, continue. If you have access, insert the CD and follow the prompts. Click “Advanced Settings>MAC Address Clone”. Click “Clone MAC Address”. 6. Click “System Tools>Reboot”. Reboot the router and try again to confirm access to the internet.

  • Page 18: Chapter 3 How To Login To The Router

    MWN-WAPR150N Wireless Router Chapter 3 How to Login to the Router This chapter explains how to enter the Router’s Web-based Graphical User Interface or GUI. After you have finished the hardware installation, the following steps will assist you to set the network configurations for you computer.
  • Page 19 MWN-WAPR150N Wireless Router Right click “Local Area Network Connection” and select “Properties”. 3 ． Select “Internet Protocol (TCP/IP)” and click “Properties”.
  • Page 20 MWN-WAPR150N Wireless Router 4 ． Select “Obtain an IP address automatically” and “Obtain DNS server address automatically”. Click “OK” to save the configurations. Or select “Use the following IP address” and enter the IP address, Subnet mask, Default gateway as follows:...

  • Page 21: Login To The Router

    MWN-WAPR150N Wireless Router IP Address: 192.168.0.XXX： (XXX is a number from 2~254) Subnet Mask: 255.255.255.0 Gateway: 192.168.0.1 You need to input the DNS server address provided by your ISP. Otherwise, you can use the Router’s default gateway as the Preferred DNS proxy server. Click “OK” to save the configurations.
  • Page 22 MWN-WAPR150N Wireless Router Click “OK”. 3. If you enter the correct user name and password, you will see the “Welcome to Setup Wizard” screen. a. If you are logging in to the router to change your settings, choose the setting you would like to edit from the options to the left of the browser window.
  • Page 23 MWN-WAPR150N Wireless Router 4. Configuring Your Wireless Network: Once you have completed the setup wizard, you may want to change your SSID (Name of Wireless Network) and Security type to a name and password that you will remember (the router’s default SSID is “medialink”)

  • Page 24: Chapter 4 Quick Setup Guide

    MWN-WAPR150N Wireless Router (For more details on your Basic Settings, open the “Help_BasicWirelessSecuritySettings.pdf document located in the User Guide folder on the CD.) Change your Security Type: Click WLAN Settings, then click Security Settings. (For help choosing your security type “Help_WirelessNetworkSecurity.pdf”...
  • Page 25 MWN-WAPR150N Wireless Router 2. In this screen, select the type of Internet connection you use. If you are not sure, press the “Detect” button or contact your Internet Service Provider, and click “Next”. ADSL Virtual Dial-up (Via PPPoE) Enter the Account and Password provided by your ISP, and click “Next”.
  • Page 26 MWN-WAPR150N Wireless Router address keeps changing every time you connect. You do not need to enter the information like other modes. Click “Next” and “Save” to finish the settings. Static IP In this screen, fill in the network address information from your ISP in the IP Address, Subnet Mask, Gateway and Primary DNS server fields and click “Next”.
  • Page 27 MWN-WAPR150N Wireless Router Click “Save” to complete the setup wizard. The Router will record the settings you made. To activate the settings, it is recommended to select “Reboot the Router” from “System Tools” of the left menu. Click the “System Status” in the left menu of the Web-based Utility to find out the current network and system information.
  • Page 28 MWN-WAPR150N Wireless Router L2TP L2TP Server IP: Enter the Server IP provided by your ISP. User Name: Enter L2TP username. Password: Enter L2TP password. MTU: Maximum Transmission Unit, you may need to change it for optimal performance with your specific ISP. 1500 is the default MTU.
  • Page 29 MWN-WAPR150N Wireless Router PPTP PPTP Server IP: Enter the Server IP provided by your ISP. User Name: Enter PPTP username provided by your ISP. Password: Enter PPTP password provided by your ISP. Address Mode: Select “Static” if your ISP supplies you with the IP address, subnet mask, and gateway.
  • Page 30 MWN-WAPR150N Wireless Router...

  • Page 31: Chapter 5 Advanced Settings

    MWN-WAPR150N Wireless Router Chapter 5 Advanced Settings 5.1 LAN Settings LAN Settings are for the basic TCP/IP parameters of LAN ports. MAC Address: The Router’s physical MAC address as seen on your local network, which is unchangeable. IP Address: The Router’s LAN IP addresses (not your PC’s IP address).

  • Page 32: Wan Settings

    MWN-WAPR150N Wireless Router 5.2 WAN Settings After you have selected the ISP connection type in “Setup Wizard” here is where you can modify the related settings. Virtual Dial-up（ PPPoE ） Connection Mode: Shows your current connection mode. Account: Provided by your ISP.
  • Page 33 MWN-WAPR150N Wireless Router If some websites or web application software can not be open or enabled, try to change the MTU value to a lower value like 1492, 1450, 1400, etc. Service Name: Defined as a set of characteristics that are applied to a PPPoE connection. Enter it if provided.
  • Page 34 MWN-WAPR150N Wireless Router Static IP If your connection mode is Static IP, you can modify the following addressing information. IP Address: Here enter the WAN IP address provided by your ISP. Subnet Mask: Enter the WAN Subnet Mask here. Gateway: Enter the WAN Gateway here.

  • Page 35: Mac Address Clone

    MWN-WAPR150N Wireless Router 5.3 MAC Address Clone This page is for the Router’s MAC address to WAN. Some ISPs require end-user's MAC address to access their network. This feature copies the MAC address of your network device to the Router.

  • Page 36: Chapter 6 Wireless Settings (Wlan)

    MWN-WAPR150N Wireless Router DNS: Click the checkbox to enable the DNS server. The Router’s DHCP sever will answer the client’s requests and distribute DNS address. Primary DNS Address: Enter the necessary address provided by your ISP. Secondary DNS Address: Enter the second address if your ISP provides, which is optional.
  • Page 37 MWN-WAPR150N Wireless Router Enable Wireless: Check to enable the Router’s wireless features; uncheck to disable it. Network Mode：Select one mode from the list. The default is 11b/g/n mixed mode. 11b mode：Allow the wireless clients to connect with the device in 11b mode only at the maximum speed of 11Mbps.
  • Page 38 MWN-WAPR150N Wireless Router speed. 11b/g/n mode (default): Allow 11b/g/n-compliant client device connect with with auto-negotiation speed. SSID SSID (Service Set Identifier) is the unique name ： of the wireless network. Broadcast (SSID): Select “Enable” to enable the device's SSID to be visible by wireless clients. The default is enabled.

  • Page 39: Wireless Security Setting

    MWN-WAPR150N Wireless Router 6.2 Wireless Security Setting Select the encryption method to be used to secure your wireless network and create your password. 6.2.1 Mixed WEP WEP (Wired Equivalent Privacy), a basic encryption method, encrypts wireless data using a series of digital keys (64 bits or 128 bits in length).
  • Page 40 MWN-WAPR150N Wireless Router ASCII or Hex. You can enter either ASCII code (5 or 13 ASCII characters. Illegal characters such as “/” is not allowed but all other case-sensitive letters, numbers and symbols are allowed) Or enter either 10 or 26 Hex characters (not case-sensitive –...
  • Page 41 MWN-WAPR150N Wireless Router WPA Algorithms ： Provides TKIP [Temporal Key Integrity Protocol] [Advanced Encryption Standard]. The default is AES mode. Pass Phrase ： Create a password using 8-63 ASCII characters (case-sensitive letters, numbers symbols are allowed). Key Renewal Interval：Set the key’s renewal period.

  • Page 42: Advanced Settings

    MWN-WAPR150N Wireless Router Integrity Protocol] [Advanced Encryption Standard]. The default is AES mode. Pass Phrase ： Create a password using 8-63 ASCII characters (case-sensitive letters, numbers symbols are allowed). Key renewal Interval：Set the key’s renewal period. (3600 is the default) 6.3 Advanced Settings...
  • Page 43 MWN-WAPR150N Wireless Router smoothly in a complicated wireless area. Basic Data Rates: For different requirement, you can select one of the suitable Basic Data Rates. Here, default value is (1-2-5.5.-11Mbps…). It is recommended not to modify this value. Beacon Interval: Set the beacon interval of wireless radio.

  • Page 44: Wps Settings

    MWN-WAPR150N Wireless Router The default is disabled. 6.4 WPS Settings WPS (Wi-Fi Protected Setting) can be easy and quick to establish the connection between the wireless network clients and the device through encrypted contents. The users only enter PIN code or press WLAN/WPA button on the panel to configure it without selecting encryption method and secret keys by manual.
  • Page 45 MWN-WAPR150N Wireless Router Configuration) and PIN code. Select the PBC or press the WLAN/WPS button on ： the back of the device for about one second and the WPS indicator will be blinking for 2 minutes. While the light is...

  • Page 46: Wds Settings - Bridge /Repeater

    MWN-WAPR150N Wireless Router by WPS, generally WPA/WPA2-personal mode. WPS Encrypt Type：The encryption type used by WPS, generally AES/TKIP. WPS Key ： The effective key generated by AP automatically. AP PIN（KEY）：The PIN code used by default (located on the bottom of the router).
  • Page 47 MWN-WAPR150N Wireless Router NOTE: Before you enable WDS on a primary or secondary router configure each router follows: Primary Router Configuration IP Adress: 192.168.0.1 Subnet Mask: 255.255.255.0 WLAN SSID: Your Choice WLAN Security: Your Choice Broadcast Channel: Your choice (default is 6 )
  • Page 48 MWN-WAPR150N Wireless Router used as additional access points. The secondary routers must be set to “Bridge” or “Repeater” when this option is selected. Bridge: Setup a secondary router as a wired or wireless access point. Connect an Ethernet cable to the LAN port of the Primary router and connect the other end to a LAN port of the Secondary router.

  • Page 49: Wireless Access Control

    MWN-WAPR150N Wireless Router 6.6 Access Control Allow or block specific wireless clients via their MAC Address to the wireless network. Select “WLAN Settings -> Access Control” to display the following screen: MAC Address Filter ： Enable/disable MAC address filter. Select “Off” to disable MAC address filter; “Block”...

  • Page 50: Chapter 7 Dhcp Server

    MWN-WAPR150N Wireless Router This page shows wireless client’s connection status, including MAC address, Channel bandwidth, etc. Select “WLAN Settings->Connection Status” to enter the following screen: MAC Address：Shows current MAC addresses of the hosts connecting to the Router. Bandwidth ： Shows current bandwidth of the hosts (wireless client).

  • Page 51: Dhcp List And Binding

    MWN-WAPR150N Wireless Router DHCP Server: Click the checkbox to enable/disable DHCP server. IP Address Start/End: Enter the range of IP address for DHCP server distribution. Lease Time: The length of the IP address lease. For example ： If the lease time is an hour, then DHCP server will reclaim the IP address every hour.

  • Page 52: Chapter 8 Virtual Server

    MWN-WAPR150N Wireless Router IP Address: Enter the IP address which needs to be bound. MAC Address: Enter the MAC address of the computer you want to assign the above IP address. Click “Add” to add the entry in the list.
  • Page 53 MWN-WAPR150N Wireless Router services such as web servers, ftp, e-mail and other specialized Internet applications to an assigned IP address on your LAN. Start/End Port: Enter the start/end port number which ranges the External ports used to set the server or Internet applications.

  • Page 54: Dmz S

    MWN-WAPR150N Wireless Router Well-Known Service Port: Select the well-known services as DNS, FTP from the drop-down menu to add to the configured one above. Add: Add the selected well-known port to the policy ID. NOTE: If you set the virtual server of the service port as...

  • Page 55: Upnp Settings

    MWN-WAPR150N Wireless Router computer/game system you want to expose. Enable: Click the checkbox to enable the DMZ host. IMPORTANT: When the DMZ host is enabled, the firewall settings of the DMZ host will not function. 8.3 UPNP Settings Latest Universal Plug and Play is supported. This function...

  • Page 56: Chapter 9 Traffic Control

    MWN-WAPR150N Wireless Router Chapter 9 Traffic Control 9.1 Traffic Control Traffic control is used to limit communication speed in the LAN and WAN. Up to 20 entries can be supported with the capability for at most 254 PCs' speed control, including IP address range configuration.
  • Page 57 MWN-WAPR150N Wireless Router control. IP Ending Address: The last IP address for traffic control. Uploading/Downloading: specify traffic heading way for the selected IP addresses: uploading or downloading. Bandwidth: To specify the uploading/downloading Min. /Max. Traffic speed (KB/s), which can not exceed the WAN speed.

  • Page 58: Chapter 10 Security Settings

    MWN-WAPR150N Wireless Router Chapter 10 Security Settings 10.1 Client Filter Settings Control and limit specific computers and devices on the network from accessing the internet at specific times of the day. The example below shows a policy that blocks the IP addresses from 192.168.0.100 to 120 from accessing the...

  • Page 59: Url Filter Settings - Website Blocking

    MWN-WAPR150N Wireless Router Client Filter: Check to enable client filter. Access Policy: Select one number from the drop-down menu. Set up to 10 rules (policies). Enable: Check to enable the access policy. Clear the Policy: Click “Clear” button to clear all settings for the policy.
  • Page 60 MWN-WAPR150N Wireless Router Limit or control the websites that can be accessed by specific computers/devices on the network. URL Filter: Check to enable URL filter. Access Policy: Select one number from the drop-down menu. Enable: Check to enable the access policy.

  • Page 61: Mac Address Filter - Parental Control

    MWN-WAPR150N Wireless Router URL Strings: Specify the text strings or keywords needed to be filtered. If any part contains these strings or words, the web page will not be accessible and displayed. Times: Select the time range of client filter.

  • Page 62: Prevent Network Attack - Firewall

    MWN-WAPR150N Wireless Router MAC Address Filter: Check to enable MAC address filter. Access Policy: Select one number from the drop-down menu. Enable: Check to enable the access policy. Clear the Policy: Click “Clear” button to clear all settings for the policy.

  • Page 63: Remote Web Management

    MWN-WAPR150N Wireless Router Log”. Prevent Network Attack: Check to enable it for attack prevention. 10.5 Remote Web Management This section is to allow the network administrator to manage the Router remotely. If you want to access the Router from outside the local network, please select the “Enable”.

  • Page 64: Wan Ping

    MWN-WAPR150N Wireless Router Note ： 1. If you want to login the device’s Web-based interface via port 8080, you need use the format of address: port (for example http://219.134.32.101: 8080) implement remote login. If your WAN IP address starts and ends with 0.0.0.0, it means all hosts in WAN can implement...

  • Page 65: Chapter11 Routing Setting

    MWN-WAPR150N Wireless Router Ignore Ping from WAN: Check to ignore the ping request and give no reply. Chapter11 Routing Setting 11.1 Routing Table The main duty for a router is to look for a best path for every data frame, and transfer this data frame to a destination. So, it’s essential for the router to choose the best path, i.e.

  • Page 66: Chapter 12 System Tools

    MWN-WAPR150N Wireless Router Chapter 12 System Tools 12.1 Time Settings This section is to select the time zone for your location. If you turn off the Router, the settings for time disappear. However, the Router will automatically obtain the GMT time again once it has access to the Internet.

  • Page 67: Ddns

    MWN-WAPR150N Wireless Router will be lost. Before the Router will obtain GMT time automatically, you need connect with the Internet and obtain the GMT time, or set the time on this page first. Then the time in other features (e.g.

  • Page 68: Backup/Restore Settings

    3322.org as follows: User name Medialink Password 123456 Domain Name Medialink.vicp.net After mapping the port in the virtual server, setting account information in DDNS server and in the address field entering http://Medialink.3322.org, you can access the Web page. 12.3 Backup/Restore Settings...

  • Page 69: Backup Setting

    MWN-WAPR150N Wireless Router The device provides backup/restore settings, so you need set a directory to keep these parameters. Backup Setting： Click “Backup” button to back up the Router’s settings and select the path for save. Click “Save” to save the configuration files.

  • Page 70: Restore To Factory Default Setting

    MWN-WAPR150N Wireless Router Click “Restore” button to restore previous settings. 12.4 Restore to Factory Default Setting This button is to reset all settings to the default values. It means the Router will lose all the settings you have set. So...

  • Page 71: Upgrade Firmware

    MWN-WAPR150N Wireless Router Restore: Click this button to restore to default settings. Factory Default Settings: User Name: admin Password: admin IP Address: 192.168.0.1 Subnet Mask: 255.255.255.0 NOTE: After restoring to default settings, please restart the device, then the default settings can go into effect.

  • Page 72: Reboot The Router

    MWN-WAPR150N Wireless Router process. After the upgrade is completed, the Router will reboot automatically. 12.6 Reboot the Router Rebooting the Router makes the settings configured go into effect or to set the Router again if setting failure happens. Reboot the router: Click this button to reboot the device.
  • Page 73 MWN-WAPR150N Wireless Router User Name: Enter a new user name for the device. Old Password: Enter the old password. New Password: Enter a new password. Re-enter to Confirm: Re-enter to confirm the new password. NOTE: The only people able to access the router’s GUI are...

  • Page 74: System Log

    MWN-WAPR150N Wireless Router 12.8 System Log This section is to view the system log. Click the “Refresh” to update the log. Click “Clear” to clear all shown information. If the log is over 150 records, it will clear them automatically.

  • Page 75: Appendix 1：Glossary

    MWN-WAPR150N Wireless Router Appendix 1：Glossary Access Point (AP): Any entity that has station functionality and provides access to the distribution services, via the wireless medium(WM) for associated stations. Channel: An instance of medium use for the purpose of passing protocol data units (PDUs) that may be used...
  • Page 76 MWN-WAPR150N Wireless Router network. The 40bit and 64bit encryption are the same because of out 64 bits, 40 bits are private. Conversely, 104 and 128 bit are the same. WEP uses a common KEY to encode the data. Therefore, all devices on a wireless network must use the same key and same type of encryption.
