Page 2

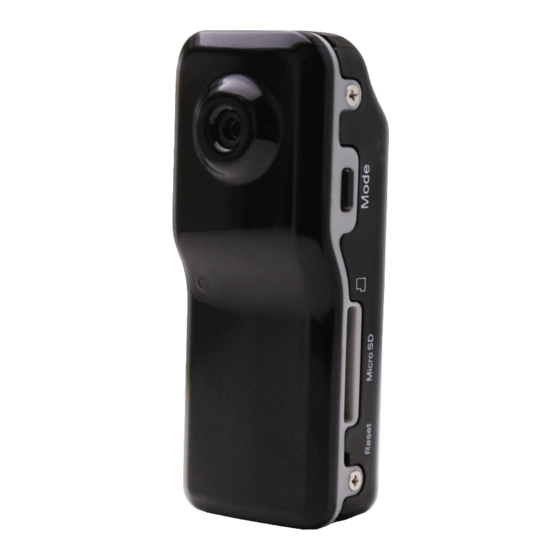

1. Structure 1.1 Structure Detail 1: Lanyard Hole 2: Power 3: Mode 4:Clip 5:Micro SD 6:Rim 7: Mini USB 8: Camera 9: Record / Stop 10: Status Indicator 11: Microphone...
Page 3
When you charge it, the green light and the red light will be on simultaneously. Notice: If there is not enough battery power left MDV 100 will enter the protection mode. Then it is not possible to switch the camera on. First you have to recharge it.
Page 4
3.2 Power on and video recording Press Power button, the yellow indicator light turns on, now the camera starts an initialization process and after a short time it enters the standby mode. Now Press Record / Stop button to start recording, the yellow indicator light turns on and the red indicator light starts to flash slowly.
Page 5
LED’s switch off. 3.6 Auto power off function MDV 100 will save the file and turn off automatically if one of the following occurs: a. When you shoot a video without enough power. b. If there is not enough disk space to record anymore.
Page 6
4. Parameters Item Parameters Video format Video encoding M-JPEG Video resolution 720 x 480 VGA Video frame rate 30fps ± 1 fps Supported operating Windows ME / 2000/ XP / 2003/ Vista;Mac OS10.4; systems Charging voltage DC-5V via USB port or DC Adapter Interface type Mini 5-pin USB Storage support...
Page 7
Other Remarks CE-Declaration of Conformity This product corresponds to European Directives LVD, EMC, WEEE, RoHS and Standards EN 60 950-1:2006, EN 55 022:1998 + A1:2000 + A2:2003 and EN 55 024:1998 + A1:2001 + A2:2003 and carries the CE marking. The Original Declaration of Conformity and all documents about this model are ready for download from our server: http://service.alan-electronics.de.
