Page 1: Operating Instructions

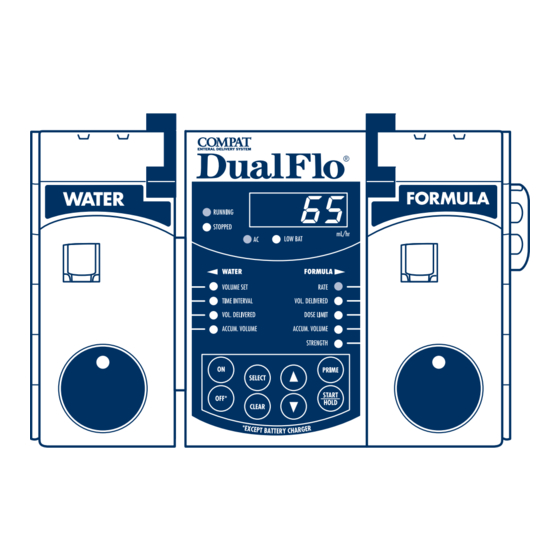

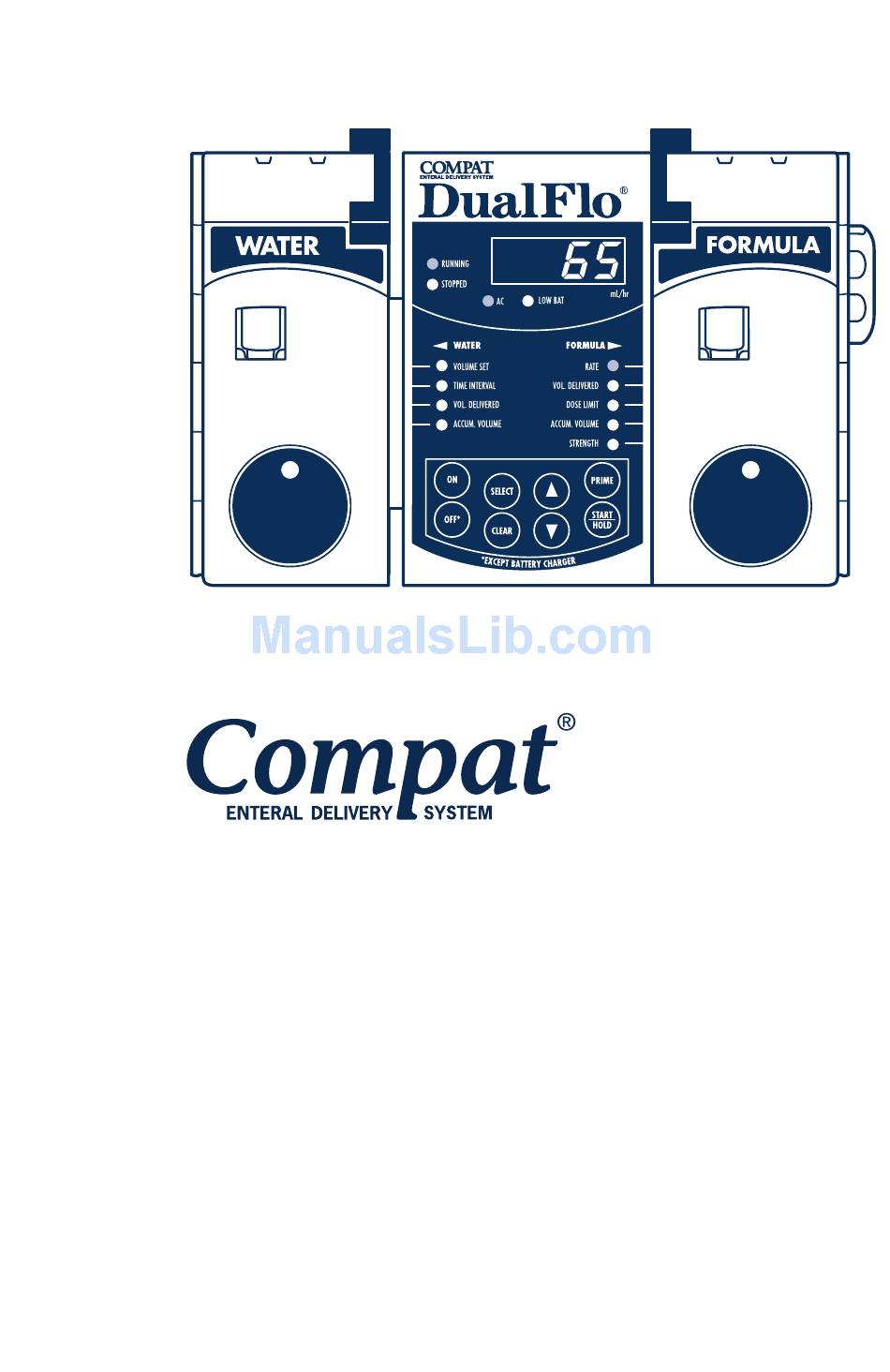

Operating Instructions 199255 COMPAT DualFlo ® Enteral Delivery Pump... -
Page 2: Table Of Contents
Section Page Introduction 199255 COMPAT DualFlo ® Enteral Delivery Pump Controls U.S. Patent No. 5,634,907 Preparation of COMPAT DualFlo ® Delivery Set Operating Instructions Quick Reference: Flow Rate, Dose Limit, Formula Delivered Hydration with Automatic Flush Formula Strength, Programmable Flush, Water Delivered... -
Page 3: Introduction
Introduction The COMPAT DualFlo ® Enteral Delivery Pump is an easy to use, versatile device for the administration of all enteral feeding solutions. Key features of this device include: Patient hydration with Delivery Set Security Doors automatic flush Reduces the likelihood of accidental... - Page 4 Introduction (cont.) Lifetime memory retention Designed for ease of use Infusion Rate, Dose Limit, Formula • Large LED display window , alternates Strength, Water Volume Set, Time displaying delivery rate and volume Interval, Formula and Water Volume delivered when pump is running. Delivered, and Accumulated Volume are •...
-
Page 5: Controls
Controls Keypad Controls 1. ON, turns power on, memory recalls previous settings. 2. OFF, turns power off, battery charges when plugged in to an electrical outlet. 3. SELECT, selects a delivery function to display and/or change. 4. CLEAR, clears displayed value of selected function to 0. - Page 6 Controls (cont.) Front of the pump 13. Flow Sensors and Drip Chamber Guide 14. Tubing Guide 15. Drip Chamber Brackets 16. Rotary Peristaltic Pump Mechanism 17. Door Latch 18. Delivery Set Security Door Back of the Pump 19. Set Adapter Cap Holder 20.
- Page 7 Controls (cont.)
- Page 8 Controls (cont.) Formula Side Displays Water Side Displays 24. RATE, displays the formula infusion 29. VOLUME SET, displays the volume rate. Select from 1–295 mL/hr in 1 of water to be delivered over the mL increments. selected Time Interval or at the end of the dose limit.
-
Page 9: Delivery Set
Preparation of COMPAT DualFlo ® Delivery Set DIAGRAM 1 DIAGRAM 2 Open pump doors by pulling door latch, Assemble silicone tubing around rotor. insert pump set drip chamber into drip chamber bracket. DIAGRAM 3 DIAGRAM 4 Insert pump adapter into bridge and Completely assembled pump set. -
Page 10: Operating Instructions
8. The pump has memory outlet if available. and displays previous settings, and returns to flashing Flow Rate on the display panel. Prepare COMPAT DualFlo ® Delivery Set Note: Changes can only be made to parame- ters at the START of a new feeding protocol 1. - Page 11 Detailed Operating Instructions (cont.) Formula Strength (dilution) Programmable Flush after dose is delivered 5. To dilute formula, press SELECT Selected water volume delivered after the until strength is displayed. Press or formula dose limit is delivered. (For this to set desired formula strength. Options feature, water is delivered at a fixed rate available are FS (Full Strength-no formu- of 375 mL/hr.)
- Page 12 Detailed Operating Instructions (cont.) Auto Priming Begin Feeding Automatic priming results in a small 1. Connect delivery set adapter to the amount of fluid being discharged patients enteral feeding tube. beyond the delivery set adapter. CAUTION: Verify enteral tube 12. Open both roller clamps on the delivery placement before beginning feeding.
-
Page 13: Quick Reference
Quick Reference (How to set Flow Rate, Dose Limit, or CLEAR Formula Volume Delivered) Note: Changes can only be made to parameters at the START of a new feed- ing protocol to avoid improper water delivery. To facilitate this safety feature, parameters can only be changed when amount displayed in Vol. -
Page 14: Hydration With Automatic Flush
Quick Reference (How to set Hydration with Automatic Flush) Hydration with automatic Select Time Interval (in hours) over which water volume will be delivered 25 mL flush 4. Press SELECT until Time Interval is Administers water volume with formula displayed. over a selected time interval during con- tinuous feeding. -
Page 15: Formula Strength, Programmable
Quick Reference (How to set Formula Strength, Programmable Flush, or CLEAR Water Volume Delivered) Formula Strength (Dilution) Programmable flush after dose is delivered 1. Press SELECT until Formula Strength A set volume of water for hydration or is displayed. flushing that is automatically adminis- 2. -
Page 16: Alarms/Indicators
After 15 minutes, the • A COMPAT DualFlo set is not being used. indicator flashes, an audible alarm sounds, and the pump stops operation. • One or both of the delivery set security... - Page 17 Alarms/Indicators (cont.) doSE dEL (Dose delivered) HoLd Err (Hold error) Pump is left on hold and START/HOLD The pump stops,doSE dEL is displayed, is not pressed within 2 minutes. Press and an audible alarm sounds when the START/HOLD to silence the alarm, pump has delivered an amount of formula press again to start feeding if desired.
-
Page 18: Troubleshooting
Troubleshooting COMPAT ® Enteral Feeding Pumps are reliable electromechanical devices. As with any mechanical device, problems may occur. The following tips will help you correct the minor in-service problems that may arise. TROUBLESHOOTING GUIDE SITUATION POSSIBLE CAUSE SOLUTION • Low battery •... -
Page 19: Specifications
Specifications Delivery Sets The DualFlo Enteral Delivery Pump offers a choice of delivery sets, including: • 199407 COMPAT DualFlo Piercing • 199607 Compat® SpikeRight™ ® Spike and 1000 mL Vinyl Water Bag Spike Connector and 1000 mL Vinyl with preattached... - Page 20 Specifications (cont.) Type of Device ....Volumetric enteral feeding pump Mechanism ....Rotary Peristaltic Infusion Rate .
-
Page 21: Symbols On Pump And Accessories
Symbols on Pump and Accessorries The following symbols may be found on the pump: Refer to Accompanying Documents Alternating Current Type BF Protection (degree of protection against electrical shock—there is no conductive connection to the patient) Medical Electrical Equipment 1) Classified with respect to electrical shock, fire and mechanical hazards in accordance with UL60601-1 2) Classified with respect to electrical shock, fire,... -
Page 22: Self Test
• Contact your supplier of the ment pump will be sent to you. ® COMPAT DualFlo Enteral Delivery Carefully pack the defective pump in Pump to arrange for Pump return the carton the replacement pump and replacement. -
Page 23: Limited Warranty
This warranty shall not apply if the prod- uct has been repaired by anyone other than an authorized service representative Cleaning Routine cleaning of the COMPAT Disinfecting DualFlo ® pump should be an ongoing If it is necessary to disinfect the entire... - Page 24 CMPT-10267-0308 SN1032...
