TABLE OF CONTENTS Product Features................1 Packing List ................. 1 Product Feature Identification............2 Installation and Wiring ..............3 Step 1 - Cut the Hole…………………………………………… 3 Step 2 - Install Split Ring………………………………………. 3 Step 3 - Expose the Input –Terminal……………………………5 Step 4 - Attach Wiring to Removable Locking Connector..6 Step 5 - Plug Connector into Connector Socket……………….. -
Page 3: Product Features

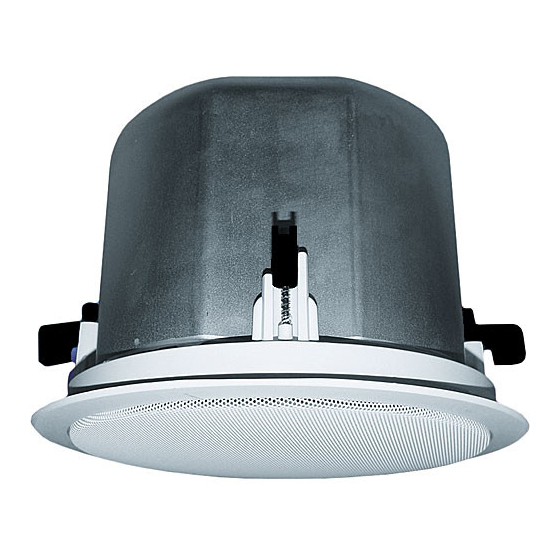

ICM6-730SET SPEAKER PRODUCT FEATURES Thank you for purchasing your new OWI ICM6-730SET High Output Ceiling Speakers. The ICM6-730SET ceiling speaker is a high output device, intended to meet the needs of the professional sound contractor. Operational in both 70V and 100V formats, these products will deliver high quality sound over a wide coverage area. -
Page 4: Product Feature Identification
PRODUCT FEATURE IDENTIFICATION OWI INC. ICM6-730SET (All-N-One) CEILING SPEAKERS – INSTALLATION GUIDE... -
Page 5: Installation And Wiring
INSTALLATION AND WIRING The OWI ICM6-730SET speaker installation system has been designed so that the entire installation can be done from beneath the ceiling. In some cases, with a suspended grid ceiling, it may be easier to access from both the top and bottom of the ceiling tile during the installation process. - Page 6 Insert the split ring through the hole cut in the ceiling and place it on the back side of the hole before inserting the speaker. OWI INC. ICM6-730SET (All-N-One) CEILING SPEAKERS – INSTALLATION GUIDE...
-
Page 7: Step 3 - Expose The Input -Terminal
Be sure to leave at least 4 to 6 inches of cable beneath the strain relief fitting. OWI INC. ICM6-730SET (All-N-One) CEILING SPEAKERS – INSTALLATION GUIDE... -
Page 8: Step 4 - Attach Wiring To Removable Locking Connector
5mm, inserting the bare end of the wire into the connector and screwing down the holddown screw until tight. Tighten any unused screws to avoid vibration. OWI INC. ICM6-730SET (All-N-One) CEILING SPEAKERS – INSTALLATION GUIDE... - Page 9 It can be useful during Figure 9 - Parallel Wiring troubleshooting to be able to disconnect a single speaker at a time. OWI INC. ICM6-730SET (All-N-One) CEILING SPEAKERS – INSTALLATION GUIDE...
-
Page 10: Step 5 - Plug Connector Into Connector Socket
Remember to tighten any loose screws to eliminate any vibration. Slip the input terminal cover back onto the rear of the speaker and tighten the two screws that keep it in place. Figure 11 - Plug connector into connector socket OWI INC. ICM6-730SET (All-N-One) CEILING SPEAKERS – INSTALLATION GUIDE... -
Page 11: Step 6 - Connect A Secondary Support Line
Then tighten the mounting tabs by turning the screw CLOCKWISE until tight. The first 1/4 clockwise turn rotates the attachment tabs outward. The remaining turns tighten the tabs down onto the back of the ceiling surface. DO NOT OVERTIGHTEN. OWI INC. ICM6-730SET (All-N-One) CEILING SPEAKERS – INSTALLATION GUIDE... -
Page 12: Step 8 - Adjust Tap Selector
In some installations it is advisable to leave all the grilles OFF until final adjustment of the taps have been made for the entire system. OWI INC. ICM6-730SET (All-N-One) CEILING SPEAKERS – INSTALLATION GUIDE... -
Page 13: Step 9 - Insert The Grille
6 mm (1/4 inch). Work your way around the grille, loosening a section at a time until the grille comes out. OWI INC. ICM6-730SET (All-N-One) CEILING SPEAKERS – INSTALLATION GUIDE... -
Page 14: Painting The Speaker
Application can be made by rolling, brushing or spraying. Painting the Grille - Painting the grille requires removal of the OWI logo and the internal grille cloth, then spray painting. If the grille is rolled or brush painted, the mesh may become clogged with paint and poor sound quality may result. -
Page 15: Troubleshooting
Make sure that the" +" and" - " from the amplifier output are not crossed on one or more of the speakers. If none of the above suggestions solve your problem, please contact your OWI Service Center at 1-800-638-1694 OWI INC. ICM6-730SET (All-N-One) CEILING SPEAKERS – INSTALLATION GUIDE... -
Page 16: Warranty
