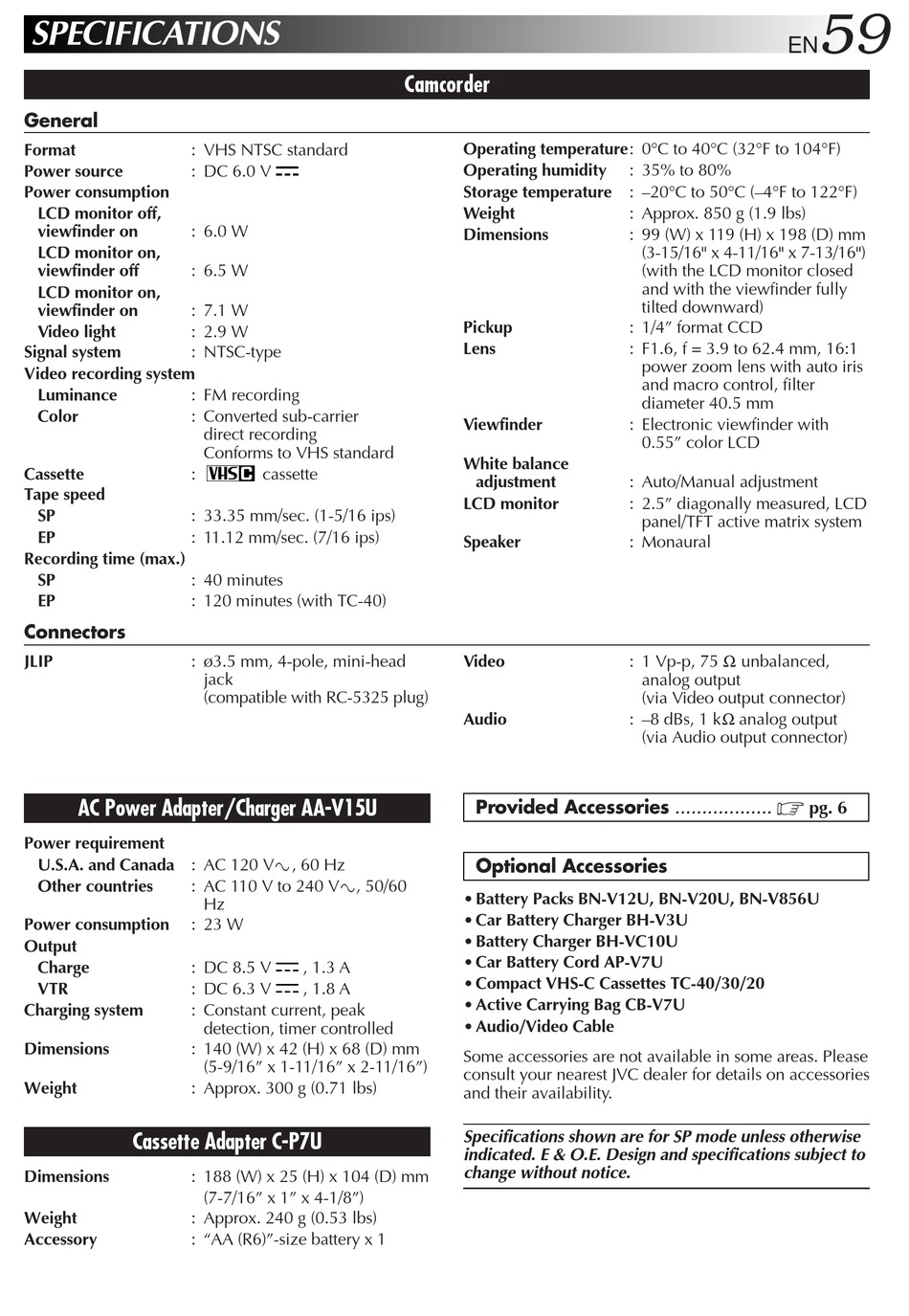

SPECIFICATIONS

General
Format : VHS NTSC standard
Power source : DC 6.0 V
Power consumption
LCD monitor off,
viewfinder on : 6.0 W
LCD monitor on,
viewfinder off : 6.5 W
LCD monitor on,
viewfinder on : 7.1 W
Video light : 2.9 W
Signal system : NTSC-type
Video recording system
Luminance : FM recording
Color : Converted sub-carrier
Cassette :
Tape speed
SP : 33.35 mm/sec. (1-5/16 ips)
EP : 11.12 mm/sec. (7/16 ips)
Recording time (max.)
SP : 40 minutes
EP : 120 minutes (with TC-40)
Connectors
JLIP : ø3.5 mm, 4-pole, mini-head
AC Power Adapter/Charger AA-V15U
Power requirement
U.S.A. and Canada : AC 120 V`, 60 Hz
Other countries : AC 110 V to 240 V`, 50/60
Power consumption : 23 W
Output
Charge : DC 8.5 V
VTR : DC 6.3 V
Charging system : Constant current, peak
Dimensions : 140 (W) x 42 (H) x 68 (D) mm
Weight : Approx. 300 g (0.71 lbs)
Cassette Adapter C-P7U
Dimensions : 188 (W) x 25 (H) x 104 (D) mm
Weight : Approx. 240 g (0.53 lbs)
Accessory : "AA (R6)"-size battery x 1
direct recording
Conforms to VHS standard
cassette
jack
(compatible with RC-5325 plug)
Hz
, 1.3 A
, 1.8 A
detection, timer controlled
(5-9/16" x 1-11/16" x 2-11/16")
(7-7/16" x 1" x 4-1/8")
Camcorder
Operating temperature: 0°C to 40°C (32°F to 104°F)
Operating humidity
Storage temperature : –20°C to 50°C (–4°F to 122°F)
Weight
Dimensions
Pickup
Lens
Viewfinder
White balance
adjustment
LCD monitor
Speaker
Video
Audio
Provided Accessories ..................

Optional Accessories

• Battery Packs BN-V12U, BN-V20U, BN-V856U
• Car Battery Charger BH-V3U
• Battery Charger BH-VC10U
• Car Battery Cord AP-V7U
• Compact VHS-C Cassettes TC-40/30/20
• Active Carrying Bag CB-V7U
• Audio/Video Cable
Some accessories are not available in some areas. Please
consult your nearest JVC dealer for details on accessories
and their availability.
Specifications shown are for SP mode unless otherwise
indicated. E & O.E. Design and specifications subject to
change without notice.
EN
: 35% to 80%
: Approx. 850 g (1.9 lbs)
: 99 (W) x 119 (H) x 198 (D) mm
(3-15/16" x 4-11/16" x 7-13/16")
(with the LCD monitor closed
and with the viewfinder fully
tilted downward)
: 1/4" format CCD
: F1.6, f = 3.9 to 62.4 mm, 16:1
power zoom lens with auto iris
and macro control, filter
diameter 40.5 mm
: Electronic viewfinder with
0.55" color LCD
: Auto/Manual adjustment
: 2.5" diagonally measured, LCD
panel/TFT active matrix system
: Monaural
: 1 Vp-p, 75 unbalanced,
analog output
(via Video output connector)
: –8 dBs, 1 k analog output
(via Audio output connector)
59
pg. 6
