Summary of Contents for Skywalker 13’ Enclosure

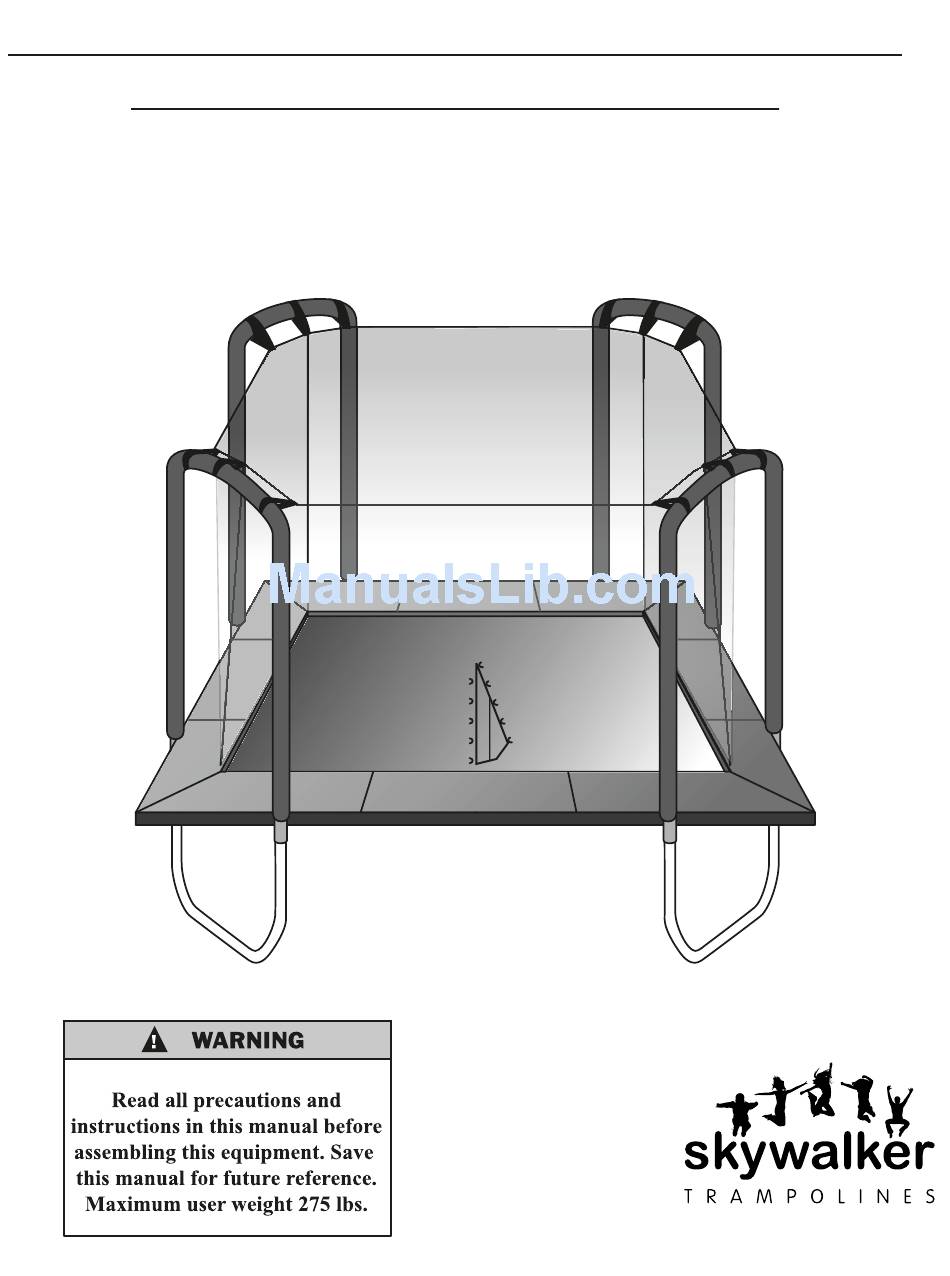

- Page 1 Assembly Installation, Care Maintenance and User Instructions Manual 13’ Enclosure Manual # 2 Read and follow all steps in manual #1 first. Model _________________...
-
Page 2: Table Of Contents
Model _________________ A model decal is found under the trampoline mat. Write the model in the space above. CONTENTS Important Precautions ...........3 Warning Label Placement........4 Before You Begin..........4 Enclosure Safety Information .......5 Assembly...............8 Care and Maintenance...........12 Exploded Drawing and Parts List ......13 Ordering Replacement Parts .........13 Limited Warranty ..........14 QUESTIONS? -
Page 3: Important Precautions
IMPORTANT PRECAUTIONS 12. This trampoline enclosure is made for users who do not ! WARNING: To reduce the risk of serious injury, read weigh more than 275 pounds and children less than 6 years and follow all of the warnings, precautions, and instructions old should not use it. -
Page 4: Warning Label Placement
Note: The labels and placard are not shown actual size. BEFORE YOU BEGIN Thank you for selecting a SKYWALKER Trampoline Combo. Our experienced designers at SKYWALKER have incorporated several new, previously non-existent, features into this combo. Such features as our improved frame construction, method of securing the frame mat to the trampoline frame and method of securing the enclosure net- ting to the jumping mat are all new and patent-pending. -
Page 5: Enclosure Safety Information
ENCLOSURE SAFETY INFORMATION NEED FOR TRAMPOLINE ENCLOSURE SAFETY A trampoline enclosure is a recreational product. The information on this page and on pages 6-7 identify important safety precautions. The precautions are not all- inclusive, because an enclosure can be used in ways that this manual cannot cover completely. To prevent pinches and cuts during enclosure use, a frame pad must be installed on the trampoline. - Page 6 Hazards Associated with High Winds A trampoline with an enclosure can be moved or blown over by high winds. Anyone in its path, or inside of the enclosure, may be injured if this happens. If you expect high winds, take down the enclosure netting and stake the trampoline frame to the ground (see page16 in the trampoline manual), or move the trampoline and enclosure to a sheltered location.
- Page 7 Wear clothing that does not have drawstrings, hooks, loops or anything else that could get caught in the netting. Do not attach anything to the netting that is not a Skywalker approved accessory or part of the trampoline enclosure.
-
Page 8: Assembly
ASSEMBLY ASSEMBLY (PUTTING THE ENCLOSURE TOGETHER) IMPORTANT ASSEMBLY INFORMATION • Need phillips screw driver and 2 adjustable wrenches. • Assembly requires two adults. Keep children away from the trampoline enclosure until it is completely put together. • Use gloves to protect your hands from pinch points while putting the enclosure together. •... - Page 9 3. Note: In Step 3 you will secure the Enclosure arches to the frame of the trampoline. Lift one of the arches assembled in Step 2 and insert the two Straight Tubes (4) into the tops of the two trampoline frame Square Sockets (M) as shown. Insert a bolt (1) through the matching holes in the left side Straight Tube (4) and Square Socket (M).
- Page 10 4. Locate one of the D-rings (11) attached to the upper edge of the Netting. Lift the D-ring (11) and hold it close to an L-tube (5) as shown in Inset Drawing A. Insert one of the Straps through the D-ring (11) on the Netting (10). (See Inset Drawing A).
- Page 11 DISASSEMBLY (TAKING THE ENCLOSURE APART) To disassemble the trampoline enclosure (take it apart), follow assembly steps 1 through 7 in reverse order.
-
Page 12: Care And Maintenance
CARE AND MAINTENANCE TRAMPOLINE ENCLOSURE CARE AND MAINTENANCE To avoid damage to the trampoline and enclosure, do not allow pets or animals inside the enclosure. Appropriate shoes should be worn inside the enclosure to reduce wear to the trampoline mat (bed). Follow the tram- poline manufacturer’s recommendations. -
Page 13: Exploded Drawing And Parts List
EXPLODED DRAWING AND PARTS LIST Qty. Description Qty. Description Bolt Lock Nut Short Foam Sleeve Self-tapping Screw Long Foam Sleeves Straight Tube Netting with attached Hardware L-corner tube Strap with D-rings Curved Tube User’s Manual Middle Tubes End Cap Foam Specifications are subject to change without notice. -
Page 14: Limited Warranty
All warranty coverage extends only to the original retail purchaser from the date of purchase. SKYWALKER’s obli- gation under this Warranty is limited to replacing or repairing, at SKYWALKER’s option, the product at one of its authorized service centers. All products for which a warranty claim is made must be received by SKYWALKER at one of its authorized service centers, freight prepaid, and accompanied by sufficient proof of purchase.
