QUICK CONNECT SYSTEM
Oscillating Tool
Attachment
Australia
BDCMTO-XE
New Zealand

Advertisement

Table of Contents
loading

Related Manuals for Black & Decker Matrix BDCMTO-XE

Summary of Contents for Black & Decker Matrix BDCMTO-XE

  • Page 1 QUICK CONNECT SYSTEM Oscillating Tool Attachment Australia BDCMTO-XE New Zealand...

  • Page 2: Parts And Features

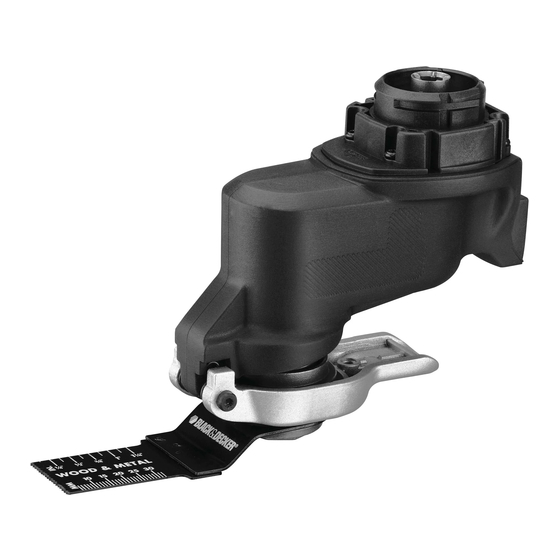

    PARTS AND FEATURES 1. Oscillating tool attachment 2. Accessory clamping lever 3. Accessory holder 4. Sanding platen 5. Sand sheets 6. Plunge cut blade Additional accessories are available at extra cost from your local Black & Decker dealer.

  • Page 3: Safety Instructions

    (Original instructions) ENGLISH Intended use Your Black & Decker multi-purpose tool has been designed for a wide range of DIY applications. Using the oscillating tool head , this tool is intended for DIY applications such as sanding operations. It is also suitable for cutting wooden materials, plastic, gypsum, non-ferrous metals and fastening elements (e.g., unhardened nails, staples), working soft wall tiles and scraping of small surfaces.
  • Page 4 ENGLISH (Original instructions) • Never work in area which is soaked with a liquid, such as a solvent or water, or dampened such as newly applied wallpaper. There is an electrical shock hazard when working in such conditions with a power tool and heating of the liquid caused by scraping action may cause harmful vapors to be emitted from workpiece.

  • Page 5: Intended Use

    (Original instructions) ENGLISH SyMBOLS The label on your tool may include the following symbols. The symbols and their definitions are as follows: V ....volts A ....amperes Hz ....hertz W ....watts min ....minutes ....alternating current n o ....no load speed .....direct current ....Class I Construction ....earthing terminal (grounded)
  • Page 6 ENGLISH (Original instructions) INSTALLING/REMOVING ACCESSORIES This tool features a tool-free accessory changing system. This allows for faster accessory changes without the need for wrenches or hex keys like other oscillating tool systems. • Grasp the tool and squeeze the accessory clamping lever as shown in figure A. • Clean any residual debris from the tool shaft and the accessory holder. • Slide the accessory into the accessory holder making sure the accessory engages all eight pins on the holder and is flush with the surface of the holder.

  • Page 7: Troubleshooting

    (Original instructions) ENGLISH INSTALLING/REMOVING SANDING ShEETS - fIGURE D A diamond shaped platen uses a hook and loop adhesion system to attach the sanding sheets. The platen allows you to use it on large flat surfaces and tight spots or corners. • Attach the sanding platen as described under “Installing/Removing Accessories.”...
  • Page 8 Australia & New Zealand Stanley Black & Decker 82 Taryn Drive, Epping, VIC 3076 Australia Tel.1800 444 224 (Aust) or Tel. 0800 339 258 (NZ) 90589509 REV-0 07/2012...
