Black & Decker BDSL10 Manual

Intended use

This Black & Decker tool has been designed to aid DIY projects by providing a horizontal, vertical or 45° diagonal line and helping in measurement transfer.
This tool is intended for consumer use only.

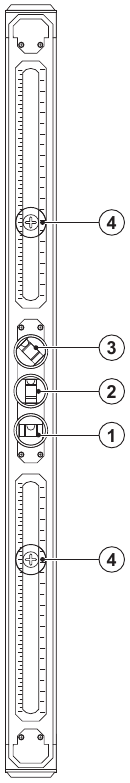

Features

1. Vertical vial
2. Horizontal vial
3. Diagonal vial
4. Adjustable marking pods

5. Spring loaded pads
6. Grip assist pads

Assembly and adjustment

Adjusting the marking pods

• Move the marking pod to the right or to the left.

Use

Using the grip assist pads

(fig. A)
The tool is fitted with spring loaded pads (5) and non-slip grip assist pads (6). This unique feature increases stability on vertical surfaces while holding the tool with one hand.

• Place the tool on a vertical surface.
• Press in on the tool to allow the grip assist pads to grip to the vertical surface.
• Holding the level with one hand, use a pencil in your free hand to make a location marking.

Do not let go of the tool. The gripper pads are not intended to hold the tool against the surface by themselves.
Note: Optimal G-Grip performance will be achieved when the pads are free of dust and dirt. The performance of the grip assist pads can be restored by wiping them using a damp cloth.

Using the spirit level

The tool can be used for vertical, horizontal and diagonal level measurement.

• Check whether the bubble moves evenly between the 2 lines in the spirit. This means your level is straight.

Using the marking pods

The tool is fitted with adjustable marking pods to transfer and or repeat a measurement from one location to another.

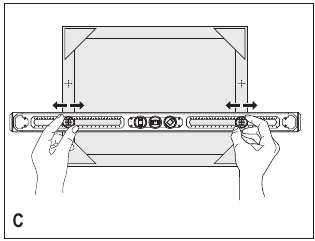

• Align the marking pods (4) with the pre-set hang holes of the object you want to hang on the wall.

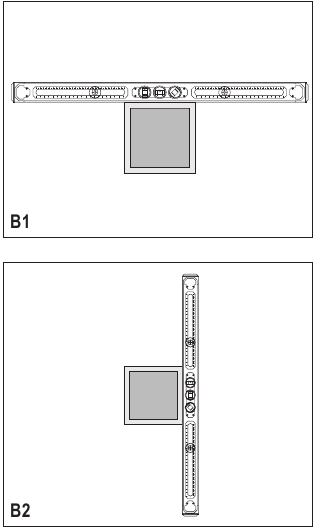

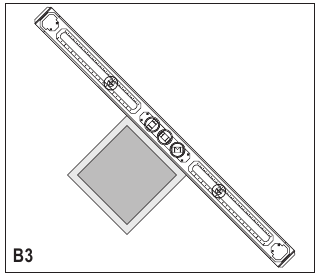

• Transfer the measurement to your work area ensuring the tool is aligned to a level position (fig. B1 - B3).

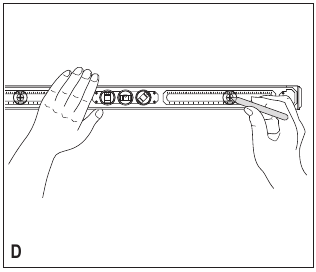

• Mark the locations of the marking pods through the slots in the pods using a pencil.


Cleaning and maintenance

Your tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

• To clean the tool, use only mild soap and a damp cloth. Never let any liquid get inside the tool and never immerse any part of the tool into liquid.

Technical data

Safety instructions

•
  When using tools, basic safety precautions, including the following, should always be followed to reduce the risk, personal injury and material damage.
• Read all of this manual carefully before operating the tool.
• Retain this manual for future reference.

Keep work area clean
Cluttered areas and benches can cause accidents.
Keep children away
Do not allow children, visitors or animals to come near the work area or to touch the tool.
Do not overreach
Keep proper footing and balance at all times.
Stay alert
Watch what you are doing. Use common sense. Do not operate the tool when you are tired.
Use appropriate tool
The intended use is described in this instruction manual.

The use of any accessory or attachment or performance of any operation with this tool other than those recommended in this instruction manual may present a risk of personal injury.
Store idle tools
When not in use, tools should be stored in a dry, locked up or high place, out of reach of children.

Please visit our website www.blackanddecker.co.uk to register your new Black & Decker product and to be kept up to date on new products and special offers. Further information on the Black & Decker brand and our range of products is available at www.blackanddecker.co.uk
