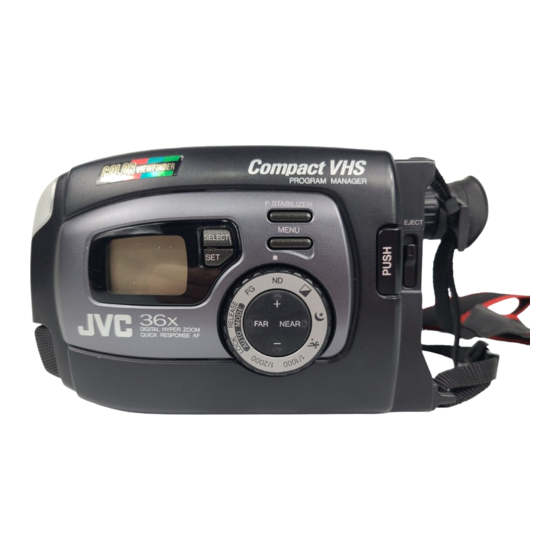

- Page 1 COMPACT VHS CAMCORDER GR-AX96 INSTRUCTIONS For Customer Use: Enter below the Serial Nos. of the GR-AX96U camcorder and the AA-V11U AC Power Adapter/Charger. The serial numbers are located on the bottom of the GR-AX96U, and the AA- V11U. Model No.
- Page 2 Dear Customer, Thank you for purchasing the JVC Compact VHS camcorder. Before use, please read the safety information and precautions contained in the following pages to ensure safe use of your new camcorder. Using This Instruction Manual • All major sections and subsections are listed in the Table Of Contents ( pg.
-
Page 3: Important Product Safety Instructions
IMPORTANT PRODUCT SAFETY INSTRUCTIONS Electrical energy can perform many useful functions. But improper use can result in potential electrical shock or fire hazards. This product has been engineered and manufactured to assure your personal safety. In order not to defeat the built-in safeguards, observe the following basic rules for its installation, use and servicing. - Page 4 1. Accessories To avoid personal injury: • Do not place this product on an unstable cart, stand, tripod, bracket or table. It may fall, causing serious injury to a child or adult, and serious damage to the product. • Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product.
-
Page 5: Quick Operation Guide
Hook on. BATT. RELEASE Using the battery pack Hook-on the battery pack’s top end to the camcorder. (Charging procedure, Push in the battery pack until it locks into place. To remove the battery pack Slide BATT. RELEASE and pull out the battery pack. -
Page 6: Major Features
22) •Cassette Adapter (VHS PlayPak) C-P7U • Lithium Battery CR2025 Cassettes marked MAJOR FEATURES pg. 18 – 31) pg. 15) Zoom-in Zoom-out pg. 37 – 39) •Battery Pack BN-V18U • Shoulder Strap can be used with this camcorder. pg. 17) -
Page 7: Table Of Contents
CONTENTS GETTING STARTED Power ... 8 Clock (Lithium) Battery Insertion/Removal ... 10 Viewfinder Adjustment ... 10 Date/Time Setting ... 11 Tape Length Setting ... 12 Recording Mode Setting ... 12 Loading/Unloading A Cassette ... 12 Grip Adjustment ... 13 Shoulder Strap Attachment... 13 Tripod Mounting ... -
Page 8: Getting Started
BN-V22U BN-V25U USING THE BATTERY PACK ATTACH BATTERY PACK Hook its top end to the camcorder and push the battery pack in until it locks in place. DETACH BATTERY PACK Slide BATT. RELEASE and pull out the battery pack. BATT. PACK... - Page 9 The CHG. indicator may not light properly with a brand new battery pack, or with one that’s been stored for an extended period. In this case, remove and reattach the battery pack and recharge it. The CHG. indicator should light during recharging. If not, contact your nearest JVC dealer. DC OUT...
-
Page 10: Clock (Lithium) Battery Insertion/Removal
Set POWER to “CAMERA”. GETTING STARTED Clock (Lithium) Battery Insertion/Removal This battery is necessary for clock operation and to perform date/time settings. SWITCH OFF POWER Switch off the unit’s power and remove the power supply unit. OPEN COVER Open the clock battery compartment cover while pressing the release tab. -
Page 11: Date/Time Setting
MENU PROGRAM AE select dial NEAR – G a i n U p Te l e M a c ro I n te rv a l T i m e r R ec Ti m e Menu Screen J L I P I D N O . Ta l l y S e t C ha ra c t e r D ate / T i m e... -
Page 12: Tape Length Setting
If not, slide the tab. Some cassettes have removable tabs. If the tab has been removed, cover the hole with adhesive tape. The cassette holder can’t be opened while the camcorder is in the record mode. GETTING STARTED pg. 14) displayed in the (cont.) -
Page 13: Grip Adjustment
Recording Start/Stop button Grip Adjustment EXPAND LOOP Separate the Velcro strip. INSERT HAND Pass your right hand through the loop and grasp the grip. ADJUST STRAP LENGTH Adjust so your thumb and fingers can easily operate the Recording Start/Stop button and Power Zoom lever. -
Page 14: Recording
If you’re recording on a cassette from the middle, use the RETAKE function ( the last recording so you don’t erase any of it. The LENS COVER warning blinks for about 10 seconds when the camcorder is turned on, when the cover is closed. -
Page 15: Basic Features
FEATURE: Retake PURPOSE: To re-record certain segments. OPERATION: 1) Make sure the camcorder is in the Record–Standby mode. 2) Press either RETAKE button to reach the start point for new recording. Pressing “F” forwards the tape and pressing “R” reverses 3) Press Recording Start/Stop to start recording. - Page 16 TV programs. OPERATION: 1) During Record–Standby, press and release QUICK REC. Recording starts, and after 5-second record- ing is finished, the camcorder reenters the Record–Standby mode automatically. •To continue shooting longer than 5 seconds, press and hold QUICK REC.
-
Page 17: Video Light
(1 ft.) between the video light and people or objects. •Do not use near flammable or explosive materials. •It is recommended that you consult your nearest JVC dealer for replacing the video light. ) does not blink in the pg. 19) is engaged, the... -
Page 18: Advanced Features
1 second later, the mode is activated. After 1 sec. Sepia Viewfinder Mark PROGRAM AE FAR NEAR select dial – RECORDING Advanced Features Program AE With Special Effects All you have to do to access any of the variety of shooting effects is to turn the PROGRAM AE select dial. - Page 19 SYMBOL INDICATION LOCK Auto Lock Auto Mode Lock Locks the camcorder in Full Auto mode, preventing incorrect operation due to accidental button pressing during shooting. • In this mode the following controls are disabled; Fade/Wipe, Wide, Title, Display, M.W.B. (Manual...
- Page 20 NEAR helpful in the following situations: •When things pass between your subject and the camcorder. Engage the focus lock function to lock your subject in before recording. •When you want your subject to be focused, and to appear in a corner of the screen. First, center on the subject and focus using auto focus mode.
- Page 21 Power zoom lever NEAR PROGRAM AE select dial Manual Focus NOTE: You should already have made the necessary viewfinder adjustments ( pg. 10). If you haven’t, do so before continuing. SELECT MODE Turn the PROGRAM AE select dial to any position except AUTO LOCK.
-
Page 22: Picture Stabilizer
• When shooting scenes with low-contrast backgrounds Switch off Picture Stabilizer when recording with the camcorder on a tripod. Exposure Control This feature automatically adjusts the iris for the best available picture quality, but you can override and make the adjustment manually. -
Page 23: Standby Mode
[Ex. : Black Fader] FADE IN FADE OUT Function indication After Fade/Wipe 2 sec. Mosaic Fader Black Fader Mosaic Fader Shutter Wipe Slide Wipe (No indication) SELECT button PROGRAM AE select dial SET button NOTES: Pressing and holding the Recording Start/ Stop button allows you to record a black blank screen, or a mosaic pattern if Mosaic Fader is selected. - Page 24 RESTORE NORMAL SCREEN Press SET again while “ Instant Titles Title indication The camcorder has eight preset titles in memory. You can Happy Birthday superimpose one of them above a previously stored title as shown in the illustration to the left.
-
Page 25: Character Generator
MENU PROGRAM AE select dial Gai n Up S . L X T el e Ma c r o O FF In ter va l Ti m e r O FF R ec Ti m e O FF J LI P I D NO . T al l y Se t Char ac te r D ate / Ti m e... - Page 26 Recorde-Standby mode, press SELECT repeatedly until “ select the Date-off mode. AUTO DATE RECORD Your camcorder automatically records the date for about Auto Date 5 seconds after recording is initiated in the following situations: •After changing the date.
- Page 27 To switch to automatic white balance adjustment, press SET until the indication disappears, or turn the PROGRAM AE select dial to “AUTO LOCK”. Re-adjust the White Balance when the lighting has changed, when the camcorder has been turned off and on again, or when the PROGRAM AE select dial’s position has been changed.
-
Page 28: Using Menu For Detailed Adjustment
RECORDING Using Menu For Detailed Adjustment This camcorder is equipped with Program Manager, an easy-to-use, on-screen menu system that simplifies many of the more detailed camcorder settings. SELECT MODE Turn the PROGRAM AE select dial to any position except AUTO LOCK. - Page 29 Rec Time 1/4s 1/2s JLIP ID NO. This number is necessary when connecting the camcorder to a device such as a computer using the J terminal (JLIP). The numbers range from 01 to 99. Factory setting is 07. Tally Set Character Allows you to input characters.
- Page 30 Self-Timer You can set the delay between pressing RECORDING START/STOP and the actual start of recording. If you 1min secure the camcorder, you (or whomever is operating the 1/2s camcorder) can enter the scene before recording starts. NOTE: Make sure the camcorder is in the Record-Standby mode before performing the following steps.
-
Page 31: Start Recording
NOTE: Make sure the camcorder is in the Record-Standby mode and the recording mode is set to “SP” before performing the following steps. ACCESS MENU SCREEN... -
Page 32: Playback
PLAYBACK Cassette Adapter (VHS PlayPak) Use this to play back a VHS-C video cassette recorded with this camcorder. It is fully compatible with any VHS video cassette recorder. The C-P7U adapter is battery powered and automatically performs tape loading and unloading. -
Page 33: Basic Connections
AUDIO and VIDEO connectors on the camcorder and those on the VCR. SUPPLY POWER Turn on the camcorder, the VCR and the TV. SELECT MODE Set the VCR to its AUX input mode, and set the TV to its VIDEO mode. -
Page 34: Basic Playback
: Still Playback Tape counter NOTE: PLAY/PAUSE Make sure you connect your camcorder as directed in “Basic Connections” ( LOAD A CASSETTE Slide EJECT to open the cassette holder, then insert the cassette with the label facing out. Press PUSH to ensure the holder is closed and locked. -
Page 35: Features
PLAYBACK Features – COUNTER R/M PLAY/PAUSE STOP FEATURE: Manual Tracking PURPOSE: To eliminate noise bars that appear on the screen during playback. OPERATION: 1) Press either +/– button as many times as necessary for best picture. NOTES: To reset TRACKING to the original preset, press both + and –... -
Page 36: Editing
SELECT VCR MODE Engage the VCR’s AUX and Record-Pause modes. FIND EDIT-IN POINT To AUDIO and Engage the camcorder’s Play mode to find a spot VIDEO OUT just before the edit-in point. Once it’s reached, press connectors PAUSE on the camcorder. -
Page 37: Random Assemble Editing (R.a.edit)
REC STBY (you don’t need to press VCR CTL for this one). You’re now ready to try Random Assemble Editing. IMPORTANT Although the MBR is compatible with JVC VCRs and those of many other makers, it may not work with yours or may offer limited functions. NOTES: If the VCR’s power doesn’t come on in step 1, try... - Page 38 MAKE CORRECTIONS Press CANCEL during steps 2 and 3 to erase the most recently registered point. NOTES: The RM-V700U can be used to operate other camcorder IN/OUT functions as well. Point the RM-V700U at the camcorder’s CANCEL remote sensor and press any of the following buttons...
- Page 39 END AUTOMATIC EDITING When all selected scenes have been copied, the camcorder and VCR enter the still or pause mode. Press STOP on both units. •When finished editing, be sure to disconnect the editing cable and the audio/video cable.
-
Page 40: Using Remote Control Unit Rm-V700U (Optional)
USING REMOTE CONTROL UNIT The Full-Function Remote Control Unit can operate this camcorder from a distance as well as the basic operations (PLAY, STOP, PAUSE, FF, and REW) of your VCR. This remote control unit makes additional recording functions possible. - Page 41 Transmitted beam effective area Remote sensor When using the remote control, be sure to point it at the remote sensor. The above illustration shows the approximate transmitted beam effective area for indoor use. The transmitted beam may not be effective or may cause incorrect operation outdoors or when the remote sensor is directly exposed to sunlight or powerful lighting.
-
Page 42: Insert Editing
ENGAGE INSERT EDITING MODE Press and hold INSERT, and without releasing INSERT, press and release PAUSE. The Insert mode is engaged. When the scene the camcorder is aimed at appears on the screen, go to the next step. BEGIN INSERT EDITING Press RECORDING START/STOP. -
Page 43: Audio Dubbing
A. DUB, press and release PAUSE. BEGIN AUDIO DUBBING Mike Press PLAY. When the counter reaches “0:00:00”, Audio Dubbing stops automatically and the camcorder enters the Audio Dub-Standby mode. END AUDIO DUBBING Press STOP. NOTES: Do not press FF or REW during Audio Dub-Standby, or the edit points will not be accurate. -
Page 44: User Maintenance
PUSH. Press BATT. RELEASE to remove the battery pack. Slide the LENS COVER open/close switch to close the lens cover. Cleaning The Camcorder CLEAN EXTERIOR Wipe gently with a soft cloth. CLEAN LENS Blow it with a blower brush, then wipe gently with lens cleaning paper. -
Page 45: Troubleshooting
Remove the cassette and disconnect the power source, then after a few minutes, try turning the power back on. If it still doesn’t come on, consult your nearest JVC dealer. The recording tape’s Erase Protection tab is missing. Cover the hole with adhesive tape. (Some tapes have sliding tabs. - Page 46 Lens Cover Warning indicator blinks. The camcorder is a microcomputer-controlled device. External noise and interference (from a TV, a radio, etc.) might prevent it from functioning properly. In such cases, first disconnect its power supply unit (battery pack, AC Power Adapter/Battery Charger, etc.) and clock battery; and then re-connect it and proceed as usual from the beginning.
-
Page 47: Index
INDEX Viewfinder 120min REC SP Viewfinder Indications Cassette Warning/Remaining Tape Time ... When no cassette is inserted: the Cassette ( Warning blinks. When Erase Protection tab is not in the position that allows recording: the Cassette ( Otherwise, the Remaining Tape Time is displayed. Recording Mode (SP/EP) Indicator ... -
Page 48: Controls
Controls Diopter Adjustment ... QUICK REC Button ... Power Zoom Lever ... BATT. [Battery] RELEASE Switch ... Recording Start/Stop Button ... POWER Switch ... STOP Button ... Tape Length [T20•30•40] Select Button ... COUNTER R [Reset]/M [Memory] Button ... EDIT Button ... Recording Mode [SP/EP] Select Button ... -
Page 49: Connectors
Random Assemble Editing ( •It is used to connect the camcorder to a device such as a personal computer. For further detail consult your nearest JVC dealer. Information (in English) is also available at our home page: http://www.jvc-victor.co.jp/ External MIC jack (capped) ... -
Page 50: Terms
AC Power Adapter ... pg. 8 Animation Recording ... pg. 31, 41 Audio Dubbing ... pg. 43 Auto Date Record ... pg. 26 Auto Focus ... pg. 20 Auto Mode Lock Mode ... pg. 19 Auto Mode Release Mode ... pg. 19 Battery Pack ... -
Page 51: Cautions
AC wall outlet other than American National Standard C73 series type use an AC plug adapter, called a “Siemens Plug”, as shown. For this AC plug adapter, consult your nearest JVC dealer. INFORMATION This device complies with Part 15 of FCC Rules. -
Page 52: Main Unit
•Moisture on the head drum can cause severe damage to the video tape, and can lead to internal damage to the camcorder itself. Serious malfunctioning If malfunctioning occurs, stop using the unit immediately and consult your local JVC dealer. (cont.) -
Page 53: Specifications
•Active Carrying Bag CB-V7U •Wireless Remote Control Unit RM-V700U Some acccessories are not available in some areas. Please consult your nearest JVC dealer for details on accessories and their availability. Specifications shown are for SP mode unless otherwise indicated. E. & O. E. Design and specifications subject to change without notice. -
Page 54: Español
Indicador CHG. (carga) Marcas Indicador POWER Indicador Interruptor REFRESH Indicador REFRESH Enganche. BATT. RELEASE Marcador de carga ** Indicador de carga (Paquete de pilas opcional exclusivamente) Se ha suministrado un indicador de carga sobre el paquete de pilas para ayudarle a recordar si ha sido cargado o no. - Page 55 GUIA PARA OPERACION RAPIDA Si la unidad comienza a funcionar mal, deje de usarla inmediatamente y consulte a su concesionario local de JVC. ALIMENTACION Enganche. BATT. RELEASE (extracción de la batería) Utilización de la batería Enganche el extremo superior de la batería en la cámara de video.
-
Page 56: For Servicing (Only In U.s.a.)
JVC SERVICE & ENGINEERING COMPANY OF AMERICA Pack your JVC unit in the original carton or one of equivalent size and strength. Enclose, with the unit, a letter stating the problem or symptom that exists and also a copy of the receipt or bill of sale you received when you purchased your JVC unit. -
Page 57: Warranty (Only In U.s.a.)
WHAT WE WILL DO: If this product is found to be defective, JVC will repair or replace defective parts at no charge to the original owner. Such repair and replacement services shall be rendered by JVC during normal business hours at JVC authorized service centers. - Page 58 MEMO...
- Page 59 MEMO...
- Page 60 COPYRIGHT© 1997 VICTOR COMPANY OF JAPAN, LTD. JVC COMPANY OF AMERICA DIVISION OF US JVC CORP. 41 Slater Drive, Elmwood Park, N.J. 07407 JVC CANADA INC. 21 Finchdene Square, Scarborough Ontario M1X 1A7 Printed in Japan U/U ( C )
