New Product Release Information

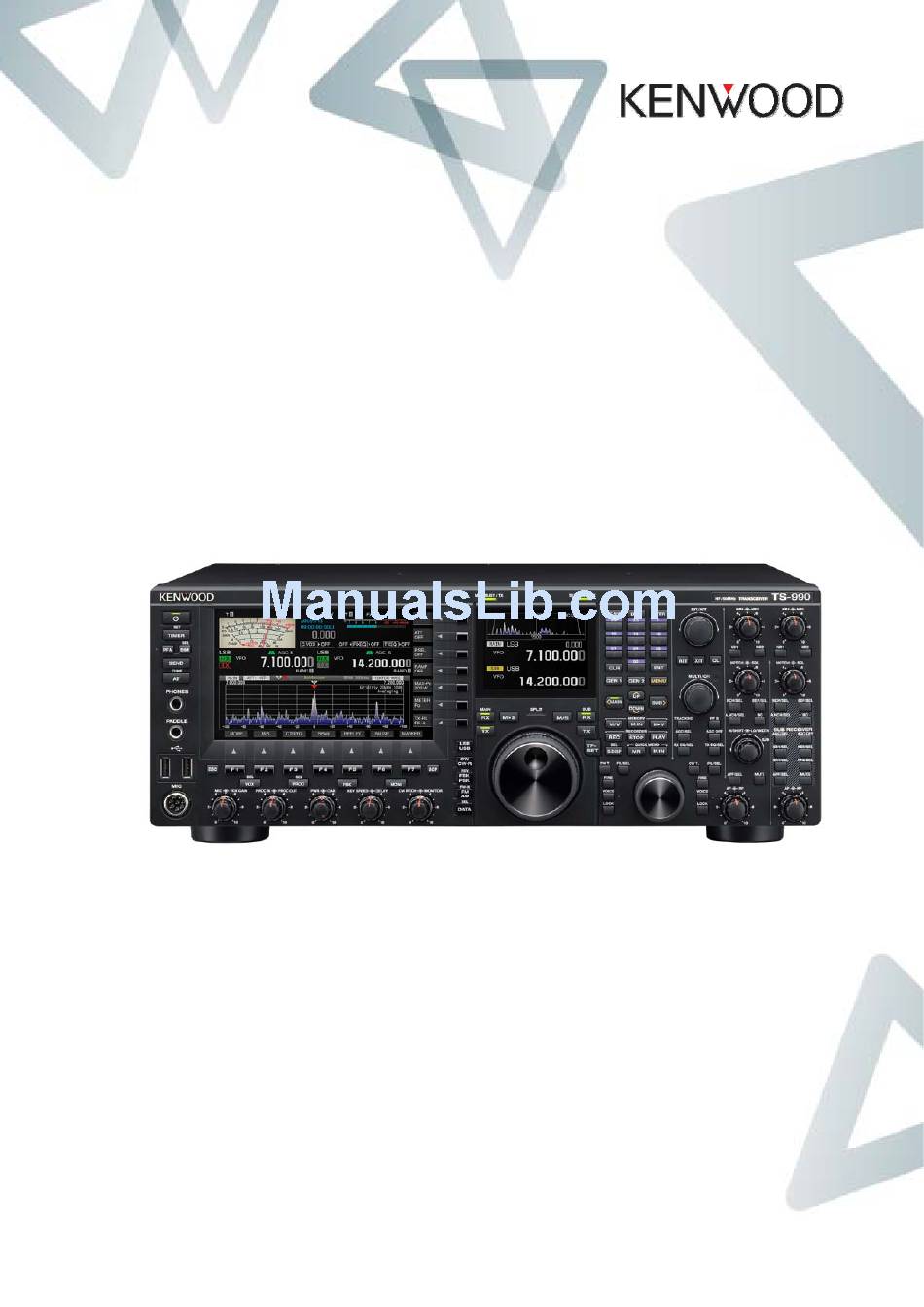

TS-990SE
HF/50MHz All-Mode Transceiver
January 2013
We are pleased to inform you of our new HF/ 50MHz all mode Transceiver for
Amateur Radio.
1. SCHEDULE
Launch:
End of February 2013
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TS-990SE and is the answer not in the manual?

Questions and answers

Related Manuals for Kenwood TS-990SE

Summary of Contents for Kenwood TS-990SE

  • Page 1 New Product Release Information TS-990SE HF/50MHz All-Mode Transceiver January 2013 We are pleased to inform you of our new HF/ 50MHz all mode Transceiver for Amateur Radio. 1. SCHEDULE Launch: End of February 2013...

  • Page 2: Main Features

    2. MAIN FEATURES 2-1. Main receiver Down conversion format for all amateur bands A key point in tapping maximum performance from the 1st mixer in actual operation (say, CW operation) is to prevent the outflow of unnecessary signals, other than the target signal, from the mixer to the subsequent stage.
  • Page 3 2-3. Triple DSP Equipped with dedicated DSP for the main-receiver, sub-receiver and band scope Kenwood continues to provide quality sound transmission that is unattainable through analogue circuits. By loading the world- premiere DSP on the TS-950 and achieving IF AGC control on the TS-870 by using DSP for the first time for amateur wireless devices.
  • Page 4 The opinion of many of our fans that “even for long periods of time they never get tired of listening” is due to the characteristics of Kenwood’s AGC. The TS-990 goes a long way in helping further refine the Kenwood tone by innovating not only the AGC control algorithm on the DSP but also the analogue AGC unit as well.

  • Page 5: Cooling System

    Built-in automatic antenna tuner The built-in automatic antenna tuner is a preset type that covers amateur band frequencies ranging from 160m~6m, and can be switched in on receive too. The tuner is capable of rapid QSY based on instantaneous band change, using a relay system known for high-speed operations.

  • Page 6: Sub Band Display

    Sub band display The 3.5” TFT sub band display is located above the main dial, which not only reduces eye movement in reading the frequency, but also allows you to monitor the target signal itself by displaying the demodulated audio spectrum. In addition, filter effects can be displayed on the easy-to-see sub band display, allowing for intuitive operation.
  • Page 7 PC. Control the memory channel, settings, and functions using your PC. Using the ARHP-990 software (radio host software), the local PC can relay control data between the local TS-990S and the remote (operator) PC. Download the free software from the Kenwood website. ARCP-990 ARHP-990...

  • Page 8: Front/Rear Panel

    Front/Rear Panel Rear Panel ③ ② ① ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑱ ⑰ ④ ⑤ ⑥ ⑦ ⑧ ⑮ ⑯ ⑲ ⑳ ㉑ ① Antenna Connector x 4 ⑪ AC Power Supply Connector (3 Pin) ② RX IN Connector (RCA): Receive Only Antenna Termina ⑫...

  • Page 9: Quality Control

    Dimensions 3. QUALITY CONTROL ISO 9001 Quality Management for Manufacturing The TS-590S is manufactured in Kenwood’s Japan factory which has been assessed and registered as ISO9001 compliant. ISO9001 is the international standard for Quality Management Systems.

  • Page 10: Optional Accessories

    SP-990 (NEW) External speaker The SP-990 is designed to have the Kenwood-tone and the best matching with consideration for the built in speaker of the TS-990S. Thanks to equip High/Low cut filter independently, the SP-990 can be setting to an appropriate sound character as the situation demands.

  • Page 11: Supplied Accessories

    AC Power cable (include both EU/UK plug) Users Manual Warranty card Fuse (4A) Pamphlet 7pin DIN plug 13pin DIN plug 6. SPECIFICATION 6-1.TS-990SE General Frequency range 160m band 1.81 ~ 2.0 MHz (Transmitter) 80m band 3.5 ~ 3.8 MHz 40m band 7.0 ~ 7.2 MHz...
  • Page 12 Transmitter Output power CW/SSB/FSK/PSK/FM (AM) 200 W (50 W) Modulation SSB:Balanced, AM:Low Power, FM:Reactance Maximum frequency deviation (FM) wide:Less than ±5 kHz, narrow:Less than ±2.5 kHz Spurious emissions HF (Harmonics) : Less than -60 dB HF (others) : Less than -50 dB 50 MHz: Less than -66 dB Carrier suppression Less than -60 dB...
  • Page 13 Notch filter attenuation More than 60 dB (Auto), More than 70 dB (Manual) Beat cancel attenuation More than 40 dB Audio output More than 1.5 (8Ω) Audio output impedance 8 Ω These specifications are guaranteed for Amateur Bands only. 60m band: UK only *1 MAIN BAND: Spec.
