Hewes 16 Redfisher Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

M o d e l Y e a r 2 0 1 4
H EWES 1 6 RED F IS H ER
O
w

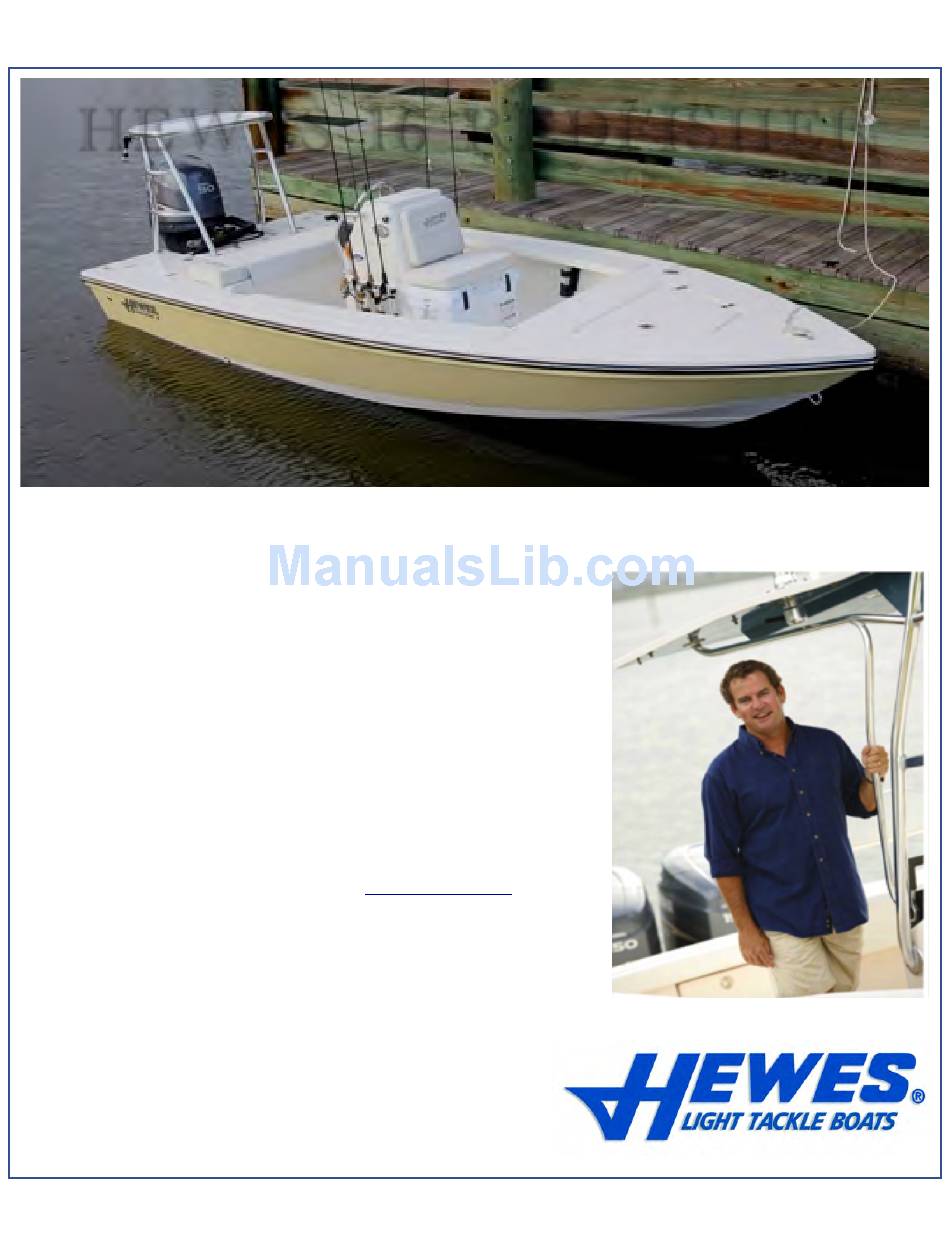

Dear New Boat Owner,
Welcome to the Hewes Family!
Thank you for choosing a Hewes boat to transport you to
your angling dreams. We believe the Hewes 16 Redfisher is the
best backcountry boat on the market, and we're sure that you'll
be completely satisfied with the unmatched performance, quality
and fishability of your new boat.
We value your input, not just at the time of the sale, but
throughout the entire boat ownership period, and we've taken
steps to allow you to share that information. Over the next year or
so, you will receive at least two questionnaires to fill out and
return.
Be sure to visit our website
information on company events like our Owner's Tournaments
and Corporate Calendar. You'll find a wealth of information on our
Forum, where you can ask questions, get answers and join other
Hewes owners to discuss all applications of your boat. We're
proud to have you as a member of the Hewes family!
Tight lines and screaming drags!
D. Scott Deal
M a v e r i c k B o a t C o m p a n y , I n c .
F l o r i d a 3 4 9 4 6 • ( 7 7 2 ) - 4 6 5 - 0 6 3 1 o r ( 8 8 8 ) - s h a l l o w • F a x : ( 7 7 2 ) 4 8 9 - 2 1 6 8
n
e
r
www.hewes.com
'
s
M
to find
• 3 2 0 7 I n d u s t r i a l 2 9 t h S t . • F o r t P i e r c e ,
a
n
u
1
a
l

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hewes 16 Redfisher and is the answer not in the manual?

Questions and answers

Related Manuals for Hewes Hewes 16 Redfisher

Summary of Contents for Hewes Hewes 16 Redfisher

  • Page 1 Welcome to the Hewes Family! Thank you for choosing a Hewes boat to transport you to your angling dreams. We believe the Hewes 16 Redfisher is the best backcountry boat on the market, and we’re sure that you’ll be completely satisfied with the unmatched performance, quality and fishability of your new boat.

  • Page 2: Table Of Contents

    M o d e l Y e a r 2 0 1 4 TA BLE O F C O NTENTS Maintenance and Cleaning............3 16 REDFISHER SPECIFICATIONS Engine Stop Switch..............4 L.O.A...............16’ 05” Fuel / Water Separators...............5 Garboard Drain Plug..............5 BEAM..............7’02” Gauges..................6 DRAFT..............10”...

  • Page 3: Maintenance And Cleaning

    M o d e l Y e a r 2 0 1 4 M AI NT EN A N C E AN D CL EANI NG Maintenance Hewes Boats advises owners that maintenance and repairs should be performed at an authorized Hewes dealer. The following information is general in nature and should not be considered a repair manual or guidelines set forth by Maverick Boat Company.

  • Page 4: Engine Stop Switch

    M o d e l Y e a r 2 0 1 4 ENG INE BREA K-IN Engine Break-In Period New engines require a period of break-in to allow the surfaces of the moving parts to mate evenly. Different engines require different break-in periods and methods. For instructions on break in methods, refer to your Yamaha Engine Owner’s Manual for the correct break-in procedures and times for your model engines...

  • Page 5: Fuel / Water Separators

    M o d e l Y e a r 2 0 1 4 F U EL - WA TER S EP A RA TO R & D RA I N Garboard Drain Plug The garboard drain plug is the small metal plug located at the lowest point on the hull, at the bottom of the transom right above the keel.

  • Page 6: Gauges

    M o d e l Y e a r 2 0 1 4 S WITC H A N D IN S TRUM EN T Switch Panel The dual activation switches are set in a standard grid. These switches can be flipped either up or down to control different accessories.

  • Page 7: Boat Layout

    M o d e l Y e a r 2 0 1 4 BOAT LA YO UT Hewes 16 Redfisher Your Redfisher is designed to create the maximum amount of storage capacity without affecting fishing ability. Livewells, gasketed and guttered storage compartments and lockers are built to protect your gear from the elements.

  • Page 8: Backing Plate Locations

    M o d e l Y e a r 2 0 1 4 BA C KI NG P LA T ES Backing Plates The diagram below shows all the screw-retention backing plates originally placed in the deck of the 16 Redfisher during the construction process.

  • Page 9: Trolling Motor/Wiring System

    Trolling Motor Wiring System Your Hewes 16 Redfisher comes standard with a 24V trolling motor wiring system. A trolling motor mounting plate was built into the bow of your Hewes during the manufacturing process. To attach a trolling motor, please go to your nearest Hewes dealer.

  • Page 10: Ball Valve Operation

    M o d e l Y e a r 2 0 1 4 BA LL V A LV E OP ER ATI ON Ball Valves Ball valves can be used to serve several purposes. They allow seawater to enter the boat, in the case of livewells, and they also act as a safeguard to stop water from entering in case of part failure, and function as an emergency shutoff.

  • Page 11: Bilge System

    M o d e l Y e a r 2 0 1 4 BIL GE Bilge The bilge of your 16 Redfisher should always be checked after launch. A small amount of water in the bilge is normal for this area of the boat.

  • Page 12: Prop

    M o d e l Y e a r 2 0 1 4 P RO P S Props Prop selection on your Redfisher is determined by your local Hewes dealer but based on recommendations made by Yamaha Marine to give your boat the maximum overall performance. Different prop designs may improve performance or can be tailored to enhance specifics of boat and motor performance.

  • Page 13: Fuel System

    M o d e l Y e a r 2 0 1 4 F U EL S Y S TEM FUEL SYSTEM Your Redfisher comes with a 25-gallon aluminum fuel cell stationed in the bow storage area. The fuel fill receptacle is on the port gunwale forward of the console.

  • Page 14: Self Bailing Cockpit

    M o d e l Y e a r 2 0 1 4 S ELF - B A ILIN G C O C KP IT & LIV EWELL Self Bailing Cockpit The cockpit on your Redfisher is designed to be self-bailing, so that all water that comes into the cockpit can immediately flush out of the boat.

  • Page 15: Wiring System/Breakers And Fuses

    M o d e l Y e a r 2 0 1 4 WIRIN G Wiring A wiring diagram of your Hewes has been included to help troubleshoot any electrical problems or add additional electronics or electrical connections. We recommend you use a trained marine electrician for all electrical issues. All the grounds lead to the ground terminal and then to the battery via a large diameter black wire.
  • Page 16 e f f e c t i v e d a t e 2 0 1 3! WIRIN G...

  • Page 17: Battery Switch/Breaker Panel

    e f f e c t i v e d a t e 2 0 1 3! BA T TE R Y S WIT C H /M AI N BR EAK ER Battery Switch and Breaker Panel The battery switch panel comes as standard equipment on the 16 Redfisher. Power from the battery to the battery switch is protected with a 30 amp inline fuse.

  • Page 18: Command Link Gauges

    e f f e c t i v e d a t e 2 0 1 3! O P TI O N A L F EA TU RES Command Link Gauges Command Link gauges are an option for the 16 Redfisher and are an upgrade from the standard digital gauges. Command Link gauges allow access to more information.

  • Page 19: Optional Trim Tabs

    e f f e c t i v e d a t e 2 0 1 3! TRIM TA BS Trim Tabs Trim tabs are an option on the Hewes Redfisher. We use 9 X 12-inch Lenco electric trim tabs which can enhance the boat’s performance.
  • Page 20 e f f e c t i v e d a t e 2 0 1 3! P O WER P O LES Power Poles Power Poles come as an option with the Hewes Redfisher and give the boat operator the ability to quickly and quietly stop the boat while in shallow water.

  • Page 21: Warranty

    e f f e c t i v e d a t e 2 0 1 3! Warranty Your relationship with your local Hewes dealer should never end with the delivery of your new boat. Your local Hewes dealership is where you will take your boat for service and repair, as well as to address any warranty issues.
