- Page 1 HD Digital Box Model: GS103TZH FREE TV UST A IFFY YOUR USER GUIDE...
- Page 2 Welcome Thank you for choosing this Goodmans freesat HD Digital Box. Not only can it receive over 140 subscription free channels, but if you have a broadband service with a minimum speed of 1Mb you can access IP TV services, which you can watch back at a time to suit you.
-
Page 3: Table Of Contents
What’s in the box? Remote control Your HD digital box 2 x AAA batteries HDMI cable Quick start guide Mains adapter Contents Your HD digital box....4 System information..18 Your remote control.... 5 Non-freesat channels..19 Connecting up..... 6 Help and advice.... -
Page 4: Your Hd Digital Box

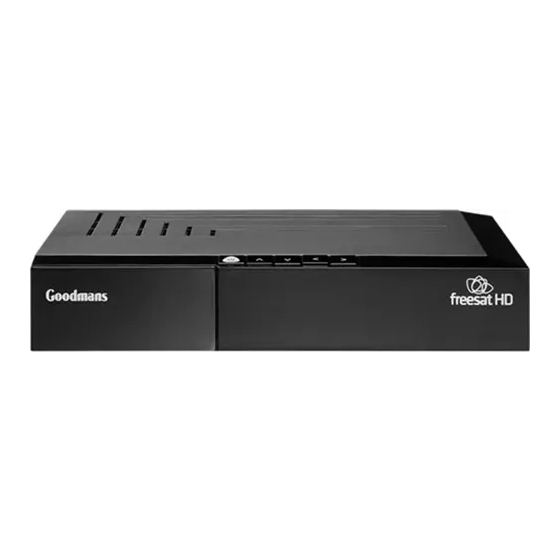

Your HD digital box Front view UP & DOWN STANDBY LEFT & RIGHT Channel up or down. Power On / Standby. Volume up or down. Page up or down in EPG. Rear view Connection to a ETHERNET network with broadband TV SCART Standard access (for IP TV Services... -
Page 5: Your Remote Control
Your remote control Power On/Standby. STANDBY Exits all menus and HOME returns to live TV. Enter values and NUMBER PAD select the channel number directly by entering its number. Volume up and Channel up and VOL + VOL - CH + Volume down. -
Page 6: Connecting Up
Connecting up Getting connected Connecting to a TV RG6 coaxial Cable with ‘F’ type connector HDMI Cable Connect a RG6 co-axial cable fitted with ‘F’ a type connector from your satellite dish to the ‘SAT IN’ socket on the back panel of your digital box. Connect the HDMI cable that came with your digital box between the ‘HDMI’... -
Page 7: Get Started
Getting started Put batteries in the remote control Open the battery cover of the remote control and put two AAA size batteries so that the ‘+’ and ‘-’ marks on the batteries match the ‘+’ and ‘-’ marks inside the remote control. -
Page 8: Daily Use
Daily use We have divided this book into separate Changing the channel sections, so that you can find the information You can also select the channel you want to you are looking for easier. This section covers watch by using the [CH+] and [CH-] buttons on the day to day functions that you will use most the remote control. - Page 9 Daily use Changing the volume Subtitles You can change the volume using the [VOL+] Press the [SUB] button to toggle the subtitles and [VOL-] buttons on the remote control. You on and off. can turn off the volume pressing the button.
-
Page 10: The Guide Window
The guide window Navigation Guide icons You can open the guide window by pressing the This programme has audio AD))) [GUIDE] button on the remote control. The guide description. shows you all of the programmes and channels This programme is broadcast available for the next 8 days. - Page 11 The guide window Setting a reminder Reminder clash You can use the reminder function to let you If you try to set a reminder for more than two know when a programme is going to start. programmes at the same time, you will see a warning screen with a list of options for you to choose.
-
Page 12: The Channel List
The channel List You can open the channel list window by only displayed when non-freesat channels are pressing the [CH LIST] button on the remote selected). control or from the main menu. Channel list icons Opens the Guide window. GUIDE This will hide the channel from the Guide window. - Page 13 The channel List Hiding a channel Deleting a channel Use the [ ] and [ ] buttons to select the Use the [ ] and [ ] buttons to select a channel that you want to hide. Press the [RED] channel that you want to delete.
-
Page 14: The Settings Menu
The settings menu Display and audio To open the settings menu press the [MENU] button on the remote control and then select Settings Tue 29 Jun 10:53am ‘Settings’. Display & Audio Network Language Parental Other Press the [OK] button to confirm. 1080i HDMI Output HDMI Audio... - Page 15 The settings menu press the [ ] or [ ] buttons to adjust the lip System’. Your DNS address will have been sync. assigned to you by your internet provider. MAC Address - The MAC address is a unique Network number that is embedded into your freesat digital box that allows you to connect to online Settings...
- Page 16 The settings menu image. You can turn on and off audio description here. Allow Parental Settings Changes - This setting chooses if you want to allow access to the DON’T FORGET! You can toggle audio parental menu without entering your system description on and off by pressing the [AD] PIN.
- Page 17 The settings menu First Time Installation - This setting allows you Hide Adult Genre - This setting chooses if you to perform a first time installation. Follow the want to allow access to channels in the Adult instructions on-screen to setup your digital box. genre category.
-
Page 18: System Information
System information To open the system information window press the [MENU] button on the remote control and then select ‘System Information’. Main Menu Tue 29 Jun 10:53am Channel List 8:00pm 8:30pm 9:00pm Weds 8 Oct Settings System Information Select Exit Menu EXIT Press the [OK] button to confirm. -
Page 19: Non-Freesat Channels
Non-freesat channels To view the non-freesat channels press the You can manually tune in any free to air channels on your digital box, if you have the frequency in [CH LIST] button, and press the [ ] or ] buttons to highlight Manual Channels. MHz, the symbol rate and the LNB polarisation. -
Page 20: Help And Advice
Help and advice Frequently asked questions What you can do In which direction should my satellite dish be Your satellite dish should be fitted on a south facing positioned? wall in the direction of 28.2 ° east of south. Can I connect more than one digital box to Yes you can. - Page 21 Help and advice Frequently asked questions What you can do Can I change the audio language for the Yes. Some channels broadcast other audio programme I am watching? languages. Press the [AUDIO] button when you are watching a programme to see if other languages are available.
- Page 22 You may find the information you are phone our call centre on: looking for on our web site. 0844 412 2541 www.goodmans.co.uk Calls are charged at 5p per minute when called from a BT land line. Call charges may vary if or on the freesat website using other networks.
-
Page 23: Safety
Safety General Safety Don’t obstruct the ventilation vents on the This equipment has been designed and equipment, for example with curtains or soft manufactured to meet European safety furnishings. standards, but like any electrical equipment, care must be taken if you are to obtain the best Overheating will cause damage and shorten the results and safety is to be assured. -
Page 24: Technical Specification
Technical Specifi cation General Information: Model number GS103TZH Tuner type Single DVB S2 HDMI output options 576p, 720p, 1080i, 1080p Dimensions DxLxH 165 x 125 x 30mm Weight 500g Power Information: Input voltage DC 12V 1.3A Power consumption Max 24W... -
Page 25: Guarantee
Guarantee The digital box is guaranteed for twelve months from the date of original purchase. If any defect due to faulty materials or workmanship, contact the Goodmans Helpline. Have your receipt of purchase available for reference. The guarantee is subject to the following provisions: •... - Page 26 Follow freesat on www.twitter.com/freesat_TV Like freesat on www.facebook.com/freesat For help with installation or using your new freesat HD box, call us on 0845 313 0051 (local call rate) or visit freesat.co.uk For support: Goodmans helpline 0844 412 2541 email support@goodmans.co.uk visit www.goodmans.co.uk/support/...
