Talking set-top box quick-start guide
Model. GDB20TTS
C
M
Y
CM
MY
CY
In the box
CMY
K

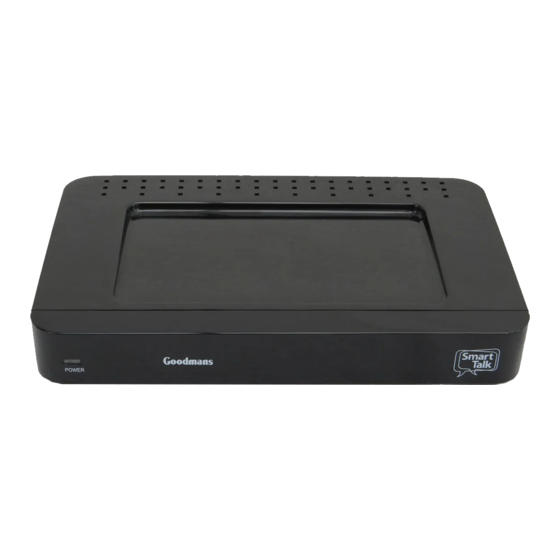

Set-top box
1
2 Remote control
Two batteries
3
4 RF cable
Quick-start guide
5
User guide
6
Scart-to-scart cable
7
AC/DC adapter
8
1
STB TV
AV
1 2 3
4
4 5 6
3
2 7 8 9
0
Help
+ +
Vol Ch
- -
Guide Info
OK

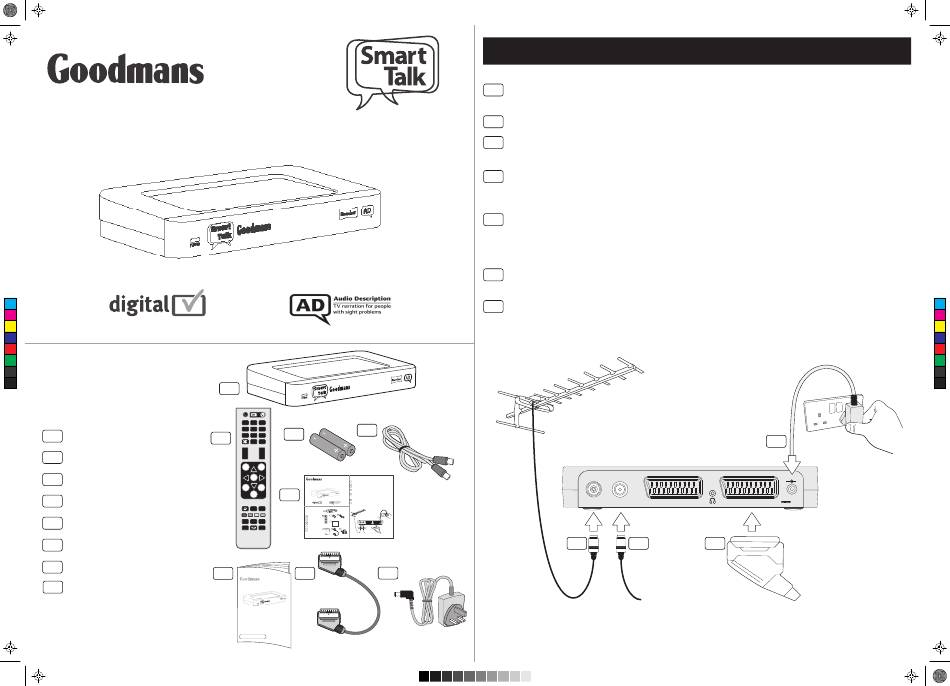

How to connect the set-top box to a TV set
1 Put your set-top box on a firm, level surface with at least a 10-centimetre gap around all the sides and
close to the TV you are going to connect it to.
Talking set-top box quick-start guide
2 Turn off the mains socket your TV is plugged into or pull the plug out of the socket.
Menu
Exit Model. GDB20TTS 3 Take the aerial lead out of the TV and connect it to the 'aerial' connector on the back panel of the
set-top box.
5 4 Connect the RF cable (we have provided one) between the 'RF out' socket on the set-top box and the
aerial socket on the TV. This cable will allow you to watch TV programmes as you did before but with
the set-top box connected.
Back
5 Connect a cable which has a 'Scart' connector at each end (we have provided one) between the 'TV'
socket on the back panel of the set-top box and the 'Scart' socket on your TV. If there is more than one
'Scart' socket on the TV, look in your TV instruction manual to check which one you should use.The
set-top box will not work if you do not have the scart-to-scart cable connected.
6 Plug the AC/DC adapter into a mains socket and then plug the connector on the adapter into the
'5V DC in' connector on the back panel of the set-top box.
7 Plug the TV mains lead back into the mains socket.
TV/
Fav
radio In the box
1
3 4
1 Set-top box 2 STB AV TV
7 5 4 2 1 8 3 6 9
2 Remote control + 0 Vol + Help Ch 6
Guide - - Info
AD Sub Txt 3 Two batteries OK Menu Exit
Back 5V DC IN
4 RF cable Sub radio TV/ AD Txt Fav 5 - +
? TF
5 Quick-start guide AERIAL RF OUT VCR/DVD TV 2.0A
User guide
? TF 6
Scart-to-scart cable 3 4 5
7 6 7 8
Smart Talk Set Top Box
8 AC/DC adapter Instruction Manual
IMPORTANT: Please read all instructions
carefully before use and keep for future reference.
8
6 7
Smart Talk Set Top Box
Instruction Manual
IMPORTANT: Please read all instructions
carefully before use and keep for future reference.
1 How to connect the set-top box to a TV
1 Put your set-top box on a firm, level surface with at least a 10-centimetre gap around all the sides and
close to the TV you are going to connect it to.
2
Turn off the mains socket your TV is plugged into or pull the plug out of the socket.
3
Take the aerial lead out of the TV and connect it to the 'aerial' connector on the back panel of the
set-top box.
4 Connect the RF cable (we have provided one) between the 'RF out' socket on the set-top box and the
aerial socket on the TV. This cable will allow you to watch TV programmes as you did before but with
the set-top box connected.
5
Connect a cable which has a 'Scart' connector at each end (we have provided one) between the 'TV'
socket on the back panel of the set-top box and the 'Scart' socket on your TV. If there is more than one
'Scart' socket on the TV, look in your TV instruction manual to check which one you should use.The
set-top box will not work if you do not have the scart-to-scart cable connected.
6 Plug the AC/DC adapter into a mains socket and then plug the connector on the adapter into the
'5V DC in' connector on the back panel of the set-top box.
7
Plug the TV mains lead back into the mains socket.
AERIAL RF OUT VCR/DVD
3 4
6
5V DC IN
- +
2.0A
TV
5
