Equip 128552 Universal User Manual

Usb 2.0 all-in-one card reader
Hide thumbs

Advertisement

Quick Links

Download this manual
USB 2.0 ALL-IN-ONE
Card Reader
Universal | 128552

Advertisement

loading
Need help?

Need help?

Do you have a question about the 128552 Universal and is the answer not in the manual?

Questions and answers

Related Manuals for Equip 128552 Universal

Summary of Contents for Equip 128552 Universal

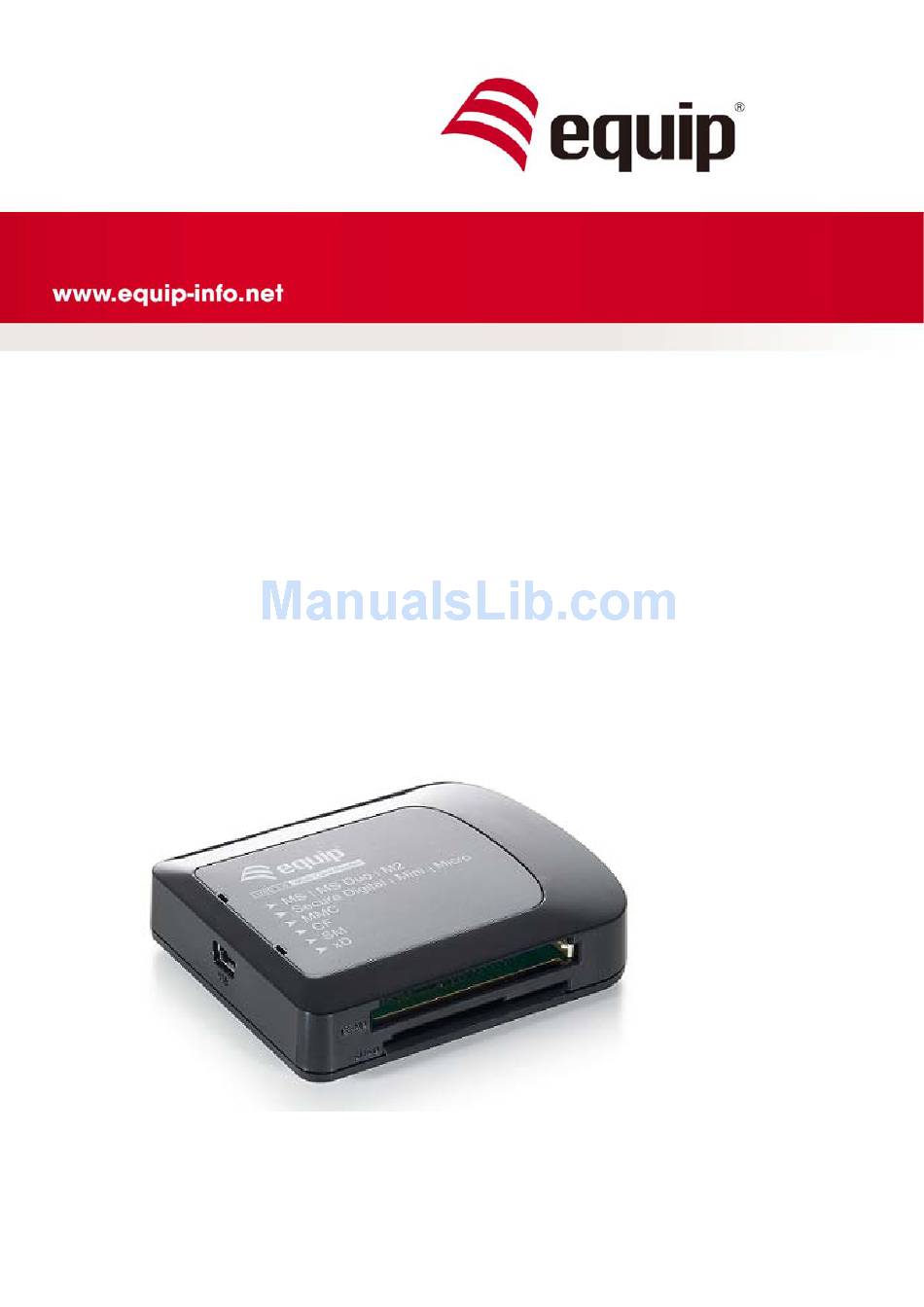

  • Page 1 USB 2.0 ALL-IN-ONE Card Reader Universal | 128552...

  • Page 2: Table Of Contents

    NDEX ........1 EATURES ......1 YSTEM EQUIREMENTS ........ 1 ACKAGE ONTENTS ........ 2 EMORY ...... 5 EDIA ROGRAM NSTALLATION ......11 RODUCT PECIFICATIONS...

  • Page 3: Features

    User Manual 1. F EATURES Compliant with USB specification 1.1 & 2.0  Directly access small from factor flash card; such as Mini SD, RS-MMC,  Micro-SD, xD, MS Duo, M2 etc. Hot swappable and Plug & Play capability.  Slots can be used at the same time for data exchange within Micro SD and ...

  • Page 4: Memory Card Slot

    User Manual 4. M EMORY The card reader provides five slots for different types of media memory cards application. You must load each media card in the correct slot. Do not attempt to insert the card in the reversed direction by force. Insert in the wrong slot or wrong direction may damage your memory card and card slot.
  • Page 5 User Manual SD/MMC  This slot locates in upper left and label as “SD/miniSD/MMC/RS-MMC” which can accept Secure Digital card (SD), mini SD, Multi media card or RS MMC etc. (The mini SD card should be loading from the middle of the slot’s inlet.) MS/MS Duo ...
  • Page 6 User Manual LED Indicator Description  The card reader has the LED status indicator for power and data access. Power On: The red LED indicator will light on when reader is linked by USB port. Data Access: The green LED indicator will flash while data transmitting. Note: Please do not remove any of the inserted media memory card(s) while data is being transmitting between the PC and the card reader or when the access green indicator is flashing.

  • Page 7: Media Icon Program Installation

    User Manual 5. M EDIA ROGRAM NSTALLATION After you install the card reader to your PC, then you need to setup the icon program as follow steps. Windows XP A. Close all of your exist executing file. B. Insert program disc into the CD-ROM drive. C.
  • Page 8 User Manual E. Click “Finish” to complete the program. F. Windows will detect card reader and display five media icons in “My Computer”, now you can insert your memory card for application.
  • Page 9 User Manual Windows VISTA A. Close all of your exist executing file. B. Insert program disc into the CD-ROM drive. C. Double click “Setup” to install. D. Click “Next” to begin software installing.
  • Page 10 User Manual E. Click “Finish” to complete the program. F. Windows will detect card reader and display five media icons in “My Computer”, now you can insert your memory card for application.
  • Page 11 User Manual Windows 7 A. Close all of your exist executing file. B. Insert program disc into the CD-ROM drive. C. Double click “Setup” to install. D. Click “Next” to begin software installing.
  • Page 12 User Manual E. Click “Finish” to complete the program. F. Windows will detect card reader and display five media icons in “My Computer”, now you can insert your memory card for application. Note: 1. It will display the removable disk as you insert the card (s). 2.

  • Page 13: Product Specifications

    User Manual 6. P RODUCT PECIFICATIONS SPECIFICATIONS USB specification Rev. 2.0 Standards Compliant USB mass storage class drive CF, SD/MMC, SM/xD, Micro SD/M2, MS/MS Duo Five Memory Slots CF type I, CF type II, CF UDMA, CF Ultra II, Microdrive, Magicstor, xD, xD H type, xD M type, SD, SD Ultra II, Mini SD, Micro SD, MMC, Media Cards Support MMC-I, MMC-II, MMC 4.0, MMC Dual voltage,...
