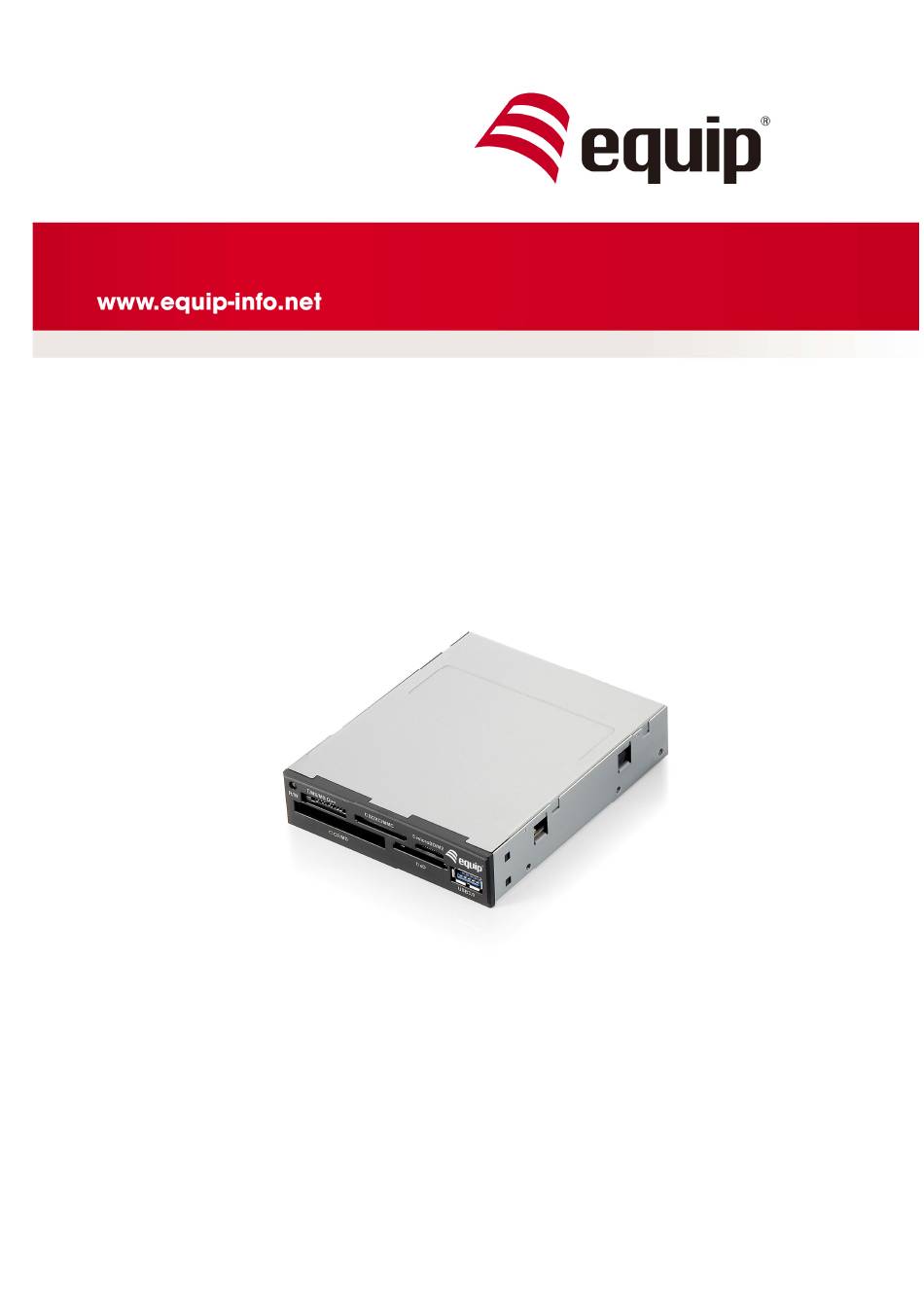

- Page 1 USB 3.0 INTERNAL CARD READER 3.5” 128580 User Manual...
- Page 2 USB 3.0 interface provides a reliable and fast connection for PCs, consumer electronics and communications devices. The equip® USB 3.0 Internal Card Reader 3.5” is a powerful device to expand the interfaces of your PC. The easy-to-mount mechanical design with packed screw set allows you an easy installation.
- Page 3 Handle the product by the plastic stand. Do not touch any electronic components. Turn off your computer and disconnect the power cord before installing the product. Please follow the steps below to install the equip® USB 3.0 Internal Card Reader 3.5”.
- Page 4 Insert the equip® USB 3.0 Internal Card Reader 3.5” with cables into the drive bay. Mount the Internal Card Reader firmly in both tracks of the drive bay with the packed screw set. Connect the USB cables between the equip® USB 3.0 Internal Card Reader 3.5” and the...
- Page 5 Note: If your computer’s USB Ports are outside the chassis, please remove the panel as below first. Plug back the power cord. Power on, then start to install the driver of the USB 3.0 Internal Card Reader 3.5”. 5. Utility Installation After you installed the Card Reader to your PC, you need to install the Icon Display utility.
- Page 6 (4) Click “OK” to complete the installation. 6. Interface Caution: The card reader provides 5 slots for different types of memory cards application. Each memory card must be inserted into the correct slot. Do not attempt to insert the cards in reverse direction with force.
- Page 7 Slot Definition MS Select, MS ROM, MS PRO, MS Magic Gate, MS PRO MS/MS Duo Magic Gate, MS-Duo Magic Gate, MS PRO Duo Secure Digital Card series: SD, SD 3.0 UHS-I, SDXC, SDHC, SD Ultra II, mini SD/SDHC, Micro-SD/SDHC MMC card series: MMC-I/-II, MMC 4.0, MMC Dual Voltage, SDXC/MMC MMC Mobile, MMC 4.0 Dual Voltage, RS-MMC, RS-MMC Dual Voltage, RS-MMC Mobile, RS-MMC 4.0, RS-MMC 4.0 Dual...
- Page 8 8. Maximum Capacity of Memory Card Supported CF: 64GB MS Pro Duo: 8GB MMC plus: 4GB SDHC: 16GB SDXC: 2TB Micro SDHC: 16GB M2: 8GB...
