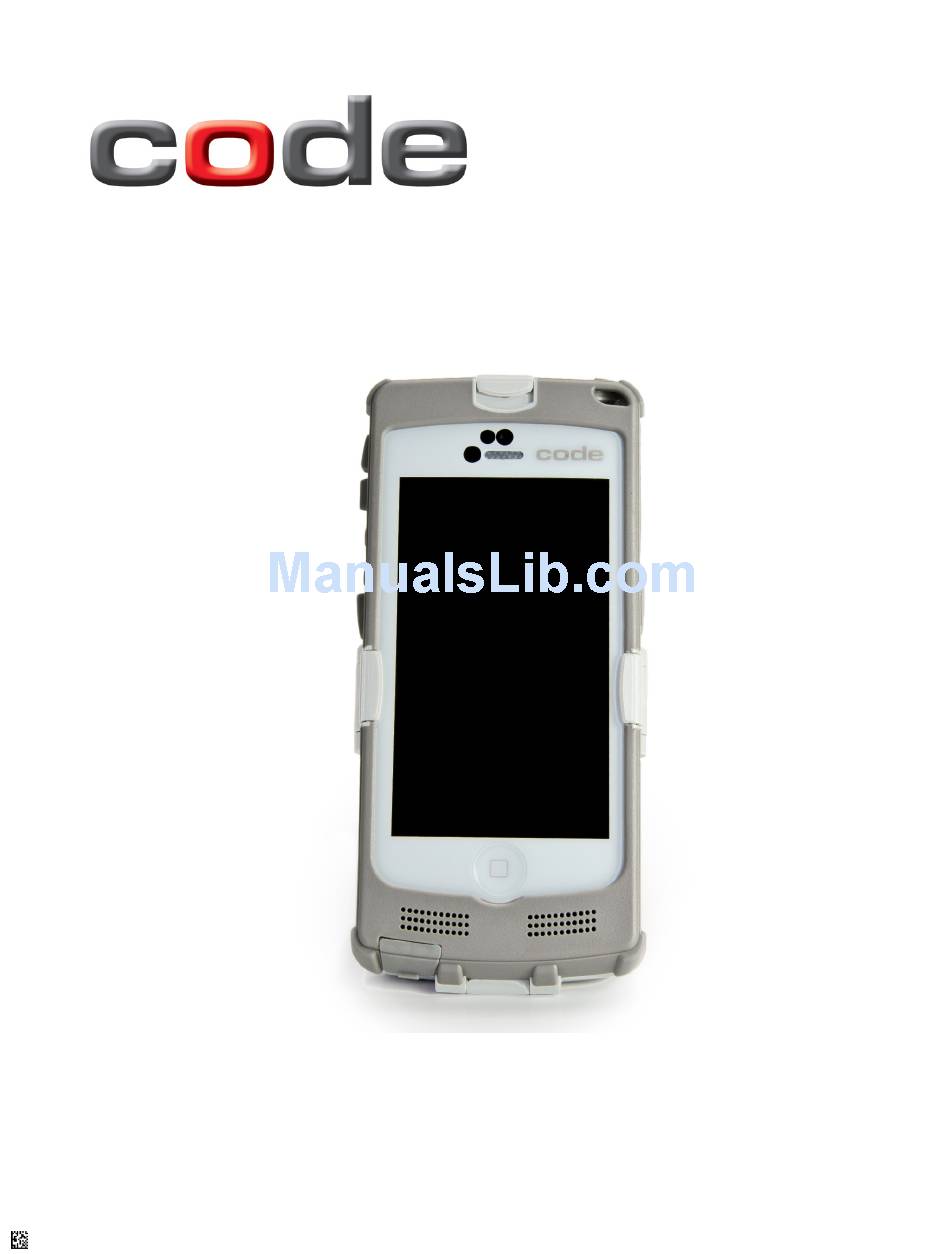

- Page 1 User Manual Code Reader™ 4405 Compatible with Apple® iPhone® 5 and 5s Manual Version 01 Release Date: February 2014 D018433_01_CR4405_User_Manual Apple and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries. D018433_01_CR4405_User_Manual...
-
Page 2: Statement Of Agency Compliance
Statement of Agency Compliance The Code Reader™ 4405 (CR4405) has been tested for compliance with FCC regulations and was found to be compliant with all applicable FCC Rules and Regulations. IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, this device must not be co-located or operate in conjunction with any other antenna or transmitter. - Page 3 NO WARRANTY. This technical documentation is provided AS-IS. Further, the documentation does not represent a commitment on the part of Code Corporation. Code Corporation does not warrant that it is accurate, complete or error free. Any use of the technical documentation is at the risk of the user.
-
Page 4: Table Of Contents
Table of Contents 1.0 - Unpacking.............................. 1 2.0 - Sled Battery Installation and Removal ....................1 3.0 - Charging the CR4405 Sled ........................1 3.1 - Docking the Sled in the Charging Station ....................2 3.2 - USB Direct Connection to Sled ....................... 3 4.0 - Charging a Spare Sled Battery ........................ -
Page 5: Unpacking
1.0 - Unpacking Remove the CR4405 from its packing and inspect it for damage. If the reader was damaged during shipping, please contact Code. Based on the kit purchased, a combination of the following components will be included with the CR4405. Note: Kit does NOT include an iPhone. -
Page 6: Docking The Sled In The Charging Station
3.1 - Docking the Sled in the Charging Station 1. Plug the barrel side of the AC adapter or USB charge cable into the power jack of the charging station (Figure 4). 2. Plug the AC adapter into the wall outlet (Figure 5) or USB cable into a computer’s USB port (Figure 6). Figure 4 Figure 5 Figure 6... -
Page 7: Usb Direct Connection To Sled
During charging, the LED located at the top right corner of the sled (Figure 9) will light up according to Figure 10. NOTE: The USB cable provided was custom developed to reduce charge time. Using a non-Code cable may significantly increase the charge time. -
Page 8: Battery Charge Times
6.0 - Battery Charge Times Depending on the configuration of power supply, CR4405 sled, iPhone, and spare battery docked in the Charging Station, charge time can be as little as 2-4 hours. 7.0 - Powering On the iPhone and Sled Reader With the phone inserted in the sled, if the phone is off, press the button on the top of the sled to turn it on (Figure 15). -
Page 9: Sled Battery Status Indication
8.0 - Sled Battery Status Indication When the sled is disconnected from the Charging Station or USB cable, pressing the scan button once will cause the LED status indicator located at the top right corner of the sled (Figure 18) to light up according to Figure 19. Sled Battery State While Not Charging Sled LED Behavior 31 –... -
Page 10: Symbologies Defaulted On
11.0 - Symbologies Defaulted Off Code barcode readers can read a number of symbologies that are not enabled by default. For a complete list (and the configuration barcodes to enable those symbologies), please reference the CR4405 Configuration Guide located on our website at www.codecorp.com/files.php. -
Page 11: Cr4405 Communication Modes
14.0 - CR4405 Communication Modes The CR4405 has four communication modes, with an associated configuration barcode by the same name in the CR44X5 Configuration Guide. Communication Mode Description iPhone Keyboard Communication Mode (default) This mode allows you to scan data into an iPhone 5/5s application like Notes or a spreadsheet, as if you were manually entering in data (e.g. -
Page 12: Software Development Kit (Sdk)
CortexMobile is an iPhone 5/5s software application developed by Code to demonstrate the CR4405’s capabilities. This software app can serve as a reference for programmers who use Code’s SDK to build other apps which can be downloaded to the iPhone from the App Store . - Page 13 The Advanced button directs you to the Terminal screen where commands can be sent directly to the sled firmware and responses can be received via the associated Response window (Figure 27). This is typically beneficial to advanced technical users. Please contact Code for additional information. The Help screen describes the various features of CortexMobile (Figure 28). Figure 27...
-
Page 14: Good Read Indicators
18.0 - Good Read Indicators Along with displaying the barcode data and the sled LED flashing green, CortexMobile is programmed to have the phone beep once when a barcode is successfully read. An app developer can choose a variety of audible feedback indicators as dictated by the capability of the iPhone. -
Page 15: Cr4405 Dimensions
21.0 - CR4405 Dimensions (in inches) 22.0 - Charging Station Dimensions (in inches) D018433_01_CR4405_User_Manual... -
Page 16: Sled Reader Id And Firmware Version
2. Ensure iPhone Keyboard Communication Mode is enabled. Find the Reader ID and Firmware Version configuration code in the Configuration Guide, and scan that code into Notes. You will see a text string indicating your firmware version and CR4405 ID number (see below). -
Page 17: Upgrading Cr4405 Firmware
To modify any default settings, download the CR4405 Configuration Guide at www.codecorp.com/files.php and scan the appropriate code. For user specific configurations, contact Application Engineering at Code appeng@codecorp.com. For all returns Code will issue an RMA number which must be placed on the packing slip when the reader is returned. Visit http://www.codecorp.com/codesupport.php for more information. - Page 18 Products must be shipped in the original or comparable packaging, with shipping and insurance charges prepaid. Only parts listed in the original RMA should be sent and will be accepted. Code will pay for return shipping and insurance of repaired or replacement products worldwide.
