- Page 1 USER MANUAL CR7020 MANUAL VERSION 1.0 RELEASE DATE: MARCH 2021 codecorp.com iPhone ® is a registered trademark of Apple Inc. Dragontrail™ is a trademark of Asahi Glass, Limited. D041879 CR7020 User Manual...
- Page 2 ® 8 and SE (2020), the CR7020 will keep your investment safe and clinicians on the go. The DragonTrail™ glass screen provides another layer of quality for the highest level of protection on the market. Easily swappable batteries keep your case running as long as you are. Don’t wait for your device to charge again—...
-
Page 3: Table Of Contents
Battery Charging and Best Practices ........................11 Maintenance and Troubleshooting ..................12 Approved Disinfectants ........................ 12 Routine Cleaning and Disinfection ....................12 Troubleshooting ........................... 12 Contact Code for Support ......................12 Warranty..........................13 Legal Disclaimer ........................13 Statement of Agency Compliance ..................14... -
Page 4: Case And Accessories
Product Kits Part Number Description iPhone 8/SE CR7020-PKX2U-8SE Code Reader Kit - CR7020 (iPhone 8/SE Case, Light Gray, Palm), Battery, Spare Battery, 3-ft. Straight USB Cable Code Reader Kit - CR7020 (iPhone 8/SE Case, Light Gray, Palm), Battery, CR7020-PKX2X-8SE Spare Battery... -
Page 5: Product Assembly

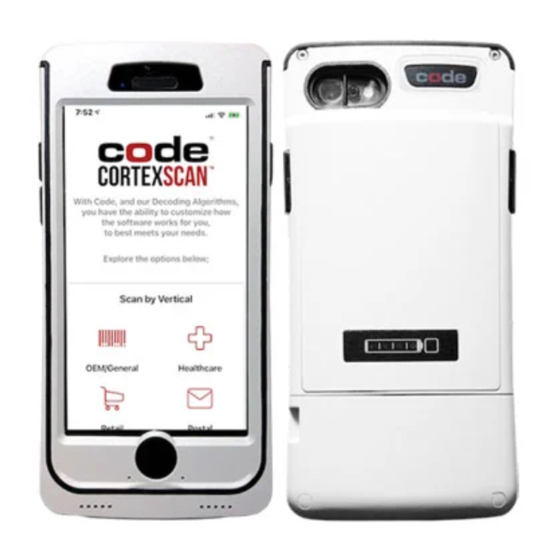

The CR7020 houses Apple’s iPhone 8/SE (2020) models. iPhone 8/SE top plate The CR7020 case will arrive with the top and bottom carriage connected. With a thumb on the right and left side of the speaker opening, push up approximately 5 millimeters to clear... - Page 6 Pull the top plate toward you, away from the bottom carriage. Do NOT try to slide it all the way up. Before inserting the iPhone, thoroughly clean the iPhone screen and both sides of the glass screen protector. Screen responsiveness will be hindered if the screens are dirty. Insert the iPhone into the top plate;...
- Page 7 Do NOT try to slide it down from the top. Your CR7020 case will come with two screws and a 1.3 mm hex key. For larger deployments, it is recommended to procure a specialized tool for quick assembly.
-
Page 8: Inserting/Removing Batteries
Inserting/Removing Batteries/Battery Blanks Only Code’s CRA-B718 batteries are compatible with the CR7020/CR7018 cases. Insert a B718 battery or B718B Battery Blank into the cavity; it will click into place. The fuel gauge LEDs will light up, indicating the battery’s state of charge. If the LEDs do not light up, fully charge the battery before using. -
Page 9: Charger Assembly And Mounting
Charger Assembly and Mounting The CR7020/CR7018 chargers are designed to charge the B718 batteries. Customers can purchase 5 or 10-bay chargers. Two 5-bay chargers are mechanically interlinked to create the 10-bay charger. 5 and 10-bay chargers use the same power supply (CRA-P31), but have different cables: the 5-bay charger has a single, linear cable where the 10-bay charger requires a two-way splitter cable (CRA-C70). - Page 10 10-Bay Charger Installation The 10-bay charging station will hold and charge 10 batteries from zero to full within five hours. The CRA-A175 charger kit will come with two 5-bay chargers, a splitter cable adapter and power supply. Interlink the two 5-bay chargers by sliding one into the other. The split cable adapter will have one longer end.
- Page 11 Inserting Batteries into the Charger The B718 batteries can only be inserted one direction. Ensure the metal contacts on the battery meet with the metal contacts within the charger. LED indicators and meaning: 1. Blinking – battery is charging 2. Solid – battery is fully charged 3.
-
Page 12: Battery Charging And Best Practices
The battery can also be charged within the CR7020 case via Code’s micro-USB cable (CRA-C34). The case will charge faster if the USB cable is plugged into Code’s USB wall adapter (CRA-P4). It will take approximately 3 hours to fully charge using this method. -
Page 13: Maintenance And Troubleshooting
The battery must charge up to 30 minutes before the fuel gauge will reestablish communication. Battery Best Practices To efficiently use the CR7020 case and battery, the iPhone should be kept at or near full charge. The B718 battery should be used for power draw and swapped when nearly depleted. -
Page 14: Warranty
Code Corporation does not assume any product liability arising out of or in connection with the application or use of any product or application described herein. -
Page 15: Statement Of Agency Compliance
Statement of Agency Compliance NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
