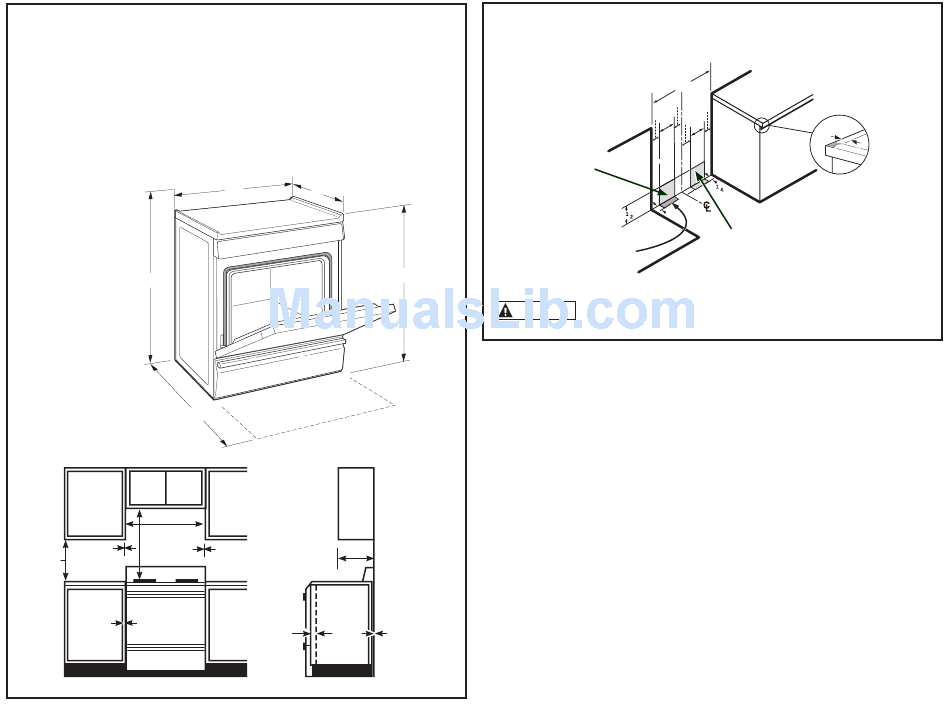

DIMENSIONS AND CLEARANCES

Provide adequate clearances between the
range and adjacent combustible surfaces. These
dimensions must be met for safe use of your
range.
Allow 30" (76.2 cm) minimum clearance between
burners and bottom of unprotected wood or
metal cabinet, or allow a 24" (61 cm) minimum
when bottom of wood or metal cabinet is
protected by no less than 1/4" (6.4 mm) thick
flame-retardant millboard covered with no less
than No. 28 MSG sheet metal (.015" [.38 mm]
*41 ⁄ "
1
2
*Height to backguard based on
Café style backguard kit installed.
Depth with door open:
46 1 ⁄
4
Minimum to
cabinets on
either side
of the range
30"
30"
6"
Minimum
Minimum
18"
clearance
to left wall
To cabinets
below cooktop
and at the 0"
range back
SH 1 of 2 31-10982 C2S985 08-14 GE
thick), .015" (.38 mm) thick stainless steel, .025"
(0.64 mm) aluminum or .020" (0.5 mm) copper.
Installation of a listed microwave oven or
cooking appliance over the cooktop shall
conform to the installation instructions packed
with that appliance.
For island installation, maintain 2-1/2" minimum
from cutout to back edge of countertop and
3" minimum from cutout to side edges of
countertop.
Depth with door closed
(includes door handle)
30"
29 ⁄ "
1
8
"
Maximum
depth for
cabinets above
countertops
6"
13"
Minimum
clearance to
right wall
Front edge
of the range
side panel
forward from
cabinet
1/4"
DIMENSIONS AND CLEARANCES (CONT.)
GAS PIPE AND ELECTRICAL OUTLET LOCATIONS
Recommended area
for through-the-Wall
connection of pipe stub
and shut-off valve.
Recommended area
for through-the-floor
connection of pipe
36 / " ± / "
1 1
stub and shut-off valve.
4 4
CAUTION
under appliance and behind appliance wall.
0"
To cabinets
below cooktop
and at the
range back
30"
3"
3"
3"
4"
9"
8"
2 " /
1
4
2"
7 " /
1
2
Recommended acceptable
electrical outlet area. Orient
the electrical receptacle so the
length is parallel to the floor.
To prevent drafts from affecting burner operation, seal all openings in floor
If the countertop has a
raised edge, shave the
raised edge to clear
the control panel as
shown below.
9/16"
