lifepro
is a registered trademark of lifecorp products
®
All Rights Reserved.
ATTACH YOUR RECEIPT HERE
Purchase Date ____________Serial Number (
Questions, problems, missing parts? Contact technical support department at
1-866-484-2066, 8:00 a.m. - 5 p.m., CST, Monday - Friday or www.@lifecorpproducts.com
Please have your model and serial number ready
REV1-052914

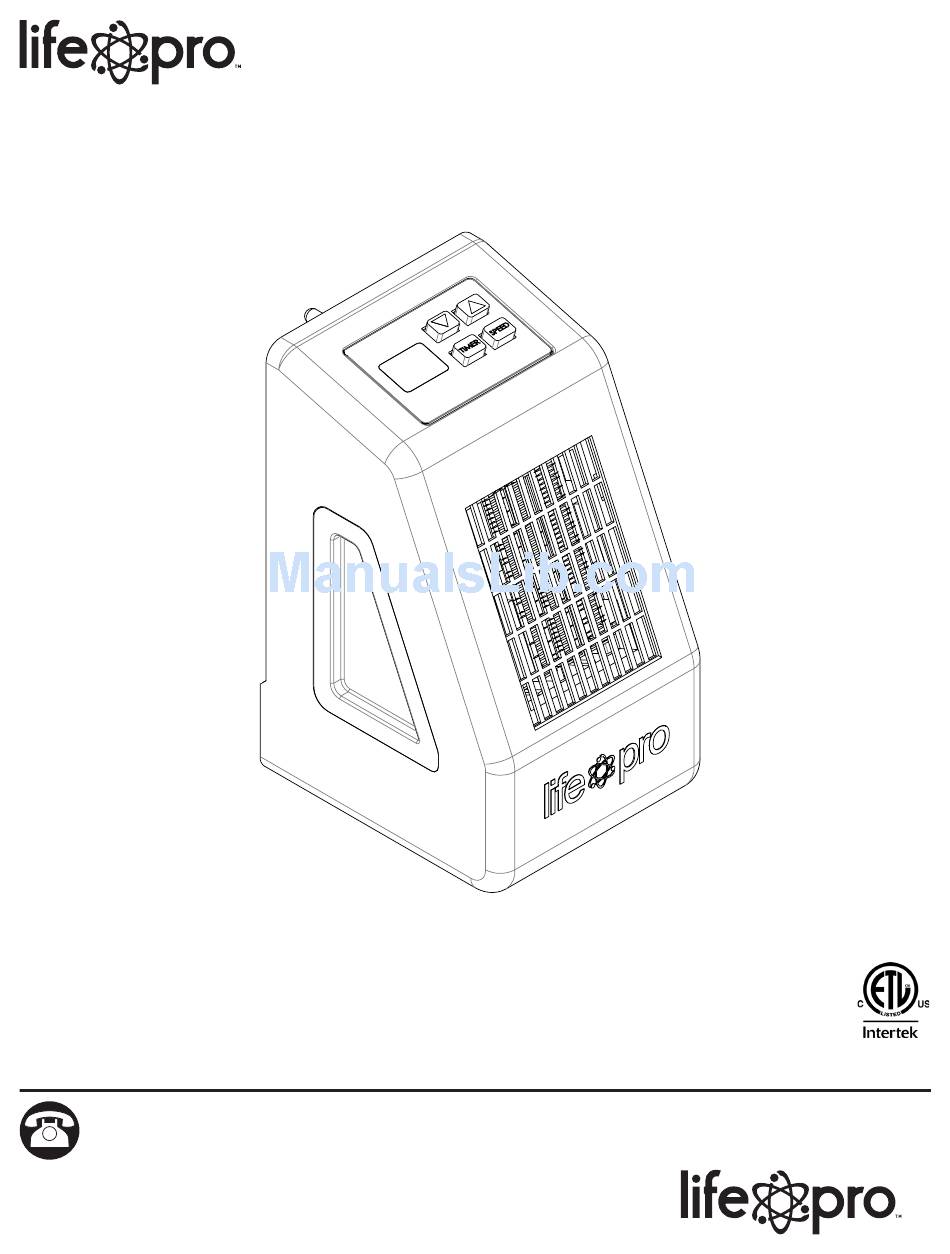

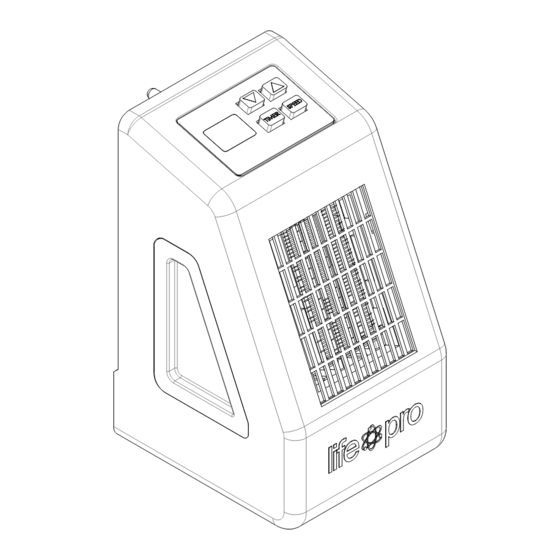

INFRARED QUARTZ HEATER
,
®
located on back of unit
1
MODEL #LS-IQH-DMICRO
) __________________
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lifepro LS-IQH-DMICRO
Summary of Contents for Lifepro LS-IQH-DMICRO
- Page 1 INFRARED QUARTZ HEATER MODEL #LS-IQH-DMICRO lifepro is a registered trademark of lifecorp products ® ® All Rights Reserved. ATTACH YOUR RECEIPT HERE Purchase Date ____________Serial Number ( ) __________________ located on back of unit Questions, problems, missing parts? Contact technical support department at 1-866-484-2066, 8:00 a.m.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Package Contents ............. . 3 Safety Information . -
Page 3: Package Contents
PACKAGE CONTENTS Front View Rear View PART DESCRIPTION QUANTITY Infrared Heater Master Power Switch (pre assembled to Infrared Heater (A)) Control Panel (pre assembled to Infrared Heater (A)) 3-Prong Direction Adjustment Switch (pre assembled to Infrared Heater (A)) -
Page 4: Safety Information
SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate, or install the product. IMPORTANT SAFETY INSTRUCTIONS WARNING: POTENTIAL ELECTRICAL HAZARD IF NOT ADHERED TO. When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: •... -
Page 5: Specifications
SAFETY INFORMATION Overheat Safety Feature This heater is equipped with an overheat safety feature. When the internal components of the heater reach a certain temperature that could cause overheating or possible fire, the heater will automatically shut off. WARNING: This heater has a voltage rating of 120 volts. -
Page 6: Frequently Asked Questions
FREQUENTLY ASKED QUESTIONS Please review these frequently asked questions on the next few pages prior to using your heater. Q. My heater emits a strange odor when I first open the box and when I turn the heater on for the first time. - Page 7 Q. The temperature on my heater does not match the temperature display on my wall, or external thermostat. Why? A. This is completely normal. The temperature display on your heater may vary from the temperature display on another thermostat (like the one mounted to your wall or a purchased external thermostat). This is because the temperature sensor on the heater reads the temperature directly around the heater.
-
Page 8: Preparation
PREPARATION Plug the heater into a grounded 120 V, 60 Hz power outlet. Only operate heater in upright position. Please note that infrared heaters do not heat like a traditional space heater. You should not expect infrared heaters to blow hot air like a traditional space heater. Infrared heaters heat objects not air. Infrared heaters are intended to supplement an already heated, insulated room. -
Page 9: Control Panel
CONTROL PANEL PART NAME DESCRIPTION Digital Display Readout of the set room temperature or timer value Temp-Down Button Decreases the set temperature Temp-Up Button Increases the set temperature Timer Button Engages the off timer function Speed Button Toggles between the two modes available... -
Page 10: Operating Instructions
OPERATING INSTRUCTIONS 1. Turn the heater on or off by pressing the Master Power Switch located on the side of the unit (B) to the I position. Once the power is off, the heating elements and fan will stop working. This is a normal function. 2. -
Page 11: Care And Maintenance
CARE AND MAINTENANCE WARNING: Before performing any maintenance task, unplug the unit, and allow it to cool completely. 1. To keep the heater clean, clean the outer shell with a soft, damp cloth. Use a mild detergent if necessary. After cleaning, dry the unit with a soft cloth. CAUTION: DO NOT let liquid enter the heater. -
Page 12: One-Year Limited Warranty
ONE-YEAR LIMITED WARRANTY The manufacturer warrants this heater against defects in materials and workmanship on functional parts, for a period of 1 year from the original date of purchase. Your sales receipt showing the date of purchase of the product is your proof of purchase. Keep it in a safe place for future reference. This product is made with the highest quality materials and is warranted to be free from defects in materials and workmanship at the time of purchase. -
Page 13: Replacement Parts List
PART # Control Panel RH121539 RH121525 Power Board RH121545 PTC Heating Block RH121544 Thermostat RH121546 Power Switch RH121526 PLEASE REMEMBER TO REGISTER YOUR WARRANTY: Registration@lifecorpproducts.com Printed in China lifepro is a registered trademark of lifecorp products ® ® All Rights Reserved.
