AT&T CruiseCast
T7 System Installation Manual
T7 Installation & User Guide
T7 Installation & User Manual
1
© 2009 RaySat Broadcasting Corporation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T7 and is the answer not in the manual?

Questions and answers

Summary of Contents for RaySat T7

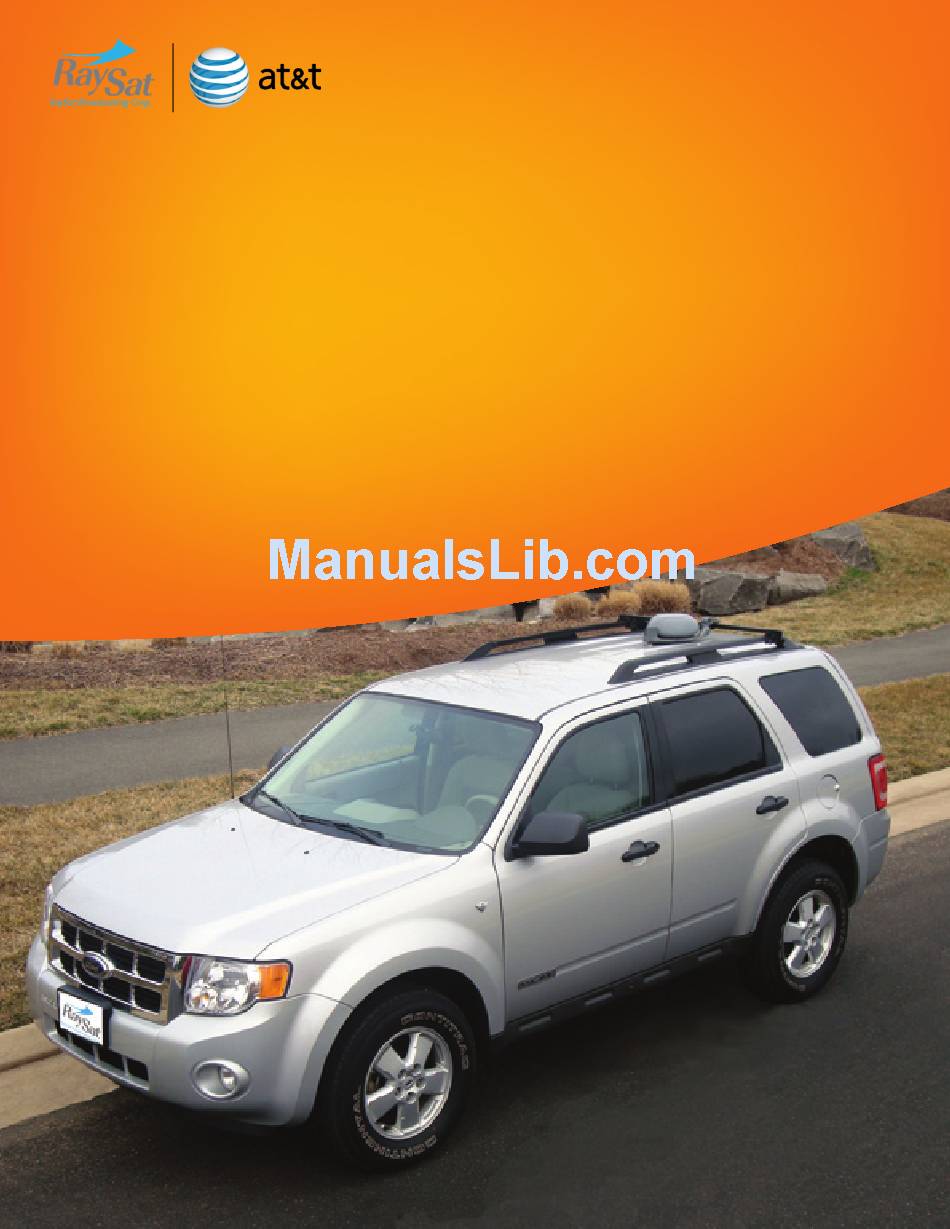

  • Page 1 AT&T CruiseCast T7 System Installation Manual T7 Installation & User Guide T7 Installation & User Manual © 2009 RaySat Broadcasting Corporation...
  • Page 2: Table Of Contents

    3 Receiving Mobile Satellite TV 3.1 Signal Reception 3.2 Azimuth and Elevation 3.3 Blockage Protection 3.4 Standing Water Interference 4 T7 System Components and Parameters 4.1 System Components 4.2 System Parameters 4.3 Channel Listing 5 Universal Mounting Bracket Installation 5.1 Assembling the Mount 5.3 Installing the Antenna...
  • Page 3 Recording, rebroadcasting of paid or other public display may violate such laws and result in criminal or civil penalty, or both. RBC has tried to make this manual user friendly and helpful. It is important that only RaySat Broadcasting Corporation certified installers should install the product. This manual is subject to change without notice.
  • Page 4: Introduction

    RaySat Broadcasting Corporation’s (RBC) T7 System is the innovative antenna system that provides live satellite TV to a vehicle, while in motion. This manual will provide basic instructions on how to install the T7 antenna and receiver into most vehicles. Only RBC certified installers should install the T7 system.
  • Page 5: Installation And User Safety Instructions

    2 Installation and User Safety Instructions Read this manual thoroughly and carefully before attempting to install or operate any T7 antenna system. Only RBC certified installers should install the T7 System. Be sure to follow all warnings and cautionary instructions in this manual.
  • Page 6: Receiving Mobile Satellite Tv

    3-1 Satellite elevation look angle 3.2 Azimuth and Elevation The DBS satellites are located in the southern sky. The T7 is a sophisticated mobile antenna with a satellite recognition and tracking system. The antenna automatically determines and maintains the proper azimuth and elevation angle without user intervention.
  • Page 7: Standing Water Interference

    3.4 Standing Water Interference When a vehicle is parked, rain and morning dew may collect on the radome of the T7. This may cause interference with satellite reception. Once the vehicle is in motion, any standing water on the antenna should roll off and the interference resolved.
  • Page 8: T7 System Components And Parameters

    4 T7 System Components and Parameters 4.1 System Components The T7 System is comprised of the following components: T7 Antenna The antenna houses the electronics beneath a weather-tight radome. It is installed onto the vehicle’s roof and connected with a single coaxial cable to the receiver inside the vehicle.
  • Page 9: System Parameters

    Pointing System Elevation range - 80 Azimuth range Tracking rate /sec Satellite acquisition Fully automated, uses GPS and gyros & recognition Satellite Coverage Areas elevation Antenna G/T -4.0dB/K at 30 Environmental Temperature range C to +70 T7 Installation & User Manual...
  • Page 10: Channel Listing

    4.3 Channel Listing T7 Installation & User Manual...
  • Page 11: Universal Mounting Bracket Installation

    5 Universal Mounting Bracket Installation This section provides procedures of how to properly install the T7 antenna onto the vehicle’s roof when using a roof rack or compatible side rails (Figure 5-1). 5.1 Assembling the Mount 1. Attach the rotating joints to the mount using the 5mm screw (Figure 5-1). Do not tighten the screw completely.
  • Page 12 (Figure 5-6). Snap the plastic screw cover into place. Warning: The T7, when properly installed, increases the vehicle height by 7-10 inches over the vehicle roof. Make sure the driver is aware of the new height of the vehicle with the installed antenna.
  • Page 13 6. Secure the bracket support onto the rotating clamp (Figure 5-7). Tools and Installation: Install the T7 antenna as far away as possible from any satellite radio antennas to prevent interference. Figure 5-7 Secure bracket support 7. Attach the antenna to the mount using the provided screws. There are 4 mounting locations for the antenna.
  • Page 14: Installing The Antenna

    Tools and Installation: Using an electric screwdriver can help to tighten the clamp quickly; however, caution should be used while tightening. Set the electric screwdriver to the lowest speed. Figure 5-11 Begin adjusting the clamp T7 Installation & User Manual...
  • Page 15 5. Adjust the rubber sleeve as you tighten the clamp so that the rubber covers the entire bottom of the clamp. Once the clamp is secured, trim off the excess clamp (Figure 5-14). Figure 5-14 Cut off the excess clamp T7 Installation & User Manual...
  • Page 16 8. Place the magnetic leg cover onto the mount and secure using the 2 provided screws (Figure 5-18). Figure 5-17 Adjust the magnetic leg Figure 5-18 Secure the magnetic leg cover T7 Installation & User Manual...
  • Page 17: Magnetic Mount Assembly And Installation (Optional)

    6 Magnetic Mount Assembly and Installation (optional) This section provides procedures to properly install the T7 System antenna onto the vehicle’s roof when not using a vehicle’s crossbars or side rails to secure the antenna. 6.1 Magnetic Mount Option 1. The magnetic mount is designed for vehicles with a smooth, flat, steel roof. This mount is NOT designed for use with vehicles that have raised ridges (Figure 6-1).
  • Page 18 (Figure 6-7). Secure the provided U-bolt to the end of the looped cable. U-bolt Cable thimble Figure 6-7 Attach the safety cable to the vehicle Figure 6-6 Attach the safety cable to the antenna T7 Installation & User Manual...
  • Page 19: Receiver Placement

    4. It is standard practice to use temporary adhesive or tape to secure the receiver within the vehicle. The receiver kit includes screws for hard mounting the receiver to the vehicle. Use care when drilling for hard mounting. Figure 7-3 Receiver located behind a side panel T7 Installation & User Manual...
  • Page 20 RBC is not responsible for damage to a vehicle caused by improper installation techniques and practices by the installer. Only an RBC certified installers should perform this installation. Figure 7-4 Tighten the screws to hard mount the receiver T7 Installation & User Manual...
  • Page 21: Antenna Cable Installation

    Figure 8-1 Attach the cable to the antenna Figure 8-2 Secure the cable on the outside of the vehicle Tools and Installation: Be sure to seal the POE with silicone or equivalent sealant. This will prevent water from penetrating into the vehicle. T7 Installation & User Manual...
  • Page 22: Point Of Entry (Poe)

    2. Use appropriate panel poppers and standard industry tools to remove vehicle panels. 3. Ensure that the cable is secure before replacing any removed vehicle panels as damage may occur to the cable by the panel clips. Continue routing the antenna cable to the receiver’s location. T7 Installation & User Manual...
  • Page 23: Audio & Video Cable Routing

    9.1 Routing Cable 1. The T7 System is designed to integrate into the vehicle’s entertainment system through composite A/V input jacks. Refer to manufacturer for removing ceiling monitors in the headliner, or for removal of headrest monitors in seats.
  • Page 24: Power Connectivity

    Your application may require a different approach depending on existing vehicle accessories. Warning: Wires sheathed in brightly colored plastic/PVC, usually yellow or orange, are indicative of airbag circuits. Do NOT disturb these wires. If in doubt, consult the vehicle owners manual. T7 Installation & User Manual...
  • Page 25: Connecting To Switched/Accessory Power

    If no grommet is available, be sure to protect the wire from being spliced or cut from continuous wear along the POE. 8. Insert the power plug into the receiver. 9. Reconnect the positive terminal of the vehicle’s battery. T7 Installation & User Manual...
  • Page 26: Receiver Connections

    Damage to the unit or injury may occur due to exposed voltage. Do NOT place the receiver in a location where it may be exposed to any type of moisture. This may result in electrical shock or fire. T7 Installation & User Manual...
  • Page 27: Setup And Activation

    At this point, you can select OK to continue. You will not be able to select OK until both signal meters are green. T7 Installation & User Manual...
  • Page 28 9. Once the signal bars have turned green and the padlock goes to the locked position, select OK on the remote. A message will appear saying ‘This card is not authorized’ (Figure 12-3). Continue to the next section for receiver activation procedures. Figure 12-3 Receiver ready for activation T7 Installation & User Manual...
  • Page 29: Receiver Activation

    001 appears in the Program Guide. 3. Turn the vehicle off and make sure that all three lights on the receiver are off. If not, turn the Switch Bypass on the receiver to the OFF position. T7 Installation & User Manual...
  • Page 30: Remote Control

    Menu: This will bring up the system menu where you can set various system settings. Exit: Selecting this button will exit out of the current menu or Program Guide screen. OK: Selects the menu item that has been selected. T7 Installation & User Manual...
  • Page 31: Programming The Remote

    4. Verify that the remote is synchronized to the receiver by pressing any button on the remote. The yellow SWDL indicator on the receiver will light up while pressing the remote contorl buttons. T7 Installation & User Manual...
  • Page 32: Changing The Remote Battery

    3. Replace the battery cover. The remote control may need to be synchronized with the receiver. Refer to section 13.2 Programing the Remote. Figure 13-3 Change the remote battery Warning: Do not recharge, heat or disassemble the batteries. Do not cross polarities. T7 Installation & User Manual...
  • Page 33: System Menu Operations

    Key Note: After 1 minute with no activity within any menu option, the system screensaver will appear on the monitor. Pressing any button on the remote will stop the screensaver. T7 Installation & User Manual...
  • Page 34: Settings

    Screensaver Setup - This menu allows the user to select how long it takes the screensaver to appear after inactivity by the user while in the menu options or Program Guide. Region ID Setup - This menu allows the user to select the region that the system is operating within. T7 Installation & User Manual...
  • Page 35: List Of Channels And Help

    Setup will need to be reprogrammed if the factory settings are restored. 14.3 List of Channels and Help The List of Channels displays the available broadcast channels. The Help menu option provides contact information for technical support. T7 Installation & User Manual...
  • Page 36: Appendix A Troubleshooting

    System continually resets Black or blue screen on TV Snowy television picture Intermittent picture for short intervals Picture jumbled, partial or freezing System does not work in motion Certain channels do not work T7 Installation & User Manual...
