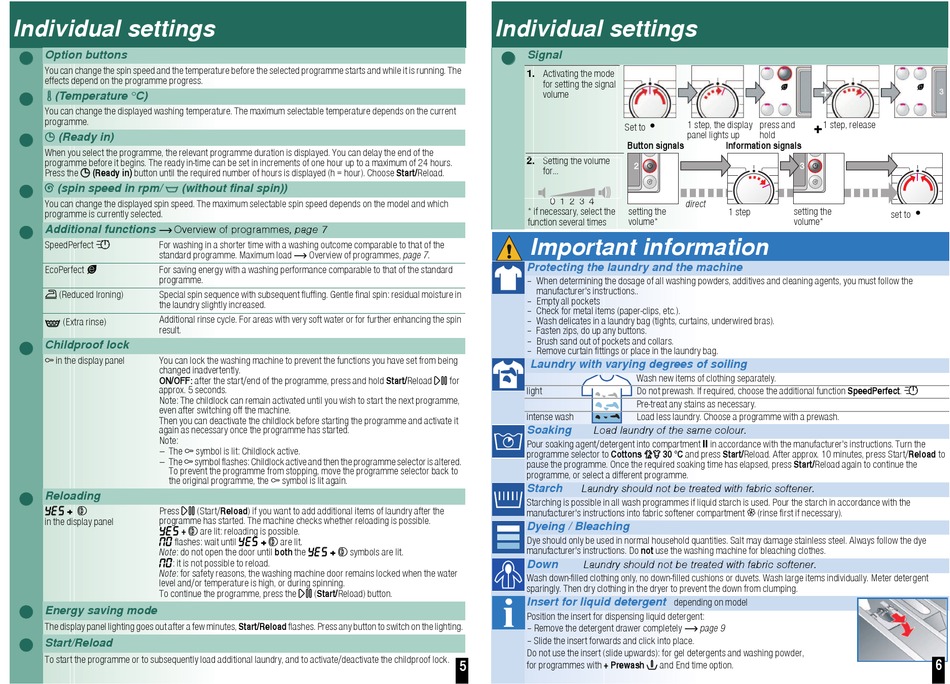

Individual settings

Option buttons
You can change the spin speed and the temperature before the selected programme starts and while it is running. The
effects depend on the programme progress.
(Temperature °C)
You can change the displayed washing temperature. The maximum selectable temperature depends on the current
programme.
(Ready in)
When you select the programme, the relevant programme duration is displayed. You can delay the end of the
programme before it begins. The ready in-time can be set in increments of one hour up to a maximum of 24 hours.
Press the (Ready in) button until the required number of hours is displayed (h = hour). Choose Start/Reload.
(spin speed in rpm/ (without final spin))
You can change the displayed spin speed. The maximum selectable spin speed depends on the model and which
programme is currently selected.
Additional functions
Overview of programmes, page 7
SpeedPerfect For washing in a shorter time with a washing outcome comparable to that of the
standard programme. Maximum load
EcoPerfect For saving energy with a washing performance comparable to that of the standard
programme.
(Reduced Ironing) Special spin sequence with subsequent fluffing. Gentle final spin: residual moisture in
the laundry slightly increased.
Additional rinse cycle. For areas with very soft water or for further enhancing the spin
(Extra rinse)
result.
Childproof lock
in the display panel You can lock the washing machine to prevent the functions you have set from being
changed inadvertently.
ON/OFF: after the start/end of the programme, press and hold Start/Reload
approx. 5 seconds.
Note: The childlock can remain activated until you wish to start the next programme,
even after switching off the machine.
Then you can deactivate the childlock before starting the programme and activate it
again as necessary once the programme has started.
Note:
– The
– The symbol flashes: Childlock active and then the programme selector is altered.
To prevent the programme from stopping, move the programme selector back to
the original programme, the
Reloading
+ Press
programme has started. The machine checks whether reloading is possible.
in the display panel
+
flashes: wait until
Note: do not open the door until both the
: it is not possible to reload.
Note: for safety reasons, the washing machine door remains locked when the water
level and/or temperature is high, or during spinning.
To continue the programme, press the
Energy saving mode
The display panel lighting goes out after a few minutes, Start/Reload flashes. Press any button to switch on the lighting.
Start/Reload
To start the programme or to subsequently load additional laundry, and to activate/deactivate the childproof lock.
Overview of programmes, page 7.
symbol is lit: Childlock active.
symbol is lit again.
(Start/Reload) if you want to add additional items of laundry after the
are lit: reloading is possible.
+ are lit.
+ symbols are lit.
(Start/Reload) button.
Individual settings
Signal
1. Activating the mode
for setting the signal
volume
Set to
Button signals
2. Setting the volume
for...
* if necessary, select the setting the
function several times volume*

Important information

Protecting the laundry and the machine
– When determining the dosage of all washing powders, additives and cleaning agents, you must follow the
manufacturer's instructions..
– Empty all pockets
– Check for metal items (paper-clips, etc.).
– Wash delicates in a laundry bag (tights, curtains, underwired bras).
– Fasten zips, do up any buttons.
– Brush sand out of pockets and collars.
– Remove curtain fittings or place in the laundry bag.
Laundry with varying degrees of soiling
for
light
intense wash
Soaking
Load laundry of the same colour.
Pour soaking agent/detergent into compartment II in accordance with the manufacturer's instructions. Turn the
programme selector to Cottons
pause the programme. Once the required soaking time has elapsed, press Start/Reload again to continue the
programme, or select a different programme.
Starch
Laundry should not be treated with fabric softener.
Starching is possible in all wash programmes if liquid starch is used. Pour the starch in accordance with the
manufacturer's instructions into fabric softener compartment
Dyeing / Bleaching
Dye should only be used in normal household quantities. Salt may damage stainless steel. Always follow the dye
manufacturer's instructions. Do not use the washing machine for bleaching clothes.
Down
Laundry should not be treated with fabric softener.
Wash down-filled clothing only, no down-filled cushions or duvets. Wash large items individually. Meter detergent
sparingly. Then dry clothing in the dryer to prevent the down from clumping.
Insert for liquid detergent
Position the insert for dispensing liquid detergent:
– Remove the detergent drawer completely
– Slide the insert forwards and click into place.
Do not use the insert (slide upwards): for gel detergents and washing powder,
5 5 5
for programmes with + Prewash
• 1 step, the display press and
+
panel lights up hold
Information signals
direct
1 step setting the
volume*
Wash new items of clothing separately.
Do not prewash. If required, choose the additional function SpeedPerfect.
Pre-treat any stains as necessary.
Load less laundry. Choose a programme with a prewash.
30 °C and press Start/Reload. After approx. 10 minutes, press Start/Reload to
(rinse first if necessary).
depending on model
page 9
and End time option.
1 step, release
•
set to
