Instrument Cluster

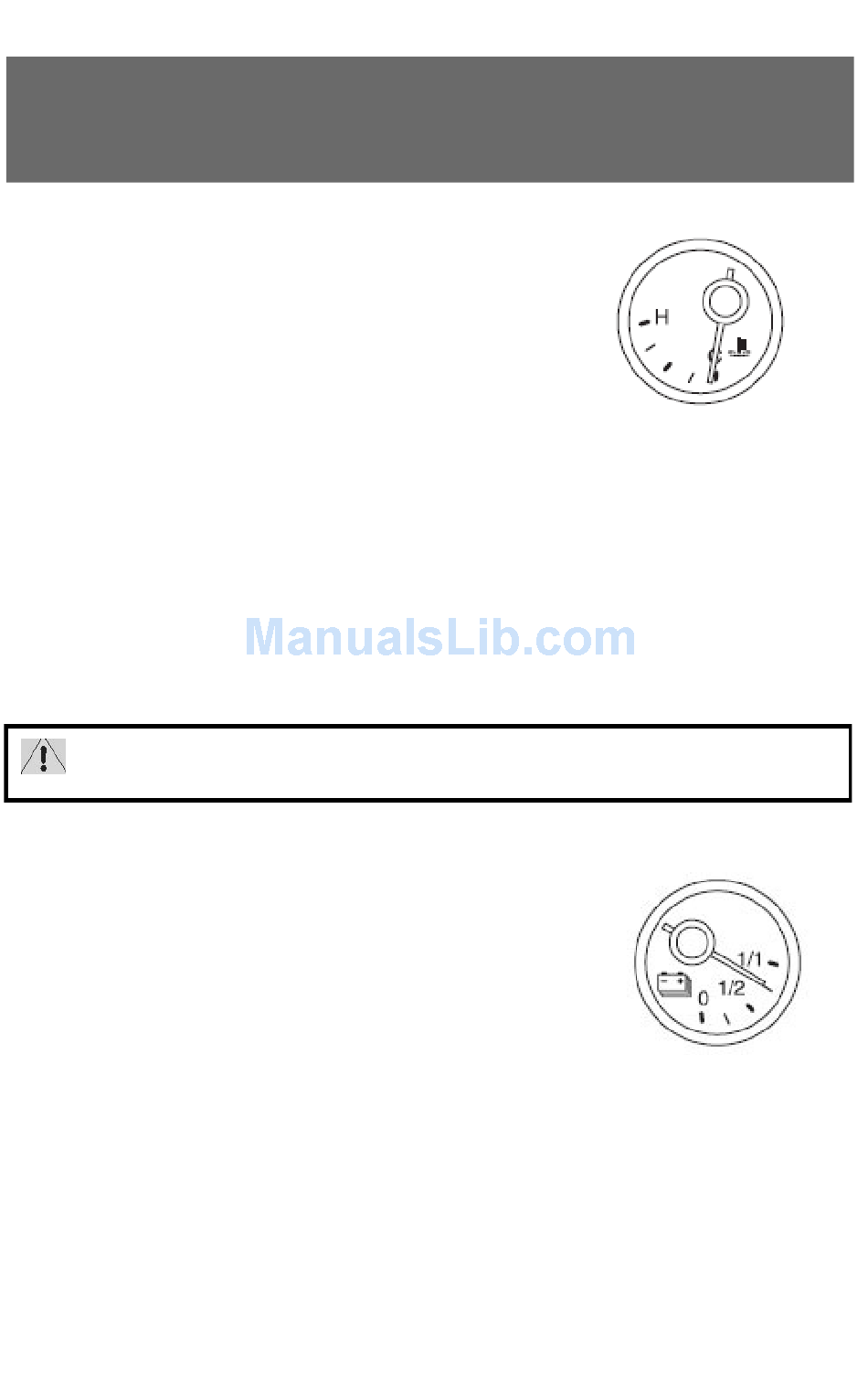

Temperature Gauge: High Voltage electrical
components including the traction motor and High
Voltage Battery are liquid cooled. The coolant
temperature is maintained by the vehicle radiator
and electric fans.
At normal operating temperature, the needle will be
in the normal range, below the red line and the H
indicator.
If the Temperature Gauge indicates an over-temperature condition, the Power Limit lamp
will illuminate, and the vehicle will go into the Power Limit Mode to attempt to lower
the temperature.
The vehicle can still be driven in Power Limit Mode.
WARNING: Never remove the coolant reservoir cap while the
Vehicle is started or hot.
State of Charge Gauge: This shows the charge
level of the High Voltage Battery.
This gauge is used in conjunction with the Range
Gauge and High Voltage Battery Warning lamp to
inform the driver of the High Voltage Battery
charge level and of the estimated range before
charging is required.
After fully charging the HV Battery, this gauge will
read full.
With a full SOC reading, the vehicle can achieve the maximum range given the driving
style and electrical accessory loading (heater and air conditioning).
See Range Gauge.
12
