Crypto WF200 Manual

802.11g wireless four port ethernet adsl2+ modem router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

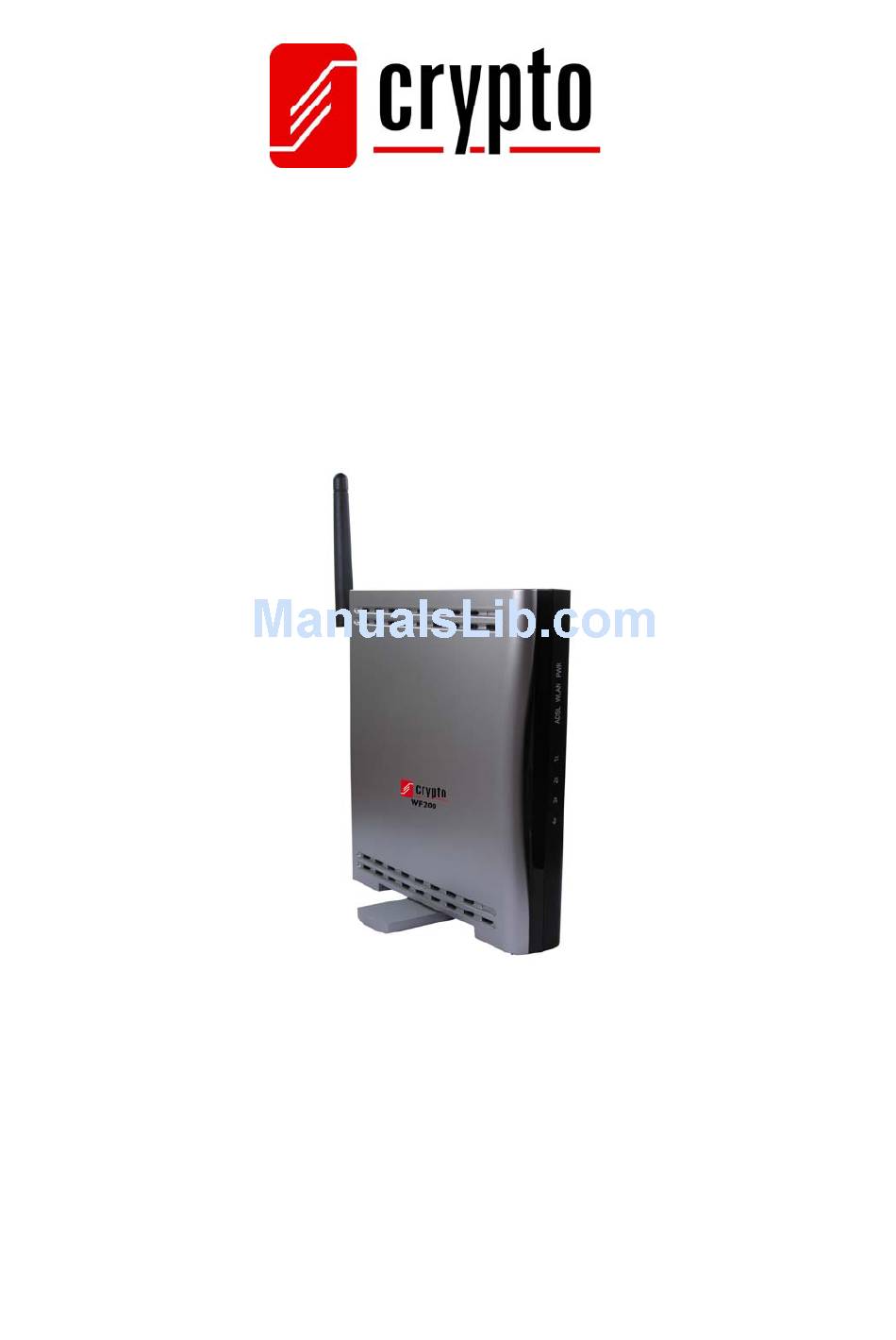

802.11g Wireless Four Port Ethernet ADSL2+ Modem
W
F
W
F
Router
M
a
n
M
a
n
Version 1.0
2
0
0
2
0
0
u
a
l
u
a
l

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WF200 and is the answer not in the manual?

Questions and answers

Related Manuals for Crypto WF200

Summary of Contents for Crypto WF200

  • Page 1 802.11g Wireless Four Port Ethernet ADSL2+ Modem Router Version 1.0...

  • Page 2: Table Of Contents

    WF200 802.11g Wireless Router Contents 1. Introduction........................5 1.1 Introduction....................... 5 1.2 Product Features ....................5 2. Hardware Installation....................7 2.1 System Requirements ..................7 2.2 Package Contents ....................8 2.3 Front Panel Indicators and Description............8 2.4 Back Panel ......................8 2.5 Connect Related Devices ..................
  • Page 3 WF200 802.11g Wireless Router 6.2 Routing......................34 6.3 NAT ........................35 6.3.1 What NAT Does.................... 36 6.3.2 How NAT Works ..................37 6.3.3 NAT Application................... 37 6.3.4 NAT Mapping Types ..................37 6.3.5 DMZ ......................38 6.3.6 Virtual Server ....................38 6.3.7 IP Address Mapping ..................
  • Page 4 WF200 802.11g Wireless Router 10.5 Problems with WAN Interface ..............57 10.6 Problems with the Internet Access .............. 58 11. Technical Support...................... 59...

  • Page 5: Introduction

    WF200 802.11g Wireless Router 1. Introduction 1.1 Introduction This full rate Wireless ADSL2+ router is an all-in-one gateway for Home and SOHO applications. This gateway is with full-featured ADSL router that provides high-speed Internet access, 4-port Ethernet switch direct connections to individual PCs or local area network with 10/100 Base-T Ethernet and 54Mbps IEEE802.11g wireless connectivity.

  • Page 6: Quick Setup Wizard

    WF200 802.11g Wireless Router ITU-T G.992.2 (G.lite) G.994.1 (G.hs, Multimode) ITU-T G.992.3 (ADSL2 G.dmt.bis) ITU-T G.992.4 (ADSL2 G.lite.bis) ITU-T G.992.5 (ADSL2+; Annex A, B, I, J, L & M) Reach Extended ADSL (RE ADSL) Quick Setup Wizard Support Quick Setup Wizard Web GUI and Easy setup software to install this Wireless ADSL2+ router easily and quickly.

  • Page 7: Hardware Installation

    WF200 802.11g Wireless Router Web-based GUI Configuration / Management Command-line Interpreter (CLI) SNMP support (V.1 and V.2C) Telnet Remote Management Firmware upgrade via FTP / TFTP (Web-based GUI) Built-in Diagnostic tool TR-069 support (CPE WAN Management Protocol) 10/100M Auto-negotiation Fast Ethernet switch This auto-negotiation feature allows the router to detect the speed of incoming transmissions and adjust appropriately without manual intervention.

  • Page 8: Package Contents

    WF200 802.11g Wireless Router RJ45 Ethernet Port 2.2 Package Contents Wireless ADSL2+ Router RJ-45 Ethernet cable RJ-11 Phone cable Power Adapter Quick Installation Guide 2 Years Warranty One External Antenna 2.3 Front Panel Indicators and Description Front panel of this Wireless ADSL2+ router has LED indicators to display router’s operating status.

  • Page 9: Connecting Wireless Adsl2+ Router Via Ethernet

    WF200 802.11g Wireless Router 3. Connecting Wireless ADSL2+ Router via Ethernet Your router can be managed from anywhere with the embedded Web configuration using a Web browser, such as Microsoft Internet Explorer or Netscape Navigator. Internet Explorer 6.0 and later or Netscape Navigator 7.0 and later versions with JavaScript enabled should be used.
  • Page 10 WF200 802.11g Wireless Router Select Gateway tab and click OK Then, select DNS Configuration tab and select Disable DNS then click OK to finish the configuration.
  • Page 11 WF200 802.11g Wireless Router Option2: Configure IP Manually 1) At IP Address tab, select Specify an IP address, set default IP address for the Router is 192.168.1.1, so use 192.168.1.X (X is a number between 2 to 254) for IP Address field and 255.255.255.0 for Subnet Mask field.
  • Page 12 WF200 802.11g Wireless Router Under DNS Configuration tab, select Enable DNS and add DNS values (192.168.1.1) in DNS Server Search Order field then click Add. For Windows 2000 Step 1: (a) Right-click My Network Places and select Properties in the main window screen (b) Or, go to Start / Settings / Control Panel.
  • Page 13 WF200 802.11g Wireless Router Step 2: Right click Local Area Connection (your local network hooked up with ADSL router) and select Properties: Step 3: Select Internet Protocol (TCP/IP) then click Properties:...
  • Page 14 WF200 802.11g Wireless Router Configure IP Automatically: Step 4: Select Obtain an IP address automatically and Obtain DNS server address automatically then click OK to complete IP configuring process. Configure IP Manually: Step 4: Select Use the following IP address and Use the following DNS server addresses.
  • Page 15 WF200 802.11g Wireless Router For Windows XP Step 1: Click Start then select Control Panel. Step 2: Double-click Network Connections icon.
  • Page 16 WF200 802.11g Wireless Router Step 3: Right-click Local Area Connection (local network your ADSL hooked up with) and select Properties: Step 4: Select Internet Protocol (TCP/IP) then click Properties:...
  • Page 17 WF200 802.11g Wireless Router Configure IP address Automatically: Step 5: Select Obtain an IP address automatically and Obtain DNS server address automatically. Click OK to finish the configuration. Configure IP Address Manually: Step 5: Select Use the following IP address and Use the following DNS server addresses.
  • Page 18 WF200 802.11g Wireless Router IP address: Fill in IP address 192.168.1.x (x is a number between 2 to 254). Subnet mask: Default value is 255.255.255.0. Default gateway: Default value is 192.168.1.1. Preferred DNS server: Fill in preferred DNS server IP address.
  • Page 19 WF200 802.11g Wireless Router Step 2: Double-click Network and Sharing Center icon. Step 3: Select “Manage Network connections”.
  • Page 20 WF200 802.11g Wireless Router Step 4: Right-click Local Area Connection (local network your ADSL hooked up with) and select Properties: Step 5: Select Internet Protocol (TCP/IP) then click Properties:...
  • Page 21 WF200 802.11g Wireless Router Configure IP address Automatically: Step 6: Select Obtain an IP address automatically and Obtain DNS server address automatically. Click OK to finish the configuration. Configure IP Address Manually: Step 7: Select Use the following IP address and Use the following DNS server addresses.

  • Page 22: Configure Wireless Adsl2+ Router Via Html

    WF200 802.11g Wireless Router IP address: Fill in IP address 192.168.1.x (x is a number between 2 to 254). Subnet mask: Default value is 255.255.255.0. Default gateway: Default value is 192.168.1.1. Preferred DNS server: Fill in preferred DNS server IP address.

  • Page 23: Navigating The Web Configurator

    WF200 802.11g Wireless Router 3) Entry of the username and password will be displayed. Enter the default login User Name and Password: The default login User Name of the administrator is admin, and the default login password is admin. 4.2 Navigating the Web Configurator...

  • Page 24: Interface Setup

    WF200 802.11g Wireless Router Steps to navigate the Web configuration from the Site Map are summarized below. Click on Interface Setup to configure Internet and LAN functions. Click on Advanced Setup to configure advanced features. Click on Access Management to manage Internet access options.

  • Page 25: Internet

    WF200 802.11g Wireless Router Click an Interface Setup link to set ATM VC values, ISP Encapsulation, configure multi- connection settings, and LAN configuration. 5.1 Internet The Internet screen allows you to set up how your router connects to the Internet. If you already ran the Quick Start wizard, the information you provided to the wizard should be entered into the fields already.

  • Page 26: Encapsulation

    WF200 802.11g Wireless Router VCI: Virtual Channel Identifier. The valid range for the VCI is 1 to 65635 (0 to 31 is reserved for local management of ATM traffic). ATM QoS: Select the Quality of Service types for this Virtual Circuit. The ATM QoS types include CBR(Constant Bit Rate), VBR(Variable Bit Rate) and UBR (Unspecified Bit Rate).
  • Page 27 WF200 802.11g Wireless Router the fields must be in the appropriate IP form, which is 4 IP octets separated by a dot (x.x.x.x). The Router will not accept the IP address if it is not in this format. The following table describes the labels in this screen.
  • Page 28 WF200 802.11g Wireless Router LABEL DESCRIPTION Servicename Enter your Servicename for your PPPoE/PPPoA connection. Username Enter your username for your PPPoE/PPPoA connection. Password Enter your password for your PPPoE/PPPoA connection. Encapsulation Select your encapsulation type from the dropdown list. Bridge Interface Select whether the Interface will be Activated or Deactivated.

  • Page 29: Lan

    WF200 802.11g Wireless Router 5.2 LAN There are the IP settings of the LAN Interface for the device. These settings may be referred to as Private settings. You may change the LAN IP address if needed. The LAN IP address is provided to your internal network and cannot be seen on the Internet.

  • Page 30: Dhcp Server

    WF200 802.11g Wireless Router Direction: Select the RIP direction from None, Both, In Only and Out Only. Multicast: IGMP (Internet Group Multicast Protocol) is a session-layer protocol used to establish membership in a multicast group. The ADSL router supports both IGMP-v1 and IGMP-v2. Select None to disable it.

  • Page 31: Dns Relay

    WF200 802.11g Wireless Router 5.2.5 DNS Relay The DNS Configuration allows the user to set the configuration of DNS. DNS Relay Selection: If user wants to disable this feature, he just needs to set both Primary & Secondary DNS to 0.0.0.0. Using DNS relay, users can setup DNS server IP to 192.168.1.1 on their computer.

  • Page 32: Wireless

    WF200 802.11g Wireless Router 5.3 Wireless 5.3.1 Access Point Settings Access Point: Select this section for Activated or Deactivated AP function. Channel: Select the local channel from the drop down list. Beacon Interval: The Beacon Interval value indicates the frequency interval of the beacon. Enter a value between 20 and 1000.

  • Page 33: Multiple Ssids Settings

    SSID: The SSID is a unique name to identify the ADSL Router in the Wireless LAN. Wireless Clients associating to the ADSL Router must have the same SSID. The default SSID name is WF200.. Broadcast SSID: Select No to hide the SSID such that a station (PC, laptop, PDA etc) can not obtain the SSID through passive scanning.

  • Page 34: Advanced Setup

    WF200 802.11g Wireless Router 6 Advanced Setup 6.1 Firewall User can enable or disable firewall feature of the ADSL router in the following page. Firewall: Select this option can automatically detect and block Denial of Service (DoS) attacks, such as Ping of Death, SYN Flood, Port Scan and Land Attack.

  • Page 35: Nat

    WF200 802.11g Wireless Router Destination IP Address: This parameter specifies the IP network address of the final destination of packets routed by this rule. IP Subnet Mask: Enter the subnet mask for this destination. Gateway IP Address: Enter the IP address of the gateway. A gateway does the actual forwarding of the packets.

  • Page 36: What Nat Does

    WF200 802.11g Wireless Router Virtual Circuit (VC): The Virtual Circuit (VC) properties of the ATM VC interface identify a unique path that your ADSL/Ethernet router uses to communicate via the ATM-based network of ISP. NAT Status: This filed shows the current status of the NAT function for the current VC.

  • Page 37: How Nat Works

    WF200 802.11g Wireless Router Outside This refers to the host on the WAN. Local This refers to the packet address (source or destination) as the packet travels on the LAN. Global This refers to the packet address (source or destination) as the packet travels on the WAN.

  • Page 38: Dmz

    WF200 802.11g Wireless Router address. c. Many-to-Many Overload: In Many-to-Many Overload mode, the device maps multiple local IP addresses to shared global IP addresses. d. Many-to-Many No Overload: In Many-to-Many No Overload mode, the device maps each local IP address to a unique global IP address.

  • Page 39: Ip Address Mapping

    WF200 802.11g Wireless Router with single IP will use the same Virtual Server rules. Start & End port number: Enter the specific Start and End Port number you want to forward. If it is one port only, you can enter the End port number the same as Start port number. For example, set the FTP Virtual server, you can set the start and end port number to 21.

  • Page 40: Qos

    WF200 802.11g Wireless Router 6.4 QoS QoS (Quality of Service). This option will provide better service of selected network traffic over various technologies. Deploying QoS management to guarantee that all application receive the service levels required and sufficient bandwidth to meet performance expectations is indeed one important aspect of modem enterprise network.
  • Page 41 WF200 802.11g Wireless Router Port-Based VLAN: each physical switch port is configured with an access list specifying membership in a set of VLANs. ATM VLAN-using LAN Emulation(LANE) protocol to map Ethernet packets into ATM cells and deliver then to their destination by converting an Ethernet MAC address into an ATM address.

  • Page 42: Adsl

    WF200 802.11g Wireless Router 6.6 ADSL Select this option to set ADSL Mode and ADSL Type information. ADSL Mode: Select which mode your ADSL connection uses from the dropdown list. The option has Auto Sync-up, ADSL2+, ADSL2, G.DMT, T1.413, G.LITE ADSL Type: Select the ADSL type you use from the dropdown list.

  • Page 43: Acl

    WF200 802.11g Wireless Router 7. Access Management 7.1 ACL Go to Access Management ACL to enable remote management. Access Control Listing (ACL) is a management tool that acts as a filter for incoming or outgoing packets, based on application. You may use telnet or Web to remotely manage the ADSL Router.

  • Page 44: Filter

    WF200 802.11g Wireless Router [Note] 1. You must set one ACL index to access your router via LAN interface. If you don’t, your router cannot access other listed IP Address. (Refer to Index 1). 2. Remember! Once you have activated your ACL function, you only can access via router by listed Secure IP Address.
  • Page 45 WF200 802.11g Wireless Router Filter Type: You can select IP/MAC Filter, Application, and URL Filter type. IP/MAC Filter Set Index: The IP/MAC Filter Set Index from 1 to 12 and each index can set up to 6 IP Filter. Interface: Choices from PVC0 to PVC7 and LAN.
  • Page 46 WF200 802.11g Wireless Router allowed Protocol: Select the protocol to filter. Choices are TCP, UDP, and ICMP. Rule Unmatched: Choices are Forward and Next. Select what happens to the data in question if the rule you are currently editing is unmatched. Next means that the data is then compared to the next IP filter rule.

  • Page 47: Snmp

    WF200 802.11g Wireless Router 7.3 SNMP The Simple Network Management Protocol (SNMP) is used for exchanging information between network devices. It enables a host computer to access configuration, performance, and other system data that resides in a database on the modem. The host computer is called a management station and the modem is called an SNMP agent.

  • Page 48: Ddns

    WF200 802.11g Wireless Router eliminates the need to manually configure port forwarding for the UPP enabled application. If you don’t want to make configuration changes through UPnP, just choose “Deactivated”. SAVE: Click SAVE to save the setting to the ADSL Router.
  • Page 49 WF200 802.11g Wireless Router Configuration Servers (ACS) and establish the configuration automatically. Accordingly other service functions can be provided. TR-069 is the current standard for activation of terminals in the range of DSL broadband market.

  • Page 50: Maintenance

    WF200 802.11g Wireless Router 8. Maintenance 8.1 Administration There is only one account that can access Web-Management interface-Administration. Admin has read/write access privilege. In this web page, you can set new password for admin. New Password: Type the new password in this field.

  • Page 51: Firmware

    WF200 802.11g Wireless Router time zone and Greenwich Mean Time (GMT). Daylight Saving: Choose “Enabled” or “Disabled” to use daylight savings time. NTP Server Address: Type the IP address or domain name of your timeserver. Check with your ISP/network administrator if you are unsure of this information.

  • Page 52: Diagnostic

    WF200 802.11g Wireless Router 8.5 Diagnostic The Diagnostic Test page shows the test results for the connectivity of the physical layer and protocol layer for LAN & WAN sides. Select which PVC you wish to test from the dropdown list. The router will automatically run diagnostic tests on that circuit.
  • Page 53 WF200 802.11g Wireless Router [Device Information] Firmware Version: This filed displays current firmware version. MAC Address: The MAC (Media Access Control) or Ethernet address unique to your modem. [LAN] IP Address: The LAN port IP address Subnet Mask: The LAN port IP subnet mask.

  • Page 54: System Log

    WF200 802.11g Wireless Router error rate performance will improve, but the data rate will decrease. Conversely, if the SNR Margin is decreased, bit error rate performance will decrease, but the data rate will increase. Line Attenuation: Attenuation is the decrease in magnitude of the ADSL line signal between the transmitter (Central Office DSLAM) and the receiver (Client ADSL Modem), measured in dB.
  • Page 55 WF200 802.11g Wireless Router [Ethernet] The Ethernet screen gives you information on how much data your router has transmitted and received across the Ethernet connection. Click on REFRESH to update the screen. [ADSL] The ADSL screen gives you information about how much data your router has transmitted or received across the ADSL connection.

  • Page 56: Troubleshooting

    WF200 802.11g Wireless Router 10. Troubleshooting If the router does not function properly, first check this session for simple troubleshooting before contacting your Internet service provider (ISP) for support. 10.1 Using LEDs to Diagnose Problems The LEDs are useful aides for finding possible problem causes.

  • Page 57: Problems With The Login Username And Password

    WF200 802.11g Wireless Router Check that you have enabled web service access. If you have configured a secured client IP address, your computer’s IP address must match it. Refer to the chapter on remote management for details. For WAN access, you must configure remote management to allow server access from the WAN (or all).

  • Page 58: Problems With The Internet Access

    WF200 802.11g Wireless Router the user name and password, the MAC address or the host name. The username and password apply to PPPoE and PPoA encapsulation only. Make sure that you have entered the correct Service Type, User Name and Password (be sure to use the correct casing).

  • Page 59: Technical Support

    WF200 802.11g Wireless Router 11. Technical Support For technical information and support please contact us: Web Site: www.crypto.gr E-mail: support@crypto.gr Disposal of old electrical and electronic equipment If you see this symbol on the product or on its packaging, you should hand the product over to the applicable collection point for the recycling of electrical and electronic equipment.
