Summary of Contents for Crypto F330

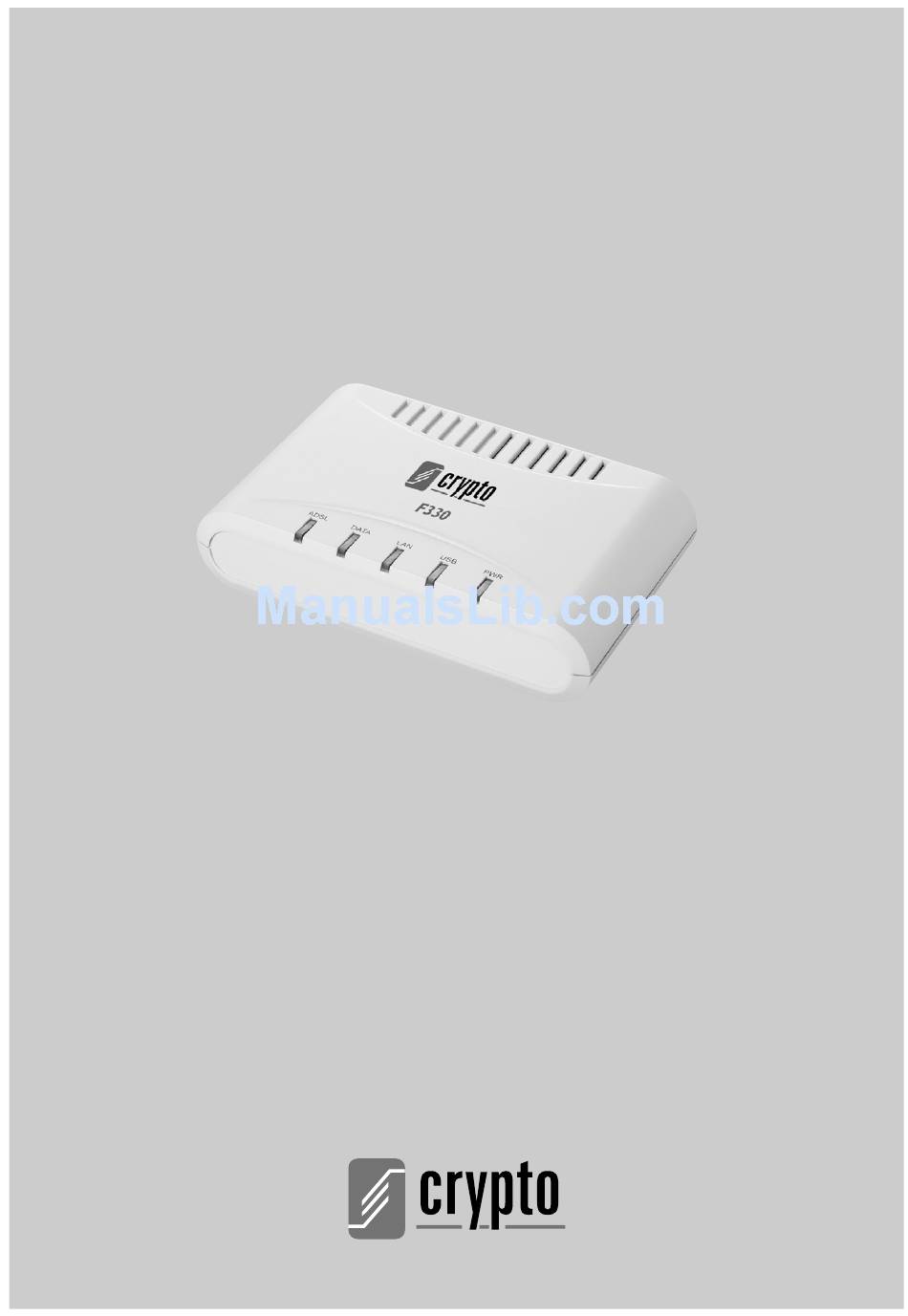

- Page 1 U S E R S M A N U A L F330 ADSL ROUTER...
-
Page 3: Table Of Contents
LED’s Back Panel Connectors Software Features Hardware Installation Procedures Network Ethernet cable Setup Powering on the F330 ADSL Router Software Configuration Procedures Preparing your network information Setup your TCP/IP parameters for Window XP Connection through LAN USB Driver Installation under Windows XP... -
Page 4: Introduction
1. Introduction F330 ADSL Router is high-speed ADSL device and is a complete solution for home and office use. The F330 ADSL Router can have a maximum downstream data rate of up to 8Mbps and an upstream of up to 1Mbps. When configured as a DHCP server, it will assign IP address to every connected PC and acts as the only externally recognized Internet device on your local area network. -
Page 5: Back Panel Connectors
Back Panel Connectors Table 2 shows the function of each connector of the F330 ADSL Router’s back panel. Figure 1 illustrates the connectors. Table 2: Function Description of Connectors Connector Description LINE Connects to your ADSL-ready telephone line Connects to the USB port of your computer... -
Page 6: Hardware Installation Procedures
Figure 3: Multi-user Connection with hub example (LAN) Powering on the F330 ADSL Router Note! Use only the manufacturer-approved power supply that shipped with the F330 ADSL Router Connect the power to the F330 ADSL Router by plugging the power supply into an appropriate electrical outlet. -
Page 7: Software Configuration Procedures
Software Configuration Procedures 4.1. Preparing your network information To configure your ADSL router smoothly, it is required that you contact your ISP (Internet Service Provider) and acquire the following information: Type of Mode Encapsulation used: ñPPPoE, PPPoA, IPoA, Bridged, or Routed. ñAnnex A (ADSL over PSTN) or Annex B (ADSL over ISDN) DSL connection parameters: ñFor PPPoE or PPPoA, refer to Table 3 and fill-in all values (provided by your ISP). -
Page 8: Setup Your Tcp/Ip Parameters For Window Xp
Set up your TCP/IP parameters for Windows XP Step 1: Click on "Start --> Control Panel”. Step 2: Click on " Switch to Classic View ". Step 3: Double click on "Network Connections" to continue. Step 4: Single right click on " Local Area connection "... -
Page 9: Connection Through Lan
" then Click on " OK " to complete the setup procedures. Connection through LAN You can connect the F330 directly to your computer through the LAN port, if you have a LAN card in your PC, by using a crossover cable (included in the package). -
Page 10: Usb Driver Installation Under Windows Xp
4.4 USB Driver Installation under Windows XP Step-1: Connect the F330 to the computer by using the USB cable. Windows will detect a new hardware. Click Cancel Insert the CD and the next window (Step 02) will appear. Step -2: Click “Install USB Driver”... -
Page 11: Router Protocol Setup
Installation on Windows 98 / ª∂ and 2000 is done in a similar way 4.5 Router Protocol Setup You must refer to your Internet service provider (ISP) to tell you the appropriate information (refer to point 4.1 of the manual). The following is an example of the Router setup by using PPPoA protocol. - Page 12 Step-04: On the left part of the window under the title “Admin Privilege”, click on “ADSL Configuration”. Step-5: During the next step, the following window will appear. On the right part of the window, the second selection “User Selected Annex Mode” asks you to select the Annex protocol.
- Page 13 Step-8: In the same window enter your "User Name" and "Password" provided by your ISP. Click on " Submit " to continue. Step -9: Click on " Yes " to continue (if it appears). Step -10: Scroll down the page and click on "...
- Page 14 In the left part of the window under the Status title, click on “Home” to continue. Step 15: If the PPPoA connection is successful, the WAN port of the F330 ADSL Router will indicate the following IP address...
-
Page 15: Troubleshooting
You can connect to console to check if accessible. Cannot access F330 ADSL Router via Web ñCheck to see if you set an IP for the F330 ADSL Router ñCheck to see the IP setting is on the domain you can access it ñCheck the LAN port is connect correctly... - Page 16 www.crypto.gr...
