Summary of Contents for Jonsered GR 2126D

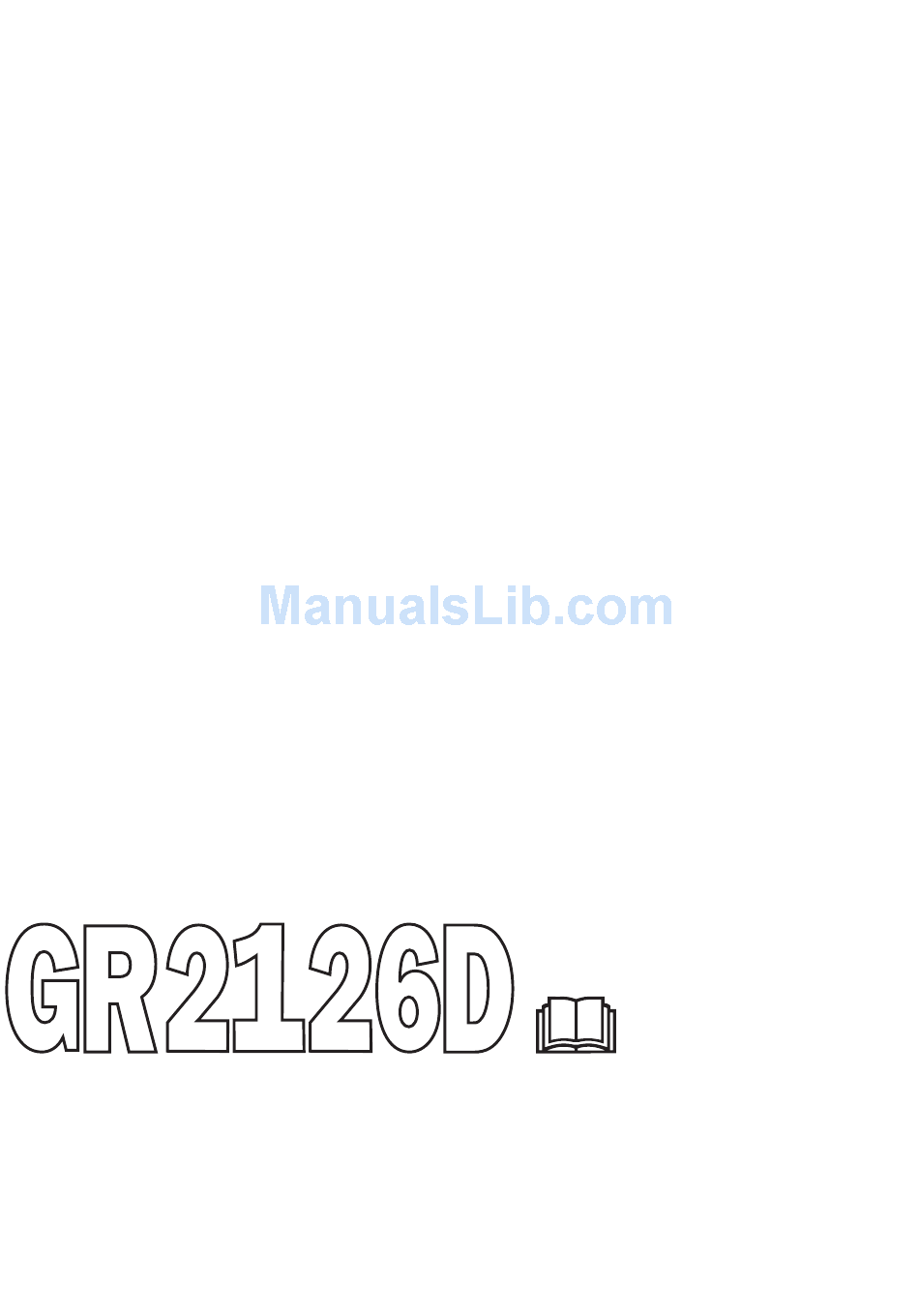

  • Page 1 Operator´s manual (EPA) Please read these instructions carefully and make sure you understand them before using the machine.
  • Page 2: Symbol Explanation

    SYMBOL EXPLANATION Symbols WARNING! Clearing saws, brushcutters and trimmers can be dangerous! Careless or incorrect use can result in serious or fatal injury to the operator or others. Read through the Operator‘s Manual carefully and understand the content before using the machine. Always use •...
  • Page 3: Table Of Contents

    Jonsered has a policy of continuous product development and therefore reserves the right to modify the design and appearance of products without prior notice. Maintenance, replacement, or repair of the emission control devices and systems may be performed by any nonroad engine repair establishment or individual.
  • Page 4: Safety Instructions

    Personal protective equipment IMPORTANT INFORMATION • Incorrect or careless use of a clearing saw, brushcutter or trimmer can turn it into a dangerous tool that can cause serious or even fatal injury to the operator or others. It is extremely important that you read and understand the content of this manual.
  • Page 5: Stop Switch

    2. Stop switch The stop switch should be used to stop the engine. 3. Cutting attachment guard This guard is intended to prevent objects from being thrown towards the operator and to protect the operator from unintentionel contact with the cutting attachment. WARNING! Do not attach any blade to the unit without proper installation of all required...
  • Page 6: Locking Nut

    6. Muffler The muffler is designed to give the lowest possible noise level and to direct the engine‘s exhaust fumes away from the operator. Muffler fitted with catalytic converter is also designed to reduce harmful exhaust components. In countries that have a warm and dry climate the risk of fire is obvious.
  • Page 7: Control, Maintenance And Service Of The Machine's Safety Equipment

    Control, maintenance and service of the machine‘s safety equipment IMPORTANT INFORMATION • All service and repairs to the machine require special training. • This applies especially to the machine‘s safety equipment. If the machine does not meet any of the controls listed below you should contact your service workshop.
  • Page 8: Vibration Damping System

    3. Cutting attachment guard • Check that the guard is undamaged and not cracked. • Replace the guard if it has been exposed to impact or is cracked. • Always use the prescribed blade an guard combination, see chapter "Technical data". 4.
  • Page 9: Cutting Equipment

    6. Cutting equipment This section describes how through correct maintenance and through using the right type of cutting equipment you can: • Reduce the machine‘s tendency to kickback • Obtain maximum cutting capacity. • Increase the service life of the cutting equipment. Four basic rules: 1)Only use the cutting and guard equipment...
  • Page 10: Cutting Equipment

    Cutting equipment IMPORTANT INFORMATION The section describes how through correct mainte- nance and through using the right type of cutting equipment you can reduce the machine‘s tendency to kickback, obtain maximum clearing capacity and increase the service life of the cutting equipment. •...
  • Page 11: General Safety Instructions

    General safety instructions IMPORTANT INFORMATION • This machine is intended solely for trimming and clearing grass and for light brush-cutting. • The only accessories to be used with the engine unit as a drive source are the cutting units we recommend in the chapter “Technical data“...
  • Page 12: General Working Instructions

    General working instructions IMPORTANT INFORMATION • This section covers basic safety precautions for working with brushcutters and trimmers. • If you encounter a situation where you are uncertain how to proceed you should ask an expert. Contact your dealer or your service workshop.
  • Page 13: Basic Clearing Techniques

    Adjusting the harness and clearing saw WARNING! When working with the clearing saw it should always be hooked in the harness. If this is not done, you cannot control the clearing saw safely and this can result in injury to yourself or someone else. Never use a harness with a defective quick release catch.
  • Page 14 Clearing‘s ABC Always use the correct equipment. Always have well adjusted equipment. Follow the safety instructions. Organise the work well. Always use full throttle when applying the blade. Always use a sharp blade. Avoid stones. WARNING! Avoid cutting in the cutting region between 12 and 3 o‘clock on the blade.
  • Page 15 Grass clearing using the trimmer head and plastic blades. • Hold the trimmer head just above the ground at an angle. It is the end of the cord that carries out the work. Let the cord work at its own pace. Do not press the cord into the area to be cut.
  • Page 16: What Is What

    What is what on the brushcutter? 1. Blade 2. Grease filler cap 3. Angle gear 4. Combination guard 5. Shaft 6. Handlebars 7. Throttle 8. Stop switch 9. Throttle trigger lock 10. Hanging ring 11. Cylinder cover 12. Starter handle 13.
  • Page 17: Assembly

    Assembling the handlebars • Remove the screw at the rear of the throttle handle. • Slide on the throttle handle on the right-hand side of the handlebars, (see the diagram). • Align the hole in the throttle handle for the fixing screw with the hole on the handlebars.
  • Page 18: Assembling The Spray Guard And Trimmer Head Tap´n´go Pro

    Assembling the blade guard and clearing blade • Remove the mounting plate (H). Fit the adapter (I) and bracket (J) with the two screws (K) as shown. Fit the blade guard (A) to the adapter using the 4 screws (L) as shown.
  • Page 19: Assembling Other Guards And Cutting Equipment

    Assembling other guards and cutting equipment • Fit the appropriate guard (A) for use with the trimmer head. Hook the guard onto the shaft fitting and secure it with the bolt (L). • Fit the disc drive (B) on the output axle. •...
  • Page 20: Fuel Handling

    Two-stroke oil • For the best results use JONSERED two-stroke oil, which has been specially produced for clearing saws and chain saws. Mixing ratio 1:50 (2%). • Never use two-stroke oil intended for water cooled outboard motors, so-called outboard motor oil.
  • Page 21: Start And Stop

    Control before starting For reasons of safety follow these recommendations! • Check the blade to ensure that no cracks have formed at the bottom of the teeth or by the centre hole. The most common reason why cracks are formed is that sharp corners have been formed at the bottom of the teeth while sharpening...
  • Page 22: Maintenance

    Carburettor Your JONSERED product has been designed and manufactured to specifications that reduce harmful emissions. After your unit has been run 8-10 tanks of fuel the engine has broken in. To ensure that your unit is at peak performance and producing the least amount of harmful...
  • Page 23: Correctly Adjusted Carburettor

    Final setting of the idling speed T Adjust the idling speed with the screw T, If it is necessary to readjust. First turn the idle speed adjusting screw T clockwise until the cutting attachment starts to rotate/ move. Then turn, counter- clockwise until the cutting attachment stops.
  • Page 24: Muffler

    However, before using the machine you should check that the angle gear is filled to 3/4 with grease. Use JONSERED special grease. Normally, the grease does not need to be changed except when the angle gear is repaired.
  • Page 25: Air Filter

    Air filter The air filter should be cleaned regularly removing dust and dirt to avoid: • carburettor malfunction • starting problems • reduced engine power • unnecessary wear to engine parts • abnormal fuel consumption Clean the filter after every 25 hours or more regularly if operating conditions are exceptionally dusty.
  • Page 26: Sharpening The Clearing Blade

    1 mm. – English MAINTENANCE NOTE: Use only JONSERED replacement parts. Use of other brands of replacement parts can cause damage to your unit or injury to the operator or others. Your warranty does not cover damage or liability caused by the use of accessories and/or attachments not specifically recommended by JONSERED.
  • Page 27: Technical Data

    Technical data Engine Displacement, cu. in/cm Cylinder bore, inch/mm Stroke length, inch/mm Recommended max. speed, rpm Idling speed, rpm Speed of output shaft, rpm Max. engine output, acc. to ISO 8893, kW/rpm Catalytic converter muffler Speed-regulated ignition system Ignition system Manufacturer/type of ignition system Spark plug Electrode gap, inch/mm...
  • Page 28: Emission Control Warranty Statement

    If you have any questions regarding your warranty rights and responsibilities, you should contact your nearest authorized servicing dealer or call Jonsered, at Sweden +46 36 14 65 00. WHERE TO GET WARRANTY SERVICE Warranty services or repairs shall be provided at all Jonsered authorized servicing dealers.
  • Page 29 Poly Trim >20mm >20mm 6 Nm X 10 English –...
  • Page 30 Trimmy H II 15 cm 6" 7,5 m ~ 3,7 m 15 cm 6" ´*xre¶5¶¨ – English...
  • Page 31 Tap-N-Go Pro 15 cm 6" “Click” 15 cm 6" 7,5 m 15 cm 6" ~ 3,7 m English –...
  • Page 32 108 88 26-95 ´*xre¶5¶¨ 2002W11...
