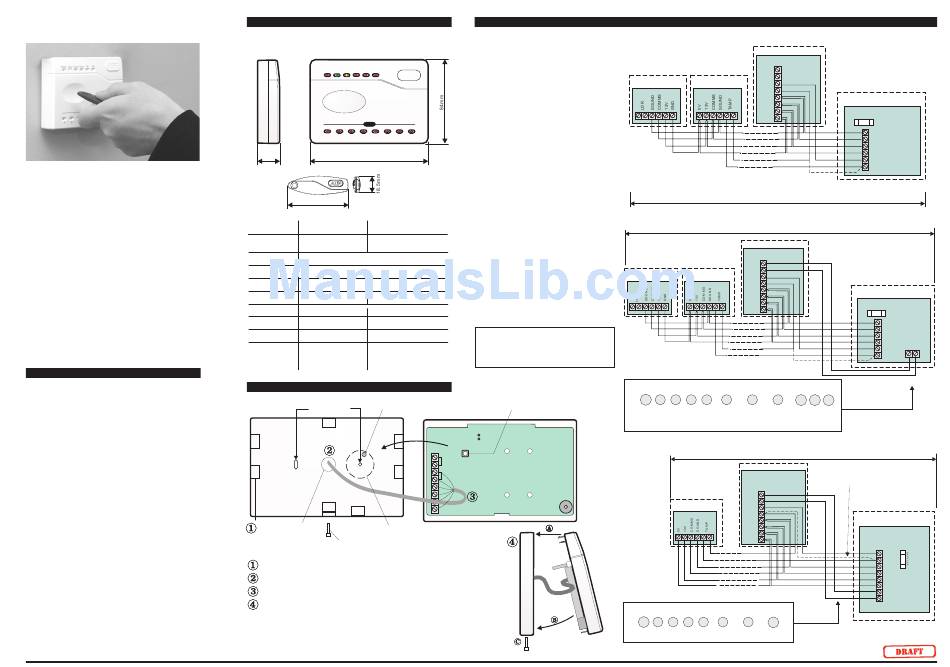

Novar ED&S Simple Set Reader Manual

Simple Set Reader and Keyfobs
The simple set reader can be installed in a range of
intruder system to allow ease of setting and unsetting the
system using a keyfob. Each keyfob is unique and cannot
be used unless it is recongised by the reader, which
provides total security. A reader can learn to operate with
up to eight keyfobs. There can be more than one reader
installed in a system. These instructions cover how to
mounting and wire the reader, where necessary how to
engineer the panel and learn up to eight keyfob at a reader
and how to operate the system using a keyfob.
The products covered are:
SS/01 ADE Simple Set Reader with 2 keyfobs
SS/01/UB Unbranded Simple Set Reader with 2 Keyfobs
SS/F ADE keyfob
SS/F/UB Unbranded keyfob
Do's
Before you begin installation do:
ÿ
check the Simple set reader can be connected to your
intruder system and ensure the panel software is
compatible, see wiring and programming
ÿ
ensure the Tamper wiring is connected to the reader
ÿ
mount each reader away from metal surfaces and large
metal objects
ÿ
test the operation of the reader(s) using the keyfobs
ÿ
when using a keyfob, always hold the keyfob
perpendicular to the surface of the reader to achieve
maximum range, see photo above.
draft
Technical Data
Reader

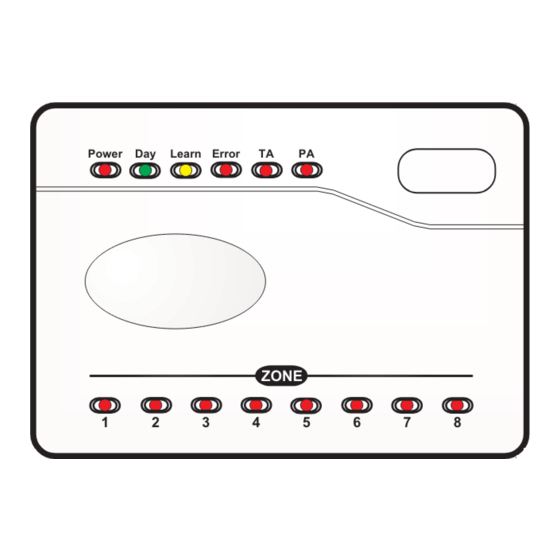

Power Day Learn Error TA PA
ZONE
1 2 3 4 5 6 7 8
22mm
118mm
Keyfob
58.5mm
Keyfob Reader
SS/F & SS/F/UB SS/01 & SS/01/UB
Power - 13.8V dc from panel +/- 5%
maximum 75mA
Minimum range 20mm from centre of depression
keyfobs 8 maximum per reader
Dimensions 58.5 x 18.5mm 118 x 84 x 22mm
Weight 4g 114g
Temperature 0 to +40 C º
Colour Dark Grey Polycarb. White ABS
Mounting - Screws
Indications - Day - (green)
Learn - (amber)
Power, Zone, Error - (red)
TA, and PA - (red)
Mounting the reader
Tamper spring
Mounting points
Base
locating collar
6- Thinned Cable
Tamper breakout
sections
entry
for cable entry
point
Cover fixing
screw
If required cut-out the appropriate thinned section on the base.
Route the external cable through the base and fix the base using the two mounting points.
Connect the external cable to the terminal block on the cover assembly, see also wiring diagrams.
Clip the cover assembly to the base and ensure the tamper spring locates into the collar
on the base. Secure the cover assembly to the base using the cover fixing screw.
Wiring and programming
The simple set reader can be connected to an
ADE G3 or Accenta range of intruder panels.
The wiring diagrams here show connection
details, minimum panel software requirements
and programming procedures. It may be
possible to connect the reader to other intruder
system, for further information call Technical
Support for help.
ÿ
If you are installing the reader to an
existing system then you will need to
power down the system, note a tamper
alarm will occur.
ÿ
Once you have connected the reader to
your intruder panel you will need to
power up the system. On powering up, the
system will go into alarm. At a keypad
enter the user code and reset the system.
The Power and Day indicator should now
be lit at all keypads and also at the
readers.
ÿ
If the system requires programming to
accept a keyswitch input, then follow the
how to program instructions accompanying
the appropriate wiring details.
ÿ
You can now set and unset the system
using the keyfobs supplied with the reader,
see operating instructions.
ÿ
You must now test the system to check the
reader provides zone, tamper and attack
indications.
NOTE: If you have addition keyfobs or
have acquired new keyfobs to replace
lost ones, then you will need to learn the
keyfobs, see how to learn instructions.
Tamper Spring
Cover assembly
JUMPER
TAMP
P2
RELAY
TAMP
SOUND
COMMS
WD1
+13V
0V
Base
Cover
assembly
Tamper
Spring
How to connect the Simple Set Reader to a G3 intruder panel
with Version 2.1 (xx/xx/02) or above
Simple Set Reader
Board
RELAY
OPTI-CAM Lighting Keypad
Controller
TAMP
Board Board
SOUND
COMMS
13V
0V
Maximum of up to 4 Remote Keypad /
Simple Set Reader /
OPTI-CAM Lighting Controller
combination allowed
Where there is only one keypad and
it is part of the panel then connect
the TAMP back to the panel
Cable distance 100m maximum
How to connect the Simple Set Reader to a G3 range intruder panel
with Software versions 1.2 (26/11/01), 1.1 (12/09/01), 1.0 (08/06/01)
Cable distance 100m maximum
Simple Set Reader
Board
RELAY
OPTI-CAM Lighting Keypad
Controller
TAMP
Board Board
SOUND
COMMS
13V
0V
Maximum of up to 4 Remote Keypad /
Simple Set Reader /
OPTI-CAM Lighting Controller
combination allowed
Where there is only one keypad and
it is part of the panel then connect
the TAMP back to the panel
How to program Zone 8 for keyswitch input
9 9 9 9 5 8 5
Press
Prog Reset
Engineer Progam Mode Zone Zone 8# Keyswitch
configuraion Input Zone
# Enter appropriate zone number if it is not zone 8
How to connect the Reader to an Accenta 8 Panel
Cable distance 100m maximum
Simple Set Reader
Board
RELAY
Keypad
TAMP
Board
SOUND
COMMS
13V
0V
Maximum of up to 4 Remote Keypad /
Simple Set Reader combination allowed
How to program PTS as a remote keyswitch input
Press 9 9 9 9 6 5
Prog
Reset
Engineer Progam Mode Flag Keyswitch
Configuration input
Panel
Board
RKP FUSE
1A F2
SOUND
COMMS
+13V
0V
TAMP
J5
Panel
Board
RKP FUSE
1A F2
SOUND
COMMS
+13V
0V
J2
TAMP
Zone 8
J5
Zone configured to accept
a Keyswitch input
Reset Reset
If the keypad is part of the
panel then connect the TAMP
back to the panel
Panel
Board
1A
TAMP
SOUND
F2
COMMS
+13V
0V
PTS
J5
PTS configured to
accept a Keyswitch input
