Installation Guide
Easy, Reliable & Secure
N150 WiFi Router (N150R)

Advertisement

loading
Need help?

Need help?

Do you have a question about the N150 and is the answer not in the manual?

Questions and answers

Related Manuals for on networks N150

Summary of Contents for on networks N150

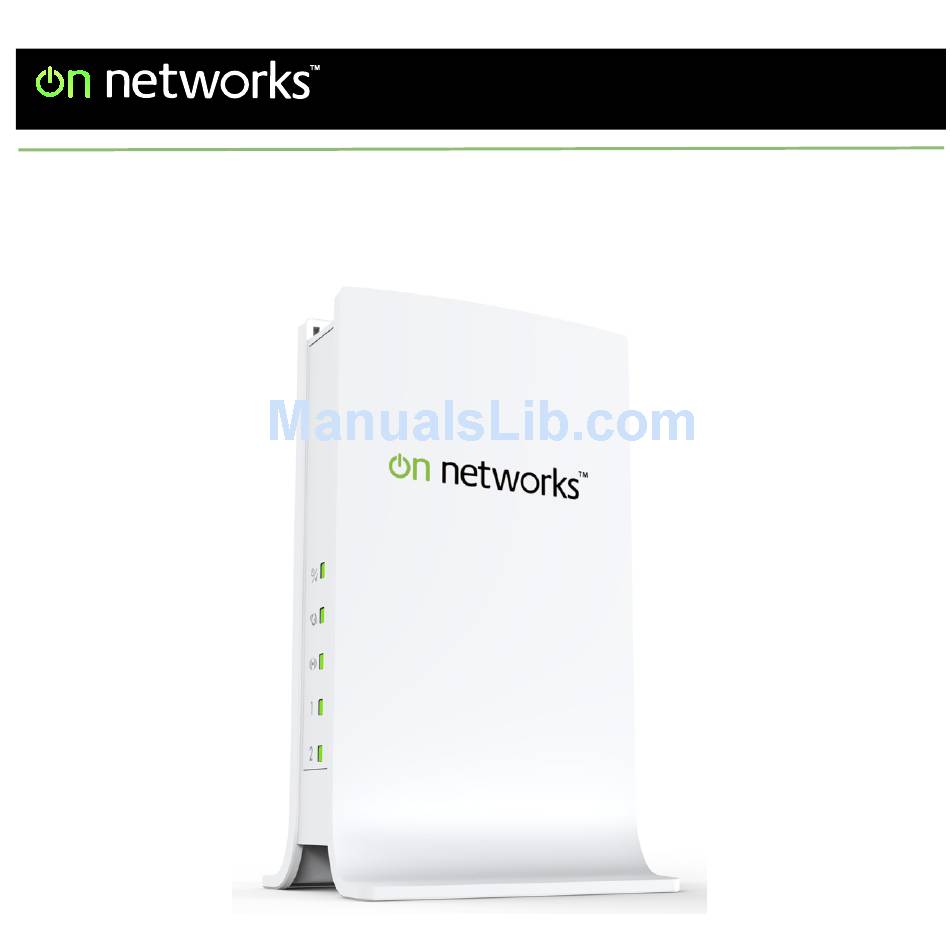

  • Page 1 Installation Guide Easy, Reliable & Secure N150 WiFi Router (N150R)
  • Page 2 Statement of Conditions In the interest of improving internal design, operational function, and/or reliability, On Networks reserves the right to make changes to the products described in this document without notice. On Networks does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.

  • Page 3: Router Description

    Router Description Front Panel. The front panel has five status LEDs. Power/Test LED. If solid green, the router is ready. If blinking green, the router is performing the power-on diagnostic test. If off, the router is not connected to a power source. Wireless LED.
  • Page 4 Back Panel. The back panel has these features. Ethernet ports. Connect a computer or other wired device to your router using these ports. Internet port. Connect a cable or DSL modem to your router using this port. Factory Reset button. To use this button, stick a paper clip into the reset hole and hold it for about 5 seconds until the Power LED begins to blink.

  • Page 5: Connect Your Router

    Connect your router 1. Prepare your modem. Unplug your modem. If it has a battery backup, remove the battery. 2. Connect your modem. Plug in your modem. Put the battery back in. Then cable the modem to the router Internet port.
  • Page 6 Connect the power adapter to the 3. Power on the router. router and plug the power adapter into an outlet 4. Connect a computer. Connect a computer using a wired Ethernet connection or connect wirelessly. (not included)

  • Page 7: Preset Wireless Security

    You can use an Ethernet cable (not included) or connect wirelessly. • Use the Ethernet cable to connect your computer to an Ethernet port on your router. If you are using a fixed IP address, be sure the LAN port is set to DHCP before connecting. (The default IP address is 192.168.1.1.) •...
  • Page 8 On Networks recommends that you do not change the preset WiFi network name (SSID) and WiFi network password (Network Key). If you do change the settings, the information on the bottom of the product does not apply. Find the preset Wireless Settings on your router and record them...
  • Page 9 If necessary to retrieve or update your password: 1. Type http://www.mywifirouter.com in a Web browser, and log in using the default user name (admin) and password (admin). 2. Select Setup > WiFi Settings to locate your wireless password. Connect wireless devices To connect wireless computers and other devices to your wireless networks, choose either the manual or Wi-Fi Protected Setup (WPS) method.
  • Page 10 2. Look for the preset On Networks WiFi network name (SSID), and select it.The preset WiFi network name (SSID) is located on the product label on the bottom of the router. Note: If you changed the name of your network during the setup process, look for that network name.

  • Page 11: Technical Support

    Technical Support Thank you for selecting On Networks products. After installing your device, locate the serial number on the label of your product, and use it to register your product at http://www.on-networks.com/register. Registration is required before you can use the telephone support service. Registration through http://www.on-networks.com/register...
  • Page 12 May 2012...

This manual is also suitable for:

N150r
