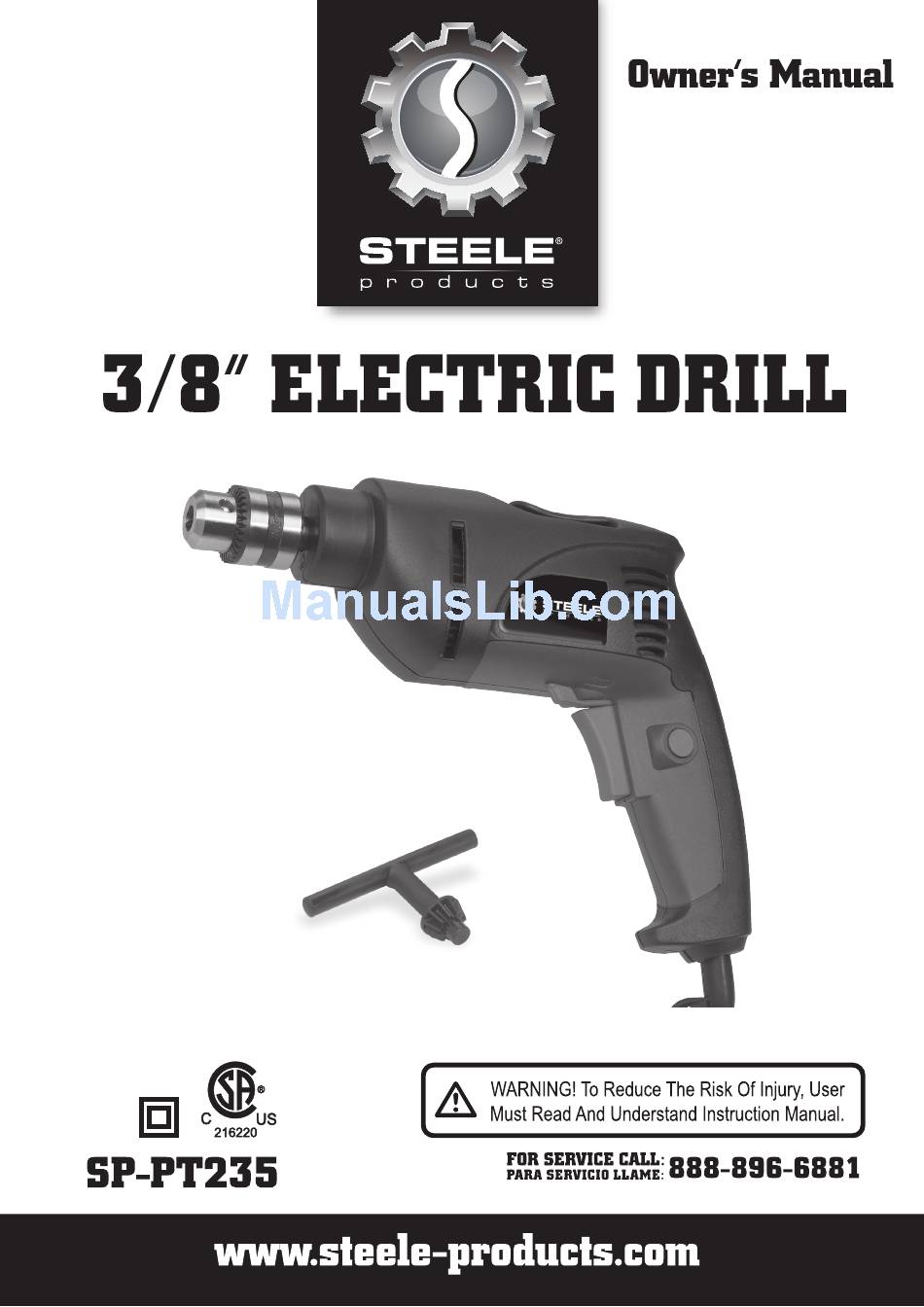

STEELE PRODUCTS SP-PT235 Owner's Manual

3/8’’ electric drill
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the SP-PT235 and is the answer not in the manual?

Questions and answers

Related Manuals for STEELE PRODUCTS SP-PT235

Summary of Contents for STEELE PRODUCTS SP-PT235

  • Page 2: Table Of Contents

    3/8’’ ELECTRIC DRILL Topic Page General Safety Rules Tool Use and Care Technical Specification Drill Maintenance Limited Warranty WARNING! READ AND UNDERSTAND ALL SAFETY PRECAUTIONS IN THIS MANUAL BEFORE OPERATING. FAILURE TO COMPLY WITH INSTRUCTIONS IN THIS MANUAL COULD RESULT IN PERSONAL INJURY, PROPERTY DAMAGE, AND/ OR VOIDING OF YOUR WARRANTY.

  • Page 3: General Safety Rules

    OWNER’S MANUAL GENERAL SAFETY RULES WARNING! Read and understand all instructions. Failure to follow all instruction listed below, may result in electrical shock, fire and/or serious personal injury. SAVE THESE INSTRUCTIONS WELL Work Area 1. Keep your work area clean and well lit, Cluttered benches and dark areas invite accidents.

  • Page 4: Tool Use And Care

    3/8’’ ELECTRIC DRILL Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts. 11..Avoid accidental starting. Be sure switch is off before plugging in. Carrying tools with your finger on the switch or plugging in tools that have the switch on invites accidents.

  • Page 5: Technical Specification

    OWNER’S MANUAL TECHNICAL SPECIFICATIONS Technical Specifications Drill Model# Input Voltage 120V~60Hz Input Power 4.2 Amp No Load Speed 0 - 3000 RPM Chuck Capacity 3/8" (10mm) Power Cord 18AWG Double Insulated SERVICE NOTE: ONLY QUALIFIED PROFESSIONAL ELECTRICANS SHOULD ATTEMPT TO REPAIR OR REPLACE ANY PARTS TO THIS TOOL. ool service, mechanical and/or electrical is to be performed only by qualified repair personnel.
  • Page 6 3/8’’ ELECTRIC DRILL Extension Cords 1. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating.
  • Page 7 OWNER’S MANUAL Figure 1 Variable Speed Trigger (Fig. 2) 1. To start the drill, pull the trigger (1). Rotational speed will increase as the trigger is depressed. To stop, release the trigger. 2 . For continuous operation, pull the trigger (1) and depress the lock-on button (2).

  • Page 8: Maintenance

    3/8’’ ELECTRIC DRILL improve drilling action and prolong bit life. See cutting oil and/or drill bit manufacturer recommendation for use.  Plastic - Use high-speed steel drill bits and refer to wood drilling. Note: A jammed bit often is freed by placing the drill in reverse and slowly backing out of the work piece.
  • Page 9 OWNER’S MANUAL PARTS LIST NO. DESCRIPTION DESCRIPTION SCREW POWER CORD CHUCK CORD CLAMP DRIVE SHAFT BEARING BEARING COOL FAN WASHER ARMATURE ASSEMBLY GEAR BRUSH ASSEMBLY STEEL BALL STATOR ASSEMBLY WASHER BEARING OIL BEAR SWITCH RIGHT COVER LEFT COVER CORD SLEEVE NOTE: ONLY QUALIFIED PROFESSIONAL ELECTRICANS SHOULD ATTEMPT TO REPAIR OR REPLACE ANY PARTS TO THIS TOOL!

  • Page 10: Limited Warranty

    3/8’’ ELECTRIC DRILL Limited Warranty All-Power America warrants to the original purchaser who uses the product in a consumer application (personal, residential or household usage) that all products covered under this Warranty are free from defects in material and workmanship for one year from the date of purchase.
  • Page 11 OWNER’S MANUAL Limited Warranty(cant’d) THIS WARRANTY DOES NOT COVER: Merchandise sold as reconditioned, used as rental equipment, or floor or display models. Merchandise that has become damaged or inoperative because of ordinary wear, misuse, cold, heat, rain, excessive humidity, freeze damage, use of improper chemicals, negligence, accident, failure to operate the product in accordance with the instructions provided in the Owner’s Manual(s) supplied with the product, improper maintenance, the use of accessories or attachments not recommended by All-Power America, or unauthorized repair or...
