STEELE PRODUCTS SP-PT237 Owner's Manual

1/2" impact drill
Hide thumbs
1
2
3
4
5
6
Table of Contents

Advertisement

Quick Links

Download this manual
SP-PT237

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP-PT237 and is the answer not in the manual?

Questions and answers

Related Manuals for STEELE PRODUCTS SP-PT237

Summary of Contents for STEELE PRODUCTS SP-PT237

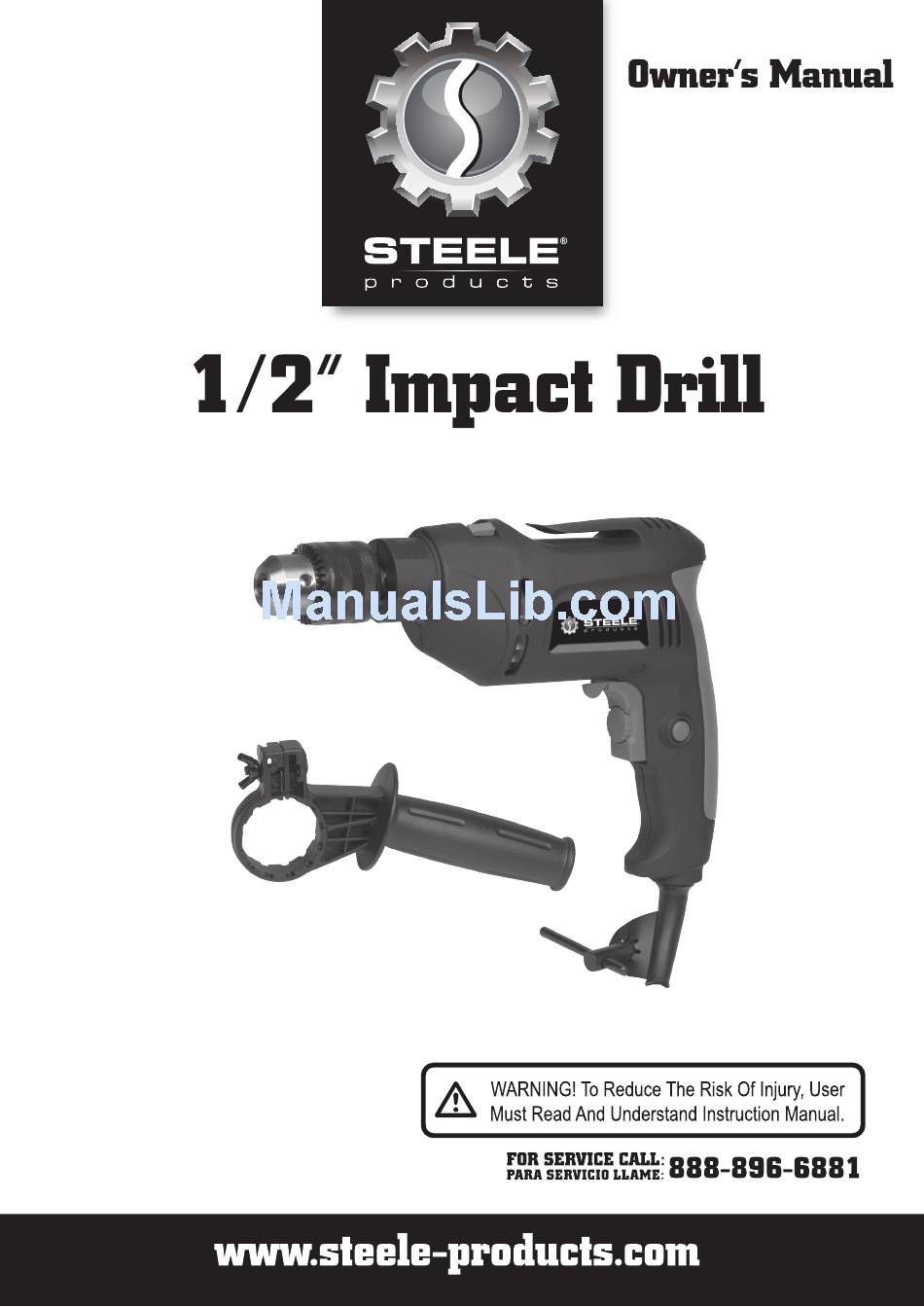

  • Page 1 SP-PT237...
  • Page 2 HAMMER DRILL 1/2” Assemble and Operating instructions Certificate Number: E222615 GRNERAL SAFETY INSTRUCTIONS WARNING! Read and understand all instructions. Failure to follow all instructions listed below may result in electrical shock, fire and/or serious personal injury. SAVE THESE INSTRUCTIONS WORK AREA ～Keep your work area clear, clean and well lit.
  • Page 3 ～Do not overreach while operating a power tool. Keep proper footing and balance at all times. Good balance and solid footing enables better control in unexpected situations. ～Always wear appropriate safety equipment. Always wear eye protection while operating a power tool. Use appropriate dust respirators, hearing protection, hard-hat, face shield or safety shoes as dictated by the work and tool.
  • Page 4 right, a hammer symbol will be visible to the left of the switch. The drill now adds an impact function to the drilling rotation. The impact function greatly speeds up the drilling of cement-based materials such as mortar, concrete, brick and block. Use this function only with carbide tipped masonry bits designed for hammer drills.
  • Page 5 Variable speed drills will double as a power screw driver by using screwdriver bits. The technique is to start slowly, increasing the speed as the screw runs down. Set the screw snugly by slowing to a stop. Prior to driving screws, pilot and clearance holes should be drilled. In drilling wood, you will drill a cleaner hole if you ease up on the pressure just before the bit breaks through the wood.
  • Page 6 Part Name Part Name Part Name Power cord 6mm steel ball Circlip for shaftΦ9 ㎜ Rubber sleeve Change knob Big gear Cord clip Flat washer Sanpring Stator Bearing 6002 Screw ST4.2×16 Electric capacity Bearing holder spring Rubber pole Bearing 607 Steel ball 3mm Switch Brush holder...
