Summary of Contents for TechniSat Mp4 player

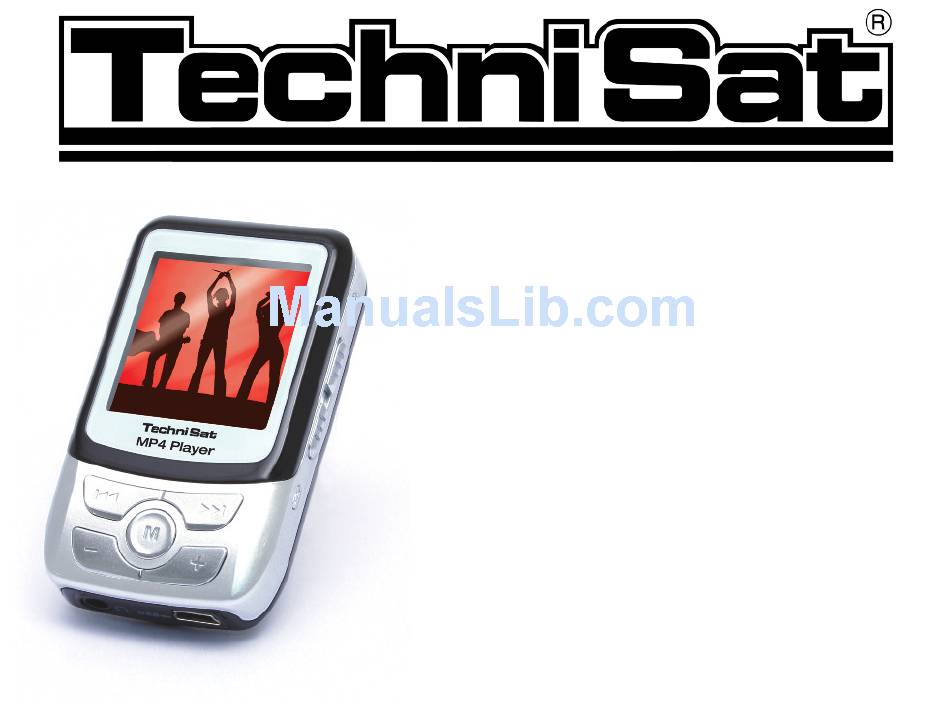

- Page 1 MP4-player User manual...
- Page 2 Features/accessories in the delivery kit Features • Power supply: lithium battery (3.7 V) • Signal-to-noise ratio > 90 dB • Output power: 5 mW + 5 mW (32 Ohms) • Frequency: 20 Hz - 20 KHz • Supported compression rates: 5 kbps - 320 kbps •...
- Page 3 Product features Product features • 1.5" colour screen • Supported video functions • JPEG viewing • Reading of e-books • VHF radio with recording function • Voice recording via built-in microphone • Supports SD and MMC cards Note Check to see whether the complete set of accessories is in the package. Do not allow the device to be dropped or shaken with great force.
-
Page 4: Table Of Contents
Contents Overview Memory card Charging the battery Connecting Built-in speaker to the computer Disable Reset Switching ON/OFF Video conversion Function selection Troubleshooting help Music Repeat A-B Playback mode Recording Song lyrics Video Pictures FM radio FM recording e-book Navigator Settings Delete file... -
Page 5: Overview
Overview Neck strap Memory card Microphone Hold Open/playback/pause Speaker A-B- repeat/ EQ Next program/ Last program/ fast forward fast runback Reset +/VOL+ -/VOL- M (Mode) Headphone jack USB jack/jack for charger... -
Page 6: Charging The Battery
Charging the battery If the charge on the battery is no longer sufficient for operation, the empty battery symbol appears or the device switches itself off. Please recharge the battery at this time. To do this, connect the device to the power supply unit via the USB jack and connect this to the main power supply. -
Page 7: Built-In Speaker
Built-in speaker Use of the built-in speaker. The device has a built-in speaker. The speaker is located on the back of the device. > To activate (switch on) the speaker, slide the speaker switch to the position). If the switch is in the position, the speaker is off. -
Page 8: Disable
Key lock If the key lock is activated, all key functions are disabled. This is useful for preventing unwanted operation of the device during sports or when trans- porting it in a briefcase or tote bag. > Slide the switch into the "Hold" position in order to lock all of the keys . Slide the switch in the opposite direction to unlock the keys. -
Page 9: Switching On/Off
Switching ON/OFF The device is not locked. Switching on > While the device is switched off, press the "Play" key once (one long press). The device switches on. The main menu appears on the dis- play. Switching off > To switch off the device, press the "Play" key once (one long press) until the mes- sage "Good-bye"... -
Page 10: Function Selection
Functions menu Menu selection > If you open the main menu (press the "M" key once (long press) to go to the main menu if you are on a different level), you can highlight a menu item using the " "... -
Page 11: Music
Music > If the main menu is displayed, select music from the menu and briefly press "M" in order to go to that menu Repeat Playback mode Battery charging status Time already played Playing title/Entire title Total time Display: Title and text Playback bar Playback status Program format... -
Page 12: Repeat A-B
Music Repeat A-B > In playback mode, briefly press "A-B/EQ" to go to the "A-B repeat" fun- ction. The starting point "A" is saved. Press it again. Now the ending point "B" is saved. The display "A-B" appears on the screen and the device begins repeatedly playing the segment you have selected. -
Page 13: Playback Mode
Music Playback mode > If the device is stopped or paused, briefly press "A-B/EQ" to select the mode (see page 21 for more details): Playback mode Display Normal Repeat title Repeat all Random Preview... -
Page 14: Recording
Music Recording > Either in the main menu or while the device is stopped or paused, press "A-B/EQ" once (long press) to start the recording. > Briefly press "A-B/EQ" to end the recording, the device switches to replay mode and plays the file that was just recorded. The recording is simultaneously saved under "Voice."... -
Page 15: Video
Video/pictures The device supports the SMV file format. You can download such files or use the supplied conversion software to put files into the right format , and then load them into the device. Select "Video" and briefly press the "M" key to go to this function. >... -
Page 16: Fm Radio
Pictures/FM radio > Press the " " keys to make a selection. > Press "+", to zoom in or press "-" to zoom out. > Briefly press the "M" key in order to display the list of available photos. > Using "+/-", select the desired picture and press "M"... -
Page 17: Fm Recording
FM recordings Press "M" once (long press) to select the "Save" function. Briefly press the "M" key to save the station. You have selected the "Listen" function: > Using the " " keys, you can select the station. > Press the "M" key once (long press) in order to delete a station in "Listen"... - Page 18 FM recordings > In the main menu, press "A-B/EQ" (long press) in order to quickly go to the recording menu and to start the recording. > In the main menu, briefly press the "M" key and select "Record." This quickly takes you to the recording menu in order to start the recording. >...
-
Page 19: E-Book
E-book > In the main menu, select the "e-book" option and briefly press the "M" key to activate the function. > Press "+", "-" or " " to page forward or backward. > While you read the e-book, you can press briefly on "M" to display the list of available books. -
Page 20: Navigator
Navigator > In the main menu, select "Navigator" in order to display the files and folders that are saved in the memory. A:\ device memory (internal) B:\ expanded memory (SD/MMC memory card/external) > Press "+/-" to page up and down in the list and to select files or folders. >... -
Page 21: Settings
Settings > In the main menu, select "Settings" and briefly press the "M" key. This takes you to the "Settings" menu where you can set the corresponding device parameters. > Press "+" or "-" to select entries. Then press "M" to go to them. Repeating Press "M"... - Page 22 Settings > Press "M" in order to go this menu. Then press " " in order to sel- ect the sound setting for the corresponding type of music. Normal - Jazz — Rock - Classical — Pop — Bass Contrast >...
- Page 23 Settings Autom. shutdown > Press "M" to go to this menu. Set the time after which the device will automatically switch off. Type of recording > Press "M" to go the menu and then set the recording parameters of FM or of the microphone. >...
-
Page 24: Delete File
Delete settings/file Information Shows the version number, memory capacity and the free memory space. Exit This exists the current menu and returns you to the main menu. Delete file > In the main menu, select "Delete file" and press the "M" key. In this mode, you can select files that are to be deleted. - Page 25 Delete file > If you select a file, briefly press "M" to display the delete symbol. (If the symbol appears in front of the file name, press "M" once to clear the delete symbol), press "+/-" and briefly press the "M" key to highlight other files.
-
Page 26: Memory Card
Speicherkarte Memory card This device supports the SD and MMC memory cards, allowing the memory to be expanded. > Open the protective cap over the slot for the memory card and ensure that the memory card is properly inserted. Important note! Do not remove the card while the device is reading-in the data from the memory card into the device memory. -
Page 27: Connecting To The Computer
Connecting to the computer Use the USB cable to connect to the computer. If the connection was made properly, the "Ready" message appears on the screen. You can now down- load electronic files and music files from the computer or load them onto the PC. -
Page 28: Reset
Reset Reset - resetting > If the device cannot be operated or does not function normally (e.g. it cannot be switched on), press the "Reset" key to reset the device's software. -
Page 29: Video Conversion
Converting video files Open the supplied CD-ROM and copy the "Video Converting Tool" folder and paste the copied folder onto the hard-drive under C:\Program\ (does not have to be installed). To start the conversion software, double-click on the Video2smv.exe file in this folder. Click on "Input Video"... - Page 30 Converting video files > Click on "Dimension" in order to determine the size of the video image of the output. (Full image 128 x 128 =maximum resolution) > You can click on "Full Image" or on "Full Screen.". We recommend the "Full Image"...
-
Page 31: Troubleshooting Help
Troubleshooting help If the device does not function normally, first try to find the source of the fault using this list. It is possible that the problem can be cleared quite easily Problem Possible cause Solution Keys do not respond Keys in hold mode Switch off hold mode No VHF reception...
